Lenovo TS-140 Proxmox PCI-Passthrough.

[realfolkblues]

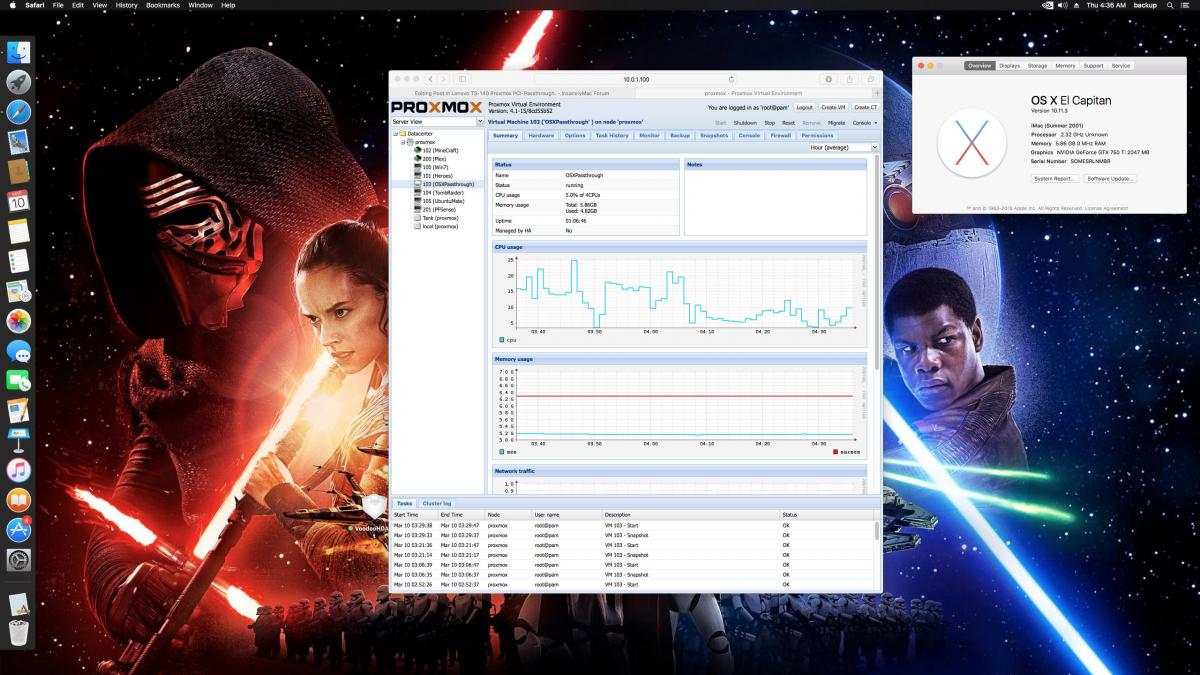

I'm grateful too the community for making this possible so I wanted to give back. Here is some info about my VM build.

OSX 10.11.3 El Capitan

Proxmox 4.1

Using ZFS for guests. Allows easy snapshot/rollback. Great if my hack VM crashes for some reason.

Running on Lenovo TS-140 Xeon.

Geforce GTX750TI MSI (Nvidia Official driver in guest)

On board sound(VoodoHDA).



Following is VM conf. The device id's are my GTX750, Onboard audio, and usb keyboard/mouse. You would need to replace them with your own ID's if trying to replicate. You would also need to download enoch_r2795 and extract the boot file using pacific for mac.

args: -machine q35 -device isa-applesmc,osk="ourhardworkbythesewordsguardedpleasedontsteal(c)AppleComputerInc" -kernel /tank/vm/enoch_r2795 -smbios type=2 -readconfig /tank/vm/pve-q35-osx.cfg -device vfio-pci,host=01:00.0,x-vga=on -device vfio-pci,host=01:00.1 -device vfio-pci,host=00:1b.0 -vga none -usb -usbdevice host:04d9:0132 -usbdevice host:045e:00cb
bootdisk: ide0
cores: 4
cpu: core2duo
ide0: Tank:vm-103-disk-1,cache=writeback,size=32G
memory: 6000
name: OSXPassthrough
net0: e1000-82545em=36:31:62:36:30:37
numa: 1
ostype: other
smbios1: uuid=cc892184-b29d-4193-8f8f-378ba36c538a
sockets: 1

Here is the org.chamelon.boot.plist

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN"
"http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
    <key>Timeout</key>
    <string>2</string>
    <key>EthernetBuiltIn</key>
    <string>Yes</string>
    <key>PCIRootUID</key>
    <string>1</string>
    <key>KernelBooter_kexts</key>
    <string>Yes</string>
    <key>Kernel Flags</key>
    <string>kext-dev-mode=1 -v nvda_drv=1</string>
    <key>HDAEnabler</key>
    <string>Yes</string>
</dict>

Had to comment out the following in pve-q35.cfg as you can see from the vm conf I made a copy so that I don't edit the original. i.e. pve-q35-osx.cfg

# driver = "ich9-usb-ehci1"
# multifunction = "on"
# bus = "pcie.0"
# addr = "1d.7"

#[device "uhci-1"]
# driver = "ich9-usb-uhci1"
# multifunction = "on"
# bus = "pcie.0"
# addr = "1d.0"
# masterbus = "ehci.0"
# firstport = "0"

#[device "uhci-2"]
# driver = "ich9-usb-uhci2"
# multifunction = "on"
# bus = "pcie.0"
# addr = "1d.1"
# masterbus = "ehci.0"
# firstport = "2"

#[device "uhci-3"]
# driver = "ich9-usb-uhci3"
# multifunction = "on"
# bus = "pcie.0"
# addr = "1d.2"
# masterbus = "ehci.0"
# firstport = "4"

#[device "pci.1"]
# driver = "pci-bridge"
# bus = "pcidmi"
# addr = "2.0"
# chassis_nr = "2"

#[device "pci.2"]
# driver = "pci-bridge"
# bus = "pcidmi"
# addr = "3.0"
# chassis_nr = "3"

most of the other small details can be found here https://forum.proxmox.com/threads/mini-howto-running-mac-os-x-10-9-under-proxmox-3-3.19722/
