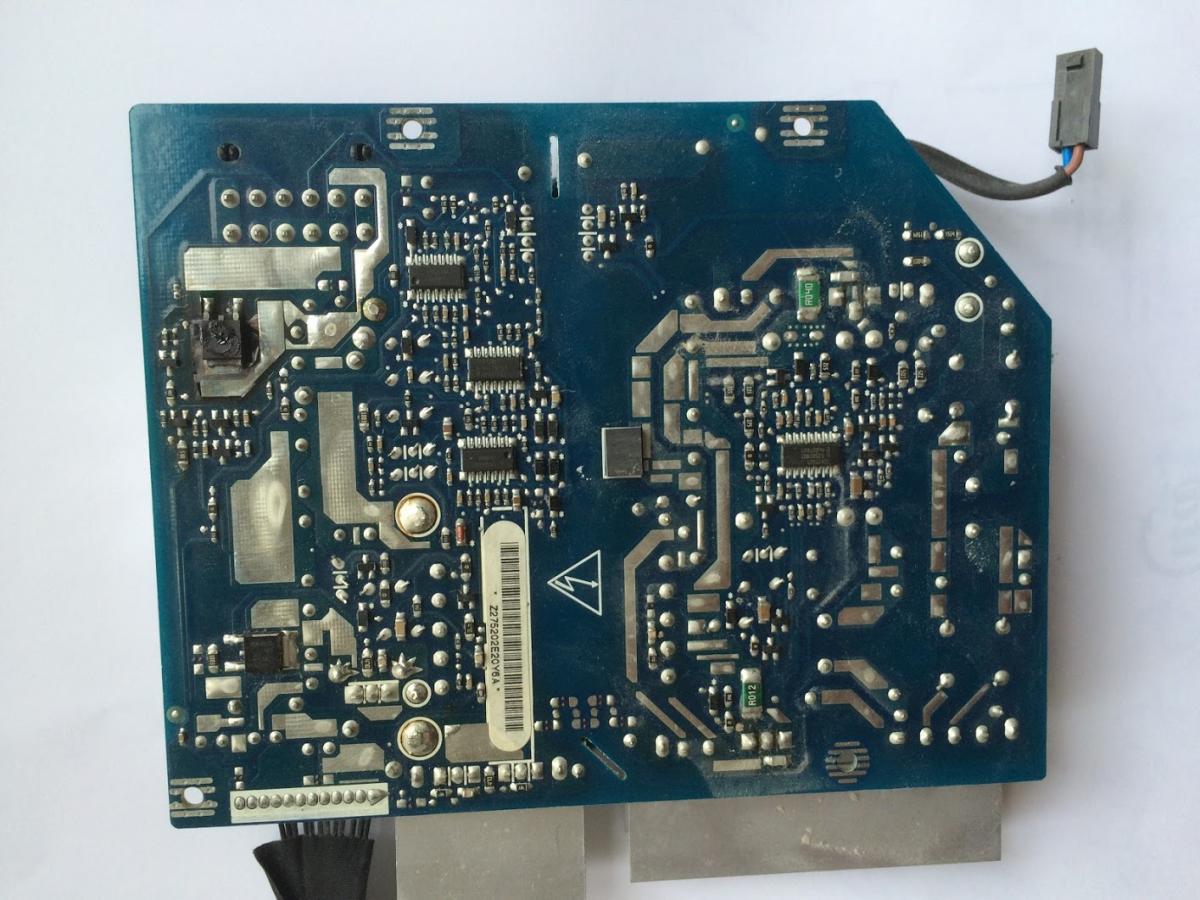

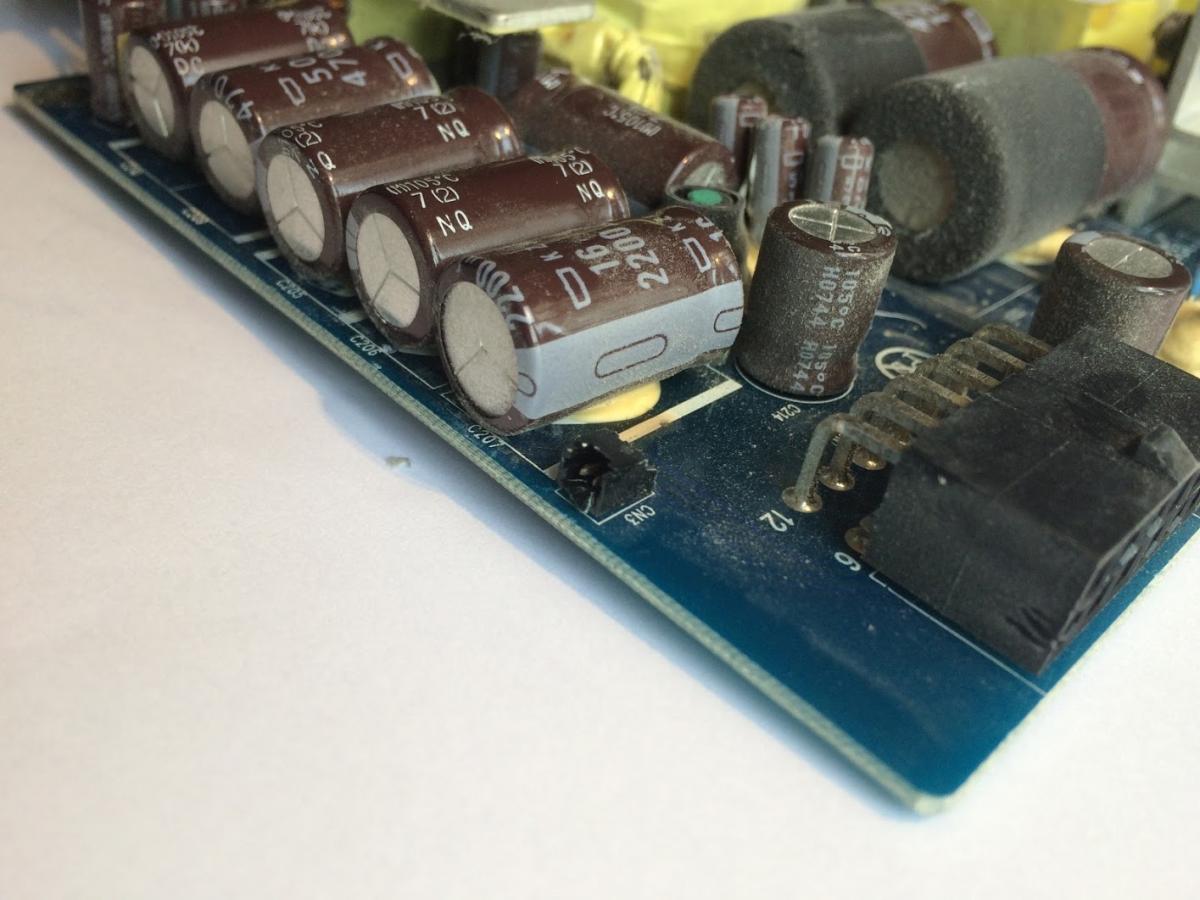

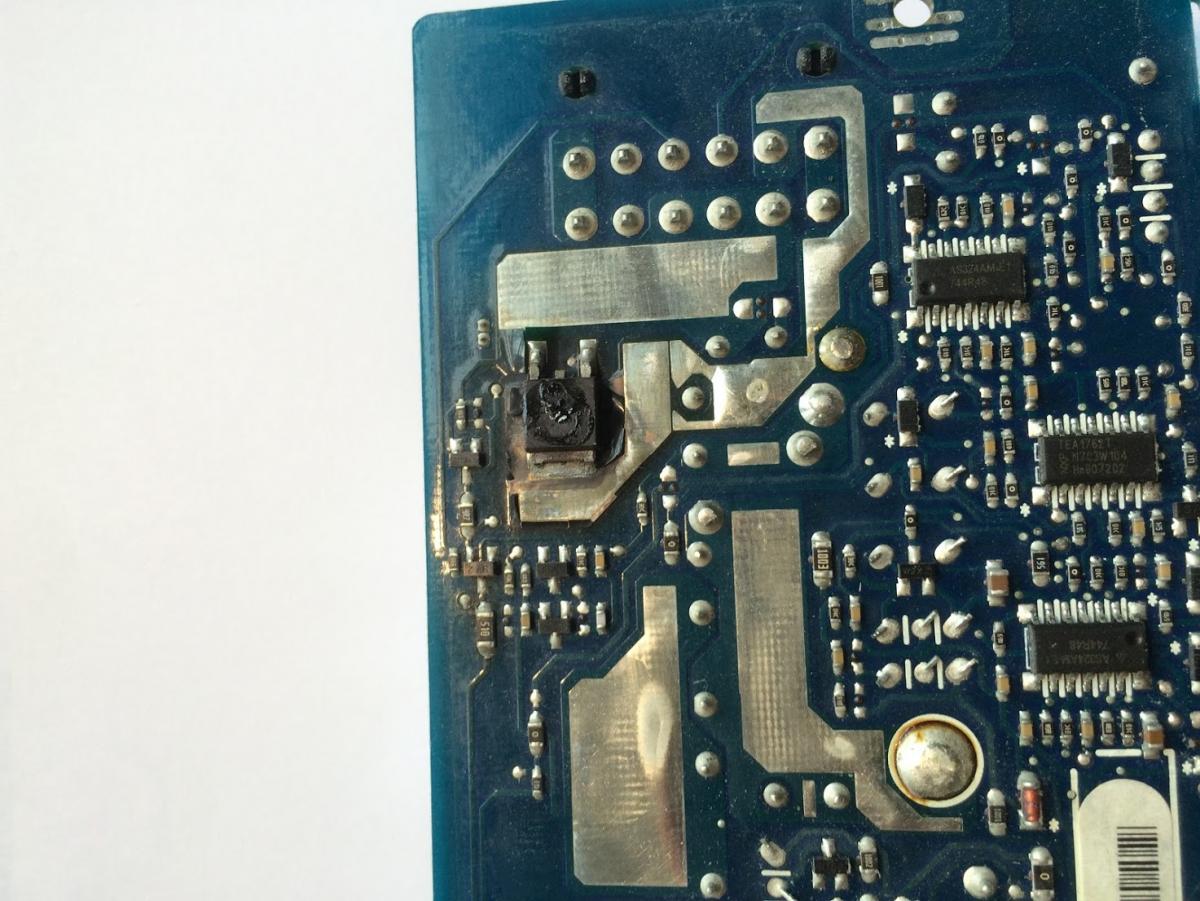

majorsun Posted January 18, 2016 Share Posted January 18, 2016 I have a 2007 24''imac that does not respond to power button pushes (Black screen, no chime, no nothing). From the threads in the forum and online, that usually suggests two possibilities: power, or video card. I took out the power board, and there is a burnt area as shown in the photos. Does it look like normal wear-and-tear, since this is the component that handles lot of heat (which means I will have to continue to find a way to test the video card)? Or, it is surely a dead board. Right now I don't have any replacement on hand to test. So I will need to decide wether to buy a power board (~$100), or a video card (>$150), or just throw the whole thing to ebay? Thanks Qi Link to comment Share on other sites More sharing options...
lucaspeed Posted January 18, 2016 Share Posted January 18, 2016 Looks like you had a current spike. Did you have your iMac plugged into a UPS? Or into a current stabilizer? I have an identical iMac with logic board dead but functioning power supply, video card, etc., I can sell you the power supply for less of that sum if you want but I have to arrange the shipping and I don't know how much it will cost. Where in the world are you? Link to comment Share on other sites More sharing options...
majorsun Posted January 19, 2016 Author Share Posted January 19, 2016 Unfortunately, it was plugged directly to the wall :-/ I am in California, US. So yes, if it is not big trouble for you and the shipping cost makes sense, I'd like to have that power board :-) Feel free to check out the shipping and the amount you prefer. I will pay you by paypal if it works out. Thanks Qi Link to comment Share on other sites More sharing options...
majorsun Posted January 20, 2016 Author Share Posted January 20, 2016 BTW, is it possible to just put on a power supply board for 27'' iMac? The form factor seems to be the same, and capacity is higher. The only thing unsure is the 27'' does not have the one-pin connector.... Link to comment Share on other sites More sharing options...
