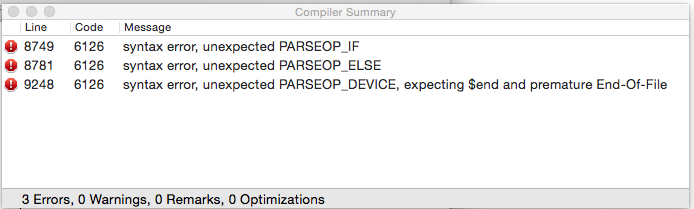

mac.hp.pc Posted March 26, 2015 Share Posted March 26, 2015 Hi The title says it all. I was wondering how can i apply my SSDT. I think it is fine but know if it is going to work. I have Intel I5 540M. I have a DSDT that said i have some error and are in the screen shot. I compile both SSDT and DSDT with MaciASL Also I was wondering if it is possible to fix the battery status icon since it couldn't detect the battery? I tried numberous kext like VoodooBattery and AppleSmartBatteryManager and they don't work anyone in Mac OS X 10.10 DSDT and SSDT.zip Link to comment https://www.insanelymac.com/forum/topic/305325-ssdt-and-dsdt-help/ Share on other sites More sharing options...
carbo178 Posted March 26, 2015 Share Posted March 26, 2015 What's manufacturer/model of your laptop? If you use MacIasl go to preferences and set ACPI 4.0, then click Update MacIasl Link to comment https://www.insanelymac.com/forum/topic/305325-ssdt-and-dsdt-help/#findComment-2123442 Share on other sites More sharing options...
WaldMeister Posted March 26, 2015 Share Posted March 26, 2015 Hi, Errors in the DSDT are fixed. For the battery you need to patch the EC section of the DSDT and use ACPIBatteryManager. Google: [Guide] How to patch DSDT for working battery status DSDT and SSDT.zip Link to comment https://www.insanelymac.com/forum/topic/305325-ssdt-and-dsdt-help/#findComment-2123445 Share on other sites More sharing options...
mac.hp.pc Posted March 27, 2015 Author Share Posted March 27, 2015 I tied patching the dsdt but it is not working. I just don't know how to patch it properly. All i know is DSDT make the laptop function much better and SSDT is there to correct the cpu speed. It is a HP DV6-2155 Intel I5 540m Nvidia GT 230m 8 gb of ram Sound: IDT 92HD75B3 @ Intel Ibex Peak PCH - High Definition Audio Controller [111D-7603] Ethernet: Realtek RTL8168D/8111D PCI-E Gigabit [10EC-8168]Wireless: Broadcom 43224AG 802.11a/b/g/draft-n [14E4-4353] BTW, i added a another wifi card that i cant remember. It is as apple brand wifi card that i bought so it will work without problem After the booting, the DSDT.aml is not working. Why is making DSDT soo god dman hard and confussing. Link to comment https://www.insanelymac.com/forum/topic/305325-ssdt-and-dsdt-help/#findComment-2123627 Share on other sites More sharing options...
WaldMeister Posted March 27, 2015 Share Posted March 27, 2015 Default patches (Ivy bridge and 7 series) applied, and i made an attempt to fix the battery. Also included the kext to go with the battery patch. DSDT and SSDT-2.zip Link to comment https://www.insanelymac.com/forum/topic/305325-ssdt-and-dsdt-help/#findComment-2123662 Share on other sites More sharing options...
mac.hp.pc Posted March 27, 2015 Author Share Posted March 27, 2015 No it still could boot :/. I was wondering, i did you use a ivy bridge patch cos my cpus is the first generation i5 so it will not work with third gen cpu patch. I think. Link to comment https://www.insanelymac.com/forum/topic/305325-ssdt-and-dsdt-help/#findComment-2123680 Share on other sites More sharing options...
WaldMeister Posted March 27, 2015 Share Posted March 27, 2015 Hi, Yes i did. Applied the nehalem now. If it is not working, search for 3b09 in the dsdt and change it to the right device. : #ICH7: 27b9#ICH8: 2815 #ICH9: 2916 #ICH10: 3a18 #Nehalem: 3b09 #6 Series: 1c46 #7 Series: 1e44 #8 Series: 8c44 #9 Series: 8cc4 Also, remove the SSDT! Just checked it, it might be generating the error. Let the boot loader generate p-states and c-states for you. If the system boots after that, use https://github.com/Piker-Alpha/ssdtPRGen.sh to generate a SSDT. DSDT.zip Link to comment https://www.insanelymac.com/forum/topic/305325-ssdt-and-dsdt-help/#findComment-2123688 Share on other sites More sharing options...
mac.hp.pc Posted March 28, 2015 Author Share Posted March 28, 2015 The dsdt is not working and I cant find a corresponding code to my system because my proper cpu code name is Westmere(laptop version) and not Nehalem (destop version). Are those codes for the south bridge on the motherboard or the cpu? Link to comment https://www.insanelymac.com/forum/topic/305325-ssdt-and-dsdt-help/#findComment-2123931 Share on other sites More sharing options...
WaldMeister Posted March 28, 2015 Share Posted March 28, 2015 South bridge. I removed the patch. Could you boot in verbose mode and take a photo or something of the output? DSDT.zip Link to comment https://www.insanelymac.com/forum/topic/305325-ssdt-and-dsdt-help/#findComment-2123934 Share on other sites More sharing options...

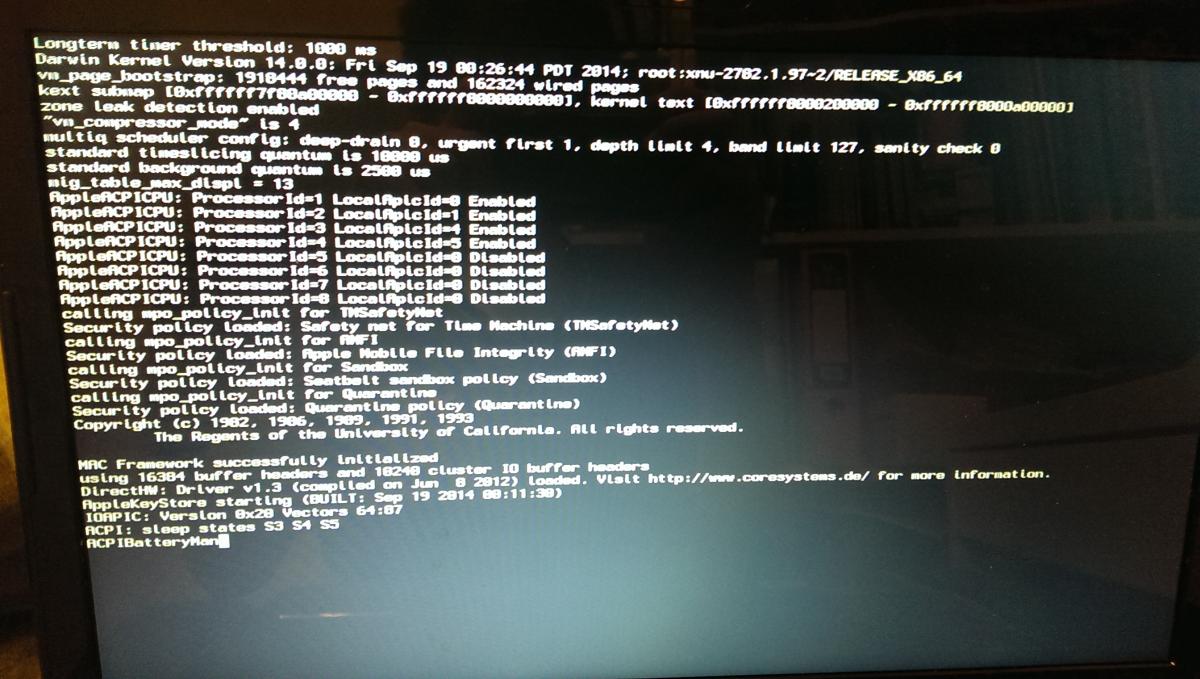

mac.hp.pc Posted March 29, 2015 Author Share Posted March 29, 2015 Here is the screenshot. I suspect my old DSDT is corrupted and i have attached a new DSDT with error fixed and it is 100% bootable. The new DSDT have some remark and warning fixed. DSDT.zip Link to comment https://www.insanelymac.com/forum/topic/305325-ssdt-and-dsdt-help/#findComment-2123978 Share on other sites More sharing options...
