ghost VGA display

[graphine]

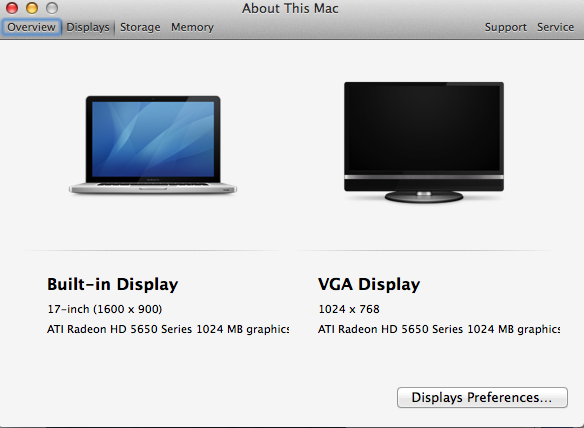

Hi, i'm having problems with my hackintosh showing 2 displays connected.

My video card is http://www.hisdigital.com/us/product2-29.shtml and i'm using dvi to vga adapter.

QE CI works via exotic patch but it's showing me 2 monitors and i have to mirror them.

How can i fix this?

[wrk73]

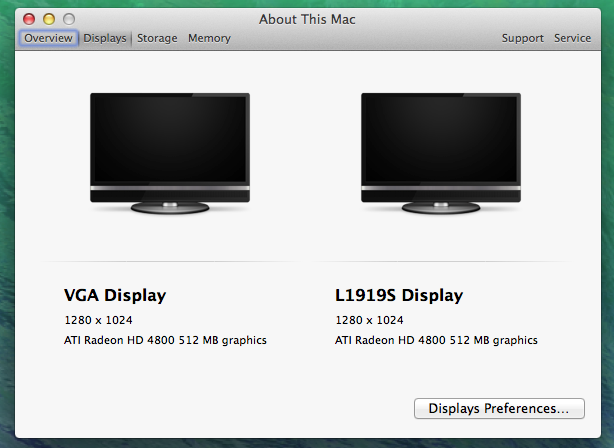

Same here, But I'm using clover with Ati connector patch on Mavericks.



This is my config:

<key>Graphics</key>
	<dict>
		<key>CustomEDID</key>
		<string>00FFFFFFFFFFFF0030E47A020000000000130103802615780AA8C09D58509A261C5054000000010101010101010101010101010101012F2640B860840C30303023007ED710000019000000000000000000000000000000000000000000FE000000004C47446973706C61790A000000FE004C503137335744312D544C433300C2</string>
		<key>FBName</key>
		<string>Hoolock</string>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<true/>
		</dict>
		<key>InjectEDID</key>
		<true/>
		<key>LoadVBios</key>
		<true/>
		<key>PatchVBios</key>
		<false/>
		<key>VideoPorts</key>
		<integer>3</integer>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>ATIConnectorsController</key>
		<string>5000</string>
		<key>ATIConnectorsData</key>
		<string>000400000406000000010000210305010004000004060000000100001102040204000000140200000001000002040103</string>
		<key>ATIConnectorsPatch</key>
		<string>020000004000000009010000100000070008000004060000000100002103010110000000140200000001000002040208</string>
		<key>AppleRTC</key>
		<false/>
		<key>AsusAICPUPM</key>
		<false/>
		<key>Debug</key>
		<false/>
		<key>KernelCpu</key>
		<false/>
		<key>KextsToPatch</key>
		<array/>
	</dict>

Also looking for help...

[fantomas]

hi guys



@ adrian_dsl

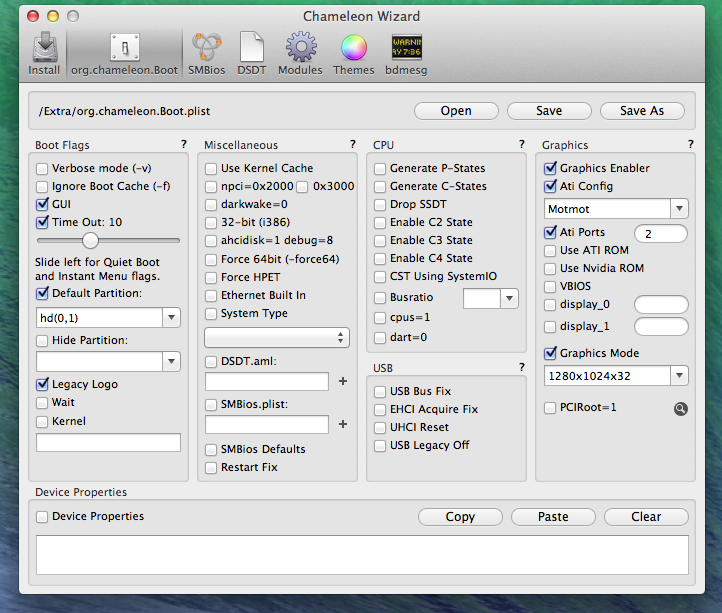

you don't need ATI Config and ATI Ports, MotMot is the default framebuffer for ATI Exotics cards



if you have GraphicsEnabler=No, ghost screen will appear



if you have GraphicsEnabler=Yes and it is still there, then try to switch the cable to the other DVI port





@wrk73



Chameleon's "GraphicsEnabler" is called "GraphicsInjector" in Clover



As Clover does with SMBIOS injection, your device is automatically detected and recognized

by the bootloader

The only thing that you must do is enable "GraphicsInjector" at Clover's Menu Options
and/or add the following entry to your config.plist file

<key>Graphics</key>
<dict>
<key>GraphicsInjector</key>
<string>Yes</string>
</dict>

more infos here: http://www.insanelymac.com/forum/topic/282787-clover-v2-instructions/?do=findComment&comment=1853010
