real_didi Posted May 19, 2013 Share Posted May 19, 2013 Hi. I have dsdt from Aida64 but it comiles only with errors. Please help me to fix that errors. And if possible inject my edid saved from Windows to dsdt. Thanks. acpi_dsdt.bin.zip edid_for_dsdt.txt.zip Link to comment https://www.insanelymac.com/forum/topic/288633-dsdt-for-tohiba-r705/ Share on other sites More sharing options...
iFIRE Posted May 19, 2013 Share Posted May 19, 2013 ok, here your DSDT Patched, put in Extra and reboot, look if work for you, and put your hardware in your signature for support. DSDT Patched.zip 1 Link to comment https://www.insanelymac.com/forum/topic/288633-dsdt-for-tohiba-r705/#findComment-1916275 Share on other sites More sharing options...

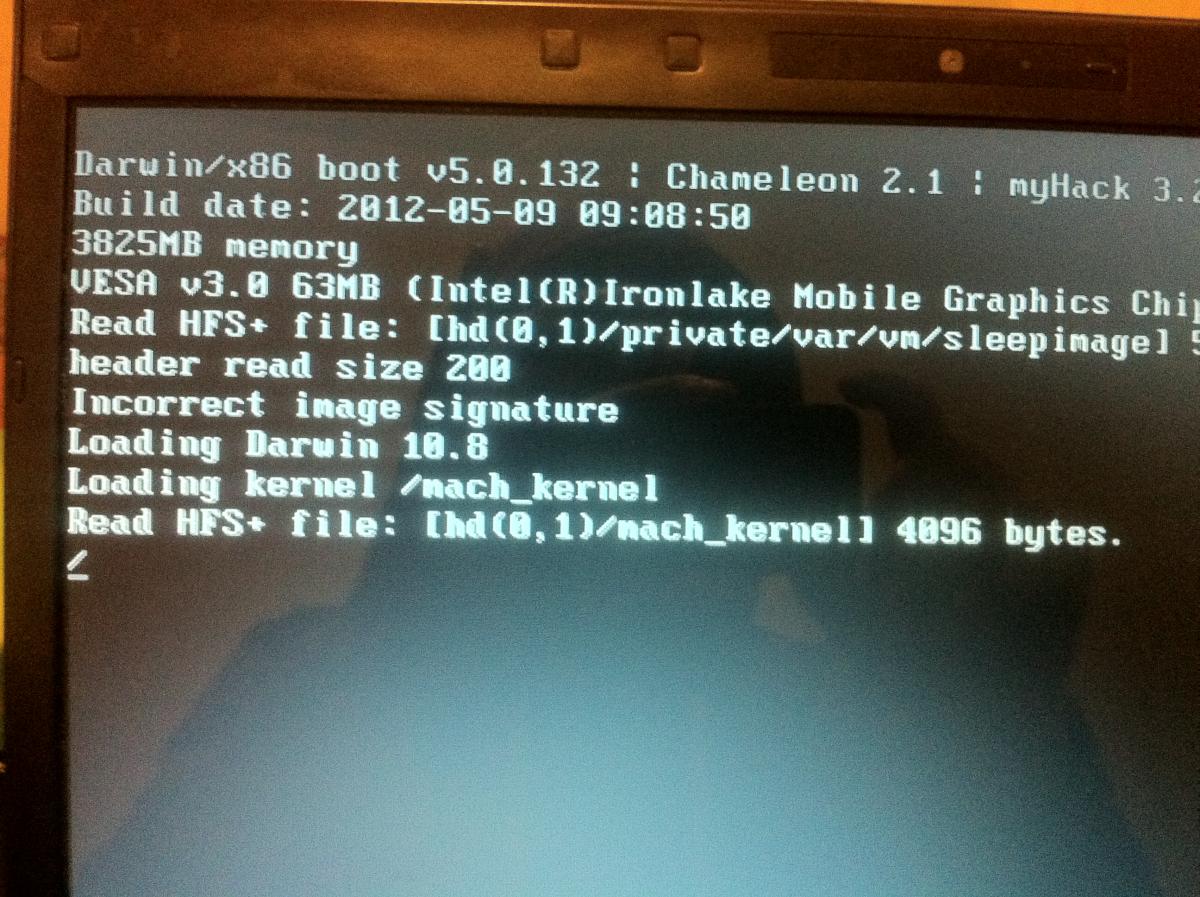

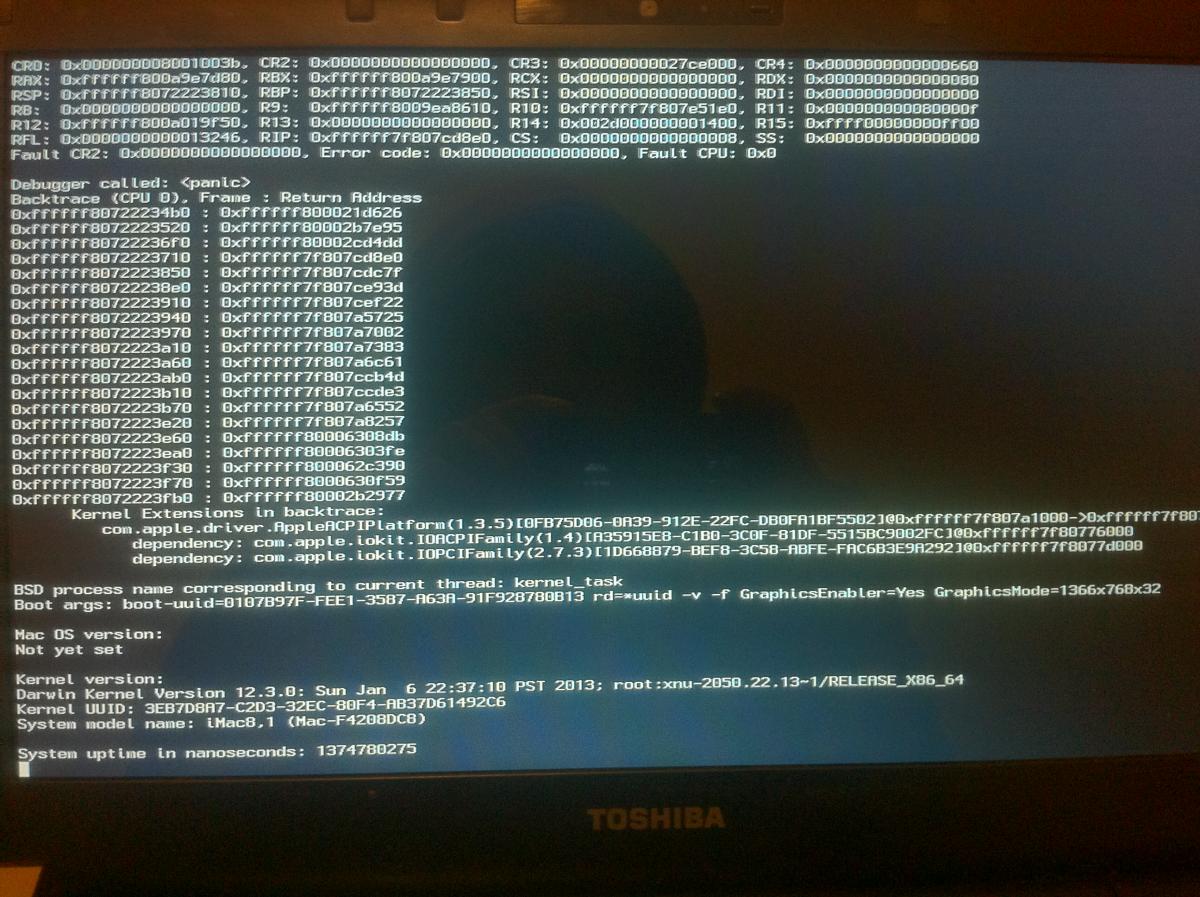

real_didi Posted May 19, 2013 Author Share Posted May 19, 2013 Thank you very much for your time iFIRE. I've dropped that file to /Extra and got kernel panic. First at chameleon starts i got this: (Header size 200 and Incorrect image signature) Boot ends at this: First time i've booted with -v -f flags only. Then tryed npci=0x2000. Link to comment https://www.insanelymac.com/forum/topic/288633-dsdt-for-tohiba-r705/#findComment-1916298 Share on other sites More sharing options...
iFIRE Posted May 19, 2013 Share Posted May 19, 2013 why you use iMac 8,1 smbios? if you have a Laptop, post your Extra folder and a full report with darwin dumper, use this flag for remove your DSDST., flags= DSDT.aml=\aaaaa Link to comment https://www.insanelymac.com/forum/topic/288633-dsdt-for-tohiba-r705/#findComment-1916336 Share on other sites More sharing options...
real_didi Posted May 20, 2013 Author Share Posted May 20, 2013 Recently I installed Chameleon over Clover so I forgot to use old Extra folder from Chameleon. it booted ok without Extra folder at all. The pictures I sent was from boot empty extra folder + dsdt.aml. Now I tried to boot with old extra folder from myHack - same result - kp. Tried to change AppleACPIPlatform.kext from 1.3.5 to 1.7 - same result - kp. SMBIOS now MBP8.1 - same result - kp. With DSDT=\aaaaa all boots ok. The reason i trying to make dsdt is my internal lcd has empty edid and i think thats why i cant use patched kexts for 1st gen intel hd graphics. But after i saw comile errors from extracted dsdt i think maybe not only empty edid is the problem. I've attached extra and DarwinDumper report. Thank you for your help iFIRE Extra.zip DarwinDumper_2.6.5_Chameleon_2.1_ML_root.zip Link to comment https://www.insanelymac.com/forum/topic/288633-dsdt-for-tohiba-r705/#findComment-1916415 Share on other sites More sharing options...
iFIRE Posted May 20, 2013 Share Posted May 20, 2013 ok, I GO reedit your DSDT with minimal patches, then you can test it if work or no 1 Link to comment https://www.insanelymac.com/forum/topic/288633-dsdt-for-tohiba-r705/#findComment-1916417 Share on other sites More sharing options...
iFIRE Posted May 20, 2013 Share Posted May 20, 2013 ok, a edit a new DSDT for you with minimal patches, put in Extra folder, I look tha you have all kexts in Extra/Extensions, in ML install all kexts in S/L/E, if you have used myHack for install it, all kext that you have in Extra/Extensions are installed in the system in the kext my hack.kext/contents/pluguins take a look in it, and install this AppleAHCI.kext for you hard drive IDE MODE, I edit it with correct device id of your hardware. DSDT and kext.zip Link to comment https://www.insanelymac.com/forum/topic/288633-dsdt-for-tohiba-r705/#findComment-1916430 Share on other sites More sharing options...
real_didi Posted May 20, 2013 Author Share Posted May 20, 2013 My internal hard drive is out of work now nad IDE mode is for recovery software. I run my ML system from external usb HDD. I'm sorry if i waste your time for that ide mode kext Ok. I tried new dsdt. Same situation. Tried cpus=1; npci=0x2000 or 0x3000; tried change AppleACPIPlatform.kext to 1.3.5 from my hack and for original 1.7. Same kp. With cpus=1 it turned off after that message. I didn't know if i need to use attached kext since i dont use my internal hdd so i botted in ahci mode without kext. Link to comment https://www.insanelymac.com/forum/topic/288633-dsdt-for-tohiba-r705/#findComment-1916431 Share on other sites More sharing options...
iFIRE Posted May 20, 2013 Share Posted May 20, 2013 I sugest for you that update your bios for the last version and Extract a new DSDT, or don´t use a DSDT, EDIT. You have update your boot loader for the lasted version? Link to comment https://www.insanelymac.com/forum/topic/288633-dsdt-for-tohiba-r705/#findComment-1916434 Share on other sites More sharing options...
real_didi Posted May 20, 2013 Author Share Posted May 20, 2013 Few days ago I've updated my bios to last version. Is it incompatible for Mac OS? EDIT. No. Bootloader is std Chameleon from myHack Link to comment https://www.insanelymac.com/forum/topic/288633-dsdt-for-tohiba-r705/#findComment-1916435 Share on other sites More sharing options...
iFIRE Posted May 20, 2013 Share Posted May 20, 2013 CHAMELEON LASTED:http://www.osx86.net/view/2981-chameleon-2.1svn-r2035.html Chameleon 2.1svn Official PKG Installer & Binaries Link to comment https://www.insanelymac.com/forum/topic/288633-dsdt-for-tohiba-r705/#findComment-1916438 Share on other sites More sharing options...
