luioli Posted May 1, 2013 Share Posted May 1, 2013 buona sera a tutti, vi chiedo gentilmente un aiuto per concludere la mia prima istallazione. ho cercato dappertutto ma ho trovato cose in inglese e pure poco chiare e ho dovuto rifare tutto da capo già diverse volte per i casini che ho combinato Ho istallato osx 10.8 su questo pc (nuovo) proc. i5 3,4 ivy bridge MB GA-Z77-DS3H ram 16gb hd WD 500gb per la scheda video volevo utilizzare la HD4000 del processore ho messo Chameleon 2.1 svn configurazione come MacMini server funziona tutto tranne purtroppo la hd4000 dal resoconto di sistema dice Modello chipset unknown nessun kext caricato su org.chameleon.boot.plist GraphicsEnabler Yes sulla cartella sistema/libreria/extensions ci sono i kext della scheda file://localhost/System/Library/Extensions/AppleIntelHD4000Graphics.kext/ file://localhost/System/Library/Extensions/AppleIntelHD4000GraphicsGA.plugin/ file://localhost/System/Library/Extensions/AppleIntelHD4000GraphicsGLDriver.bundle/ file://localhost/System/Library/Extensions/AppleIntelHD4000GraphicsVADriver.bundle/ file://localhost/System/Library/Extensions/AppleIntelFramebufferCapri.kext/ potreste darmi una soluzione in modo piu semplice possibile visto che sono alle prime armi? grazie mille... luigi Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/ Share on other sites More sharing options...
iFIRE Posted May 1, 2013 Share Posted May 1, 2013 Sony VAIO S 2012 ML Success! (Ivy i5, HD 4000) Intel HD4000 QE/CI Acceleration « Blog Intel HD4000 Inject AAPL,ig-platform-id - Chameleon - InsanelyMac Forum HD 4000 this AND THIS: #2 HD4000 full acceleration for 10.8 / 10.7.5 - Intel - InsanelyMac Forum Video HDMI con Audio su Intel HD4000 Mobile Video HDMI con Audio su Intel HD4000 Mobile - Notebook - InsanelyMac Forum Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1911991 Share on other sites More sharing options...
luioli Posted May 2, 2013 Author Share Posted May 2, 2013 Ho provato a leggere ma di inglese sono una frana, e a fare hackintosh pure... Qualche dritta in italiano? Grazie per la pazienza Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912044 Share on other sites More sharing options...
carbo178 Posted May 2, 2013 Share Posted May 2, 2013 Ciao, installa Enoch 2191, riconoscimento nativo della HD4000 EDIT: settaggio RAM per la grafica integrata nel bios: 32Mb Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912052 Share on other sites More sharing options...
luioli Posted May 2, 2013 Author Share Posted May 2, 2013 Questo e' il risultato: Tipo: GPU Bus: Integrato VRAM (totale): 64 MB di memoria di sistema condivisa Fornitore: Intel (0x8086) ID dispositivo: 0x0162 ID revisione: 0x0009 Informazioni su estensione Kernel: Nessun Kext caricato Monitor: 4] Monitor: 4] Risoluzione: 1920 x 1080 4] Profondità pixel: Colore 32 bit (ARGB8888) 4] Monitor principale: Sì 4] Mirror: Spento 4] Online: Sì ora vado a lavorare ...... poi vediamo penso che cosi non vada giusto? Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912055 Share on other sites More sharing options...
carbo178 Posted May 2, 2013 Share Posted May 2, 2013 Apri org.chameleon.boot.plist con textedit ed aggiungi questa stringa HD4K-ig 5 assicurati che sia presente questa stringa GraphicsEnabler Yes se non c'è aggiungila Metti l'SMBIOS in allegato Riavvia impostando nel bios 32Mb di memoria grafica Posta lo screen come nel post precedente SMBios.plist.zip Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912085 Share on other sites More sharing options...
luioli Posted May 2, 2013 Author Share Posted May 2, 2013 Yesssssssssssss!!!!!!!!! ho messo solo la stinga Graphics.......... e funziona!!!!!!!!! grazie grazie grazie!!!!!! devo mettere anche l'altra? Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912088 Share on other sites More sharing options...
carbo178 Posted May 2, 2013 Share Posted May 2, 2013 Se funziona così non ci sono problemi... Metti [Risolto] al titolo del topic Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912090 Share on other sites More sharing options...
luioli Posted May 2, 2013 Author Share Posted May 2, 2013 {censored}..................... non andava l'audio hdmi e devo aver combinato casini con Enoch, ma non ho ancora riavviato mi puoi dire quali sono le opzioni da spuntare nella modalita' standard? cosi provo a reinstallarlo prima di spegnere? Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912095 Share on other sites More sharing options...

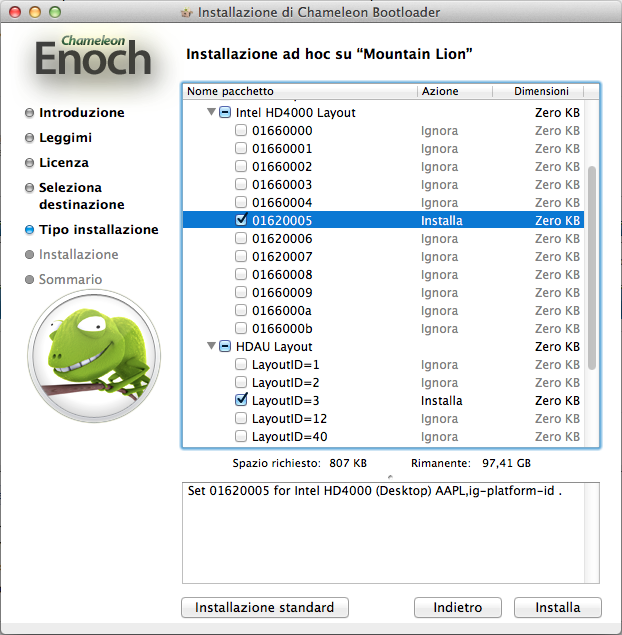

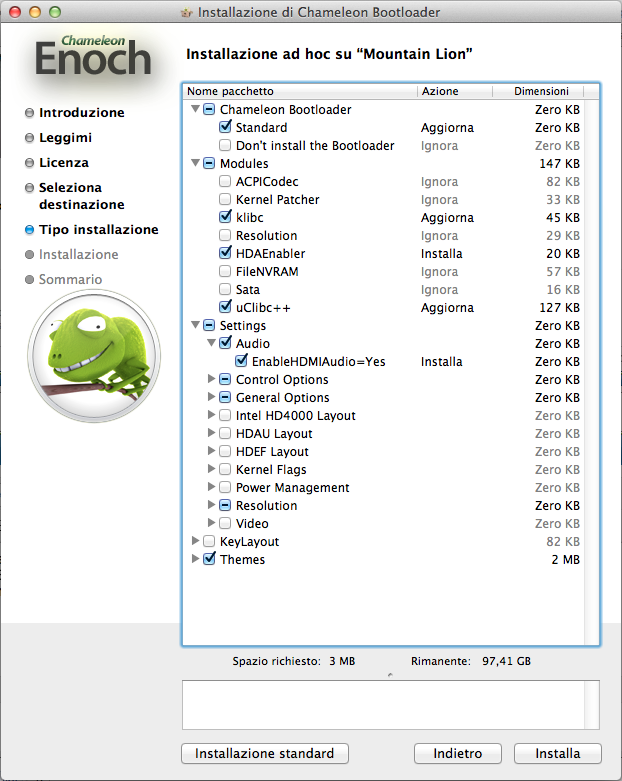

carbo178 Posted May 2, 2013 Share Posted May 2, 2013 Per abilitare l'audio HDMI servono i moduli per HDA e la stringa EnableHDMIAudio Yes ma con un altro utente abbiamo difficoltà a farlo funzionare... Se è necessario proviamo, altrimenti vai con l'audio alc887 della mobo Installa con queste opzioni, spunta anche graphics enabler Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912098 Share on other sites More sharing options...
luioli Posted May 2, 2013 Author Share Posted May 2, 2013 ecco come e' ora o.c.b.p. <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>Default Partition</key> <string>hd(0,2)</string> <key>EnableHDMIAudio</key> <string>Yes</string> <key>Graphics Mode</key> <string>1920x1080x32</string> <key>GraphicsEnabler</key> <string>Yes</string> <key>Kernel Flags</key> <string>darkwake=0</string> <key>Theme</key> <string>Blackosx_Product_Box</string> <key>Timeout</key> <string>2</string> </dict> </plist> control option e general option ? mi sembra siano spuntate in parte nelle tue immagini..... io invece li avevo tolti completamente, per sbaglio ( forse) Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912105 Share on other sites More sharing options...
carbo178 Posted May 2, 2013 Share Posted May 2, 2013 Ok, va bene così, metti SMBIOS in allegato al post #6 Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912115 Share on other sites More sharing options...
luioli Posted May 2, 2013 Author Share Posted May 2, 2013 fatto.... ho riavviato e a grandi linee tutto ok, però ora lo schermo non si vedono piu i bordi, esempio la barra sopra ne manca mezza audio hdmi no.... ma ora vado a lavorare , se ne parla questa sera grazie di tutto Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912135 Share on other sites More sharing options...
carbo178 Posted May 2, 2013 Share Posted May 2, 2013 Comprimi e metti in allegato ocbp Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912144 Share on other sites More sharing options...
luioli Posted May 2, 2013 Author Share Posted May 2, 2013 Il problema del monitor e' sparito miracolosamente , la barra del monitor underscan ora funziona e e' tutto a posto mentre per audio hdmi nulla..... non so come si allegano i file ho fatto copia incolla del ocbp attuale <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>Default Partition</key> <string>hd(0,2)</string> <key>EnableHDMIAudio</key> <string>Yes</string> <key>Graphics Mode</key> <string>1920x1080x32</string> <key>GraphicsEnabler</key> <string>Yes</string> <key>Kernel Flags</key> <string>darkwake=0</string> <key>Theme</key> <string>Blackosx_Product_Box</string> <key>Timeout</key> <string>2</string> </dict> </plist> Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912207 Share on other sites More sharing options...
carbo178 Posted May 2, 2013 Share Posted May 2, 2013 Aggiungi queste due stringhe HD4K-ig 5 HDAULayoutID 03000000 Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912212 Share on other sites More sharing options...
luioli Posted May 2, 2013 Author Share Posted May 2, 2013 ecco ho capito come si allegano i file. cosi evito di fare casini! :wink2: org.chameleon.Boot.plist.zip Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912262 Share on other sites More sharing options...
carbo178 Posted May 3, 2013 Share Posted May 3, 2013 Bene, prova questo org.chameleon.Boot.plist.zip Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912310 Share on other sites More sharing options...
luioli Posted May 3, 2013 Author Share Posted May 3, 2013 grazie! appena sono a casa provo Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912323 Share on other sites More sharing options...
luioli Posted May 3, 2013 Author Share Posted May 3, 2013 Fatto. e ora cosa dovrebbe succedere? perche' su preferenze di sistema/audio e' rimasto tutto come prima su configurazione Midi vedi sotto midi.zip Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912347 Share on other sites More sharing options...
carbo178 Posted May 3, 2013 Share Posted May 3, 2013 Hai HDAEnabler.dylib nella cartella modules? Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912353 Share on other sites More sharing options...
luioli Posted May 3, 2013 Author Share Posted May 3, 2013 yesssss Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912365 Share on other sites More sharing options...
carbo178 Posted May 3, 2013 Share Posted May 3, 2013 Proviamo un'altra strada, metti ocbp in allegato, elimina il modulo HDAEnabler ed installa i kext della cartella allegata (usa kext wizard) ALC887.zip org.chameleon.Boot.plist.zip Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912366 Share on other sites More sharing options...
luioli Posted May 3, 2013 Author Share Posted May 3, 2013 alc887 su extra o su s/l/extensions ? Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912367 Share on other sites More sharing options...
carbo178 Posted May 3, 2013 Share Posted May 3, 2013 S/L/E Link to comment https://www.insanelymac.com/forum/topic/288279-problema-hd4000-su-ga-z77-ds3h/#findComment-1912370 Share on other sites More sharing options...
