Kosta88 Posted April 11, 2013 Author Share Posted April 11, 2013 Whoa, there is some stuff to do here... FW update? DSDT edit... FW update can't be done under OSX? Link to comment Share on other sites More sharing options...
k3nny Posted April 11, 2013 Share Posted April 11, 2013 Try the drivers first, without the firmware update and without the DSDT edit. Link to comment Share on other sites More sharing options...
Kosta88 Posted April 11, 2013 Author Share Posted April 11, 2013 Yeah, that is what I had previously! I only edited the HCI for the correct vendor and device id. Link to comment Share on other sites More sharing options...
k3nny Posted April 11, 2013 Share Posted April 11, 2013 Then you should decide if you want to do the firmware update. You will need Windows to start it. The DSDT edit just fixes an automatic waking issue. Link to comment Share on other sites More sharing options...
Kosta88 Posted April 11, 2013 Author Share Posted April 11, 2013 OK, this firmware, will it impact how it works under Windows? Is this just the original FW update available from ASUS? Or has it been modified? Link to comment Share on other sites More sharing options...
k3nny Posted April 11, 2013 Share Posted April 11, 2013 Of course it will but I didn't find any change log. I can't tell you where it comes from but it should be from Asus, according to http://www.station-drivers.com/page/asmedia.htm . Link to comment Share on other sites More sharing options...
Kosta88 Posted April 11, 2013 Author Share Posted April 11, 2013 I found a thread on tonymac that people just updated to FW 1.00.05 from Asus directly, and got it to work, only problem was the wake, and this is what you fixed with the DSDT. But like you said, you found this, and the modified date is different than the one from Asus. I'm thinking of just not updating these, as I 1) barely use these ports 2) have to change it to something unofficial and unknown Link to comment Share on other sites More sharing options...
k3nny Posted April 11, 2013 Share Posted April 11, 2013 That's fine. You can also disable these ports in your BIOS if you don't need them. Link to comment Share on other sites More sharing options...
Kosta88 Posted April 11, 2013 Author Share Posted April 11, 2013 Another little issue: I have the orange icons on two drives. I read there are more solutions, but I would really prefer doing this via DSDT. The injector proposed breaks hot-swapping, which is kind of a no-go for me, since I have like 6 external disks and a bay. There is an option to change the icons, but this is also halfway solution as they look like external drives in the Finder. Finally, I found AHCI SATA Orange icon.txt on olarila.com, containing this: # Change ID of SATA device to fake ESB2 AHCI (silver icons for internal HDs instead of orange ones) # into method label _DSM parent_adr 0x001F0002 remove_entry; into device name_adr 0x001F0002 insert begin Method (_DSM, 4, NotSerialized)\n {\n Store (Package (0x02)\n {\n "device-id", \n Buffer (0x04)\n {\n 0x81, 0x26, 0x00, 0x00\n }\n }, Local0)\n DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n Return (Local0)\n } end I guess this is because those two drives run off the ASMedia 1061 controller and OSX doesn't recognize it, and calls it Unknown AHCI Standard Controller. So, I inserted this into my dsdt, still no go however, they are still orange. I have a feeling I'm doing something wrong ;-) Link to comment Share on other sites More sharing options...
k3nny Posted April 11, 2013 Share Posted April 11, 2013 I don't know much about this issue and haven't been able to find a universal fix for it right now. You could just replace the icon for each affected drive? Can you post your ioreg and lspci output from DarwinDumper (not System Info)? Just want to compare our systems. Link to comment Share on other sites More sharing options...
Kosta88 Posted April 11, 2013 Author Share Posted April 11, 2013 Sure, if you would please post a more detailed info what you want. I got ioreg open... Link to comment Share on other sites More sharing options...
k3nny Posted April 11, 2013 Share Posted April 11, 2013 A full dump of your ioreg would be great (File -> Save As...) and from DarwinDumper I would need just the LSPCI part. Thanks. Link to comment Share on other sites More sharing options...
Kosta88 Posted April 11, 2013 Author Share Posted April 11, 2013 Here you go. EDIT: The question still to that dsdt edit for orange icons... there is device-id in there. Maybe that has to be substituted for real device-id of the hdd? How do I find the HD device-id? Archive.zip Link to comment Share on other sites More sharing options...
k3nny Posted April 11, 2013 Share Posted April 11, 2013 You should not drop your existing SSDT tables. Attach a new ioreg while booted without dropping them. Link to comment Share on other sites More sharing options...
Kosta88 Posted April 11, 2013 Author Share Posted April 11, 2013 Huh what? I have a custom SSDT.aml in extras. Link to comment Share on other sites More sharing options...
k3nny Posted April 11, 2013 Share Posted April 11, 2013 Your boot loader is set to drop your OEM SSDT tables which is not necessary and maybe even bad. Among other things they contain some information about your SATA ports. You should turn off that option. Link to comment Share on other sites More sharing options...
Kosta88 Posted April 11, 2013 Author Share Posted April 11, 2013 Oh damn. I thought that was something completely different! Std by... There we go. New, Drop SSDT removed. Btw. should I activate Generate C and/or P states? Archive.zip Link to comment Share on other sites More sharing options...
k3nny Posted April 11, 2013 Share Posted April 11, 2013 No, you already supply a custom SSDT file for your boot loader. Have you really overclocked your CPU to 4,8GHz? If not I believe you use a wrong state table. Use this script to generate one for your CPU. According to your new ioreg all drives are marked as internal. Are you sure you still got the wrong icons? Link to comment Share on other sites More sharing options...
Kosta88 Posted April 11, 2013 Author Share Posted April 11, 2013 No, you already supply a custom SSDT file for your boot loader. Have you really overclocked your CPU to 4,8GHz? If not I believe you use a wrong state table. Use this script to generate one for your CPU. According to your new ioreg all drives are marked as internal. Are you sure you still got the wrong icons? Hehe, yeah really running 4.8 and the ssdt is created through that script. Funny what you say about the drives... Can you tell me how do you read that out exactly? Link to comment Share on other sites More sharing options...

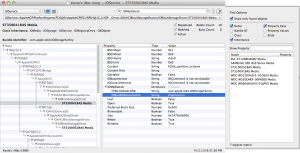

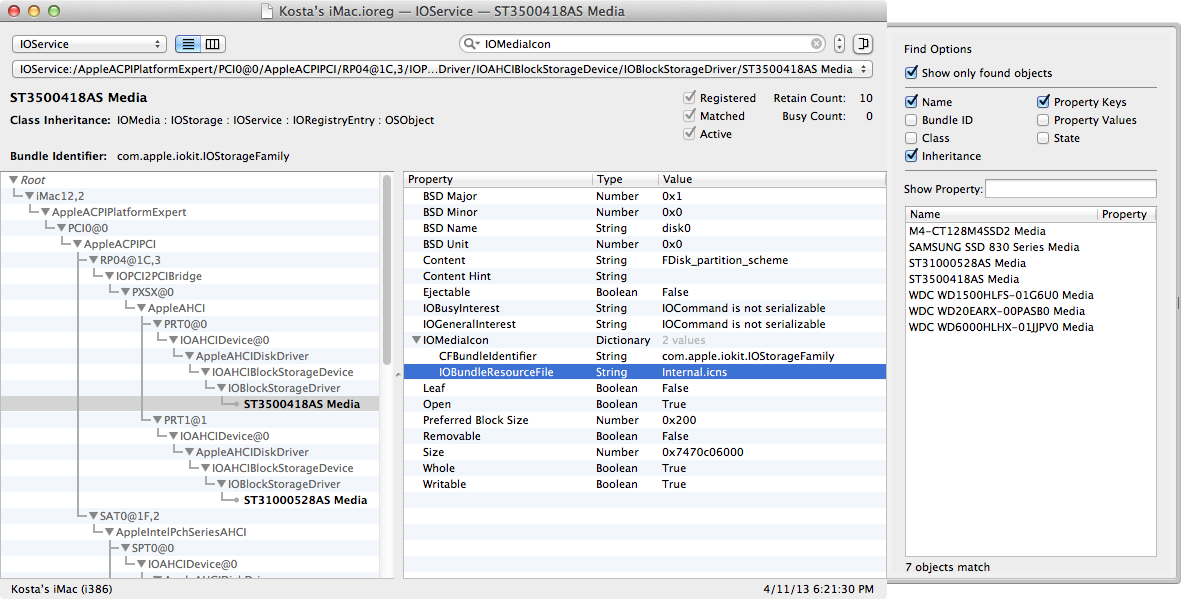

k3nny Posted April 11, 2013 Share Posted April 11, 2013 Take a look at the IORegistryExplorer. Open device path PCI0-RP04-PXSX. That's your ASMedia SATA controller with 2 ports PRT0 and PRT1. Expand both until you can see the hard drive product name and click it. On the right side you will see a property named IOMediaIcon which will either point to an "Internal.icns" or an "External.icns" icon file. The Intel SATA ports are at PCI0-SAT0 and range from SPT0 to SPT5. The first ioreg dump you sent me showed external icons for the ASMedia chipset but the last one shows that internal icons are used. Link to comment Share on other sites More sharing options...
Kosta88 Posted April 11, 2013 Author Share Posted April 11, 2013 Well, I don't know really any more. I was test-installing today, the thing you helped me with, I was in a fresh install of OSX. However, I might have in the middle of testing installed the AHCI 3rd party drivers from MB, which actually solve the issue, making drives internal. Hot-swapping is killed however, and this is what I was trying to avoid. I am now back in my "old" install, I just used Acronis boot USB to switch back, I do that a lot ;-) Takes all about 20min... I just checked in my "old" install, the icons are internal when drivers kext is installed, they go external when I remove it. Also when I install the olarila patch into dsdt, one drive gets a normal icon, but the other two are still orange. All in all, very weird. I might just as well do a full normal install soon, now that I'm almost done with all the tests. Link to comment Share on other sites More sharing options...
Kosta88 Posted April 12, 2013 Author Share Posted April 12, 2013 k3nny, I just wanted to express you my sincere thanks for hanging out with me here yesterday, I'm finally starting to understand some stuff, especially when it comes to editing DSDT and why, I don't AT ALL grasp what is in there, like what all those "signs" are, but I do get it so I can make my next endeavor: http://rampagedev.wo...rd-into-a-dsdt/ And now I really have a vanilla OSX, which is cool, leaving all those "tools" behind. I like it, having control over it, on my own. 3 Link to comment Share on other sites More sharing options...
Kosta88 Posted April 12, 2013 Author Share Posted April 12, 2013 So, I did attempt to modify it, I successfully modified, but it isn't working. Anyone here tested this? I even have the same gpu as he does in these tests, the gtx 580... Link to comment Share on other sites More sharing options...
