Dmasterz Posted March 2, 2013 Share Posted March 2, 2013 OK first the Tech Details: ALC888s ( Im 90% Sure ) Realtek Intel High Definition Audio (293e:8086) I've tried every appleHDA kext even tried editing them.. no success at all… Even DSDT (Attached)… This bit confuses me a little at the moment not sure if I've done it right. I'm using VoodooHDA 2.8.2 r86 32_64bit (attached kext) at the moment and inputs outputs work, not sure on HDMI though, but there is a major Larsen Effect that i can't get rid of… can anyone shed any light on my situation?? would be greatly appreciated dsdt and kext.zip Link to comment https://www.insanelymac.com/forum/topic/286763-alc888s-aspire-7736g-help-almost-works/ Share on other sites More sharing options...
iFIRE Posted March 2, 2013 Share Posted March 2, 2013 ok, first hi or hello!!!!! this is basic vocabulary in a Public Forum when you need help, then your can explain your problem 1 Link to comment https://www.insanelymac.com/forum/topic/286763-alc888s-aspire-7736g-help-almost-works/#findComment-1893566 Share on other sites More sharing options...
WaldMeister Posted March 2, 2013 Share Posted March 2, 2013 Hi. 0x0C, 0x00, 0x00, 0x00 That is what could have gone wrong, it has to match the layout id. Can you upload your edited AppleHDA, and codec extracted from linux? Also, please take a look at the posting guidelines: http://www.insanelym...tion=boardrules ][/b]Please remember that you are in a public forum, a bit of courtesy is always welcome . It's always nice to start by saying "Hi" or "Hello" before asking a question or seeking help. Link to comment https://www.insanelymac.com/forum/topic/286763-alc888s-aspire-7736g-help-almost-works/#findComment-1893567 Share on other sites More sharing options...
Dmasterz Posted March 2, 2013 Author Share Posted March 2, 2013 hey sorry i copied out of text edit and this is what should have been at the start... Aspire 7736G Mountain lion Almost There... Would Really Appreciate Some Input. Hey Guys Thanks for having me here. First post here but i've been around these forums for a while soaking up all the excellent info.. (or try my hardest at least). but there comes i time and i hate to say it where i need help… so here goes. iFire: Again sorry for that... if i had noticed it would have been rectified. Lejenk: Ill Fire up linux and do that just now and post them.. again guys sorry and thank you I cant seem to get any info on the audio codec in linux but in windows Realtek Audio Manager it shows as Realtek ALC888s... I'm Using VoodooHDA at the moment with no appleHDA kexts as its the only thing iv got close to working... shall i uninstall voodooHDA and Install Mountain Lion appleHDA again?? thanks for the help... Link to comment https://www.insanelymac.com/forum/topic/286763-alc888s-aspire-7736g-help-almost-works/#findComment-1893572 Share on other sites More sharing options...
WaldMeister Posted March 2, 2013 Share Posted March 2, 2013 http://www.insanelymac.com/forum/topic/283754-patched-applehdakext-for-codecs-idt-92hd81b1x5-idt-92hd91bxx/#entry1861876 Show spoiler 1 Link to comment https://www.insanelymac.com/forum/topic/286763-alc888s-aspire-7736g-help-almost-works/#findComment-1893584 Share on other sites More sharing options...
Dmasterz Posted March 2, 2013 Author Share Posted March 2, 2013 ok i think i got it... attached is my codec dump.. followed steps from spoiler... thanks again Lejenk codec_dump.txt Link to comment https://www.insanelymac.com/forum/topic/286763-alc888s-aspire-7736g-help-almost-works/#findComment-1893610 Share on other sites More sharing options...
WaldMeister Posted March 2, 2013 Share Posted March 2, 2013 Codec: LSI ID 1040 Address: 1 MFG Function Id: 0x2 (unsol 1) Vendor Id: 0x11c11040 Subsystem Id: 0x11c10001 Revision Id: 0x100200 Modem Function Group: 0x1 Something went wrong. Try the other sollution in that post, if you tried 0, try 1. This is modem info (Googled it). I'm clueless at the moment :/ Example of what it should look like: Codec: Realtek ALC885 Address: 0 Vendor Id: 0x10ec0885 Subsystem Id: 0x1458a002 Revision Id: 0x100101 No Modem Function Group found Default PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Default Amp-In caps: N/A Default Amp-Out caps: N/A GPIO: io=2, o=0, i=0, unsolicited=1, wake=0 IO[0]: enable=0, dir=0, wake=0, sticky=0, data=0 IO[1]: enable=0, dir=0, wake=0, sticky=0, data=0 Node 0x02 [Audio Output] wcaps 0x11: Stereo Converter: stream=0, channel=0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Node 0x03 [Audio Output] wcaps 0x11: Stereo Converter: stream=0, channel=0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Node 0x04 [Audio Output] wcaps 0x11: Stereo Converter: stream=0, channel=0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Node 0x05 [Audio Output] wcaps 0x11: Stereo Converter: stream=0, channel=0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Node 0x06 [Audio Output] wcaps 0x211: Stereo Digital Converter: stream=0, channel=0 Digital: Digital category: 0x0 PCM: rates [0x5e0]: 44100 48000 88200 96000 192000 bits [0x1e]: 16 20 24 32 formats [0x1]: PCM Node 0x07 [Audio Input] wcaps 0x10011b: Stereo Amp-In Amp-In caps: ofs=0x10, nsteps=0x2e, stepsize=0x03, mute=1 Amp-In vals: [0x00 0x00] Converter: stream=0, channel=0 SDI-Select: 0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Connection: 1 0x24 Node 0x08 [Audio Input] wcaps 0x10011b: Stereo Amp-In Amp-In caps: ofs=0x10, nsteps=0x2e, stepsize=0x03, mute=1 Amp-In vals: [0x00 0x00] Converter: stream=0, channel=0 SDI-Select: 0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Connection: 1 0x23 Node 0x09 [Audio Input] wcaps 0x10011b: Stereo Amp-In Amp-In caps: ofs=0x10, nsteps=0x2e, stepsize=0x03, mute=1 Amp-In vals: [0x00 0x00] Converter: stream=0, channel=0 SDI-Select: 0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Connection: 1 0x22 Node 0x0a [Audio Input] wcaps 0x100391: Stereo Digital Converter: stream=0, channel=0 SDI-Select: 0 Digital: Digital category: 0x0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0x1e]: 16 20 24 32 formats [0x1]: PCM Unsolicited: tag=00, enabled=0 Connection: 1 0x1f Node 0x0b [Audio Mixer] wcaps 0x20010b: Stereo Amp-In Amp-In caps: ofs=0x17, nsteps=0x1f, stepsize=0x05, mute=1 Amp-In vals: [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x97 0x97] [0x97 0x97] [0x97 0x97] [0x97 0x97] [0x97 0x97] Connection: 10 0x18 0x19 0x1a 0x1b 0x1c 0x1d 0x14 0x15 0x16 0x17 Node 0x0c [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x00 0x00] Amp-Out caps: ofs=0x40, nsteps=0x40, stepsize=0x03, mute=0 Amp-Out vals: [0x28 0x28] Connection: 2 0x02 0x0b Node 0x0d [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x00 0x00] Amp-Out caps: ofs=0x40, nsteps=0x40, stepsize=0x03, mute=0 Amp-Out vals: [0x00 0x00] Connection: 2 0x03 0x0b Node 0x0e [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x00 0x00] Amp-Out caps: ofs=0x40, nsteps=0x40, stepsize=0x03, mute=0 Amp-Out vals: [0x00 0x00] Connection: 2 0x04 0x0b Node 0x0f [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x00 0x00] Amp-Out caps: ofs=0x40, nsteps=0x40, stepsize=0x03, mute=0 Amp-Out vals: [0x00 0x00] Connection: 2 0x05 0x0b Node 0x10 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x11 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x12 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x13 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x14 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x08373c: IN OUT HP Detect Vref caps: HIZ 50 GRD 80 100 Pin Default 0x01014410: [Jack] Line Out at Ext Rear Conn = 1/8, Color = Green DefAssociation = 0x1, Sequence = 0x0 Pin-ctls: 0x40: OUT VREF_HIZ Unsolicited: tag=00, enabled=0 Connection: 5 0x0c* 0x0d 0x0e 0x0f 0x26 Node 0x15 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x08373c: IN OUT HP Detect Vref caps: HIZ 50 GRD 80 100 Pin Default 0x01011412: [Jack] Line Out at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0x1, Sequence = 0x2 Pin-ctls: 0x40: OUT VREF_HIZ Unsolicited: tag=00, enabled=0 Connection: 5 0x0c 0x0d* 0x0e 0x0f 0x26 Node 0x16 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x083c: IN OUT HP Detect Pin Default 0x01016411: [Jack] Line Out at Ext Rear Conn = 1/8, Color = Orange DefAssociation = 0x1, Sequence = 0x1 Pin-ctls: 0x40: OUT Unsolicited: tag=00, enabled=0 Connection: 5 0x0c 0x0d 0x0e* 0x0f 0x26 Node 0x17 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x083c: IN OUT HP Detect Pin Default 0x01012414: [Jack] Line Out at Ext Rear Conn = 1/8, Color = Grey DefAssociation = 0x1, Sequence = 0x4 Pin-ctls: 0x40: OUT Unsolicited: tag=00, enabled=0 Connection: 5 0x0c 0x0d 0x0e 0x0f* 0x26 Node 0x18 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x80 0x80] Pincap 0x08373c: IN OUT HP Detect Vref caps: HIZ 50 GRD 80 100 Pin Default 0x01a19c40: [Jack] Mic at Ext Rear Conn = 1/8, Color = Pink DefAssociation = 0x4, Sequence = 0x0 Pin-ctls: 0x24: IN VREF_80 Unsolicited: tag=00, enabled=0 Connection: 5 0x0c* 0x0d 0x0e 0x0f 0x26 Node 0x19 [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x80 0x80] Pincap 0x08373c: IN OUT HP Detect Vref caps: HIZ 50 GRD 80 100 Pin Default 0x02a19c50: [Jack] Mic at Ext Front Conn = 1/8, Color = Pink DefAssociation = 0x5, Sequence = 0x0 Pin-ctls: 0x24: IN VREF_80 Unsolicited: tag=00, enabled=0 Connection: 5 0x0c* 0x0d 0x0e 0x0f 0x26 Node 0x1a [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x80 0x80] Pincap 0x08373c: IN OUT HP Detect Vref caps: HIZ 50 GRD 80 100 Pin Default 0x0181344f: [Jack] Line In at Ext Rear Conn = 1/8, Color = Blue DefAssociation = 0x4, Sequence = 0xf Pin-ctls: 0x20: IN VREF_HIZ Unsolicited: tag=00, enabled=0 Connection: 5 0x0c* 0x0d 0x0e 0x0f 0x26 Node 0x1b [Pin Complex] wcaps 0x40018f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x08373c: IN OUT HP Detect Vref caps: HIZ 50 GRD 80 100 Pin Default 0x02214c20: [Jack] HP Out at Ext Front Conn = 1/8, Color = Green DefAssociation = 0x2, Sequence = 0x0 Pin-ctls: 0xc0: OUT HP VREF_HIZ Unsolicited: tag=04, enabled=1 Connection: 5 0x0c* 0x0d 0x0e 0x0f 0x26 Node 0x1c [Pin Complex] wcaps 0x400001: Stereo Pincap 0x0820: IN Pin Default 0x593301f0: [N/A] CD at Int ATAPI Conn = ATAPI, Color = Unknown DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x20: IN Node 0x1d [Pin Complex] wcaps 0x400000: Mono Pincap 0x0820: IN Pin Default 0x4005e601: [N/A] Line Out at Ext N/A Conn = Optical, Color = White DefAssociation = 0x0, Sequence = 0x1 Pin-ctls: 0x20: IN Node 0x1e [Pin Complex] wcaps 0x400300: Mono Digital Pincap 0x0810: OUT Pin Default 0x014b6130: [Jack] SPDIF Out at Ext Rear Conn = Comb, Color = Orange DefAssociation = 0x3, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x40: OUT Connection: 1 0x06 Node 0x1f [Pin Complex] wcaps 0x400200: Mono Digital Pincap 0x0820: IN Pin Default 0x01cb7160: [Jack] SPDIF In at Ext Rear Conn = Comb, Color = Yellow DefAssociation = 0x6, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x20: IN Node 0x20 [Vendor Defined Widget] wcaps 0xf00040: Mono Processing caps: benign=0, ncoeff=17 Node 0x21 [Volume Knob Widget] wcaps 0x600080: Mono Volume-Knob: delta=0, steps=32, direct=0, val=0 Unsolicited: tag=00, enabled=0 Connection: 0 Node 0x22 [Audio Mixer] wcaps 0x20010b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] Connection: 11 0x18 0x19 0x1a 0x1b 0x1c 0x1d 0x14 0x15 0x16 0x17 0x0b Node 0x23 [Audio Mixer] wcaps 0x20010b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] Connection: 11 0x18 0x19 0x1a 0x1b 0x1c 0x1d 0x14 0x15 0x16 0x17 0x0b Node 0x24 [Audio Mixer] wcaps 0x20010b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] Connection: 11 0x18 0x19 0x1a 0x1b 0x1c 0x1d 0x14 0x15 0x16 0x17 0x0b Node 0x25 [Audio Output] wcaps 0x11: Stereo Converter: stream=0, channel=0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Node 0x26 [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x00 0x00] Amp-Out caps: ofs=0x40, nsteps=0x40, stepsize=0x03, mute=0 Amp-Out vals: [0x40 0x40] Connection: 2 0x25 0x0b Link to comment https://www.insanelymac.com/forum/topic/286763-alc888s-aspire-7736g-help-almost-works/#findComment-1893629 Share on other sites More sharing options...
Dmasterz Posted March 2, 2013 Author Share Posted March 2, 2013 i see ok gimme a sec ill go try again... thank you btw! here you go... i think thats got it... Codec: Realtek ALC888 Address: 0 AFG Function Id: 0x1 (unsol 1) Vendor Id: 0x10ec0888 Subsystem Id: 0x10250205 Revision Id: 0x100202 No Modem Function Group found Default PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Default Amp-In caps: N/A Default Amp-Out caps: N/A GPIO: io=2, o=0, i=0, unsolicited=1, wake=1 IO[0]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[1]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 Node 0x02 [Audio Output] wcaps 0x411: Stereo Device: name="ALC888 Analog", type="Audio", device=0 Converter: stream=8, channel=0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x03 [Audio Output] wcaps 0x411: Stereo Converter: stream=8, channel=0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x04 [Audio Output] wcaps 0x411: Stereo Converter: stream=8, channel=0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x05 [Audio Output] wcaps 0x411: Stereo Converter: stream=8, channel=0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x06 [Audio Output] wcaps 0x611: Stereo Digital Control: name="IEC958 Playback Con Mask", index=0, device=0 Control: name="IEC958 Playback Pro Mask", index=0, device=0 Control: name="IEC958 Playback Default", index=0, device=0 Control: name="IEC958 Playback Switch", index=0, device=0 Control: name="IEC958 Default PCM Playback Switch", index=0, device=0 Device: name="ALC888 Digital", type="SPDIF", device=1 Converter: stream=8, channel=0 Digital: Digital category: 0x0 PCM: rates [0x5e0]: 44100 48000 88200 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x07 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x08 [Audio Input] wcaps 0x10051b: Stereo Amp-In Control: name="Capture Switch", index=0, device=0 Control: name="Capture Volume", index=0, device=0 Device: name="ALC888 Analog", type="Audio", device=0 Amp-In caps: ofs=0x0b, nsteps=0x1f, stepsize=0x05, mute=1 Amp-In vals: [0x13 0x13] Converter: stream=4, channel=0 SDI-Select: 0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 1 0x23 Node 0x09 [Audio Input] wcaps 0x10051b: Stereo Amp-In Control: name="Capture Switch", index=1, device=0 Control: name="Capture Volume", index=1, device=0 Device: name="ALC888 Analog", type="Audio", device=2 Amp-In caps: ofs=0x0b, nsteps=0x1f, stepsize=0x05, mute=1 Amp-In vals: [0x80 0x80] Converter: stream=0, channel=0 SDI-Select: 0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 1 0x22 Node 0x0a [Audio Input] wcaps 0x100711: Stereo Digital Converter: stream=0, channel=0 SDI-Select: 0 Digital: Digital category: 0x0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 1 0x1f Node 0x0b [Audio Mixer] wcaps 0x20010b: Stereo Amp-In Control: name="Mic Playback Volume", index=0, device=0 ControlAmp: chs=3, dir=In, idx=0, ofs=0 Control: name="Mic Playback Switch", index=0, device=0 ControlAmp: chs=3, dir=In, idx=0, ofs=0 Control: name="Internal Mic Playback Volume", index=0, device=0 ControlAmp: chs=3, dir=In, idx=1, ofs=0 Control: name="Internal Mic Playback Switch", index=0, device=0 ControlAmp: chs=3, dir=In, idx=1, ofs=0 Control: name="Line Playback Volume", index=0, device=0 ControlAmp: chs=3, dir=In, idx=2, ofs=0 Control: name="Line Playback Switch", index=0, device=0 ControlAmp: chs=3, dir=In, idx=2, ofs=0 Control: name="Beep Playback Volume", index=0, device=0 ControlAmp: chs=3, dir=In, idx=5, ofs=0 Control: name="Beep Playback Switch", index=0, device=0 ControlAmp: chs=3, dir=In, idx=5, ofs=0 Amp-In caps: ofs=0x17, nsteps=0x1f, stepsize=0x05, mute=1 Amp-In vals: [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] Connection: 10 0x18 0x19 0x1a 0x1b 0x1c 0x1d 0x14 0x15 0x16 0x17 Node 0x0c [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out Control: name="Headphone Playback Volume", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x00 0x00] Amp-Out caps: ofs=0x1f, nsteps=0x1f, stepsize=0x05, mute=0 Amp-Out vals: [0x11 0x11] Connection: 2 0x02 0x0b Node 0x0d [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out Control: name="Surround Playback Volume", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x80 0x80] Amp-Out caps: ofs=0x1f, nsteps=0x1f, stepsize=0x05, mute=0 Amp-Out vals: [0x11 0x11] Connection: 2 0x03 0x0b Node 0x0e [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out Control: name="Center Playback Volume", index=0, device=0 ControlAmp: chs=1, dir=Out, idx=0, ofs=0 Control: name="LFE Playback Volume", index=0, device=0 ControlAmp: chs=2, dir=Out, idx=0, ofs=0 Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x80 0x80] Amp-Out caps: ofs=0x1f, nsteps=0x1f, stepsize=0x05, mute=0 Amp-Out vals: [0x11 0x11] Connection: 2 0x04 0x0b Node 0x0f [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out Control: name="Speaker Playback Volume", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x00 0x00] Amp-Out caps: ofs=0x1f, nsteps=0x1f, stepsize=0x05, mute=0 Amp-Out vals: [0x11 0x11] Connection: 2 0x05 0x0b Node 0x10 [Audio Output] wcaps 0x611: Stereo Digital Converter: stream=0, channel=0 Digital: Digital category: 0x0 PCM: rates [0x5e0]: 44100 48000 88200 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x11 [Pin Complex] wcaps 0x400780: Mono Digital Pincap 0x00000014: OUT Detect Pin Default 0x411111f0: [N/A] Speaker at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x40: OUT Unsolicited: tag=00, enabled=0 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 1 0x10 Node 0x12 [Pin Complex] wcaps 0x400401: Stereo Pincap 0x00000020: IN Pin Default 0x411111f0: [N/A] Speaker at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x00: Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x13 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x14 [Pin Complex] wcaps 0x40058f: Stereo Amp-In Amp-Out Control: name="Speaker Playback Switch", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Control: name="Speaker Phantom Jack", index=0, device=0 Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x0001003e: IN OUT HP EAPD Detect Trigger EAPD 0x2: EAPD Pin Default 0x99130110: [Fixed] Speaker at Int ATAPI Conn = ATAPI, Color = Unknown DefAssociation = 0x1, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x40: OUT Unsolicited: tag=00, enabled=0 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 5 0x0c 0x0d 0x0e 0x0f* 0x26 Node 0x15 [Pin Complex] wcaps 0x40058f: Stereo Amp-In Amp-Out Control: name="Headphone Playback Switch", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Control: name="Headphone Jack", index=0, device=0 Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x0001003e: IN OUT HP EAPD Detect Trigger EAPD 0x2: EAPD Pin Default 0x0321101f: [Jack] HP Out at Ext Left Conn = 1/8, Color = Black DefAssociation = 0x1, Sequence = 0xf Pin-ctls: 0xc0: OUT HP Unsolicited: tag=01, enabled=1 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 5 0x0c* 0x0d 0x0e 0x0f 0x26 Node 0x16 [Pin Complex] wcaps 0x40058f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x80 0x80] Pincap 0x00000036: IN OUT Detect Trigger Pin Default 0x411111f0: [N/A] Speaker at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x20: IN Unsolicited: tag=00, enabled=0 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 5 0x0c 0x0d 0x0e* 0x0f 0x26 Node 0x17 [Pin Complex] wcaps 0x40058f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x80 0x80] Pincap 0x00000036: IN OUT Detect Trigger Pin Default 0x411111f0: [N/A] Speaker at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x20: IN Unsolicited: tag=00, enabled=0 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 5 0x0c 0x0d 0x0e 0x0f* 0x26 Node 0x18 [Pin Complex] wcaps 0x40058f: Stereo Amp-In Amp-Out Control: name="Center Playback Switch", index=0, device=0 ControlAmp: chs=1, dir=Out, idx=0, ofs=0 Control: name="LFE Playback Switch", index=0, device=0 ControlAmp: chs=2, dir=Out, idx=0, ofs=0 Control: name="Mic Boost Volume", index=0, device=0 ControlAmp: chs=3, dir=In, idx=0, ofs=0 Control: name="Mic Jack", index=0, device=0 Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x0000373e: IN OUT HP Detect Trigger Vref caps: HIZ 50 GRD 80 100 Pin Default 0x03a19c30: [Jack] Mic at Ext Left Conn = 1/8, Color = Pink DefAssociation = 0x3, Sequence = 0x0 Pin-ctls: 0x21: IN VREF_50 Unsolicited: tag=03, enabled=1 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 5 0x0c* 0x0d 0x0e 0x0f 0x26 Node 0x19 [Pin Complex] wcaps 0x40058f: Stereo Amp-In Amp-Out Control: name="Internal Mic Boost Volume", index=0, device=0 ControlAmp: chs=3, dir=In, idx=0, ofs=0 Control: name="Internal Mic Phantom Jack", index=0, device=0 Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x80 0x80] Pincap 0x0000373e: IN OUT HP Detect Trigger Vref caps: HIZ 50 GRD 80 100 Pin Default 0x99a30931: [Fixed] Mic at Int ATAPI Conn = ATAPI, Color = Unknown DefAssociation = 0x3, Sequence = 0x1 Misc = NO_PRESENCE Pin-ctls: 0x24: IN VREF_80 Unsolicited: tag=00, enabled=0 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 5 0x0c* 0x0d 0x0e 0x0f 0x26 Node 0x1a [Pin Complex] wcaps 0x40058f: Stereo Amp-In Amp-Out Control: name="Surround Playback Switch", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Control: name="Line Jack", index=0, device=0 Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x0000373e: IN OUT HP Detect Trigger Vref caps: HIZ 50 GRD 80 100 Pin Default 0x0381343f: [Jack] Line In at Ext Left Conn = 1/8, Color = Blue DefAssociation = 0x3, Sequence = 0xf Pin-ctls: 0x20: IN VREF_HIZ Unsolicited: tag=05, enabled=1 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 5 0x0c* 0x0d 0x0e 0x0f 0x26 Node 0x1b [Pin Complex] wcaps 0x40058f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x80 0x80] Pincap 0x0000373e: IN OUT HP Detect Trigger Vref caps: HIZ 50 GRD 80 100 Pin Default 0x411111f0: [N/A] Speaker at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x20: IN VREF_HIZ Unsolicited: tag=00, enabled=0 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 5 0x0c* 0x0d 0x0e 0x0f 0x26 Node 0x1c [Pin Complex] wcaps 0x400481: Stereo Pincap 0x00000024: IN Detect Pin Default 0x411111f0: [N/A] Speaker at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x20: IN Unsolicited: tag=00, enabled=0 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x1d [Pin Complex] wcaps 0x400400: Mono Pincap 0x00000020: IN Pin Default 0x4016852d: [N/A] Speaker at Ext N/A Conn = Digital, Color = Purple DefAssociation = 0x2, Sequence = 0xd Misc = NO_PRESENCE Pin-ctls: 0x20: IN Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x1e [Pin Complex] wcaps 0x400780: Mono Digital Control: name="SPDIF Phantom Jack", index=0, device=0 Pincap 0x00000014: OUT Detect Pin Default 0x03451120: [Jack] SPDIF Out at Ext Left Conn = Optical, Color = Black DefAssociation = 0x2, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x40: OUT Unsolicited: tag=00, enabled=0 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 1 0x06 Node 0x1f [Pin Complex] wcaps 0x400680: Mono Digital Pincap 0x00000024: IN Detect Pin Default 0x411111f0: [N/A] Speaker at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x20: IN Unsolicited: tag=00, enabled=0 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x20 [Vendor Defined Widget] wcaps 0xf00040: Mono Processing caps: benign=0, ncoeff=25 Node 0x21 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x22 [Audio Mixer] wcaps 0x20010b: Stereo Amp-In Control: name="Input Source", index=1, device=0 Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] Connection: 12 0x18 0x19 0x1a 0x1b 0x1c 0x1d 0x14 0x15 0x16 0x17 0x0b 0x12 Node 0x23 [Audio Mixer] wcaps 0x20010b: Stereo Amp-In Control: name="Input Source", index=0, device=0 Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x80 0x80] [0x00 0x00] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] Connection: 11 0x18 0x19 0x1a 0x1b 0x1c 0x1d 0x14 0x15 0x16 0x17 0x0b Node 0x24 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x25 [Audio Output] wcaps 0x411: Stereo Converter: stream=0, channel=0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x26 [Audio Mixer] wcaps 0x20010f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x80 0x80] Amp-Out caps: ofs=0x1f, nsteps=0x1f, stepsize=0x05, mute=0 Amp-Out vals: [0x00 0x00] Connection: 2 0x25 0x0b Link to comment https://www.insanelymac.com/forum/topic/286763-alc888s-aspire-7736g-help-almost-works/#findComment-1893631 Share on other sites More sharing options...
WaldMeister Posted March 3, 2013 Share Posted March 3, 2013 Use kext drop to install, and remove voodoohda before installing, else you could get a kernel panic. http://www.insanelymac.com/forum/topic/285201-alc888-applehdakext-for-moutain-lion-1082-version/ Link to comment https://www.insanelymac.com/forum/topic/286763-alc888s-aspire-7736g-help-almost-works/#findComment-1893646 Share on other sites More sharing options...
Dmasterz Posted March 3, 2013 Author Share Posted March 3, 2013 installed and can see volume in outs in mixer but no audio is working... tried looking for the solution in that link but couldnt quite get it any ideas what i should try next? thank you Link to comment https://www.insanelymac.com/forum/topic/286763-alc888s-aspire-7736g-help-almost-works/#findComment-1893653 Share on other sites More sharing options...
WaldMeister Posted March 3, 2013 Share Posted March 3, 2013 Honestly, no. Patch the AppleHDA yourself, the link i gave you gives a good explanation on how to do it. Btw, attach a screen here of your system profiler, audio section. Link to comment https://www.insanelymac.com/forum/topic/286763-alc888s-aspire-7736g-help-almost-works/#findComment-1893660 Share on other sites More sharing options...

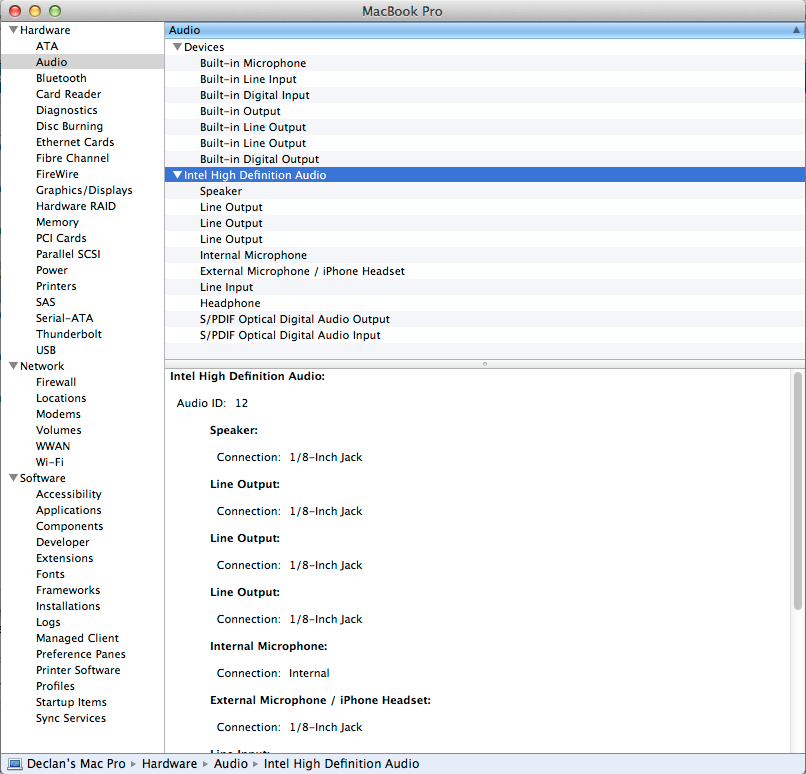

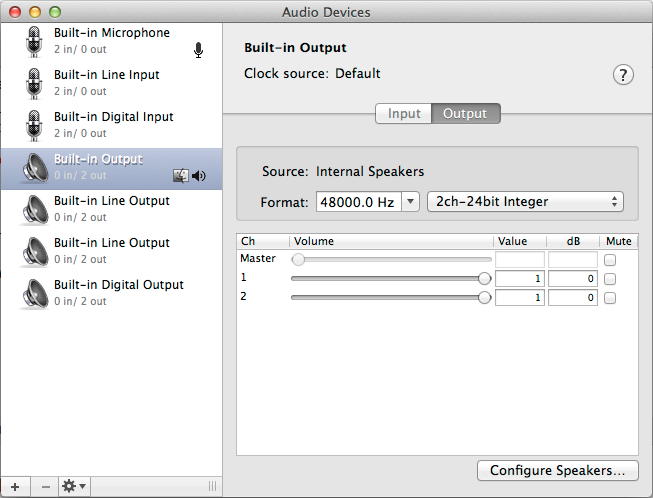

Dmasterz Posted March 3, 2013 Author Share Posted March 3, 2013 Ok i tried patching the kext with: <key>IOPCIPrimaryMatch</key> <string>0x293e8086</string> 0xDeviceIdVendorId and i get inputs/outputs but no audio i have attached my dsdt, kext, and screenshots of how its sitting at the moment... any help would be graciously appreciated... Thank You codec_dump.txt dsdt and kext.zip Link to comment https://www.insanelymac.com/forum/topic/286763-alc888s-aspire-7736g-help-almost-works/#findComment-1893786 Share on other sites More sharing options...

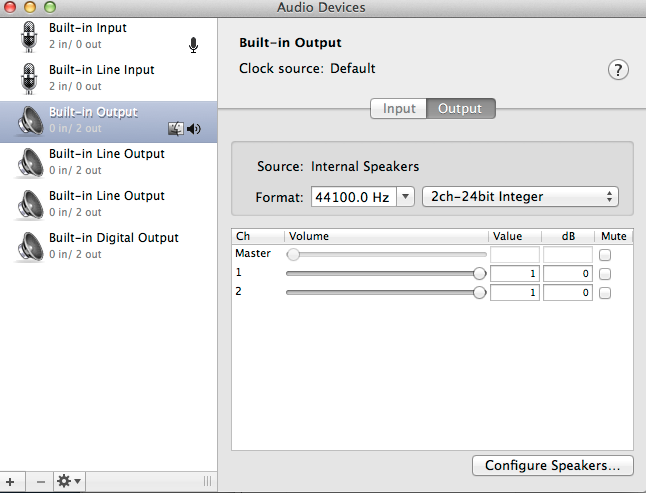

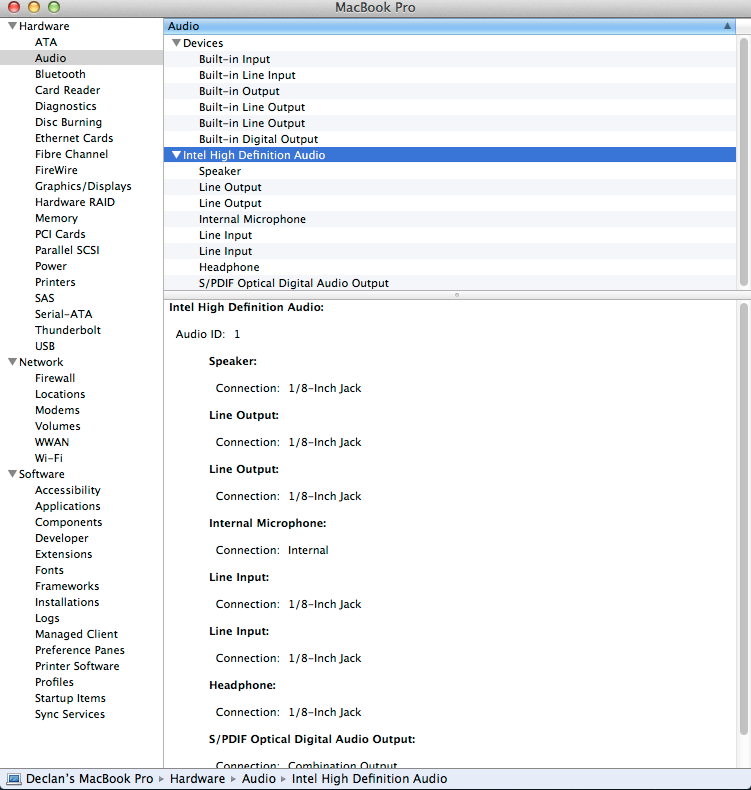

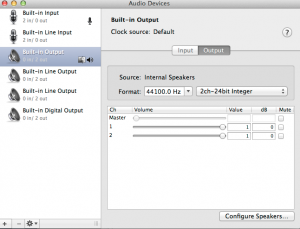

Dmasterz Posted March 5, 2013 Author Share Posted March 5, 2013 Evening Folks, hope all is well in the hackintosh world.... ok to update this issue... done a fresh install with this method: [Guide] The all-in-one guide to Vanilla OS X Mountain Lion + Chameleon + DSDT for beginners. then after install used ##### and installed: alc888 with dsdt - legacy and all inputs outputs show but no sound again im at my wits end.... please someone put me out of my misery. attached is screenshots, kext and dsdt.aml Thank you any help would be greatly appreciated.. kext & dsdt.zip Link to comment https://www.insanelymac.com/forum/topic/286763-alc888s-aspire-7736g-help-almost-works/#findComment-1894332 Share on other sites More sharing options...
