DSDT for Acer Aspire V3-571G

13 posts in this topic

Recommended Posts

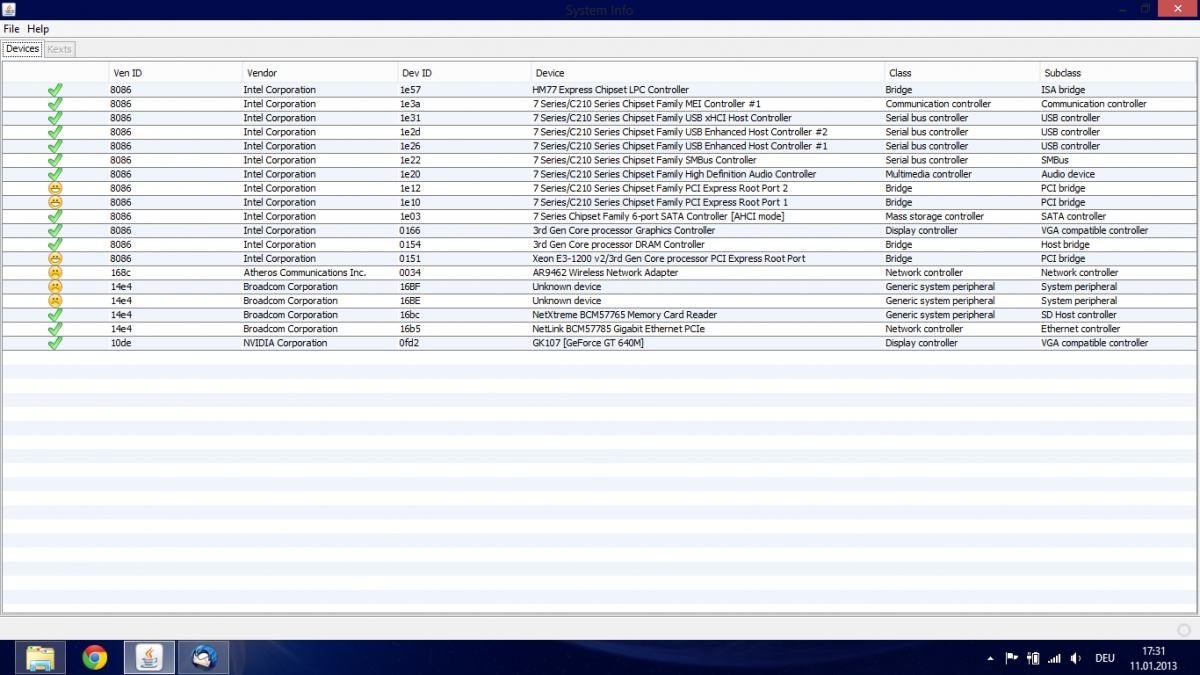

Hardware-Info: http://www.acer.de/ac/de/DE/content/model-datasheet/NX.RZNEG.010



Hi, my problem is that my Aspire 571G V3 shall supports only insufficient. I have looking for all the time and can't find a solution about my problem. Unfortunately without success. I would be grateful if you could help me.

Even Aunt Google could not help me. I would be happy if someone would have a DSDT or a solution.


I thank your for help.



Share this post

Link to post
Share on other sites

Welcome to Insanelymac Forun stefunny92 !!!!!!


but you need post more info, "

my Aspire 571G V3 shall supports only insufficient??? "first , please put your hardware in your signature, then we can help you, for example: what version the system you have installed? what method you use?etc...

Share this post

Link to post
Share on other sites

I have changed my signature and you can see all the information about my pc. I use the lion version 10.7.4.

I would like to use the DSDT for this, but it not exist a DSDT for my pc. That's why I used the standard DSDT from Chameleon-2.1-r2069.

Share this post

Link to post
Share on other sites

Here is my DSDT.aml, but it have some bugs.

I hope you can help me to modify this file so that it works properly.

I thank you for it already times where you to help me with this problem.

Thank you for your help. :)


Share this post

Link to post
Share on other sites

Hi there! I've got the same machine and run into same trouble.

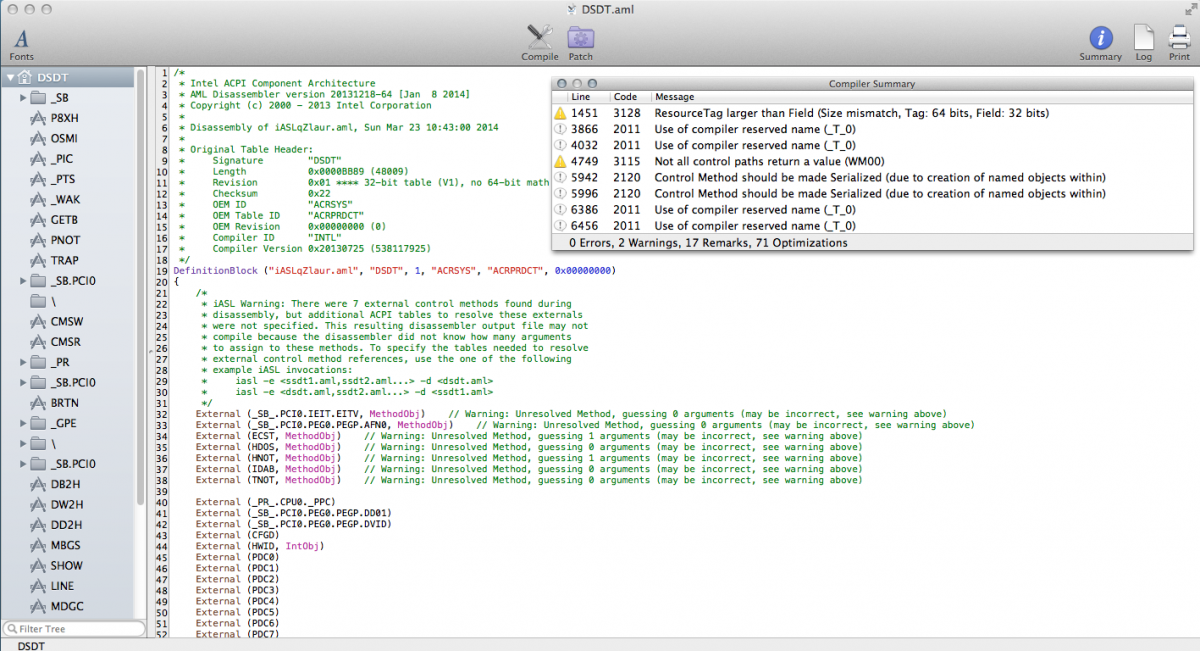

I've got freshly dumped DSDT from AIDA64 and here is it: https://dl.dropboxusercontent.com/u/15547165/ACER%20V3-571G%20DSDT.aml.zip

I cannot patch it with DSDTFixer v1.2.3 because of the error:

Intel ACPI Component Architecture
ASL Optimizing Compiler version 20110211-32 [Feb 12 2011]
Copyright (c) 2000 - 2011 Intel Corporation

/Applications/DSDTFixer.app/Contents/Resources/files/dsdt.dsl   2180:                     Name (_HID, "1025075")
Error    4124 -                                                            Non-hex letters must be upper case ^  (1025075)

/Applications/DSDTFixer.app/Contents/Resources/files/dsdt.dsl   4628:                 Method (WM00, 3, NotSerialized)
Warning  1088 -                                             Not all control paths return a value ^  (WM00)

ASL Input: - 12436 lines, 438430 bytes, 4722 keywords
Compilation complete. 1 Errors, 1 Warnings, 0 Remarks, 38 Optimizations

and I already sent report.

By the way, I am writing this post running OS X 10.8.5 on my machine after successful hackintosh installation using Tonies Tools with NullCpuPowerManagement and all the starter things to get it running and I hope  to improve the installation using right DSDT. But the problem is this is my first hackintosh experience and I know nothing about patching DSDT by hands so any help would be greatly appreciated.


Now the thing I need most is truly disabling my Nvidia Graphics Card (it should not appear in system information) because now I simply removed the nvidia kexts and despite the fact that OS X is running normally, Nvidia card is still draining the battery.



Share this post

Link to post
Share on other sites

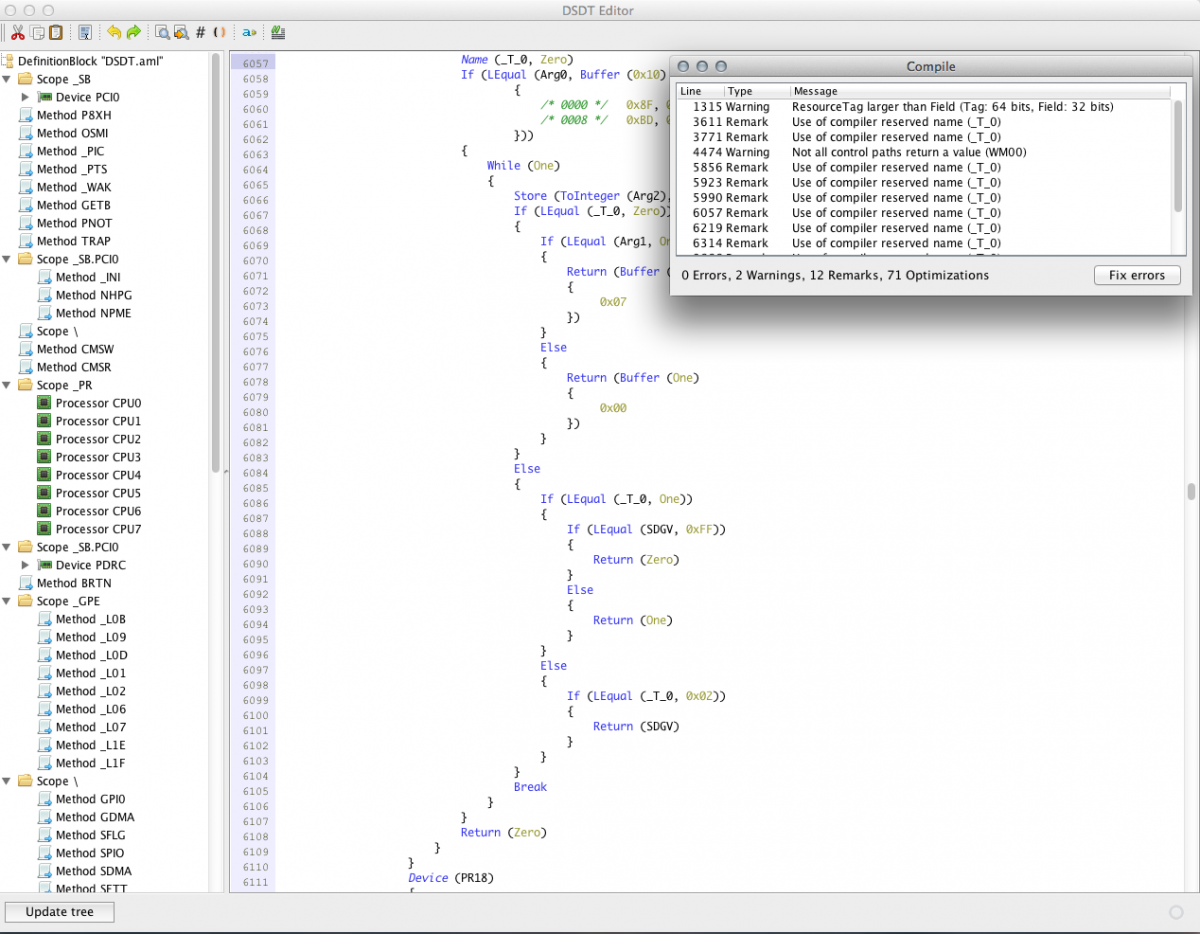

ok, no errors now, only warnings, but it not important,  I not applied any pach, only solve the error


The same error with your version. Exactly the same output.

Size of original file: 40,030 bytes

Size of noErrors file: 40,009 bytes


Intel ACPI Component Architecture
ASL Optimizing Compiler version 20110211-32 [Feb 12 2011]
Copyright (c) 2000 - 2011 Intel Corporation

/Applications/DSDTFixer.app/Contents/Resources/files/dsdt.dsl   2180:                     Name (_HID, "1025075")
Error    4124 -                                                            Non-hex letters must be upper case ^  (1025075)

/Applications/DSDTFixer.app/Contents/Resources/files/dsdt.dsl   4628:                 Method (WM00, 3, NotSerialized)
Warning  1088 -                                             Not all control paths return a value ^  (WM00)

ASL Input: - 12435 lines, 438358 bytes, 4721 keywords
Compilation complete. 1 Errors, 1 Warnings, 0 Remarks, 36 Optimizations

Share this post

Link to post
Share on other sites

Hi Stephunny92.

I have the same laptop than you with core i7.

This is my DSDT :



And this is my Extra folder. All you need is that :



My tuto in french : http://itotoscreencast.fr/forum/hackintosh-sur-portableslaptop-group4/installer-osx-sur-un-portablelaptop-forum14/tuto-acer-v3-571g-i7-3610qm-thread881.0/


Edit : You can use the latest Clover Bootloader for install Mavericks 10.9.2 with the same kext and DSDT and it's more stable.


In this DSDT, i have removed Optimus technology for save battery.

HD4000 is recognized natively.



Have fun dude.

Share this post

Link to post
Share on other sites
