takeawaydave Posted August 30, 2012 Author Share Posted August 30, 2012 SMBIOS and org.chameleon.boot.plist have been in /Extra the whole time. Please see ExtraList.txt for recursive listing of this directory. Just repairing disk permissions and rebuilding mkext and cache on Extra and /S/L/E using kext wizard. I'll then try a normal boot with just the two kexts in /Extra using no "-x". Thanks by the way for your loads of help. . . . . . ....ok same deal with the normal boot.... ExtraList.txt Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849111 Share on other sites More sharing options...
iFIRE Posted August 30, 2012 Share Posted August 30, 2012 is very difficult for you understand what all kexts must be in System/Library/Extensions of the you hard disk!!!!!! Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849119 Share on other sites More sharing options...
takeawaydave Posted August 30, 2012 Author Share Posted August 30, 2012 aha so EVERYTHING including FakeSMC.kext and NullCPUPowerManagement.kext in /S/L/E ? leaving /Extra/Extensions empty ? Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849121 Share on other sites More sharing options...
iFIRE Posted August 30, 2012 Share Posted August 30, 2012 aha so EVERYTHING including FakeSMC.kext and NullCPUPowerManagement.kext in /S/L/E ? all is all leaving /Extra/Extensions empty ? yes in Extra Folder only SMBIOS and boot.plist Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849122 Share on other sites More sharing options...
takeawaydave Posted August 30, 2012 Author Share Posted August 30, 2012 OK I have: Installed kexts from /E/E to /S/L/E using kext wizard and then repaired perms and rebooted. Still NO BANANA same error as before when booting using: -f -v GraphicsEnabler=No PCIRootUID=0 npci=0x3000 (tried this twice) Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849127 Share on other sites More sharing options...
iFIRE Posted August 30, 2012 Share Posted August 30, 2012 install more these two kexts in S/L/E and not use flag -f only -v , edit your boot.plis and delete flag -f AHCIPortInjector.kext AHCI_3rdParty_SATA.kext AND POST link of the your Laptop Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849131 Share on other sites More sharing options...
takeawaydave Posted August 30, 2012 Author Share Posted August 30, 2012 The complete model number is NP550P5C-S01CH. Thats not much of a webpage though. The HK model may be slightly different (samsung tend to change things a bit from country to country). Just running the new kexts on and rebuilding cache and perms... Unfortunately same problem. Hang seems to be same place. Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849132 Share on other sites More sharing options...
iFIRE Posted August 30, 2012 Share Posted August 30, 2012 http://www.samsung.c.../NP550P5C-S01HK is this? configuration!!! Intel i7-3610QM, 8GB, 1000GB,15.6" 1366x768, DVD-SM, Win7-HP64, nVidia GeForce GT 650M 2048MB, Giga-LAN, WLAN (300 Mbps), Bluetooth 4.0, 2x USB 3.0, Webcam, 4-in-1 Cardreader Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849133 Share on other sites More sharing options...
takeawaydave Posted August 30, 2012 Author Share Posted August 30, 2012 yes thats it. almost. No BluRAy and the screen is slightly less resolution. i have as well an SSD on order and 2x8 GB RAM Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849138 Share on other sites More sharing options...
iFIRE Posted August 30, 2012 Share Posted August 30, 2012 ok,try this boot flag: -v GraphicsEnabler=Yes npci=0x3000 busratio=23 Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849139 Share on other sites More sharing options...
takeawaydave Posted August 30, 2012 Author Share Posted August 30, 2012 no luck with those options. Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849141 Share on other sites More sharing options...
iFIRE Posted August 30, 2012 Share Posted August 30, 2012 ok, you have two GPU, HD 4000 AND nVidia GeForce GT 650M 2048MB THIS ONE i don't no if have support for ML, but HD 4000 have support and work, for now backup all kexts NVidia and delete from S/L/E , I go see one topic for this GPU. Edit: copy paste this cod ein terminal app and output in your desktop, put this a folder zip and poste here for me edit this perl -e 'open(CMD, "ioreg -lw0 \| grep DSDT|") or die; while(<CMD>) { chomp; if($_ =~ /\"DSDT\.?\d?\"=<([^>]*)>/) { $buff = $1; open(PIP, "|xxd -r -p > ~/Desktop/dsdt.aml") or die; print PIP "$1"; } }' EDIT: USE THIS: -v PciRootUID=0 GraphicsEnabler=No busratio=23 npci=0x3000 here the topic: http://www.insanelym...l=&fromsearch=1 Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849142 Share on other sites More sharing options...
takeawaydave Posted August 30, 2012 Author Share Posted August 30, 2012 Here is a fresh dsdt.aml file created. PLease remove the .txt extension. Currently out of ideas on how to proceed - no start up options have worked.... dsdt.aml.txt Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849144 Share on other sites More sharing options...
takeawaydave Posted August 31, 2012 Author Share Posted August 31, 2012 reading this given my device ID for HD4000 looks to be: 00:02.0 VGA compatible controller [0300]: Intel Corporation Ivy Bridge Graphics Controller [8086:0166] (rev 09) (prog-if 00 [VGA controller]) does this rev 09 mean i should inject <key>HD4000PlatformId</key> <string>9</string> ?? Any one experienced able to confirm? Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849454 Share on other sites More sharing options...
iFIRE Posted August 31, 2012 Share Posted August 31, 2012 NO, but put this flag in your boot plist and test it you read this: here the topic: http://www.insanelym...l=&fromsearch=1 Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849463 Share on other sites More sharing options...
takeawaydave Posted August 31, 2012 Author Share Posted August 31, 2012 if u are referring to <key>HD4000PlatformId</key> <string>9</string> I put this in to org.chameleon.Boot.Plist... now I have a blank screen.... something almost worked... how do i get the right ig-platform-id ? trial and error approach at the moment... Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849465 Share on other sites More sharing options...
iFIRE Posted August 31, 2012 Share Posted August 31, 2012 <key>HD4000PlatformId</key> <string>0</string> Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849467 Share on other sites More sharing options...
takeawaydave Posted August 31, 2012 Author Share Posted August 31, 2012 yes tried this already, actually tried 9 and 0 and 5 (0 and 9 gave blank screen). 1 gave an error /SourceCache/AppleGraphicsControl/APpleGraphicsControl-3.2.6/src/ApplePolicyControl/src/GFxPoliyControl.cpp:831 Assertion Failed Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849470 Share on other sites More sharing options...
iFIRE Posted August 31, 2012 Share Posted August 31, 2012 How many Memory RAM you have installed? this not a Laptop???? in your BIOS set If your Hackintosh has 4 GB of RAM, set video RAM to 384MB. If your Hackintosh has 8 GB of RAM, set video RAM to 480MB. opssss this is for HD 3000 Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849474 Share on other sites More sharing options...
takeawaydave Posted August 31, 2012 Author Share Posted August 31, 2012 16 GB RAM on Motherboard. No options to set VGA RAM in bios... "3" thats the magic number. Managed to boot in safe mode still.... -f -x -v GraphicsENabler=No PCIRootUID=0 npci=0x3000 Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849475 Share on other sites More sharing options...
iFIRE Posted August 31, 2012 Share Posted August 31, 2012 try this and make a fstring for your graphics, this work for a lot people You have to use gfxutil (google for it) to get device path, command is either: ./gfxutil -f display or maybe ./gfxutil -f GFX0 (if you also have dedicated graphics installed) or maybe ./gfxutil -f IGPU (if you also have dedicated graphics installed) Copy this device path or save it somewhere then you need a .plist with injections (here is mine: https://rapidshare.c...xutil.plist.zip ). Paste in your device path and set AAPL,ig-platform-id. Then gfxutil again to get string ./gfxutil -i xml -o hex ./gfxutil.plist ./string.hex Test your DSDT.zip But I dont understand whit -x is safe mode and not load all kexts, but if it wok :thumbsup_anim: Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849479 Share on other sites More sharing options...

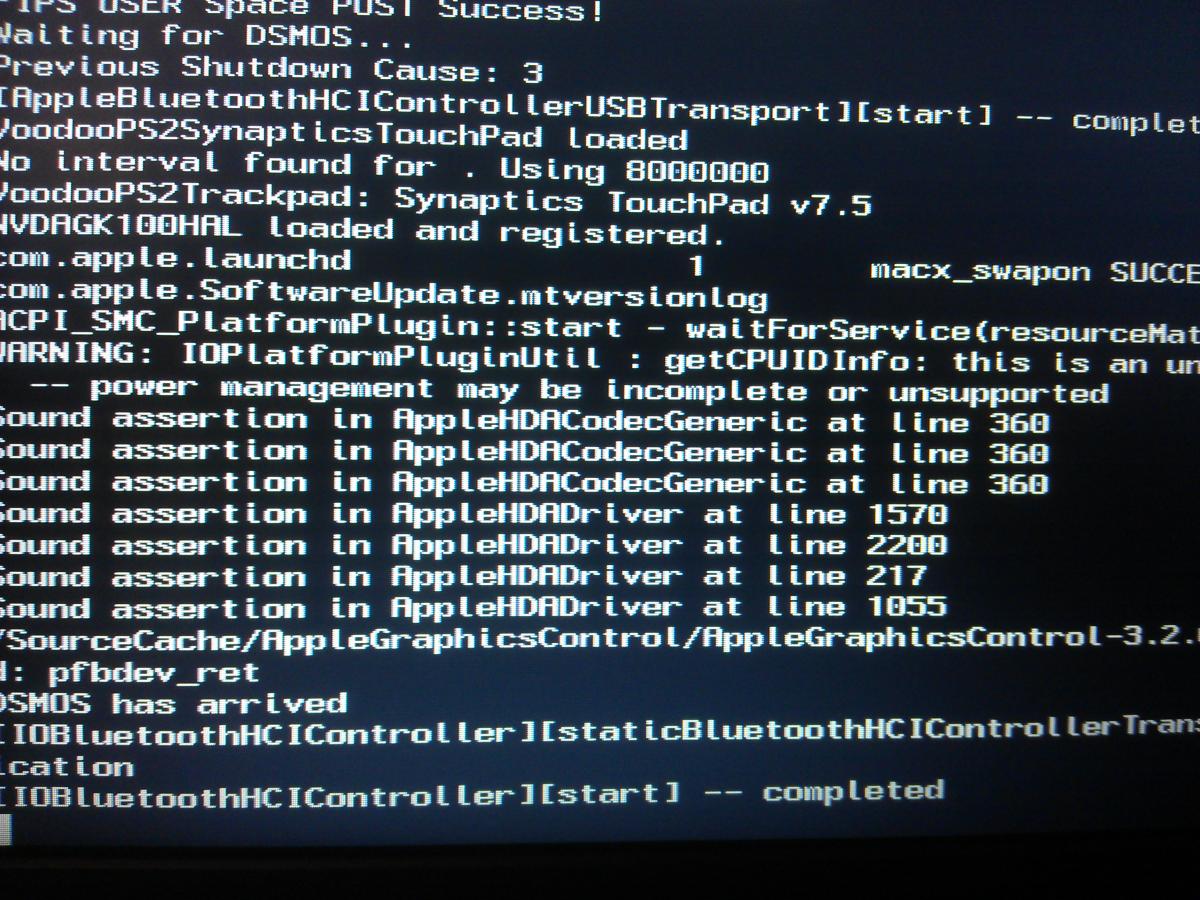

takeawaydave Posted August 31, 2012 Author Share Posted August 31, 2012 i'll leave the gfxutil for the graphics for the meantime.... since its working now.... how do i test the dsdt ? Tried the following. Pointed org.chameleon.Boot.plist at the DSDT.aml and rebooted. Similar errors but I believe some about "Sound Assertion...." against AppleHDA. See screenshot. This is without -x boot. Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849483 Share on other sites More sharing options...
iFIRE Posted September 1, 2012 Share Posted September 1, 2012 backup and delete your Applehda, now see in win your codec Audio ALC..... DSDT.aml copy and paste in Extra folder. Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1849555 Share on other sites More sharing options...
takeawaydave Posted September 3, 2012 Author Share Posted September 3, 2012 finally getting round to spend some further time on this.... audio codec is ALC269vc.. apparently voodooHDA works against this since its the most common sound codec. giving it a go as well as the AppleHDA edit as shown here Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1850209 Share on other sites More sharing options...
iFIRE Posted September 3, 2012 Share Posted September 3, 2012 and this work for you? Link to comment https://www.insanelymac.com/forum/topic/282365-attempting-ml-on-samsung-np550-series-5/page/2/#findComment-1850214 Share on other sites More sharing options...
