ultraxmode Posted July 22, 2012 Share Posted July 22, 2012 Hello guys! I would like you to help me create a decent DSDT for my motherboard (GA-EP45-UD3P rev. 1.0). I can install Mac OS X 10.6.3 but cannot make SLEEP to work. This is all I need. I want SLEEP function desperately. I dont know how to create a DSDT. Can you please help me? Thanks! Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/ Share on other sites More sharing options...
eep357 Posted July 22, 2012 Share Posted July 22, 2012 do you know how to extract it? start here DSDT patching 101 but even if you can't patch it your self, you'll need to at least extract it, which can be done many different ways from OSX, Win or Linux Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1835946 Share on other sites More sharing options...
ultraxmode Posted July 22, 2012 Author Share Posted July 22, 2012 I have managed to pull out the DSDT.aml. Here you go. (I booted without any DSDT.aml) I want my Hackintosh to be able to Sleep, Restart and Shutdown with no problem. Its gonna be my new HTPC. I also have an Apple Remote Control, so I want to be able to turn it on/off with it. No keyboards, no nothing. Just my Apple Remote and Plex. dsdt.aml.zip Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1835952 Share on other sites More sharing options...
eep357 Posted July 22, 2012 Share Posted July 22, 2012 You have a IR sensor for the remote? Try Candelair - alternative driver for internal Apple® IR receivers ... Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1835979 Share on other sites More sharing options...
eep357 Posted July 22, 2012 Share Posted July 22, 2012 DSDT.aml.zip Remove NullCPUPowerManagement.kext if present, enable S3 in bios and if VBIOS repost on wake is in bios, try disabling first, if graphics issue then enable 1 Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1835986 Share on other sites More sharing options...
ultraxmode Posted July 23, 2012 Author Share Posted July 23, 2012 You have a IR sensor for the remote? Try Candelair - alternative driver for internal Apple® IR receivers ... I have managed to create one. I bought one Macbook IR module and a USB Cable and I created it with the help of this Guide (I also bought an Apple Remote ofcourse). It works like a champ! DSDT.aml.zip Remove NullCPUPowerManagement.kext if present, enable S3 in bios and if VBIOS repost on wake is in bios, try disabling first, if graphics issue then enable I will check it out when I get back home. THANKS! Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1836170 Share on other sites More sharing options...
ultraxmode Posted July 23, 2012 Author Share Posted July 23, 2012 @eep357 : Bingo!!!! Everything works fine! Sleep, Restart, Shutdown AND Nvidia GT220 is recognized!!! A BIG BIG THANKS! 1 Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1836287 Share on other sites More sharing options...
eep357 Posted July 24, 2012 Share Posted July 24, 2012 Sweet! As a side note on the Apple Remote, Better Touch Tool has some additional config settings available for it, but haven't tried it so can't tell you much more on that part, but it does work great for Magic Trackpad. Global pinch to zoom instead of just in a few core apps is the greatest, especially on a HTPC where your across the room. Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1836385 Share on other sites More sharing options...
ultraxmode Posted July 24, 2012 Author Share Posted July 24, 2012 Can I ask one more question? I want to be able to pull the sound from my NVIDIA GT220's HDMI. Can this be done via the DSDT.aml ? Or I have to install VoodooHDA to make it work? Thank you so much man! I appreciate your help! You're my hero! I was trying to make it work for days now! Thanks! Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1836391 Share on other sites More sharing options...
eep357 Posted July 24, 2012 Share Posted July 24, 2012 Not sure on the audio, with HDMI built in to mobo it can be done. I've always just used the optical audio and anything with HDMI inputs should have a optical or coax digital input too, but prefer to run audio to stereo and video to TV and not get the TV's speakers or other clunky menu settings involved, especially when listening to music and wanting to have a baseball game or something on the TV instead of staring at itunes. Avoid using Voodoo if at all possible. And plex plays 5.1 DTS or DD just fine, and 720 or 1080p. May need to double check some settings in /Applications/Audio MIDI Settings.app for 5.1 Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1836396 Share on other sites More sharing options...
ultraxmode Posted July 24, 2012 Author Share Posted July 24, 2012 So you think that the better solution is to buy me some stereo speakers. Right? Hmm... Ok. will check it out. THANKS again! Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1836397 Share on other sites More sharing options...
eep357 Posted July 24, 2012 Share Posted July 24, 2012 what would you want stereo speakers for? if all you want is 2 channel audio, just use the built in analog. I assumed since you wanted HDMI audio you had a receiver that could decode 5.1. If your gonna use digital audio in a HTPC, you'll need a receiver that can decode Dolby Digital and DTS. If you just want to use the TV speakers, just get one of these http://www.monoprice.com/products/product.asp?c_id=104&cp_id=10429&cs_id=1042902&p_id=7189&seq=1&format=2 and a pair of RCA cables. I know the price is a bit steep Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1836402 Share on other sites More sharing options...
ultraxmode Posted July 24, 2012 Author Share Posted July 24, 2012 My TV's speakers are very clear and crisp. That's why I wanted to pull sound from the GT220's HDMI and send it to my TV. I dont want to load my TV's desk with other equipment... (at least not now... ) I had this HTPC running Windows 7 and I was using the HDMI for Video and Audio. I was a happy man. But then, I saw PLEX and its slick and "butterish" (if there is a word like that ) and wanted it DESPERATELY. Thats why I went the "hackintosh way" . Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1836421 Share on other sites More sharing options...
eep357 Posted July 24, 2012 Share Posted July 24, 2012 http://www.monoprice.com/products/product.asp?c_id=101&cp_id=10114&cs_id=1011405&p_id=5369&seq=1&format=2#description It is however possible to enable the HDMI audio on the card by having the graphics part fully enabled via DSDT, then using patched appleHDA, or just Voodoo and that's it. I've had mostly bad experiences with Voodoo causing poor sound quality, popping and kernel panics, most the audio problems with it can be fixed with some fine tuning, the kernel panics just require finding a version that doesn't. The first method while more difficult would probably be the best overall. Try Voodoo first though as it may work great, just back up your AppleHDA kext, then remove it from S/L/E and try installing Voodoo, if you do get a panic, reboot in safe mode with -x and delete it, then try another version. If no joy with any of that, maybe tomorrow I can look into the hard way some more Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1836427 Share on other sites More sharing options...
ultraxmode Posted July 24, 2012 Author Share Posted July 24, 2012 Ok! I will try it and give you feedback! Thank you so much! Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1836437 Share on other sites More sharing options...
ultraxmode Posted July 26, 2012 Author Share Posted July 26, 2012 OK, I tried VoodooHDA and as you wrote earlier in this thread, it causes me a lot of Kernel Panics. I found a guide for the method you mentioned, about DSDT.aml patching and AppleHDA patching but I dont know how to patch my DSDT.aml file. I am stuck in the following step. "STEP 2: ADD HDMI AUDIO TO DSDT Next, we'll add HDMI audio edits to the graphics section of our DSDT. Download and open DSDT-GT240+HDMI.dsl using DSDTSE Open your DSDT.aml Type Device (PCI0) in the search box to return to your previous graphics edit. Compare and copy/paste the information as necessary. NOTE: GT 240 owners can copy/paste the entire section including the full graphics code, Compile and save your new DSDT.aml Paste to /Extra/ as DSDT.aml" I have my DSDT.aml and GT220-HDMI-Patch.dsl but I dont know what to copy paste and how to compile my DSDT.aml file. Can you please help me to do it? Pleeeease??? Its the last step for me and then I will be ready for popcorn and movies!!!! Attached are the two files (DSDT.aml and the .dsl patch file) THANK YOU! DSDT-GT240+HDMI.dsl.zip DSDT.aml.zip Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1837305 Share on other sites More sharing options...

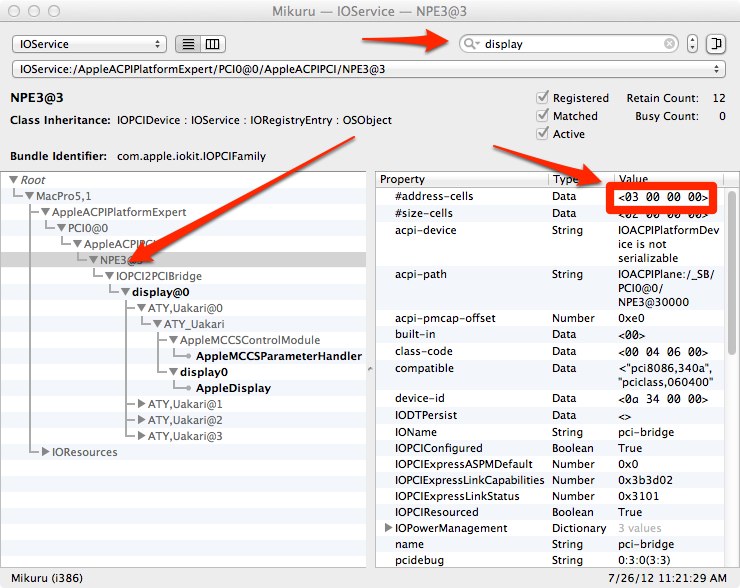

eep357 Posted July 26, 2012 Share Posted July 26, 2012 Can you also get some info from ioreg, if you don't have ioreg installed, just google it and you'll find it. Once you do, I need that address where I put the box, search for display, the name of your pci bridge will not be the same as mine, but should be in same location of the tree relative to your GPU card btw...I love Skitch!! Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1837357 Share on other sites More sharing options...

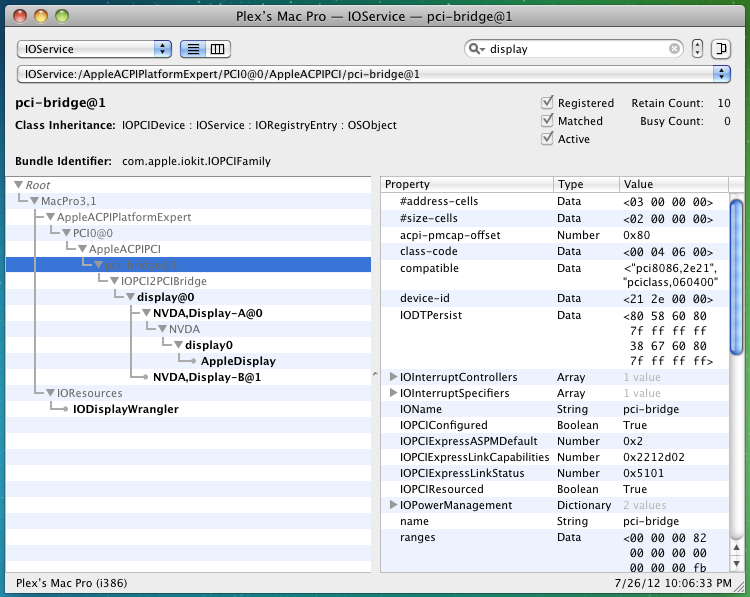

ultraxmode Posted July 26, 2012 Author Share Posted July 26, 2012 OK! I found ioreg and here is the screen you needed! A GREAT THANKS. PS : I am reading about Skitch right now. Thanks! Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1837367 Share on other sites More sharing options...
eep357 Posted July 26, 2012 Share Posted July 26, 2012 give that a shot, HDMI-DSDT.aml.zip you'll still need good appleHDA.kext that patched which can be found same place you got the guide from. The rom-version I used was from another 220 as not sure what yours is, so not sure it it will be an issue. rename it to just DSDT.aml and cross your fingers Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1837396 Share on other sites More sharing options...
ultraxmode Posted July 27, 2012 Author Share Posted July 27, 2012 Thank you very much eep357! I will check it out when I get back home! PS : Right now I am using AppleHDA with no problems. Will it do the trick or it needs to be patched? (It needs to.. I think.. right?) THANKS! Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1837555 Share on other sites More sharing options...
eep357 Posted July 27, 2012 Share Posted July 27, 2012 if it's working with no other enablers like HDAxxx it should work, try as is first. also if u run into any problem that looks like it's from DSDT, try to find out the rom-version of your card Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1837574 Share on other sites More sharing options...
ultraxmode Posted July 27, 2012 Author Share Posted July 27, 2012 So all I have to do is to search for HDAxxxx files inside S/L/E right? (I think I have not seen any of these files)... Also, how can I check my ROM version of my Graphics Card? Thanks! I cant wait to get back home to try it! Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1837606 Share on other sites More sharing options...
eep357 Posted July 27, 2012 Share Posted July 27, 2012 yup. for rom, gpu-z in windows would probably work and can dump a copy of it for most cards too Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1837803 Share on other sites More sharing options...

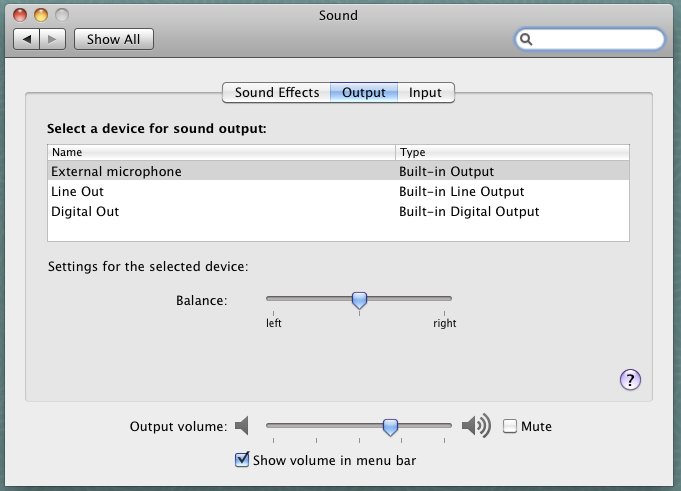

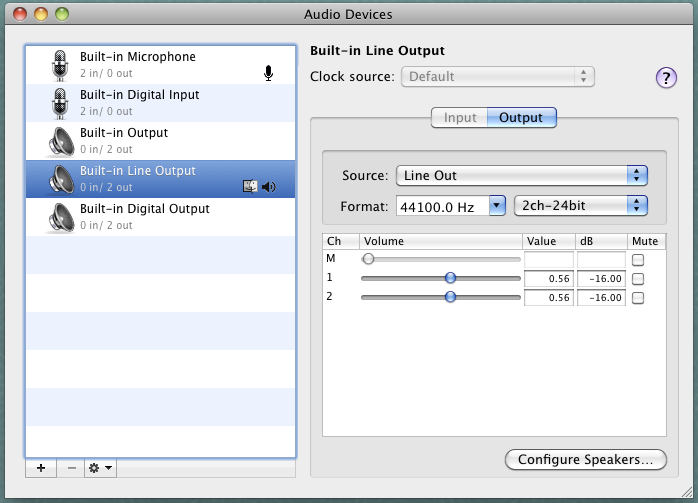

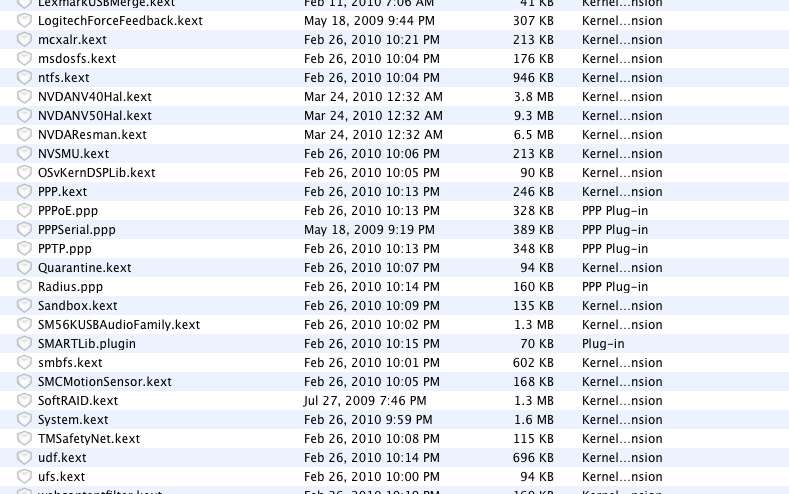

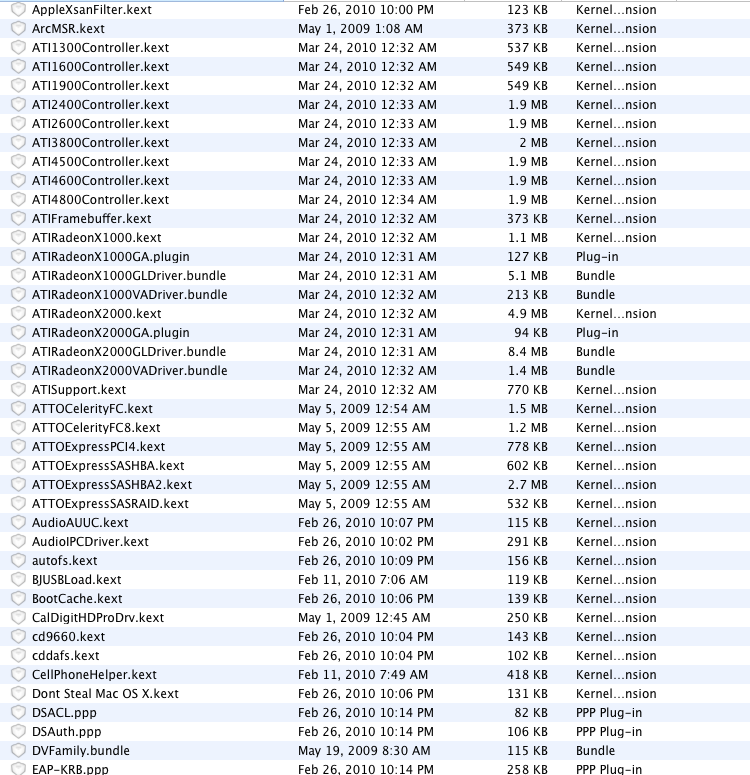

ultraxmode Posted July 27, 2012 Author Share Posted July 27, 2012 I did what you said. HDMI is not working. The display resolutions drops to 1280 x 800 pixels (from 1920 x 1200). Please look at the pictures below. Shall I delete thos ATI*****.kext and NV*****.kext files also???? Thanks eep357 !!! I owe you! Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1837816 Share on other sites More sharing options...
eep357 Posted July 27, 2012 Share Posted July 27, 2012 nope, if you got windows installed, try getting a rom dump with gpu-z Try this one first tho HDMI_DSDT2.zip Link to comment https://www.insanelymac.com/forum/topic/280862-dsdt-for-ga-ep45-ud3p/#findComment-1837868 Share on other sites More sharing options...
