6990m QE/CI, but no LVDS; need help with personality

12 posts in this topic

Recommended Posts

I have DVI fully working, but LVDS is not recognized. I am almost positive that it is assigned to port 0, and the senseid is correct. I've tried changing the control flags, but any changes and none of the graphics work. This also happens when I change the last two entries.



This is what I am currently using:



02 00 00 00 00 01 00 00 09 01 00 00 12 04 05 05 <-- LVDS, not recognized

00 04 00 00 00 02 00 00 00 01 00 00 10 00 03 03 <-- HDMI, not working, but it doesn't matter to me

04 00 00 00 14 00 00 00 00 01 00 00 11 02 01 01 <-- DVI, fully working as far as I can tell

00 04 00 00 00 01 00 00 00 01 00 00 21 03 02 02 <-- Not used/not sure what it is

00 04 00 00 00 01 00 00 00 01 00 00 22 05 04 04 <-- Not used/not sure what it is



Is there anything I'm doing blatantly wrong?



ATOM BIOS Rom:

SubsystemVendorID: 0x1558 SubsystemID: 0x5104

IOBaseAddress: 0x0000

Filename: BR40793.004

BIOS Bootup Message:

Clevo P150HM Blackcomb XT Samsung 2GB



PCI ID: 1002:6720

Connector at index 0

Type [@offset 44696]: LVDS (7)

Encoder [@offset 44700]: INTERNAL_UNIPHY (0x1e)

i2cid [@offset 44780]: 0x94, OSX senseid: 0x5

Connector at index 1

Type [@offset 44706]: HDMI-A (11)

Encoder [@offset 44710]: INTERNAL_UNIPHY2 (0x21)

i2cid [@offset 44803]: 0x92, OSX senseid: 0x3

Connector at index 2

Type [@offset 44716]: DVI-I (2)

Encoder [@offset 44720]: INTERNAL_UNIPHY1 (0x20)

i2cid [@offset 44840]: 0x90, OSX senseid: 0x1

Connector at index 3

Type [@offset 44726]: DVI-I (2) <--- Not actually sure what this is, no other DVI port that I know of

Encoder [@offset 44730]: INTERNAL_KLDSCP_DAC1 (0x15)

i2cid [@offset 44840]: 0x90, OSX senseid: 0x1







IOService: (Only parts of LVDS & DVI shown)



LVDS (I believe)

| |   |   | +-o ATY,Elodea@0  <class AtiFbStub, id 0x1000002ef, registered,$
| |   |   | | | {
| |   |   | | |   "port-number" = 0
| |   |   | | |   "display-type" = "NONE"
| |   |   | | |   "connector-type" = 2
| |   |   | | |   "ATY,ActiveFlags" = 1
| |   |   | | |   "IOFBDependentIndex" = 0
| |   |   | | |   "IOFBDependentID" = 18446743524284400384
| |   |   | | |   "ATY,ControlFlags" = 256
| |   |   | | |   "AAPL,gray-page" = <01000000>
| |   |   | | |   "device_type" = "display"
| |   |   | | |   "av-signal-type" = 0
| |   |   | | |   "AAPL,iokit-ndrv" = <a06707817fffffff>
| |   |   | | |   "AAPL,gray-value" = <c38c6400>
| |   |   | | |   "display-connect-flags" = <00000000>
| |   |   | | |   "name" = "ATY,Elodea"
| |   |   | | |   "AAPL,boot-display" = <01000000>
| |   |   | | | }

DVI
(I know)
| |   |   | |
| |   |   | +-o ATY,Elodea@1  <class AtiFbStub, id 0x1000002f0, registered,$
| |   |   | | | {
| |   |   | | |   "display-type" = "LCD"
| |   |   | | |   "connector-type" = 4
| |   |   | | |   "ATY,ActiveFlags" = 4
| |   |   | | |   "IOFBDependentIndex" = 1
| |   |   | | |   "IOFBDependentID" = 18446743524284400384
| |   |   | | |   "ATY,ControlFlags" = 20
| |   |   | | |   "AAPL,gray-page" = <01000000>
| |   |   | | |   "device_type" = "display"
| |   |   | | |   "av-signal-type" = 2
| |   |   | | |   "AAPL,iokit-ndrv" = <a06707817fffffff>
| |   |   | | |   "AAPL,gray-value" = <c38c6400>
| |   |   | | |   "display-connect-flags" = <00000000>
| |   |   | | |   "name" = "ATY,Elodea"
| |   |   | | |   "port-number" = 2
| |   |   | | | }


Share this post


Link to post
Share on other sites
Advertisement

I forgot to mention, I had that, but the kext I was editing had them out of order and the ports matched the senseids so I thought maybe they had to match for this one. It is still recognized as being the correct port.



Since then, I've been working with Fanwort. LVDS is now recognized, but remains blank. av-signal-type is 0x0 if that means anything about the issue.

I've been messing with the transmitter and encoder, but so far no luck.

Share this post


Link to post
Share on other sites

Just one thing,can you use your laptop screen?

The offset in the first post is taken from Elodea?

The only thing that I know is that with theese offsets(one of theese) you can use hdmi:

0000030	00  08  00  00  04  02  00  00  00  01  04  00  12  04  03  03
0000000	00  04  00  00  04  03  00  00  00  01  00  00  12  04  03  03

Can you upload your Ati6000Controller.kext?

Thanks

Share this post


Link to post
Share on other sites

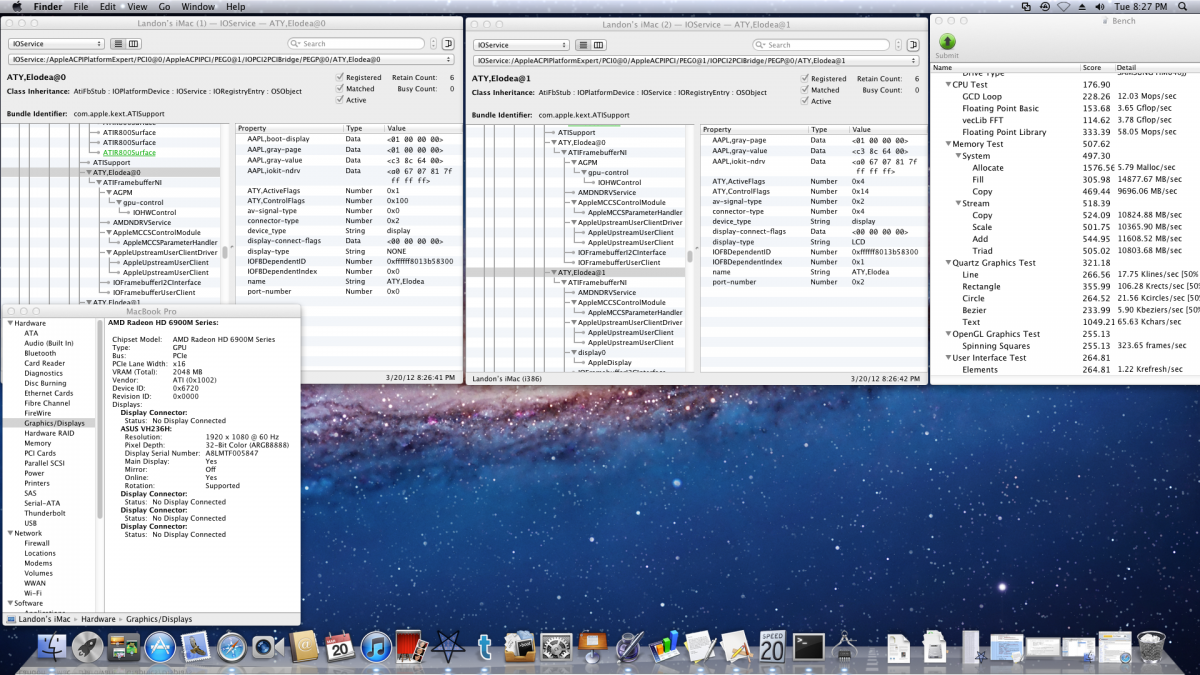

I'm now using:



02 00 00 00 40 00 00 00 29 05 00 00 10 00 00 05
00 08 00 00 04 02 00 00 00 01 04 00 12 04 01 03
04 00 00 00 14 00 00 00 00 01 00 00 11 02 02 01
00 04 00 00 04 03 00 00 00 01 00 00 21 13 03 02



DVI/HDMI working QE/CI but tearing occurs on both.

The LVDS does not work. It is recognized as a 17-inch spdisplays_display. Which is correct, but it stays blank.

Using Juncus Framebuffer & AtiPorts = 3



Edit:

I've looked at your other post now. I think our best bet is Osmunda. It seems to match quite closely what our cards are. Also where did you get the program that told you what the encoder, etc. was (the one you used before radeon_bios_decode)? Nevermind, I found it on a russian site. Unfortunately, it only confirms that what I had for the LVDS was actually correct so there must be some other issue. Maybe there just isn't any support until new framebuffers come out.



Chameleon does not seem to support Osmunda yet though. At least it doesn't appear in the source and I get an error when I set it.

ATI6000Controller.kext.zip

Share this post


Link to post
Share on other sites

I didn't understand one thing:can you use your laptop screen?

Probaly the transmitter value isn't correct,try with '51'

Share this post


Link to post
Share on other sites

Nope.

It is recognised, but stays blank. LVDS is the type of connection the internal screen uses.

Why 51?



According to this bios decoder, it should be 10. I'll try it once I boot Lion back up. I've been using Windows the past few days.





BR40793.004 :



Clevo P150HM Blackcomb XT Samsung 2GB



Subsystem Vendor ID: 1558

Subsystem ID: 5104

Object Header Structure Size: 237

Connector Object Table Offset: 3e

Router Object Table Offset: 0

Encoder Object Table Offset: b1

Display Path Table Offset: 12

Connector Object Id [14] which is [LVDS]

encoder obj id [0x1e] which is [iNTERNAL_UNIPHY (osx txmit 0x10 [duallink 0x0] enc 0x0)] linkb: false

Connector Object Id [12] which is [HDMI_TYPE_A]

encoder obj id [0x21] which is [iNTERNAL_UNIPHY2 (osx txmit 0x12 [duallink 0x2] enc 0x4)] linkb: false

Connector Object Id [1] which is [DVI_I]

encoder obj id [0x20] which is [iNTERNAL_UNIPHY1 (osx txmit 0x11 [duallink 0x1] enc 0x2)] linkb: false

Connector Object Id [1] which is [DVI_I]

encoder obj id [0x15] which is [iNTERNAL_KLDSCP_DAC1 (osx txmit 0x00 enc 0x10?)] linkb: false

Share this post


Link to post
Share on other sites

I used moninfo on windows and the LVDS id was 51...also all the combinations with 10 that I have tried didn't work...

Share this post


Link to post
Share on other sites

Hi,



I had the same issue with my LVDS. I solved it by installing dual link patch in my DSDT.

But you have to copy the code from GFX0 to PEGP and I had to set the decoder to 01 instead of 00.



This should work with all ATI 6XXX cards.

Share this post


Link to post
Share on other sites

Hi,



I had the same issue with my LVDS. I solved it by installing dual link patch in my DSDT.

But you have to copy the code from GFX0 to PEGP and I had to set the decoder to 01 instead of 00.



This should work with all ATI 6XXX cards.





hi,packo

can u give me more info about what u said

i wanna have a try

Share this post


Link to post
Share on other sites

hi,packo

can u give me more info about what u said

i wanna have a try



Please check your DSDT. search for PEGP and install the Duallink patch there.

should look like:



Scope (_SB.PCI0.PEG0.PEGP)

{

Method (_PRW, 0, NotSerialized)

{

Return (GPRW (0x09, 0x04))

}

Method (_DSM, 4, NotSerialized)

{

Store (Package (0x02)

{

"AAPL00,DualLink",

Buffer (0x04)

{

0x01, 0x00, 0x00, 0x00

}

}, Local0)

DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))

Return (Local0)

}

}



Then use your edited Kext and add the following to your Bootloader



GraphicsEnabler=Yes

AtiPorts=3

Aticonfig=%Your edited Framebuffer%



I Used Ipomoea

02000000 40000000 2901 0000 10 01 00 05 <-- LVDS

00080000 00020000 0001 0000 12 04 01 03 <-- HDMI

04000000 14020000 0001 0000 11 02 02 01 <-- DVI (not tested)

Share this post
