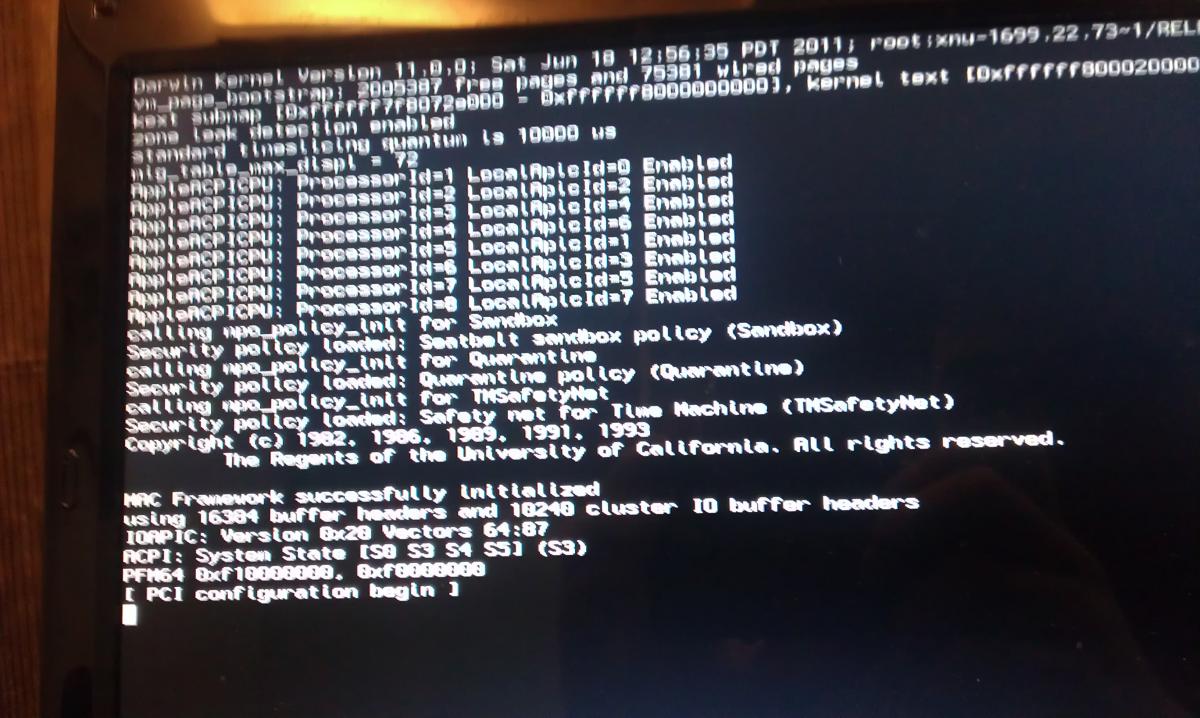

David Fang Posted January 20, 2012 Share Posted January 20, 2012 (edited) Hi all, I'm trying to install Lion to my laptop, Asus N82JQ. Specs here: Intel Core i7-720QM 8GB DDR3-1333 500 GB Segate 7200rpm NVIDIA GT335M Atheros AR9285 Since I have already installed Snow Leopard to it, I'm going to upgrade it by xMove. My bootloader is Chimera 1.7.0. But when I boot to the installer partition, it stopped in "[ PCI Configuration Begin]". I have tried "-v npci=0x2000" and "-v npci=0x2000 PCIRootUID=1" , but nothing happened. I also have a DSDT file patched, but it does nothing. Any help please??? P.S. DSDT attached here (sorry I cant upload aml and dsl files to insanelymac) Edited June 2, 2012 by Gringo Vermelho To attach any file type, zip it first. Link to comment https://www.insanelymac.com/forum/topic/274870-pci-configuration-begin-tried-npci-fix/ Share on other sites More sharing options...
LatinMcG Posted January 20, 2012 Share Posted January 20, 2012 try adding (_ADR, Zero) to Device (PCI0) { Name (_HID, EisaId ("PNP0A08")) Name (_CID, EisaId ("PNP0A03")) Name (_ADR, Zero) Name (_UID, Zero) Method (_PRT, 0, NotSerialized) also u do have fakesmc.kext installed ?? Link to comment https://www.insanelymac.com/forum/topic/274870-pci-configuration-begin-tried-npci-fix/#findComment-1787865 Share on other sites More sharing options...
David Fang Posted January 20, 2012 Author Share Posted January 20, 2012 Thanks for helping. I added the _ADR line into DSDT, but didn't fixed the problem, and I have FakeSMC installed to /E/E from here. (without any plugins) Link to comment https://www.insanelymac.com/forum/topic/274870-pci-configuration-begin-tried-npci-fix/#findComment-1787877 Share on other sites More sharing options...
LatinMcG Posted January 20, 2012 Share Posted January 20, 2012 install to /System/Library/Extensions .. dont use /e/e if possible. -v -x UseKernelCache=No as a test then switch to Yes and make sure to remove the radeon and x3100 in plugins folder inside of fakesmc.kext (right click show package contents) what smbios.plist are u using ? Link to comment https://www.insanelymac.com/forum/topic/274870-pci-configuration-begin-tried-npci-fix/#findComment-1787934 Share on other sites More sharing options...

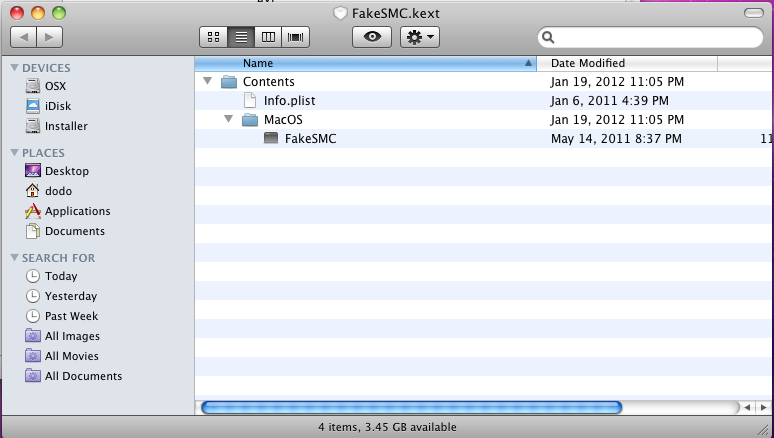

David Fang Posted January 21, 2012 Author Share Posted January 21, 2012 (edited) Thanks for help again. I moved FakeSMC to both Snow Leopard partition and Installer partition, but didn't fix the problem. (there are no plugins in fakesmc) And I tried to boot with "-v -x UseKernelCache=No" flag, it still doesn't work. Also, I have AppleACPIPS2Nub and ApplePS2Controller installed in /e/e (for keyboard and trackpad), should I move to /s/l/e too? Here is the smbios.plist: <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>SMbiosversion</key> <string>Chameleon</string> <key>SMboardproduct</key> <string>Mac-F22589C8</string> <key>SMfamily</key> <string>MacBook Pro</string> <key>SMproductname</key> <string>MacBookPro6,1</string> <key>SMserial</key> <string>C02CGEE6DC79</string> </dict> </plist> and org.chameleon.Boot.plist <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>Kernel</key> <string>mach_kernel</string> <key>Kernel Flags</key> <string>npci=0x2000</string> <key>GraphicsEnabler</key> <string>Yes</string> <key>Timeout</key> <string>2</string> <key>Legacy Logo</key> <string>Yes</string> <key>EthernetBuiltIn</key> <string>Yes</string> </dict> </plist> Edited June 2, 2012 by Gringo Vermelho Overquoting removed. Please don't quote entire posts when replying directly below them. Link to comment https://www.insanelymac.com/forum/topic/274870-pci-configuration-begin-tried-npci-fix/#findComment-1788008 Share on other sites More sharing options...
David Fang Posted January 21, 2012 Author Share Posted January 21, 2012 I got it solved. I use the EvilAppleACPIPlatform and EvilIOPCIFamily to get through PCI Configuration Begin, and I use PC EFI to avoid boocache.playlist problem, then I successfully installed Lion. thanks for helping anyway. Link to comment https://www.insanelymac.com/forum/topic/274870-pci-configuration-begin-tried-npci-fix/#findComment-1788062 Share on other sites More sharing options...
LatinMcG Posted January 21, 2012 Share Posted January 21, 2012 smbios isnt complete. Link to comment https://www.insanelymac.com/forum/topic/274870-pci-configuration-begin-tried-npci-fix/#findComment-1788143 Share on other sites More sharing options...
kizwan Posted January 23, 2012 Share Posted January 23, 2012 The problem is likely cause by your dsdt.aml. Boot without dsdt.aml & extract fresh one inside OSX. Then patched the new extracted dsdt.aml. If you done this, you can use npci=0x2000 & you will not need Evil kexts. Link to comment https://www.insanelymac.com/forum/topic/274870-pci-configuration-begin-tried-npci-fix/#findComment-1788626 Share on other sites More sharing options...
