[PARTLY SOLVED]ALC662 Works but...

3 posts in this topic

Recommended Posts

I finally got my alc662 work on Lion 10.7.2, but I have this:

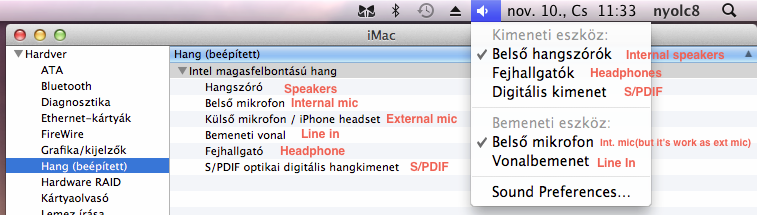

In System Profiler, I get all my ports, but in Sound preferences, I got only 5 port and Internal Mic works as external mic (so only the external mic port works).


Here's my dsdt HDEF section:

Device (HDEF)
			Name (_ADR, 0x001B0000)
			Method (_DSM, 4, NotSerialized)
				Store (Package (0x04)
						Buffer (0x04)
							0x96, 0x02, 0x00, 0x00
						Buffer (Zero) {}
					}, Local0)
				DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
				Return (Local0)


Here's my AppleHDA.kext: AppleHDA.kext.zip

(I'm not using any helper kext)


How could I get all my ports working from system profiler to sound prefs?


Edit: I got headphone autoswitching now, but still don't know how to get front panel mic working. That is an autoswitch-thing too, am I right?

Share this post

Link to post
Share on other sites

If I'm using pinconfiguration from my linux dump, there's no working sound ports at all!


I'm using pinconfiguration from an old "alc662.kext" file that I found here on insanelymac 1-2 years ago (that kext file was made for exactly the same MB that I have). I tried to add external mic into PathMap section in platforms.xml many ways, there I was able to fix headphone autoswitch, but can't make external (front panel) mic work.

Share this post

Link to post
Share on other sites
