kkdesire

Can someone please help me with these 4 warning in the DSDT?

Recommended Posts

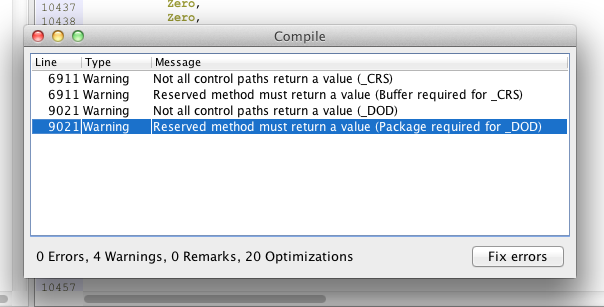

Can someone please kindly help me? I try to fix these 4 warnings for the past week but still fail as a result...dsdt.aml is attached. Thanks a lot!



start of line 6911

Method (_CRS, 0, NotSerialized)

{

If (IGDS)

{

Return (CRS)

}

}

}

}

}





start of line 9021

Method (_DOD, 0, NotSerialized)

{

If (LNotEqual (SKUT, 0x03))

{

If (LEqual (GPUT, 0x03))

{

If (LAnd (LGreater (OSYS, 0x07D0), LLess (OSYS, 0x07D6)))

{

Return (Package (0x03)

{

0x0110,

0x0100,

0x0120

})

}

Else

{

Return (Package (0x03)

{

0x0110,

0x80000100,

0x80007330

})

}

}








dsdt.aml.zip

Share this post


Link to post
Share on other sites
Advertisement

here u go Return (zero) for both

		Method (_DOD, 0, NotSerialized)
	{
		If (LNotEqual (SKUT, 0x03))
		{
			If (LEqual (GPUT, 0x03))
			{
				If (LAnd (LGreater (OSYS, 0x07D0), LLess (OSYS, 0x07D6)))
				{
					Return (Package (0x03)
					{
						0x0110,
						0x0100,
						0x0120
					})
				}
				Else
				{
					Return (Package (0x03)
					{
						0x0110,
						0x80000100,
						0x80007330
					})
				}
			}

			If (LEqual (PMDP, 0x03))
			{
				Return (Package (0x03)
				{
					0x0400,
					0x00010100,
					0x00010210
				})
			}

			Return (Package (0x03)
			{
				0x00010110,
				0x00010100,
				0x00010210
			})
		}
		Return (Zero)
	}

			Device (^^MEM2)
		{
			Name (_HID, EisaId ("PNP0C01"))
			Name (_UID, 0x02)
			Name (CRS, ResourceTemplate ()
			{
				Memory32Fixed (ReadWrite,
					0x20000000,		 // Address Base
					0x00200000,		 // Address Length
					)
				Memory32Fixed (ReadWrite,
					0x40000000,		 // Address Base
					0x00200000,		 // Address Length
					)
			})
			Method (_CRS, 0, NotSerialized)
			{
				If (IGDS)
				{
					Return (CRS)
				}
				Return (Zero)
			}
		}

might want to change Windows 2006 to Darwin for HPET to show 0x0F instead of 0x0B

		Method (_INI, 0, NotSerialized)
	{
		Store (0x07D0, OSYS)
		If (CondRefOf (_OSI, Local0))
		{
			If (_OSI ("Windows 2001"))
			{
				Store (0x07D1, OSYS)
			}

			If (_OSI ("Windows 2001 SP1"))
			{
				Store (0x07D1, OSYS)
			}

			If (_OSI ("Windows 2001 SP2"))
			{
				Store (0x07D2, OSYS)
			}

			If (_OSI ("Windows 2001.1"))
			{
				Store (0x07D3, OSYS)
			}

			If (_OSI ("Darwin"))
			{
				Store (0x07D6, OSYS)
			}

			If (_OSI ("Windows 2009"))
			{
				Store (0x07D9, OSYS)
			}

			If (_OSI ("Linux"))
			{
				Store (0x03E8, OSYS)
			}
		}

kkdesire.aml.zip

Share this post


Link to post
Share on other sites

Thanks a lot for your help! so much appreciated! :D

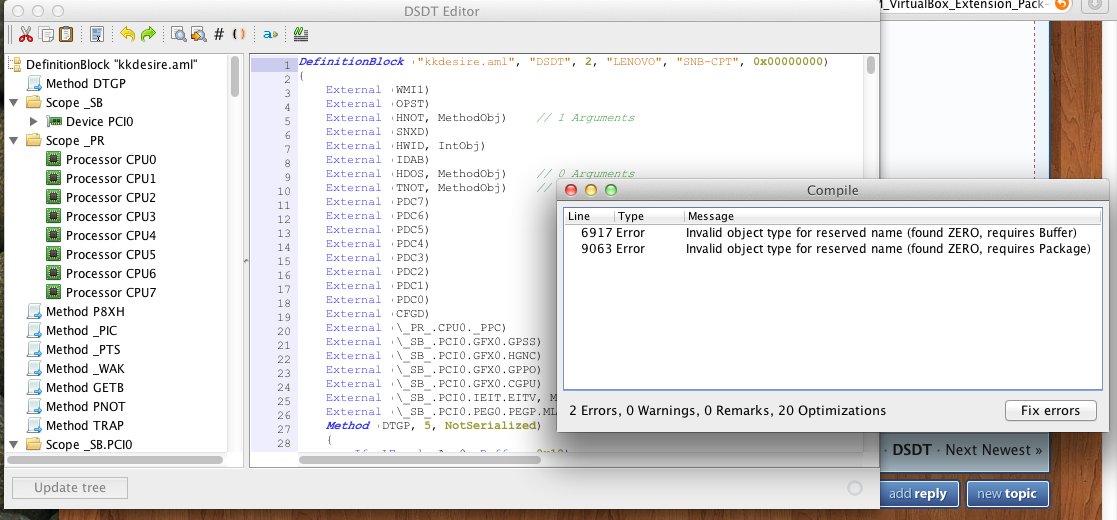

With your dsdt.aml, I compile it and found 2 errors. Please kindly have a look on it? Thanks a lot, you are so nice.




Share this post


Link to post
Share on other sites

strange it compiled fine in dsdtse .. guess its best to use dsdt editor to check it more.

try this

			Device (^^MEM2)
		{
			Name (_HID, EisaId ("PNP0C01"))
			Name (_UID, 0x02)
			Name (CRS, ResourceTemplate ()
			{
				Memory32Fixed (ReadWrite,
					0x20000000,		 // Address Base
					0x00200000,		 // Address Length
					)
				Memory32Fixed (ReadWrite,
					0x40000000,		 // Address Base
					0x00200000,		 // Address Length
					)
			})
			Method (_CRS, 0, NotSerialized)
			{
				If (IGDS)
				{
					Return (CRS)
				}
Else
{
				Return (Zero)
}
			}
		}

Share this post


Link to post
Share on other sites

Opps, the same error occurs after change, but as you say, I try it in DSDTSE, it is no problem, so I just use your one. Thanks so much, anyway!

Share this post


Link to post
Share on other sites

In my case i need to add like this




Device (^^MEM2)
            {
                Name (_HID, EisaId ("PNP0C01"))  // _HID: Hardware ID
                Name (_UID, 0x02)  // _UID: Unique ID
                Name (CRS, ResourceTemplate ()
                {
                    Memory32Fixed (ReadWrite,
                        0x20000000,         // Address Base
                        0x00200000,         // Address Length
                        )
                    Memory32Fixed (ReadWrite,
                        0x40000000,         // Address Base
                        0x00200000,         // Address Length
                        )
                })
                Method (_CRS, 0, NotSerialized)  // _CRS: Current Resource Settings
                {
                    If (IGDS)
                    {
                        Return (CRS)
                    }
                    Return (Buffer (One)
                        {
                            0x00
                        })

                }
            }

Share this post


Link to post
Share on other sites
