ATI Mobility HD 2400 (Iago) on Snow Leo 10.6.7 & 10.6.8 Finaly

9 posts in this topic

Recommended Posts

I've finaly managed working my Mobility HD 2400 on Mac OS X Snow Leopard 10.6.7 & 10.6.8 (more succesfully). I've edited personality:



02 00 00 00 40 00 00 00 01 01 00 00 00 01 00 07</p><p>10 00 00 00 10 00 00 00 00 01 00 00 00 10 01 01



Who have no backlight DON'T USE feature FEATURES_USE_BACKLIGHT (my personality don't use it). This is about backlight problem.



Thank's to 0xdeadbeaf for solving sence-id problem. That really works! If your radeon_bios_decode shows you senseid value 5 this is wrong, because there's no definition for this id in ATI2400Controller.kext. Only 1,2,3,4,7 SENSE IDs. USE 7.



You will get messed up colors. Add property "@0,display-link-component-bits" with value 6 to ati.c and recompile. (you'll also need to add support of your card in ati.c).



But I have a problem with CI/QE. When ATIRadeonX2000.kext is installed, i got gray screen on both internal & external monitors.



On 10.6.8 I have black screen with cursor & with some white artefacts (progress :P) ). IOreg says that all servicies are registered (Iago, acceleration & s.o.). I'm going mad...



Who knows how to solve this?

Share this post


Link to post
Share on other sites
Advertisement

Hi, i saw that you solve problems making working Ati mobility radeon HD 2400 on Leopard.



I have an Asus F3sr with this card and I've installed Lion 10.7.2; how can i enable qe/ci on this system? do you have a good tip?



Thank you!

Share this post


Link to post
Share on other sites
Your Card is ATI 2400?

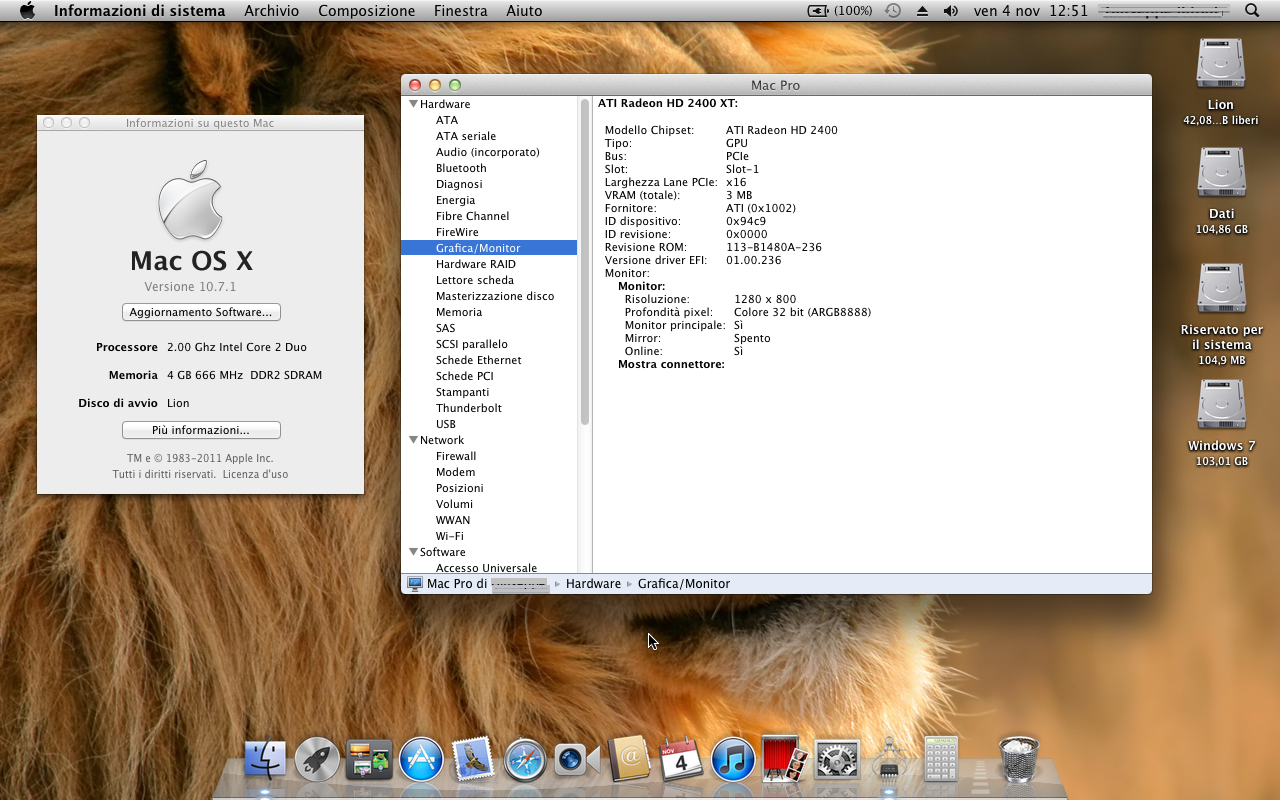

I make a screenshot of my screen:






As you can see my video card has the same device ID of yours.

The only "working" kexts I installed is this: ATY Init (lion + snow), but now it views my card as "Radeon HD 2400 XT" with only 3Mb of VRam ;) and I have to boot with GraphicsEnabler=No.



Could you help?

Thank you!

Share this post


Link to post
Share on other sites

You can only use 10.5.8 with acceleration (simply use my kexts in the first post & you'll need to enter your EDID to @0,override-no-connect).



As for Snow Leo & Lion you'll not get fully working card. There's problem with acceleration. There's no solve for that. The only hope - waiting 10.7.3 release... Maybe it will work.



But you can use your card with proper resoluion...

Share this post


Link to post
Share on other sites

Could you suggest me a way to improve the fluidity of the effects (for example, the transition to full screen)?



Do you know a way to increase the VRAM viewed by system? (only 3mb are ridiculous).



Thank you! :)

Share this post


Link to post
Share on other sites
