ldiqual Posted May 24, 2011 Share Posted May 24, 2011 Hello ! I was able to set up Snow Leopard 10.6.7 on my Asrock G31M-S successfully. However, I have to disable Legacy USB from BIOS settings or USB 2.0 to make OSX start. Otherwise, I get a HPET error. I read on this topic that this issue would be related to a ICH7/USB 2.0 conflict. I also heard that it is possible to edit DSDT to maybe fix this kind of HPET error, but I really don't know where I should start from. So my question is quite simple: is this a hardware limitation ? - If yes, I guess I won't be able to solve it ... ? - If no, how can I fix it ? Regards, Loïs Link to comment Share on other sites More sharing options...
MaLd0n Posted May 24, 2011 Share Posted May 24, 2011 Send me files http://www.insanelymac.com/forum/index.php...st&id=81816 i will try Link to comment Share on other sites More sharing options...
ldiqual Posted May 24, 2011 Author Share Posted May 24, 2011 Here it is: http://lois.di-qual.net/files/send_me.zip Thanks for your help ! Link to comment Share on other sites More sharing options...
MaLd0n Posted May 24, 2011 Share Posted May 24, 2011 Here it is:http://lois.di-qual.net/files/send_me.zip Thanks for your help ! dsdt_ldiqual.zip if the error continues use USBLegacyOff=Yes try it remove EvOreboot and Disabler Use Chameleon RC5 add in boot.plist <key>GeneratePStates</key> <string>Yes</string> <key>GenerateCStates</key> <string>Yes</string> Link to comment Share on other sites More sharing options...

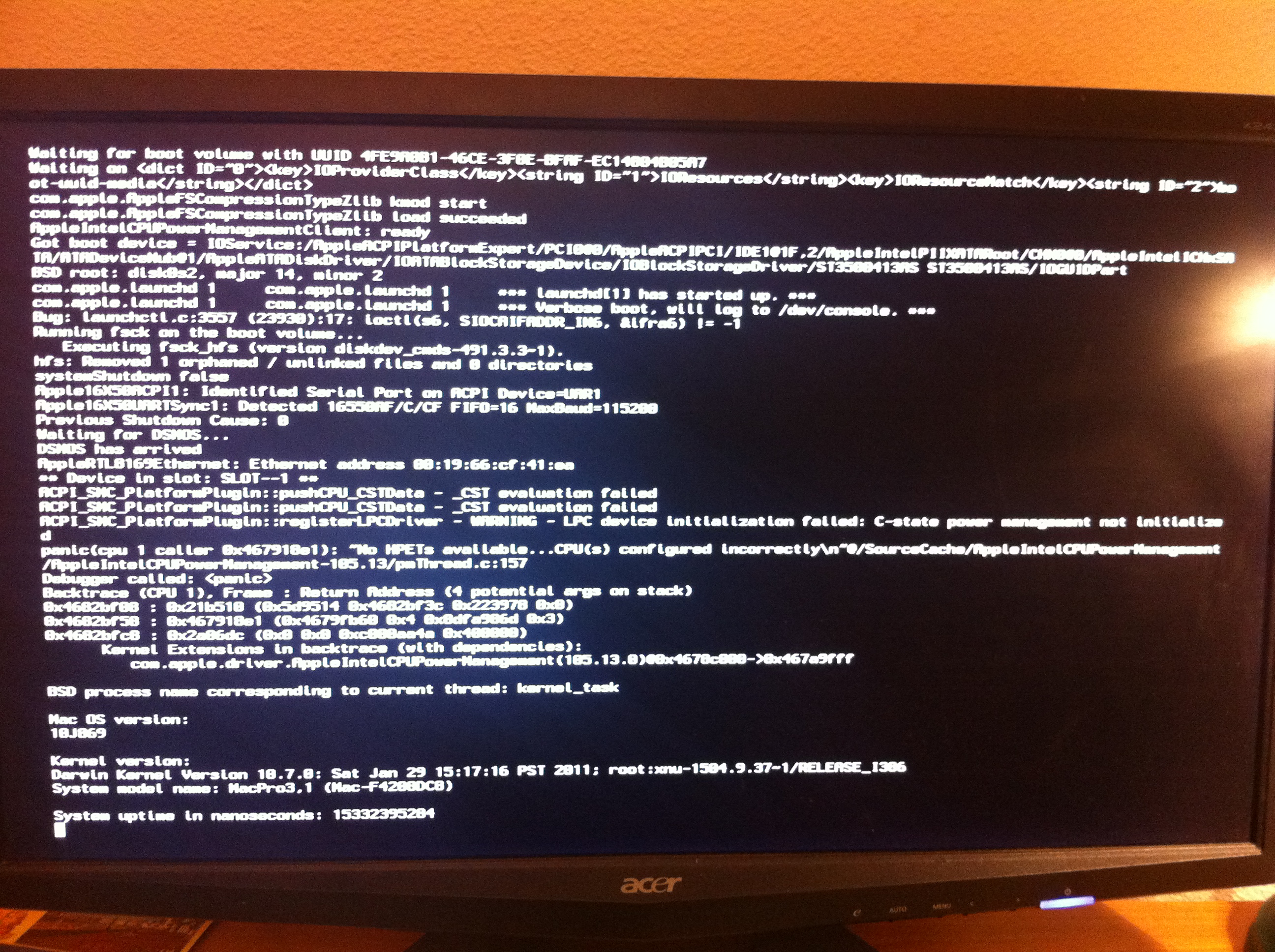

ldiqual Posted May 24, 2011 Author Share Posted May 24, 2011 I followed these steps: - Removed EvOreboot and Disabler - Extracted dsdt.aml to /Extra folder - Installed Chameleon RC5 from here - Added the four lines you indicated I get a kernel Panic with the following content: This happens even if I disable USBLegacy in BIOS Settings, or use USBLegacyOff=Yes in bootloader options. If I restore Disabler.kext, everything is ok. Any idea ? Thank you very much for your great help ! Link to comment Share on other sites More sharing options...
MaLd0n Posted May 24, 2011 Share Posted May 24, 2011 I followed these steps:- Removed EvOreboot and Disabler - Extracted dsdt.aml to /Extra folder - Installed Chameleon RC5 from here - Added the four lines you indicated I get a kernel Panic with the following content: This happens even if I disable USBLegacy in BIOS Settings, or use USBLegacyOff=Yes in bootloader options. If I restore Disabler.kext, everything is ok. Any idea ? Thank you very much for your great help ! HPET enable in bios? Use Lizard http://www.insanelymac.com/forum/index.php...st&id=86246 look it Link to comment Share on other sites More sharing options...

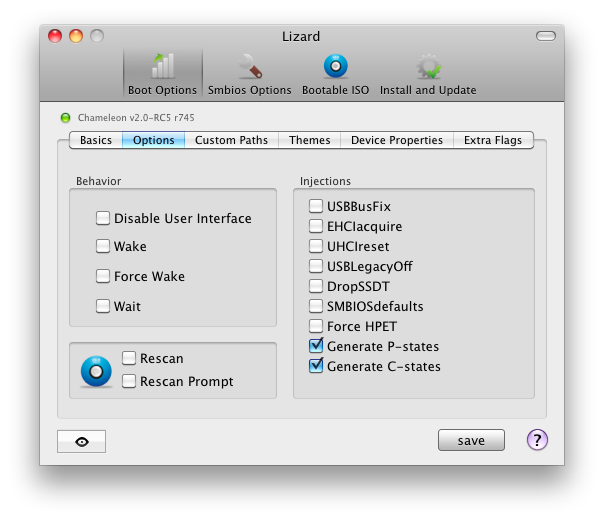

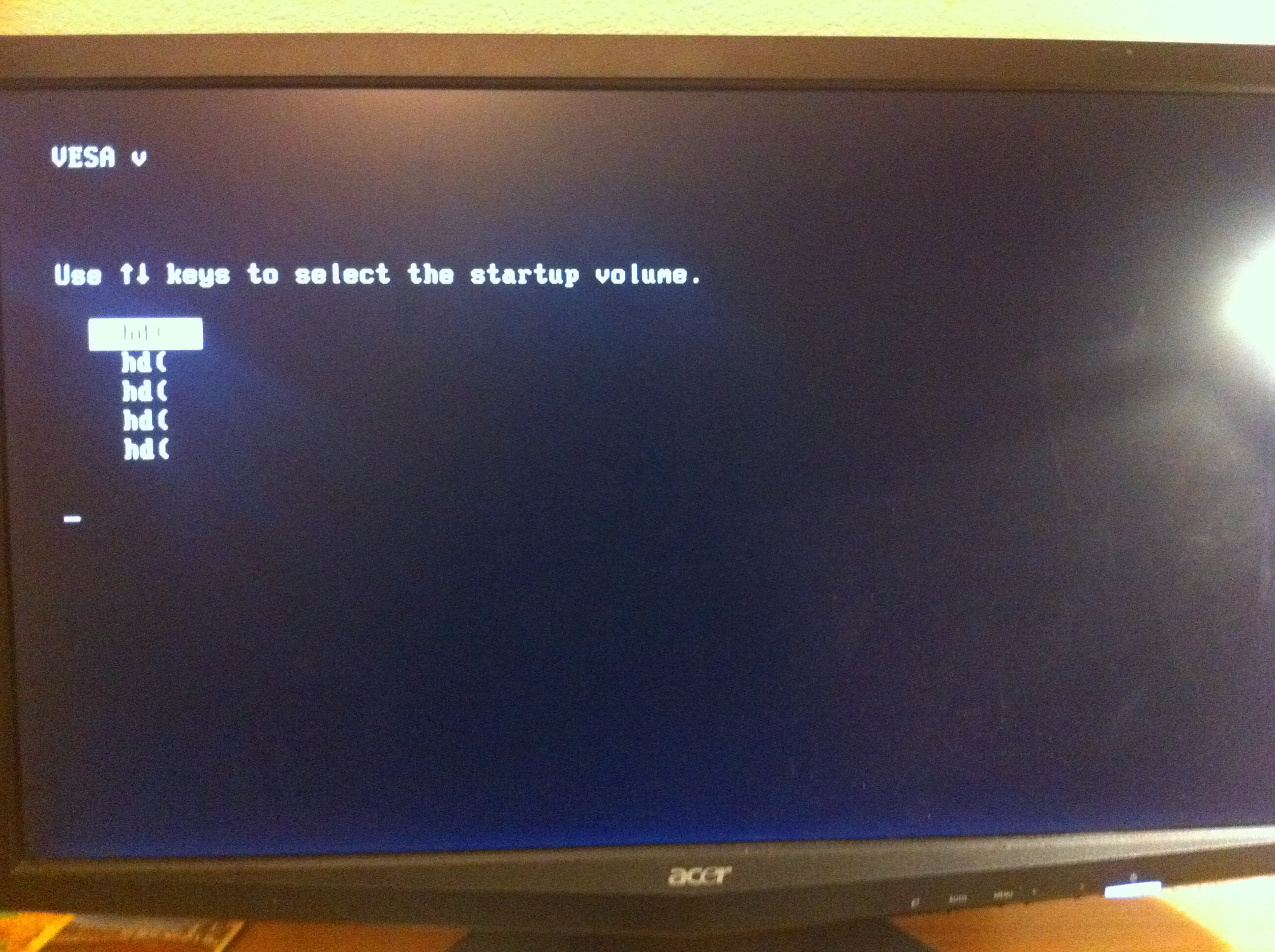

ldiqual Posted May 24, 2011 Author Share Posted May 24, 2011 Oh, sorry, I forgot to enable HPET in BIOS. Now, OSX boots with the new DSDT, but only when LegacyUSB is disabled in BIOS. When it isn't, i get a really weird Chameleon: I tried to enable the two options in Lizard, but it doesn't change anything (as I suppose they are boot options, it's normal). Any chance to get it boot with USBLegacy enabled in BIOS ? Again, thanks for everything ! Link to comment Share on other sites More sharing options...
MaLd0n Posted May 24, 2011 Share Posted May 24, 2011 Any chance to get it boot with USBLegacy enabled in BIOS ?Again, thanks for everything ! :S I have no idea try with USBBusFix=Yes Link to comment Share on other sites More sharing options...
ldiqual Posted May 25, 2011 Author Share Posted May 25, 2011 Ok now I can't boot at all I removed my DSDT and restored Boot.plist, but it's stuck at the middle of the boot. I'll reinstall OSX from zero. Thanks anyway Link to comment Share on other sites More sharing options...
MaLd0n Posted May 26, 2011 Share Posted May 26, 2011 Ok now I can't boot at all I removed my DSDT and restored Boot.plist, but it's stuck at the middle of the boot. I'll reinstall OSX from zero. Thanks anyway ok use the DSDT anyway has many patches needed for a proper functioning Link to comment Share on other sites More sharing options...
