Fux Posted May 19, 2011 Share Posted May 19, 2011 Hi guys, ive got a beatifull Mac pro G6 case here, but i dont know how to connect it to my atx board... any1 got a idea? best regards fux Link to comment https://www.insanelymac.com/forum/topic/257377-mac-pro-g6-2010-with-2-drive-slots-front-panel-connectors/ Share on other sites More sharing options...
eelhead Posted May 19, 2011 Share Posted May 19, 2011 Check this site out as well. I only have a G5 so I am not to familiar with your front panel layout. http://aquamac.proboards.com/index.cgi?board=macpro Link to comment https://www.insanelymac.com/forum/topic/257377-mac-pro-g6-2010-with-2-drive-slots-front-panel-connectors/#findComment-1685847 Share on other sites More sharing options...
rorydaredking Posted May 19, 2011 Share Posted May 19, 2011 Mate, all mac pro's have 2 drive slots. Best bet is taking a picture of the actual front panel and someone can point you to the right thread if there is one. TBH, I am not sure the 2010 one has been mapped yet. Link to comment https://www.insanelymac.com/forum/topic/257377-mac-pro-g6-2010-with-2-drive-slots-front-panel-connectors/#findComment-1685865 Share on other sites More sharing options...

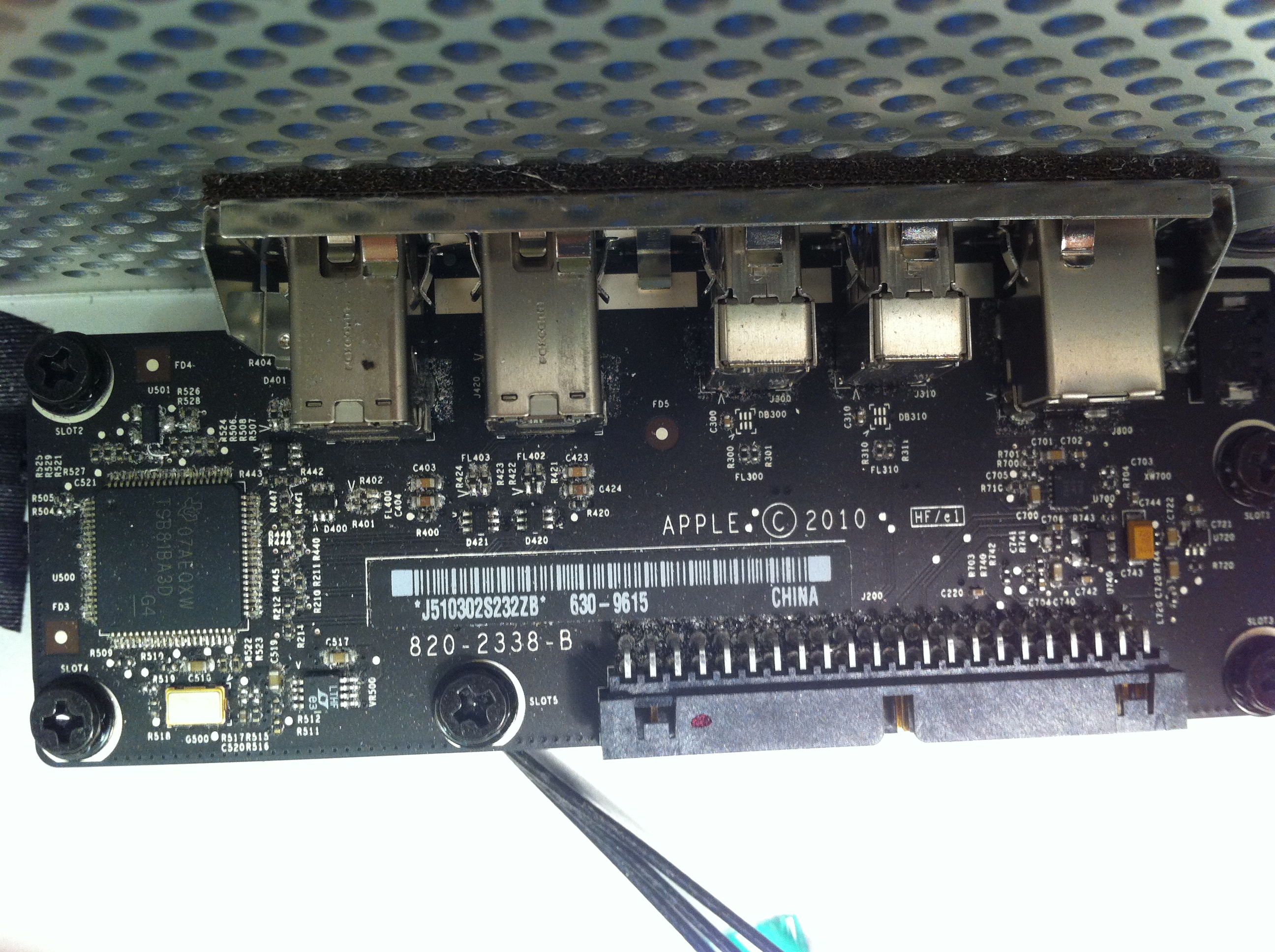

Fux Posted May 21, 2011 Author Share Posted May 21, 2011 hmm i thought the g5 only got 1 slot for a dvd drive... but here is the image of the board, and thx alot guys! Link to comment https://www.insanelymac.com/forum/topic/257377-mac-pro-g6-2010-with-2-drive-slots-front-panel-connectors/#findComment-1686564 Share on other sites More sharing options...
rorydaredking Posted May 22, 2011 Share Posted May 22, 2011 Oh its the IDE one. Don't think it has been worked out yet sadly. Link to comment https://www.insanelymac.com/forum/topic/257377-mac-pro-g6-2010-with-2-drive-slots-front-panel-connectors/#findComment-1687083 Share on other sites More sharing options...
Fux Posted May 24, 2011 Author Share Posted May 24, 2011 Oh its the IDE one. Don't think it has been worked out yet sadly. thats 2 bad, if any1 finds a way to use the front panel, plz tell me.... at least the power button would be nice to use... brgds derFux Link to comment https://www.insanelymac.com/forum/topic/257377-mac-pro-g6-2010-with-2-drive-slots-front-panel-connectors/#findComment-1687996 Share on other sites More sharing options...

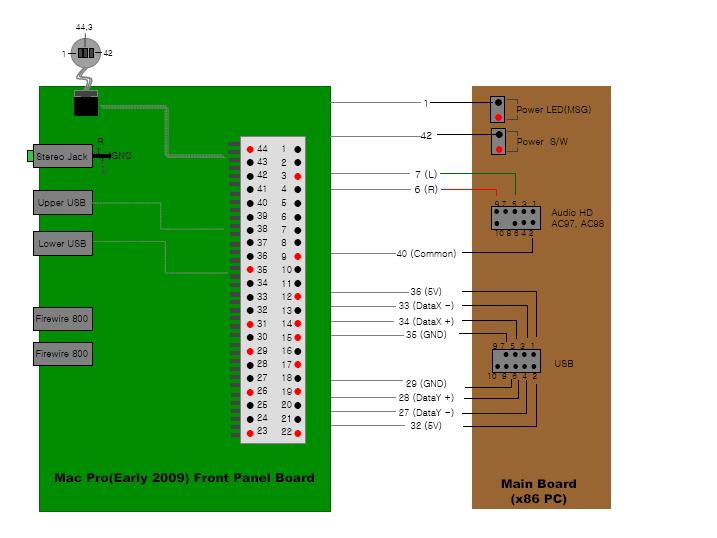

eelhead Posted May 24, 2011 Share Posted May 24, 2011 Did you check out the link I posted??? The one thread there has this diagram in it, I suggest maybe going though those and seeing what else you could use. Link to comment https://www.insanelymac.com/forum/topic/257377-mac-pro-g6-2010-with-2-drive-slots-front-panel-connectors/#findComment-1688021 Share on other sites More sharing options...
