ALC889a Full surround working, still need something!


WhizZ
 Share

13 posts in this topic

Recommended Posts

Hi all,



I succesfully installed LegacyHDA.kext and HDAenabler.kext for my ALC889a sound card ( X48-DS5 mobo ).

i'm running full surround now and i'm very happy with that.



Now that i accomplished that i want to get the SPDIF output working, since i use that for watching movies. ( connected to receiver ).



Now i read something about linux codec dumps or something but since i'm a newb i would really like some help on how to get that port working in the most easiest way ^^

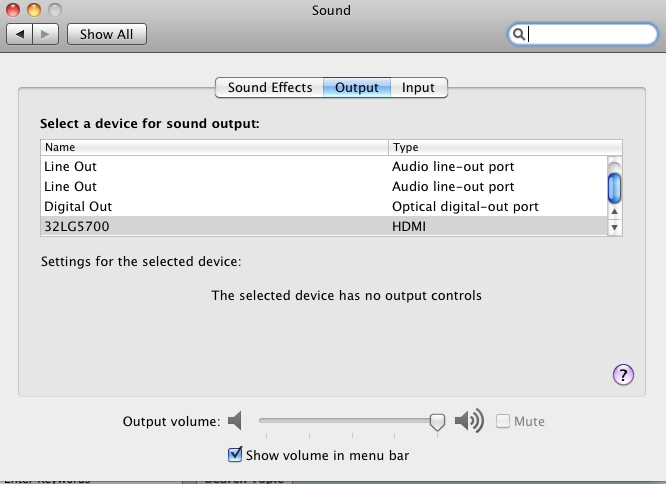

currently outputs showing :






any help is very appreciated :)

Link to comment
Share on other sites

So i did some searching.



i'm currently using AppleHDA + LegacyHDA + DSDT HDEF injection

I did nothing to the AppleHDA.



I used the 4outs2ins HDA Headphone legacyHDA from here : ALC889a_LayoutID_885

This version gave me best options + most outs-ins





My DSDT pin configuration is like this:

Used the Auto-patcher for my Mainboard X48-DS5



		   Device (HDEF)
		{
			Name (_ADR, 0x001B0000)
			Method (_PRW, 0, NotSerialized)
			{
				Return (Package (0x02)
				{
					0x0D,
					0x05
				})
			}

			Method (_DSM, 4, NotSerialized)
			{
				Store (Package (0x0A)
					{
						"built-in",
						Buffer (One)
						{
							0x01
						},

						"codec-id",
						Buffer (0x04)
						{
							0x85, 0x08, 0xEC, 0x10
						},

						"layout-id",
						Buffer (0x04)
						{
							0x75, 0x03, 0x00, 0x00
						},

						"device-type",
						Buffer (0x10)
						{
							"Realtek ALC889A"
						},

						"PinConfigurations",
						Buffer (0x28)
						{
							/* 0000 */	0x10, 0x90, 0xA1, 0x01, 0x20, 0x90, 0xA1, 0x02,
							/* 0008 */	0x80, 0x30, 0x81, 0x01, 0x90, 0x40, 0x21, 0x02,
							/* 0010 */	0x30, 0x40, 0x11, 0x01, 0x40, 0x40, 0x01, 0x01,
							/* 0018 */	0x50, 0x60, 0x01, 0x01, 0x60, 0x20, 0x01, 0x01,
							/* 0020 */	0x70, 0x61, 0x4B, 0x01, 0xA0, 0x01, 0xCB, 0x01
						}
					}, Local0)
				DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
				Return (Local0)
			}
		}



For as i know i need to Edit the LegacyHDA and my DSDT.aml.

But where do I start? i'm really lost :( Is it necessary to get a linux dump ?



I searched as much as i could but there are so many different options that I dont know which one is the best or where to start. still kinda new to all this..



Working:

5.1 surround

Headphones (not front one)

Line-in

Mic-in

Optical-in



Not working:

S/PDIF out :blink:

Link to comment
Share on other sites

I guess i completely missed that part hehe, but since i have 4 outs right now and i use all of them. that means that i lose outs when going 3ins right ? or am i missing something here? i'm not able to test it right now since i'm not home.



I will test it when i'm home and post results here. hoping i get 5 outs ^^ ( 3 for surround, 1 headphones, 1 S/PDIF )



Thanks for putting me in the right direction :)

Link to comment
Share on other sites

I guess i completely missed that part hehe, but since i have 4 outs right now and i use all of them. that means that i lose outs when going 3ins right ? or am i missing something here? i'm not able to test it right now since i'm not home.



I will test it when i'm home and post results here. hoping i get 5 outs ^^ ( 3 for surround, 1 headphones, 1 S/PDIF )



Thanks for putting me in the right direction ;)



you still have 4 outs but one is spdif and 3 analogue.



HDMI audio is separate.



D

Link to comment
Share on other sites

you still have 4 outs but one is spdif and 3 analogue.



HDMI audio is separate.



D



Thank you very much i will test it ^^ do you know if its possible to get all ports working ? ( since there are 4 outs and 2 ins on the mobo ) if not i'm happy with this ^^ but if i can get all ports working i can have my headset connected to ( since this is a wireless sennheiser its always connected )

Link to comment
Share on other sites

Well, It are good topics. although it's completely weird talks for me, i don't understand a thing what i should do.

And they all edit AppleHDA, but i use LegacyHDA with DSDT injection.



I tried using that 3ins3outs digital Kext but that didn't work since when i booted i had just a bluescreen sitting there doing nothing..





@FKA do you use DSDT injection? if so can you post yours to compare?

Link to comment
Share on other sites

Here's my HDEF device for MB built in codec alc888.



            Device (HDEF)
           {
               Name (_ADR, 0x00xxxxxxxxxx)
               Method (_DSM, 4, NotSerialized)
               {
                   Store (Package (0x04)
                       {
                           "layout-id",
                           Buffer (0x04)
                           {
                               0x78, 0x03, 0x00, 0x00
                           },

                           "PinConfigurations",
                           Buffer (Zero) {}
                       }, Local0)
                   DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                   Return (Local0)
               }
           }



And this is what i use for HDMI audio.



		Device (GFX0)
               {
                   Name (_ADR, Zero)
                   Method (_DSM, 4, NotSerialized)
                   {
                       Store (Package (0x02)
                           {
                               "hda-gfx",
                               Buffer (0x0A)
                               {
                                   "onboard-1"
                               }
                           }, Local0)
                       DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                       Return (Local0)
                   }
               }

               Device (HDAU)
               {
                   Name (_ADR, One)
                   Method (_DSM, 4, NotSerialized)
                   {
                       Store (Package (0x02)
                           {
                               "hda-gfx",
                               Buffer (0x0A)
                               {
                                   "onboard-1"
                               }
                           }, Local0)
                       DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                       Return (Local0)
                   }
               }
           }

Link to comment
Share on other sites

Here's my HDEF device for MB built in codec alc888.



            Device (HDEF)
           {
               Name (_ADR, 0x00xxxxxxxxxx)
               Method (_DSM, 4, NotSerialized)
               {
                   Store (Package (0x04)
                       {
                           "layout-id",
                           Buffer (0x04)
                           {
                               0x78, 0x03, 0x00, 0x00
                           },

                           "PinConfigurations",
                           Buffer (Zero) {}
                       }, Local0)
                   DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                   Return (Local0)
               }
           }



And this is what i use for HDMI audio.



		Device (GFX0)
               {
                   Name (_ADR, Zero)
                   Method (_DSM, 4, NotSerialized)
                   {
                       Store (Package (0x02)
                           {
                               "hda-gfx",
                               Buffer (0x0A)
                               {
                                   "onboard-1"
                               }
                           }, Local0)
                       DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                       Return (Local0)
                   }
               }

               Device (HDAU)
               {
                   Name (_ADR, One)
                   Method (_DSM, 4, NotSerialized)
                   {
                       Store (Package (0x02)
                           {
                               "hda-gfx",
                               Buffer (0x0A)
                               {
                                   "onboard-1"
                               }
                           }, Local0)
                       DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                       Return (Local0)
                   }
               }
           }





I dont get it, why arent there any pin configs in your DSDT ? :D i also noticed the: Name (_ADR, 0x00xxxxxxxxxx)

Hows that ? is that because ALC888 is supported bij mac or something ?

Link to comment
Share on other sites

I dont get it, why arent there any pin configs in your DSDT ? :rolleyes: i also noticed the: Name (_ADR, 0x00xxxxxxxxxx)

Hows that ? is that because ALC888 is supported bij mac or something ?



you just need layout-id, the one ive listed is for alc888 you need to find the one for alc889a (885).

Then you can remove hdaenabler.kext



And I xxx'd out the address so that you don't just copy and paste my code. Your address will be different - read this:



http://www.insanelymac.com/forum/index.php?showtopic=168014



D
