MSI X58M Installation

javiercordero20

By javiercordero20,
in OSx86 10.6 (Snow Leopard)

 Share
23 posts in this topic

Recommended Posts

javiercordero20
javiercordero20
Posted
Posted

Hello People,



I figured I would share how my desktop is running since the forums and the community is mostly responsible for my success but mostly digital_dreamer.



I am NOT using kexts for my video card. I am using an EFI string. I used EFIStudio to generate my EFI string and suggest anyone who wants to use an EFI string do the same.



First question everyone asks "Whats in my extra's folder?"

Here ya go:






Xbench scores are:

WITH DISK




WITHOUT DISK




I also Did an OpenGL test




Geekbench Score (64-bit): 12000 (not sure, have too many apps running right now) but with apps its 10051



I am upgrading my RAM soon from 4GB to 10GB So these tests will need to be rerun by then. Should have my new RAM sometime tomorrow.



If anyone has questions Im willing to answer them in this topic.



The only thing that does not work for me is sleep but seeing as its a desktop I don't really care. boot time is quick (15-20 sec)



Any questions, Requests post here.



Sincerely,

J.D. Cordero

Link to comment
Share on other sites
  • 2 weeks later...
  • 1 month later...
MaLd0n
MaLd0n
Posted
Posted
Hello Everyone,



Can you guys share your extra folder and/or DSDT?



I am trying to find the perfect working files for this motherboard.



Sincerely,

J.D. Cordero



Hi javiercordero20



I want to do auto patcher

you could send me these files?

http://www.insanelymac.com/forum/index.php...st&id=81816



Thanks, man

Link to comment
Share on other sites
javiercordero20
javiercordero20
Posted
  • Author
Posted
Hi javiercordero20



I want to do auto patcher

you could send me these files?

http://www.insanelymac.com/forum/index.php...st&id=81816



Thanks, man



I'm Sorry. I don't understand exactly what your asking. Do you want me to send you my extra files or should I run the file you sent?



Feel free to email me: javiercordero20@gmail.com



Sincerely,

J.D. Cordero

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
Posted
I'm Sorry. I don't understand exactly what your asking. Do you want me to send you my extra files or should I run the file you sent?



Feel free to email me: javiercordero20@gmail.com



Sincerely,

J.D. Cordero



ok

I need these files

http://www.insanelymac.com/forum/index.php...st&id=81816



to include this motherboard in DSDT Auto-Patcher

http://www.insanelymac.com/forum/index.php?showtopic=235523



Thanks

Link to comment
Share on other sites
javiercordero20
javiercordero20
Posted
  • Author
Posted
ok

I need these files

http://www.insanelymac.com/forum/index.php...st&id=81816



to include this motherboard in DSDT Auto-Patcher

http://www.insanelymac.com/forum/index.php?showtopic=235523



Thanks



Here you go!



Hope you get it updated soon. Do I just use your auto-patcher and it makes a DSDT for my system?



send_me.zip



Sincerely,

J.D. Cordero

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
Posted
Here you go!



Hope you get it updated soon. Do I just use your auto-patcher and it makes a DSDT for my system?



send_me.zip



Sincerely,

J.D. Cordero



DSDT is original?

you do not use DSDT?



dsdt.javiercordero20.zip



ALIAS

DTGP

HID/CID

IRQs

LAN

LPC

REMOVE

RENAME

SMBUS

SHUTDOWN



EvOreboot

PlatformUUID

NullCPUPowerManagement

add in boot.plist Generate P and C States


Lpc in DSDT :unsure:



if you have problems with power management

see if the message "No HPETs available"



Chameleon RC5(BootCamp Theme)

Chameleon_v2.0_RC5_r698.zip



Thanks man :)

Link to comment
Share on other sites
javiercordero20
javiercordero20
Posted
  • Author
Posted

Hello,



I get this error. What do I do?






Sincerely,

J.D. Cordero





DSDT is original?

you do not use DSDT?



dsdt.javiercordero20.zip



ALIAS

DTGP

HID/CID

IRQs

LAN

LPC

REMOVE

RENAME

SMBUS

SHUTDOWN



EvOreboot <--- Restart Chameleon RC5, Shutdown DSDT

PlatformUUID <--- Chameleon RC4 or RC5

NullCPUPowerManagement <--- Chameleon RC5

add in boot.plist Generate P and C States


Lpc in DSDT :rolleyes:



if you have problems with power management

see if the message "No HPETs available"



Chameleon RC5(BootCamp Theme)

Chameleon_v2.0_RC5_r698.zip



Thanks man :wacko:

Link to comment
Share on other sites
javiercordero20
javiercordero20
Posted
  • Author
Posted



Hello Again,



Did you fix the HPET problem in this DSDT? I downloaded the latest one but I still have the problem.



I get this:


EDIT (Jan 05, 2010):

This problem was also fixed while I was working on the DSDT with madl0n. I don't know if it was a bug in the DSDT or the fact that HPET was disabled in BIOS.



AND




EDIT (Jan 05, 2010):

The No HPET problem was my own fault. It was disabled in the BIOS. If you get this problem, CHECK YOUR BIOS SETTINGS before you post.



Too make sure i'm doing everything right. Here is my Extra folder and boot.plist









ALso, I reran the program you set just to be sure.

Here it is: send_me.zip



I hope this gets the DSDT fixed soon.



Thanks again,

J.D. Cordero

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
Posted

Hi javiercordero20



remove generate P and C States

use nullcpuPM

in some cases with motherboards Intel, EVGA and MSI

I have not seen solution

use the DSDT, but not the power management

Repair Permissions



same problem

http://www.insanelymac.com/forum/index.php...t&p=1611101

and many others

Link to comment
Share on other sites
javiercordero20
javiercordero20
Posted
  • Author
Posted

Hello,



Problem is still not fixed.



Any other ideas?



Sincerely,

J.D. Cordero



Hi javiercordero20



remove generate P and C States

use nullcpuPM

in some cases with motherboards Intel, EVGA and MSI

I have not seen solution

use the DSDT, but not the power management

Repair Permissions



same problem

http://www.insanelymac.com/forum/index.php...t&p=1611101

and many others

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
Posted
Hello,



Problem is still not fixed.



Any other ideas?



Sincerely,

J.D. Cordero



if you have Extensions.mkext

remove

nullcpupm in folder Extra/Extensions



reboot -f -v

Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
Posted

this is what you need

http://www.insanelymac.com/forum/index.php...st&id=83522

+ NullcpuPM in Extra/Extensions

NullCPUPowerManagement.kext.zip

+ DSDT in Extra

http://www.insanelymac.com/forum/index.php...st&id=84007



--------------------------------



even if you do not get the native power management

the ideal is to use the least amount of kext (extra)

AND

clean install

Link to comment
Share on other sites
javiercordero20
javiercordero20
Posted
  • Author
Posted

Hello Everyone,



Madl0n is helping me fix/make a DSDT for the X58M. It works 98%. I noticed my graphical preformance is worse with the DSDT. I will be contacting madl0n to see why this is happening.



When this is all fixed I will post my working DSDT but you can also use Madl0n's DSDT Patcher when he updates it with the new information he has gathered from my motherboard.



Won't be Long Now :(



EDIT:



Actually, I'll post it here.



This is my old Extra folder setup:




And this is the setup Madl0n helped me with:




Using my old setup I get great graphical performance (Nvidia GTX 275), While with madl0n's Its a bit slower and the finder actually bugs out sometimes. Anyone have any clues as to why?



One problem that the DSDT did not fix was Sleep. The machine will turn off but when you tell it to wake up the screen stays black. I don't know why this happens or if its related to the fact that my video card is not one of the most supported ones. I'll research this and try and fine an answer. If you know why, Please share.



Madl0n has told me to do a fresh installation of OSX but that is hard for me as I cannot use my video card during installation. The current installation I did by installing from a Mac to a hard disk and applying the needed fixes to get my video card working.



I am also trying to make a kind of distro or restoration disk which has OSX 10.6.5 prefixed and updated. The idea being that if my installation ever crashes I just put in a DVD and tell it where to restore and I have a brand new mac (so to speak). If anyone has any ideas on how to do that please contact me.



Sincerely,

J.D. Cordero

Link to comment
Share on other sites
ozl
ozl
Posted
Posted

I have never worked on DSDTs, how do you start with that? you just paste the files on the Extra Extensions folder? im kind of lost...



Good day people!

Link to comment
Share on other sites
  • 3 weeks later...
enjoyfebruary
enjoyfebruary
Posted
Posted

I'm thinking about using the X58m board but with either a 8400gs or a 9500gt. Am I going to run into these same issues? I was planning on just using [url=&quot;http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/&quot;]#####[/url] and [url=&quot;http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/&quot;]#####[/url]. Any help would be much appreciated. Thanks

Link to comment
Share on other sites
  • 2 weeks later...
neil43
neil43
Posted
Posted

MSI X58M - Refresh - February 2011



I purchased the MSI X58M Micro-ATX mother board about a month ago and brought it up using an image from a Gigabyte EX58 install and manually patching in the files that I found in this thread.



Now my short term goal was a fresh OS X install with all updates to the current 10.6.6.

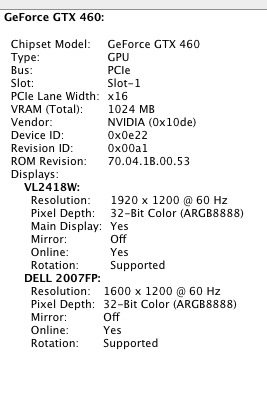

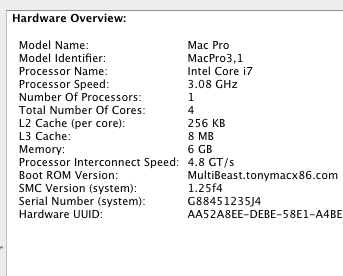

My hardware: MSI X58M motherboard, i7-950 CPU, 6 GB memory, PNY GTX 460 video card, two DVI LCDs, SATA OD and SATA HDD, USB Kb and mouse.





Follows is a detailed install outline guide (assumes a cabled Ethernet connection to the Internet).



a. used [url=&quot;http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/&quot;]#####[/url] v 2.6 (download the zipped iso from TonyMacX86 download page and burn the CD).

b. at the [url=&quot;http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/&quot;]#####[/url] screen prompt, place the Apple Retail OS X 10.6.3 in the OD, wait until the green activity light goes out, press F5.

c. select the OS X DVD, enter this boot argument "-v -x PCIRootUID=1" and press enter, this boot to the DVD takes a while.

d. at the first screen of the DVD install, click next, from the top menu bar select Disk Utility, create a GUID partition of something greater then 10 GB.

e. proceed with the installation of 10.6.3 to the selected new partition.

f. when the installation completes (it took 16 minutes on my setup), click on the "Restart" prompt.

g. during the reboot, replace the [url=&quot;http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/&quot;]#####[/url] cd in the OD and at the [url=&quot;http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/&quot;]#####[/url] screen prompt, select your new installation and use this boot argument "-v -x PCIRootUID=1", and press enter.

h. sense this is a "safe boot" there won't be any welcome movie, click though the account setup providing whatever information you need to and login at the login prompt.

i. open Safari and goto Apple Support MAC OS and down load the 10.6.6 combo update (this takes a while).

j. use Safari and goto TonyMacX86 download page and download [url=&quot;http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/&quot;]#####[/url] (v 3.2.0) and tonymacx86-NVIDA-Update.

k. use Safari and goto InsanleyMac Forum Tutorials (The Genius Bar), locate the thread "MSI X58M Installation", goto post # 12 and download the DSDT.aml by selecting the link in the post.

l. close Safari.

m. open a finder window to the DownLoads directory. Open the Mulitbeast zip file and drag the Mulitbeast icon to the desktop.

n. drag the tonymacx86-NVIDA-Update to the desktop.

o. drag the MacOSXUpdCombo10.6.6.dmg to the desktop.

p. drag the DSDT.aml file to the desktop

q. click to open [url=&quot;http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/&quot;]#####[/url] - leave open on the desktop.

r. click the MacOSXUpdCombo10.6.6.dmg and follow the prompts to run the update,however DO NOT restart the system when the update completes.

s. now click on the Mulitbeast window to give it focus (note the app may close before you complete the menu selections, just reopen the app and continue making the selections), click to continue, click to continue, click to continue, click Agree. Select UserDSDT Install, System Utilities, and OSx86 Software. Follow the prompts to start the app.

t. when [url=&quot;http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/&quot;]#####[/url] completes, close the app. If you are running a GTX 4xx video card, run the tonymacx86-NVIDA-Update now.

u. eject the [url=&quot;http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/&quot;]#####[/url] CD and reboot to your new installation.



I re-ran [url=&quot;http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/&quot;]#####[/url] and used it to install VoodooHDA v 0.2.1 for working sound.



This version of [url=&quot;http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/&quot;]#####[/url] installs fakeSMC.kext v 3.1.0 into /Extra which is not my personal choice so I copied and pasted version 2.7.2 over the existing file. The reason is with v 3.1.0 the iStat Pro does not display all of the temps.



I also edit the com.apple.Boot.plist Kernel Flags to <string>-v</string> to get verbose boot messages and the 64 bit kernel.



You will get a prompt for software update… go ahead and run the update to be current.



CREDITS - this install is made possible by the efforts of many others: Credit to OSX86 community, Tony of Tonymacx86, the Voodooprojects team, javiercordero20 (thread starter and major contributor), and MaLdOn, Moderator, for the DSDT.aml.



Note: The PNY GTX 460 video card was problematic when installed on my GigaByte P55M system but has been solid performer on the X58 based systems for me.



Summary: This install is very vanilla Retail OS X. The /Extra directory has one file. Only modifications to /S/L/E is the addition of the VoodooHDA.kext for sound and the NVIDA driver update.



enjoy

neil
