Gatorman Posted October 23, 2010 Share Posted October 23, 2010 So, I'm working on putting together my Hackintosh in my slick G5 case I picked up. Before I cut them, I was wondering if anybody has used the original Optical Drive/Hard Drive Power Cable to power any drives/HDD's in the case. If so, what cable did you use to hook it up to the Power Supply? I tried looking around here, but was unsuccessful so far in finding my answer. Thanks. Link to comment https://www.insanelymac.com/forum/topic/235115-g5-opticalhard-drive-power-cable/ Share on other sites More sharing options...
Gatorman Posted October 25, 2010 Author Share Posted October 25, 2010 I'm guessing that's a big "No" Link to comment https://www.insanelymac.com/forum/topic/235115-g5-opticalhard-drive-power-cable/#findComment-1570188 Share on other sites More sharing options...
Buzze Posted October 26, 2010 Share Posted October 26, 2010 Hi, I used the original cable to supply HDDs, HDD fans and optical drive with power. I just connected the regular power supply cables to a connector fitting the Apple one (Molex Mini-Fit Jr.) Link to comment https://www.insanelymac.com/forum/topic/235115-g5-opticalhard-drive-power-cable/#findComment-1570458 Share on other sites More sharing options...
Gatorman Posted October 27, 2010 Author Share Posted October 27, 2010 Hi,I used the original cable to supply HDDs, HDD fans and optical drive with power. I just connected the regular power supply cables to a connector fitting the Apple one (Molex Mini-Fit Jr.) Oh, hey! Thanks! I've been trying to find a cable that would work...didn't think of looking for the plug and just wiring it myself. Do you know the pinout for the original cable? I can't seem to find the service manual online to figure that out. If not, no worries. I can hunt it down. Thanks! Link to comment https://www.insanelymac.com/forum/topic/235115-g5-opticalhard-drive-power-cable/#findComment-1571321 Share on other sites More sharing options...
BlackCH Posted October 28, 2010 Share Posted October 28, 2010 I've kept the original cables and just exchange the connector for a regular 4 pin female molex so I can connect it directly to any power supply. For the pinouts you can look in the web. For example SATA: http://pinouts.ru/Power/sata-power_pinout.shtml and Molex: http://pinouts.ru/Power/BigPower_pinout.shtml Note you dont need to wire 3.3 volts to the sata power connection. Link to comment https://www.insanelymac.com/forum/topic/235115-g5-opticalhard-drive-power-cable/#findComment-1571503 Share on other sites More sharing options...

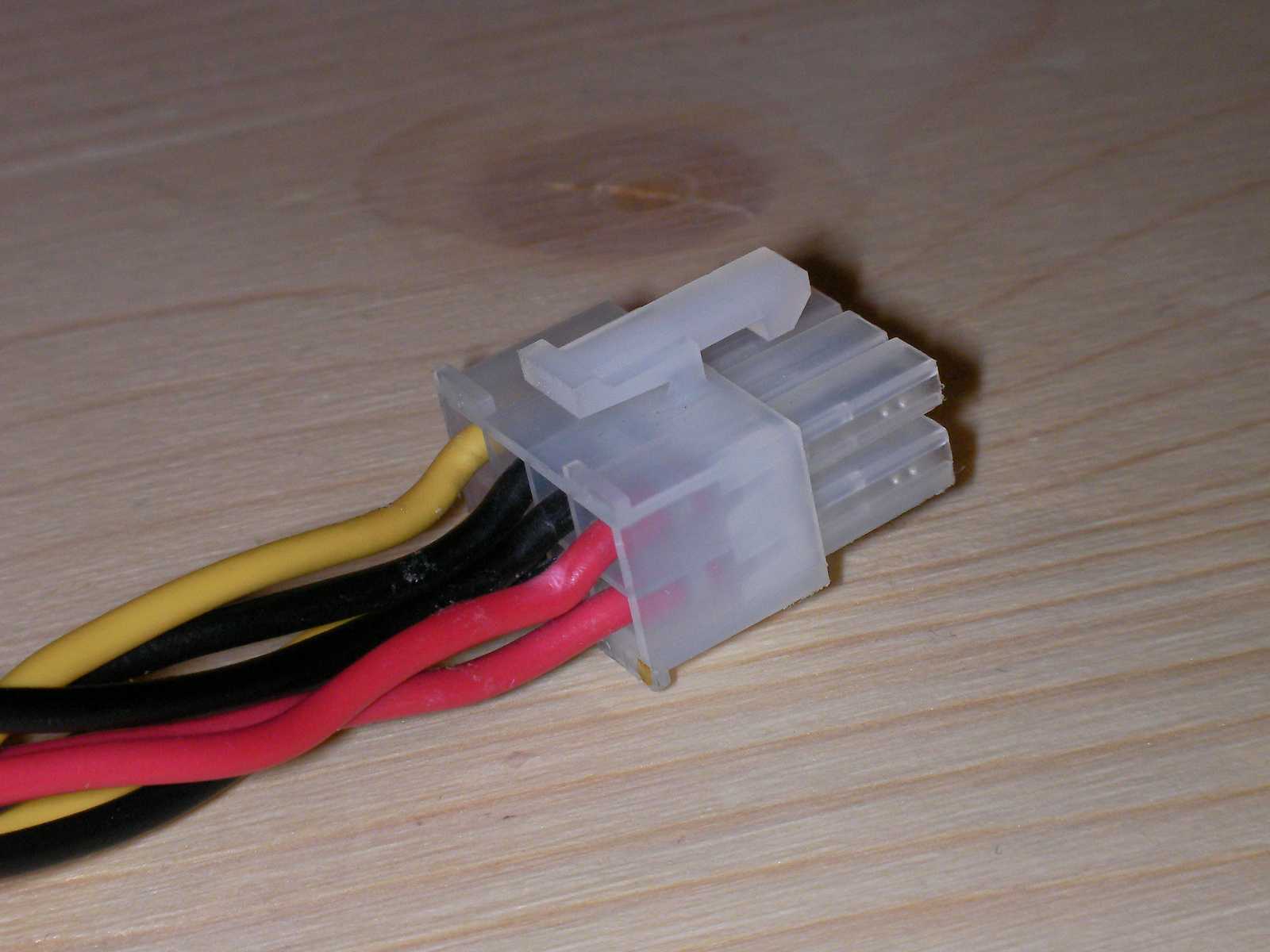

Buzze Posted October 28, 2010 Share Posted October 28, 2010 Hi, I attached a picture of my self-made cable. Colour code is as usual, 5V red, 12V yellow, GND black. Link to comment https://www.insanelymac.com/forum/topic/235115-g5-opticalhard-drive-power-cable/#findComment-1571539 Share on other sites More sharing options...
Gatorman Posted December 21, 2010 Author Share Posted December 21, 2010 Hey Buzze, What's the other side of that cable look like? Link to comment https://www.insanelymac.com/forum/topic/235115-g5-opticalhard-drive-power-cable/#findComment-1606641 Share on other sites More sharing options...
Buzze Posted December 22, 2010 Share Posted December 22, 2010 The other side of the cable is the connectors to my computer power supply, Enermax standard connectors. I made the complete wire from scratch. Link to comment https://www.insanelymac.com/forum/topic/235115-g5-opticalhard-drive-power-cable/#findComment-1606922 Share on other sites More sharing options...
