Toshiba Tecra S10 internal LCD Screen stays black

hookme · March 5, 2017

Hello community,

after several days trying to get the internal LCD working i have to ask you.

But the first here are the specs of my opponent :-) :

Toshiba Tecra S10 ( Toshiba S10-106 / PTSB3E-00C006GR)

Cpu Intel T9400 Processor

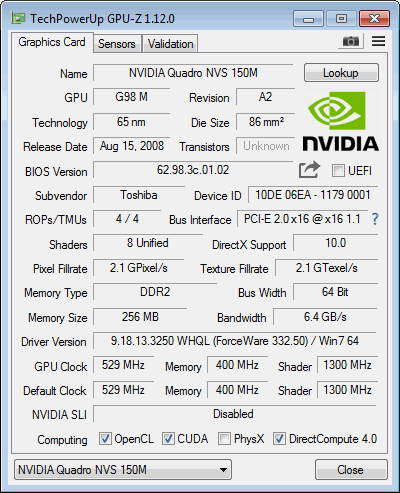

Nvidia Quadro NVS 150m Graphic 256MB

Chipset Intel PM45 Express

Displayformat 16:10

Screenresolution WSXGA+ 1680x1050

http://www.toshiba.de/discontinued-products/tecra-s10-106/

So far:

After patching the org DSDT i can get the VGA-Output up and running (QE/CI is running, all resolutions of the Monitor are selectable and useable ; tested with two different Monitors).

I achived this by just renaming the Device unter Device PCI0-> Device PCI1 -> Device VGA into PCI0-> Device PCI1 -> Device AGP and inserting a new Method _DSM which i found somewhere. Some Thinkpad T61 an Dells D830 do have some similar graphics (NVS140M or NVS135M) and got these full running - so that motivated myself a lot.

But the i can't get the internal LCD running with this method. To get the internal LCD-Screen working i have to boot with nv_disable=1. What do i oversee or miss? OS X is Mavericks 10.9.

I will attach the extracted orignal DSDT/SSDT with Clover. With Windows i was able to extract the EDID-information of the Laptopscreen, just in case in will be needed.

Maybe someone can point me in the right direction or do have a solution for my problem. If i missed information you would need just let me know.

Many thanks in advance.

Hookme

Toshiba.S10.DSDTorigin.-.hookme.zip

TOS508C.txt

Toshiba.S10_EDID.ZIP

artur_pt · March 5, 2017

hello

u can try this one

DSDT.aml.zip

good hack

hookme · March 5, 2017

Hello artur,

thank you for the fast reply but sadly it isn't working - the screen stays black. BUT i got it working. Please let me explain how i achieved this.

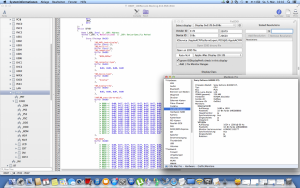

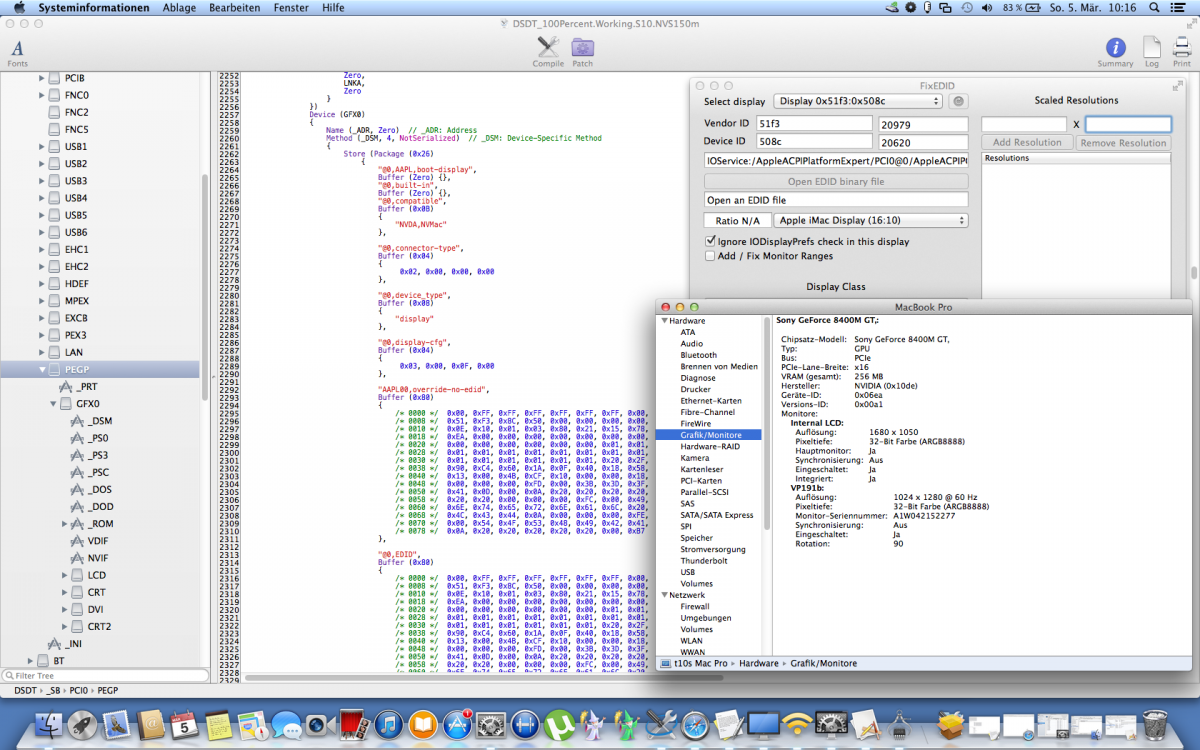

Firstly i tried to rename the Device PCI0-> Device PCI1 -> Device VGA into PCI0-> Device PGEP-> Device GFX0. After that i just inserted your _DSM Method - but the result was the same as before: External VGA Yes; Internal No.

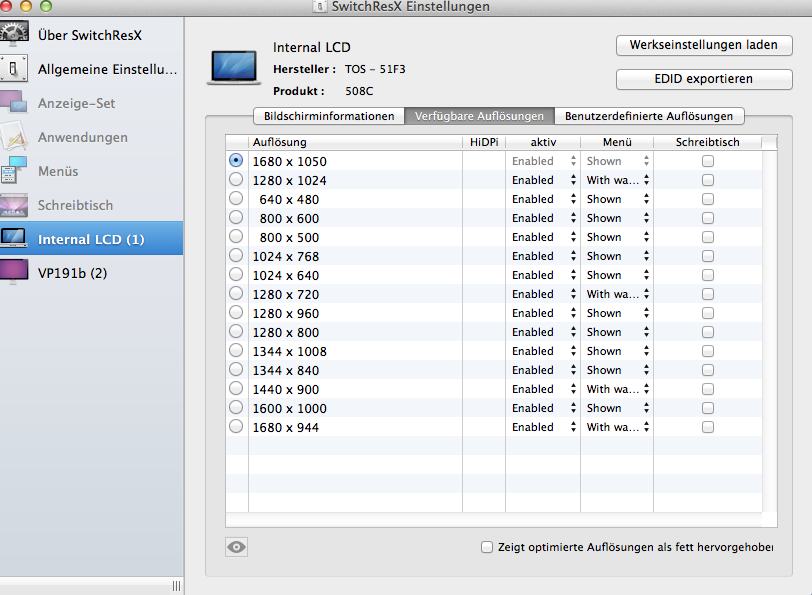

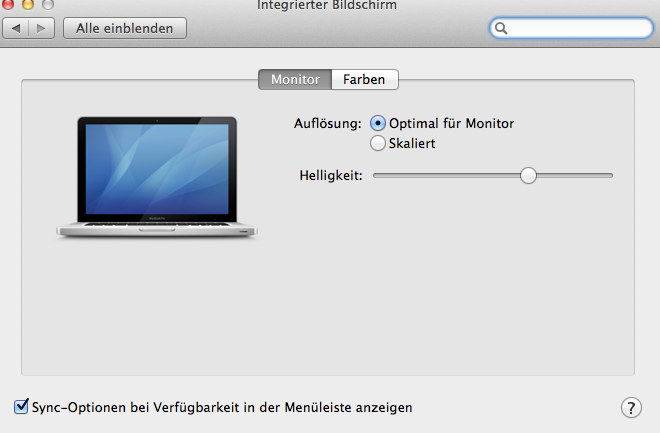

Motivated thrue this post http://www.insanelymac.com/forum/topic/111271-discuss-8400m-gt-for-vaio-only/page-4?do=findComment&comment=2164952 i have decided to adapt this. I have inserted the Method _DSM and exchanged the EDID Entries i have got true Windows. As result the internal LCD ( with all its resolutions is) fully working with QE/CI. Even a monitor can be used at the same time - with its own setting! (UPDATE: Brightnesscontrol fixed!)

  Method (_DSM, 4, NotSerialized)  // _DSM: Device-Specific Method

  {
Store (Package (0x4C)
  {
  "@0,AAPL,boot-display",
Buffer (Zero) {},
  "@0,built-in",
Buffer (Zero) {},
  "@0,compatible",
Buffer (0x0B)
  {
  "NVDA,NVMac"
  },

  "@0,connector-type",
Buffer (0x04)
  {
0x02, 0x00, 0x00, 0x00
  },

  "@0,device_type",
Buffer (0x08)
  {
  "display"
  },

  "@0,display-cfg",
Buffer (0x04)
  {
0x03, 0x00, 0x0F, 0x00
  },

  "AAPL00,override-no-edid",
Buffer (0x80)
  {
  /* 0000 */  0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00,
  /* 0008 */  0x51, 0xF3, 0x8C, 0x50, 0x00, 0x00, 0x00, 0x00,
  /* 0010 */  0x0E, 0x10, 0x01, 0x03, 0x80, 0x21, 0x15, 0x78,
  /* 0018 */  0xEA, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0020 */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x01,
  /* 0028 */  0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01,
  /* 0030 */  0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x20, 0x2F,
  /* 0038 */  0x90, 0xC4, 0x60, 0x1A, 0x0F, 0x40, 0x18, 0x58,
  /* 0040 */  0x13, 0x00, 0x4B, 0xCF, 0x10, 0x00, 0x00, 0x18,
  /* 0048 */  0x00, 0x00, 0x00, 0xFD, 0x00, 0x3B, 0x3D, 0x3F,
  /* 0050 */  0x41, 0x0D, 0x00, 0x0A, 0x20, 0x20, 0x20, 0x20,
  /* 0058 */  0x20, 0x20, 0x00, 0x00, 0x00, 0xFC, 0x00, 0x49,
  /* 0060 */  0x6E, 0x74, 0x65, 0x72, 0x6E, 0x61, 0x6C, 0x20,
  /* 0068 */  0x4C, 0x43, 0x44, 0x0A, 0x00, 0x00, 0x00, 0xFE,
  /* 0070 */  0x00, 0x54, 0x4F, 0x53, 0x48, 0x49, 0x42, 0x41,
  /* 0078 */  0x0A, 0x20, 0x20, 0x20, 0x20, 0x20, 0x00, 0xB7
  },

  "@0,EDID",
Buffer (0x80)
  {
  /* 0000 */  0x00, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x00,
  /* 0008 */  0x51, 0xF3, 0x8C, 0x50, 0x00, 0x00, 0x00, 0x00,
  /* 0010 */  0x0E, 0x10, 0x01, 0x03, 0x80, 0x21, 0x15, 0x78,
  /* 0018 */  0xEA, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0020 */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x01,
  /* 0028 */  0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01,
  /* 0030 */  0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x20, 0x2F,
  /* 0038 */  0x90, 0xC4, 0x60, 0x1A, 0x0F, 0x40, 0x18, 0x58,
  /* 0040 */  0x13, 0x00, 0x4B, 0xCF, 0x10, 0x00, 0x00, 0x18,
  /* 0048 */  0x00, 0x00, 0x00, 0xFD, 0x00, 0x3B, 0x3D, 0x3F,
  /* 0050 */  0x41, 0x0D, 0x00, 0x0A, 0x20, 0x20, 0x20, 0x20,
  /* 0058 */  0x20, 0x20, 0x00, 0x00, 0x00, 0xFC, 0x00, 0x49,
  /* 0060 */  0x6E, 0x74, 0x65, 0x72, 0x6E, 0x61, 0x6C, 0x20,
  /* 0068 */  0x4C, 0x43, 0x44, 0x0A, 0x00, 0x00, 0x00, 0xFE,
  /* 0070 */  0x00, 0x54, 0x4F, 0x53, 0x48, 0x49, 0x42, 0x41,
  /* 0078 */  0x0A, 0x20, 0x20, 0x20, 0x20, 0x20, 0x00, 0xB7
  },

  "@0,name",
Buffer (0x0F)
  {
  "NVDA,Display-A"
  },

  "@0,fboffset",
Buffer (0x04)
  {
0x00, 0x00, 0x01, 0x10
  },

  "AAPL,aux-power-connected",
Buffer (0x04)
  {
0x01, 0x00, 0x00, 0x00
  },

  "@0,AAPL,blackscreen-preferences",
Buffer (0x04)
  {
0x00, 0x00, 0x00, 0x00
  },

  "@0,backlight-control",
Buffer (0x04)
  {
0x01, 0x00, 0x00, 0x00
  },

  "@0,pwm-info",
Buffer (0x18)
  {
  /* 0000 */  0x01, 0x14, 0x00, 0x64, 0xA8, 0x61, 0x00, 0x00,
  /* 0008 */  0x1C, 0x02, 0x00, 0x00, 0x64, 0x00, 0x00, 0x00,
  /* 0010 */  0x00, 0x04, 0x00, 0x00
  },

  "AAPL00,DataJustify",
Buffer (0x04)
  {
0x01, 0x00, 0x00, 0x00
  },

  "AAPL00,Dither",
Buffer (0x04)
  {
0x00, 0x00, 0x00, 0x00
  },

  "AAPL00,DualLink",
Buffer (0x04)
  {
0x01, 0x00, 0x00, 0x00
  },

  "AAPL00,Inverter",
Buffer (0x04)
  {
0x00, 0x00, 0x00, 0x00
  },

  "AAPL00,InverterFrequency",
Buffer (0x04)
  {
0x08, 0x52, 0x00, 0x00
  },

  "AAPL00,LinkFormat",
Buffer (0x04)
  {
0x00, 0x00, 0x00, 0x00
  },

  "AAPL00,LinkType",
Buffer (0x04)
  {
0x00, 0x00, 0x00, 0x00
  },

  "AAPL00,PixelFormat",
Buffer (0x04)
  {
0x00, 0x00, 0x00, 0x00
  },

  "AAPL00,T1",
Buffer (0x04)
  {
0x00, 0x00, 0x00, 0x00
  },

  "AAPL00,T2",
Buffer (0x04)
  {
0x01, 0x00, 0x00, 0x00
  },

  "AAPL00,T3",
Buffer (0x04)
  {
0xC8, 0x00, 0x00, 0x00
  },

  "AAPL00,T4",
Buffer (0x04)
  {
0xC8, 0x00, 0x00, 0x00
  },

  "AAPL00,T5",
Buffer (0x04)
  {
0x01, 0x00, 0x00, 0x00
  },

  "AAPL00,T6",
Buffer (0x04)
  {
0x00, 0x00, 0x00, 0x00
  },

  "AAPL00,T7",
Buffer (0x04)
  {
0x90, 0x01, 0x00, 0x00
  },

  "@1,compatible",
Buffer (0x0B)
  {
  "NVDA,NVMac"
  },

  "@1,device_type",
Buffer (0x08)
  {
  "display"
  },

  "@1,name",
Buffer (0x0F)
  {
  "NVDA,Display-B"
  },

  "@1,connector-type",
Buffer (0x04)
  {
0x00, 0x08, 0x00, 0x00
  },

  "@1,can-hot-plug",
Buffer (Zero) {},
  "NVCAP",
Buffer (0x18)
  {
  /* 0000 */  0x04, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x00,
  /* 0008 */  0x7E, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07,
  /* 0010 */  0x00, 0x00, 0x00, 0x00
  },

  "VRAM,totalsize",
Buffer (0x04)
  {
0x00, 0x00, 0x00, 0x10
  },

  "device_type",
Buffer (0x0C)
  {
  "NVDA,Parent"
  },

  "model",
Buffer (0x1E)
  {
  "NVIDIA NVS150M"
  }
  }, Local0)
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
Return (Local0)
  }

artur_pt are the any other important fixes i have to do, like ~~Brightness slider,~~ or other optimized DSDT things? Now i have two big topics left: Powerbutton (isn't working) and a working sleep.

So many thanks and thanks in advance

hookme

DSDT.S10.NVS150m.with.BrighntessControl.zip
