Intel HD 5500 (BIOS LOCK DVMT) Kernel Panic At Sierra GM


Andres ZeroCross
 Share

15 posts in this topic

Recommended Posts

At early version of Sierra i can boot and activated graphics IHD 5500 at Sierra with this patch http://www.insanelymac.com/forum/topic/312579-patch-dvmt-allocation-intel-hd5500-broadwell-not-found-at-sierra

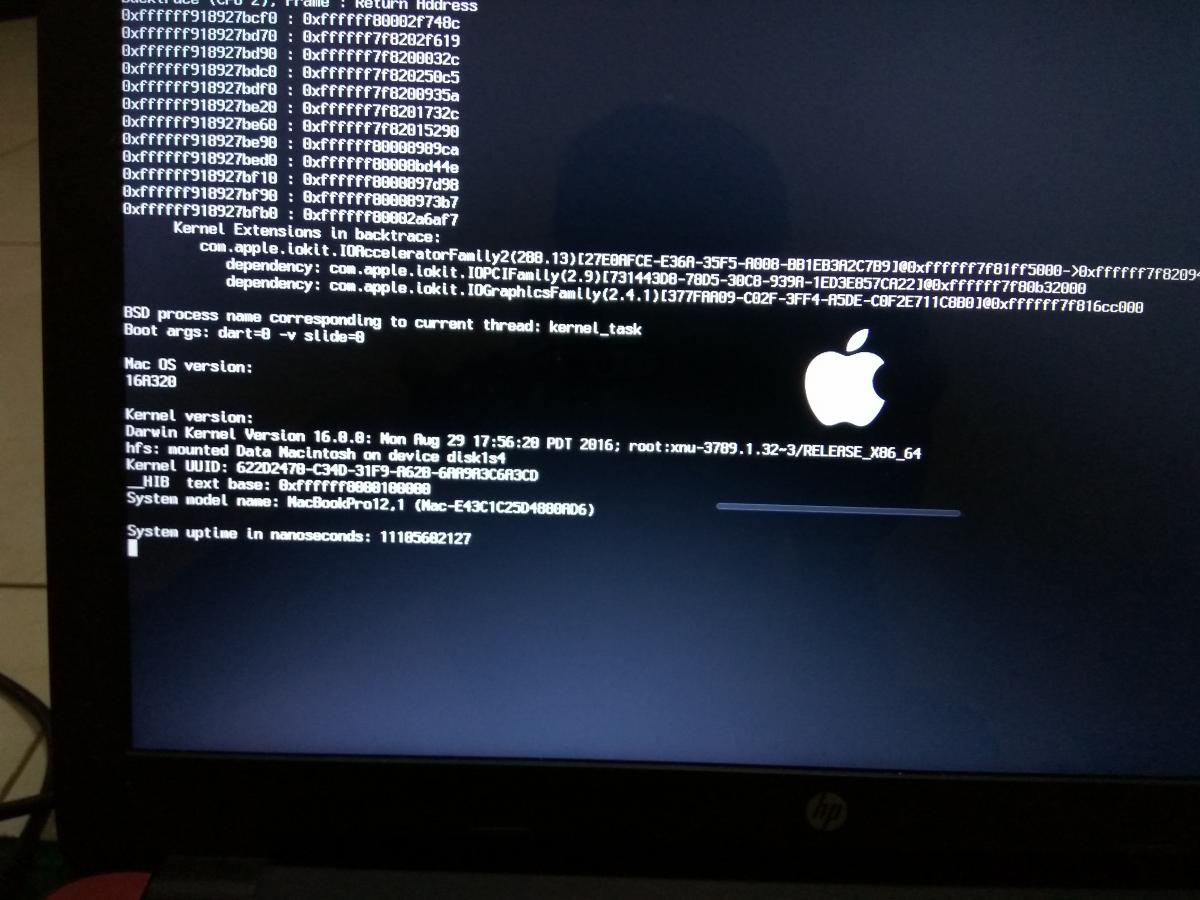

But now after update to macOS Sierra Developer Preview 6 and GM i always get Kernel Panic. I upload the picture.

I already boot to desktop without inject intel (i use Clover 3716) and use Kext Utility to make Kernel Cache / Kext Cache. But still, i get kernel panic. At El Capitan, i only need to make Kernel Cache then boot with Inject Intel (inject ig-platform-id at DSDT).



Thanks before,,


  • Like 1
Link to comment
Share on other sites

Allright,, i found solution for myself.

The second stage patch for El Capitan for IOGraphicsFamily is the problem, my system is dual boot El Capitan and macOS Sierra with one config.plist.

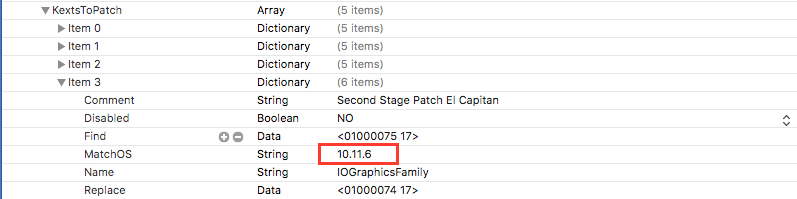

So for the best result i need to fill "MatchOS" for the Patch. Look at attachment picture. Then the Patch will use for El Capitan only and no more Kernel Panic.

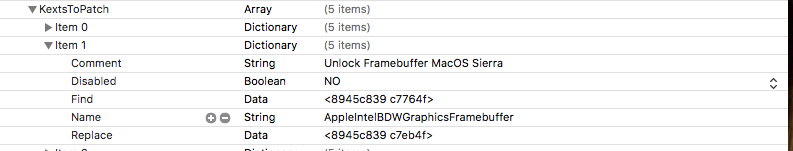

And For patch DVMT, i still use old patch for macOS Sierra



Name : AppleIntelBDWGraphicsFramebuffer

Find : 8945C839C7764F
Replace : 8945C839C7EB4F







  • Like 2
Link to comment
Share on other sites

  • 2 weeks later...

Hi, I too have intel HD 5500 graphics card (BIOS LOCK DVMT), I managed to install the Sierra but I did not find kext for Intel HD Graphics 5500 and I have two problems.

In About This mac I get written "Intel HD Graphics 5500 4 MB" and I have several problems like lag in login screen, in launchpad and safaris.
Please help me solve.
Sorry for my English
Link to comment
Share on other sites



Hi, I too have intel HD 5500 graphics card (BIOS LOCK DVMT), I managed to install the Sierra but I did not find kext for Intel HD Graphics 5500 and I have two problems.

In About This mac I get written "Intel HD Graphics 5500 4 MB" and I have several problems like lag in login screen, in launchpad and safaris.
Please help me solve.
Sorry for my English



Read this : http://www.insanelymac.com/forum/topic/310408-success-hackintosh-os-x-el-capitan-10114-beta-build-15e27e-at-hp-pavilion-15-ac169tx/



for macOS Sierra, you only need to add a new patch at kext to patch section



Name : AppleIntelBDWGraphicsFramebuffer

Find : 8945C839C7764F

Replace : 8945C839C7EB4F



And don't forget to use "0x16260006" as ig-platform-id



:thumbsup_anim:  :thumbsup_anim:  :thumbsup_anim:

Link to comment
Share on other sites

I have add the patch at kext to patch section with clover configurator and I have add "0x162600006" as ig-platform-id in Graphics menu in clover configurator, but after restart it does not change anything  :(

It does not change anything

It does not change anything

It does not change anything

  • Like 1
Link to comment
Share on other sites



I have add the patch at kext to patch section with clover configurator and I have add "0x162600006" as ig-platform-id in Graphics menu in clover configurator, but after restart it does not change anything  :(

It does not change anything

It does not change anything

It does not change anything




Use Clover Configurator and insert exactly as you can see here in your /Root/EFI folder.

Important: inside USB installer never use ig-platformID = KP

You are using an ig-platformID with 11 characters - too many zeroes (it`s wrong)












  • Like 3
Link to comment
Share on other sites

Use Clover Configurator and insert exactly as you can see here in your /Root/EFI folder.

Important: inside USB installer never use ig-platformID = KP

You are using an ig-platformID with 11 characters - too many zeroes (it`s wrong)












Wow, you use 0x16260002??? i thought only 0x16160002 and 0x16260006 that can work with broadwell :D

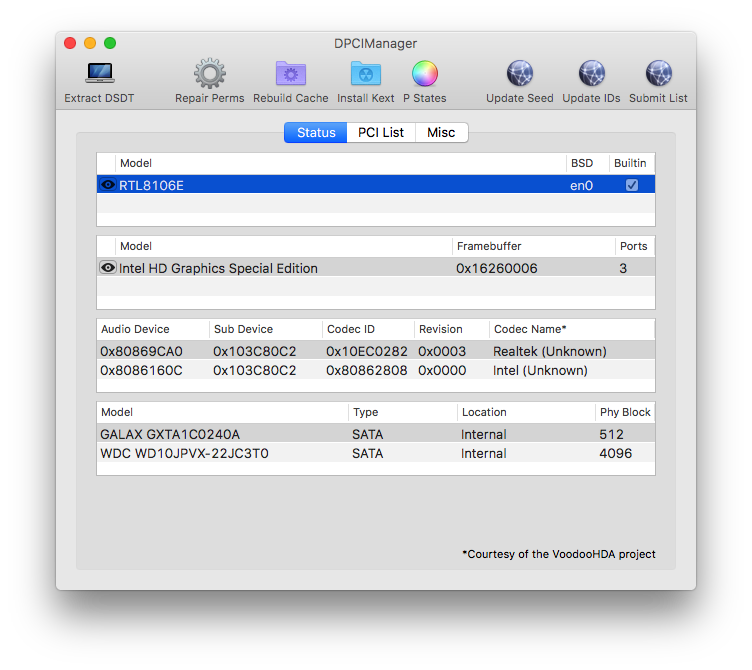

I use 0x16260006 as ig-platform-id


  • Like 1
Link to comment
Share on other sites

Use Clover Configurator and insert exactly as you can see here in your /Root/EFI folder.

Important: inside USB installer never use ig-platformID = KP

You are using an ig-platformID with 11 characters - too many zeroes (it`s wrong)














OMG! I can not believe it worked. Thank you so much!

Now I just have to fix the battery, you know how can I do?

Link to comment
Share on other sites

Wow, you use 0x16260002??? i thought only 0x16160002 and 0x16260006 that can work with broadwell :D

I use 0x16260006 as ig-platform-id

Works flawlessly! Mine is CPU Broadwell i7 5500u :thumbsup_anim:

OMG! I can not believe it worked. Thank you so much!

Now I just have to fix the battery, you know how can I do?

Sure.

1. First Solution

Extract your DSDT using F4 during Clover boot (it will insert it inside /ACPI/origin folder. Disassemble it.)

Use MaciASL Rehabman and install patchmatic as he explains: https://github.com/RehabMan/OS-X-MaciASL-patchmatic

Use this repository in MaciASL: http://raw.github.com/RehabMan/Laptop-DSDT-Patch/master

So you will patch your DSDT disassembled using a better [bat] configuration.

Ex.: my laptop is an Alienware 13. So I chose [bat] Alienware m15x



2. Second Solution

You may try this kext: https://bitbucket.org/RehabMan/os-x-acpi-battery-driver/downloads
