Installazione pulita su z77pro4.

Asgardo · February 10, 2016

Ciao a tutti

provengo da una installazione pulita e tenuta per molti mesi della 10.9 a cui un giorno malauguratamente feci un update... e da allora tutto si piantò.

Detto questo e considerando che non vorrei perdere troppo tempo nel sistemare quel sistema, il mio pc è il seguente

asrock z77pro4

geforce 660 gtx

i5-3570k

crucial m4 128gb ( interamente riservato al sistema mac ).

Che suggerimenti avete per eseguire una installazione pulita di el Captain ?

E' cambiato qualcosa? Io avevo grossissimi problemi quando installai la 10.9, con le schede grafiche. In poche parole oltre all'installazione togliendo la 660 per poi reinserirla, se non erro fui costretto anche ad eliminare tutti i kext delle varie altre vga nel sistema.

Grazie ^^

gengik84 · February 10, 2016

Ciao...

L'hardware è compatibile, non dovrebbero esserci grossi problemi...

Penso che le "cose" siano decisamente migliorate....

Se vuoi, clicca su Guida nella mia firma ed inizia a preparare la usb per installare

Asgardo · February 10, 2016

Ah si? ottimo! corro a leggere allora.

uhmm... però questo significa che dovrei avere accesso al sistema... cosa che attualmente non è possibile :\

carbo178 · February 10, 2016

Avvia con -v e fai la foto al blocco che ti si presenta, probabilmente dovrai avviare con nv_disable=1

gengik84 · February 10, 2016

Le gtx 650/660 di solito si comportano come fossero schede native

Da provare senza alcun inject riguardo alla grafica oppure successivamente con inject nvidia

(da non usare cavo VGA)

Jolly · February 10, 2016

Conosco un po le Z77 e sono ottime. Visto che ti riferisci a Mavericks ho la sensazione che tu sia ancora a chameleon. Ti consiglio caldamente di passare a Clover se fosse così, per l'installazione segui la guida in firma a gengik. El cap funziona benissimo sulla tua scheda

Asgardo · February 10, 2016

Rieccomi, ora posto lo screen con nv_disable=1 -v kext-dev-mode=1

http://s29.postimg.org/a84koyph3/image.jpg

Risolto

Tra l'altro ho un piccolo problema, ricordo di aver avuto grossi problemi quando ad un update, lo stesso entrò in conflitto con i driver nvidia che avevo, era un problema noto e infatti sconsigliavano di fare l'update.

Ora non ricordo come si fa... e me ne vergogno un po'... ma come si sostituiscono i driver nvidia manualmente avendo accesso solo al mac drive? E soprattutto... che driver metto ? Oo

Ciro82 · February 10, 2016

Rieccomi, ora posto lo screen con nv_disable=1 -v kext-dev-mode=1

https://www.photobox.co.uk/my/photo/full?photo_id=21074909856

Link alla foto errato, usa l'editor avanzato "More Reply Options" e allega la foto.

Jolly · February 10, 2016

Per i driver nvidia devi sempre aspettare che vengano aggiornati prima di fare l'update. Comunque la tua scheda dovrebbe funzionare tranquillamente con i driver originali per cui puoi disabilitare i driver web dal pannello preferenze e togliere nv_drv=1. Così non avrai più problemi.

Non hai detto se sei con chameleon o Clover però?

Asgardo · February 10, 2016

eccomi

sono su clover.

alla fine sono riuscito ad entrare nel sistema con -v- x nv_disable=1

ora vedo di creare il disco di avvio.

In ogni caso il mio problema ( che cercando ho capito fosse cosa comune ) è che avevo aggiornato alla 10.9.5 e i driver nvidia non venivano riconosciuti con quella versione. Quindi avevo smanettato un po' e avevo sicuramente fatto casino con i numeri delle versioni.

Quindi a questo punto, creo il disco di avvio con questo sistema, formatterò tutto e installerò una copia pulita con el captain.

Dovrebbe funzionare tutto nella mia configurazione dicevi no?

Ciro82 · February 10, 2016

eccomi

sono su clover.

alla fine sono riuscito ad entrare nel sistema con -v- x nv_disable=1

ora vedo di creare il disco di avvio.

In ogni caso il mio problema ( che cercando ho capito fosse cosa comune ) è che avevo aggiornato alla 10.9.5 e i driver nvidia non venivano riconosciuti con quella versione. Quindi avevo smanettato un po' e avevo sicuramente fatto casino con i numeri delle versioni.

Quindi a questo punto, creo il disco di avvio con questo sistema, formatterò tutto e installerò una copia pulita con el captain.

Dovrebbe funzionare tutto nella mia configurazione dicevi no?

I web drivers Nvidia, come ti è già stato detto, non servono con la GTX 660.

Asgardo · February 10, 2016

Ma come li tolgo manualmente?

Da pannello preferenze mi da errore, penso siano corrotti.

Ciro82 · February 10, 2016

Ma come li tolgo manualmente?

Da pannello preferenze mi da errore, penso siano corrotti.

Apri terminale e scrivi: sudo nvram -p

fai foto e postala

Asgardo · February 10, 2016

fmm-computer-name Mac mini di Lorenzo

boot-args nvda_drv=1

rc_imgsrc_info bplist00%a1%01%d1%02%03_%10$3FD6E1C6-8DA8-3670-9C2A-9B1081F9712ASMac%08%0a%0d4%00%00%00%00%00%00%01%01%00%00%00%00%00%00%00%04%00%00%00%00%00%00%00%00%00%00%00%00%00%00%008

tbt-options %04

bluetoothActiveControllerInfo %e8!\%0a%00%00%00%00 %14\%f3pf%a9%e7

Clover.LogLineCount 500

security-mode none

Clover.MountEFI Yes

Clover.LogEveryBoot 10

efi-apple-payload0-data %02%01%0c%00%d0A%03%0a%00%00%00%00%01%01%06%00%02%1f%03%12%0a%00%01%00%00%00%00%00%04%01*%00%01%00%00%00(%00%00%00%00%00%00%00%00@%06%00%00%00%00%00%ac`%9b}%d0%fa%dcN%a8%c0%13%f0%e3%b5%1a%dd%02%02%04%04B%00\%00E%00F%00I%00\%00A%00P%00P%00L%00E%00\%00F%00I%00R%00M%00W%00A%00R%00E%00\%00i%00M%00a%00c%002%007%00.%00b%00i%00n%00%00%00%7f%ff%04%00

install-product-url x-osproduct://3FD6E1C6-8DA8-3670-9C2A-9B1081F9712A/OS%20X%20Install%20Data

efi-boot-device <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>0D1217BC-6E07-40C3-B816-E8BD2F4BB1DF</string></dict></dict><key>BLLastBSDName</key><string>disk1s2</string></dict><dict><key>IOEFIBootOption</key><string>config="\OS X Install Data\com.apple.Boot"</string></dict></array>

efi-boot-device-data %02%01%0c%00%d0A%03%0a%00%00%00%00%01%01%06%00%02%1f%03%12%0a%00%01%00%00%00%00%00%04%01*%00%02%00%00%00(@%06%00%00%00%00%00`%82%dd%0e%00%00%00%00%bc%17%12%0d%07n%c3@%b8%16%e8%bd/K%b1%df%02%02%7f%ff%04%00

Clover.Theme MaverickLogin_4_3

efi-apple-payload0 <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>7D9B60AC-FAD0-4EDC-A8C0-13F0E3B51ADD</string></dict></dict><key>BLLastBSDName</key><string>disk1s1</string></dict><dict><key>IOEFIDevicePathType</key><string>MediaFilePath</string><key>Path</key><string>\EFI\APPLE\FIRMWARE\iMac27.bin</string></dict></array>

BackgroundClear %00%00%00%00

LocationServicesEnabled %01

Ciro82 · February 10, 2016

Come immaginavo:

fmm-computer-name Mac mini di Lorenzo

boot-args nvda_drv=1

Devi cancellare la stringa boot args dalla nvram con questo comando:

sudo nvram -d boot-args

Asgardo · February 10, 2016

Done. Now?

Ciro82 · February 10, 2016

Done. Now?

Riavvia senza usare nv_disable=1 e senza inject nvidia.

Togli anche nvda_drv=1 dal config di Clover se è presente.

Asgardo · February 10, 2016

É strano in quanto in nessuna config.plist ho inserito nvda_drv=1 ma continua inesorabilmente a comparire come boot arg

al riavvio ho dovuto resettare di nuovo i boot arg in quanto ancora presente in nvram

sudo nvram -d boot-args

Ciro82 · February 10, 2016

É strano in quanto in nessuna config.plist ho inserito nvda_drv=1 ma continua inesorabilmente a comparire come boot arg

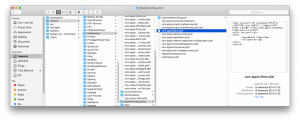

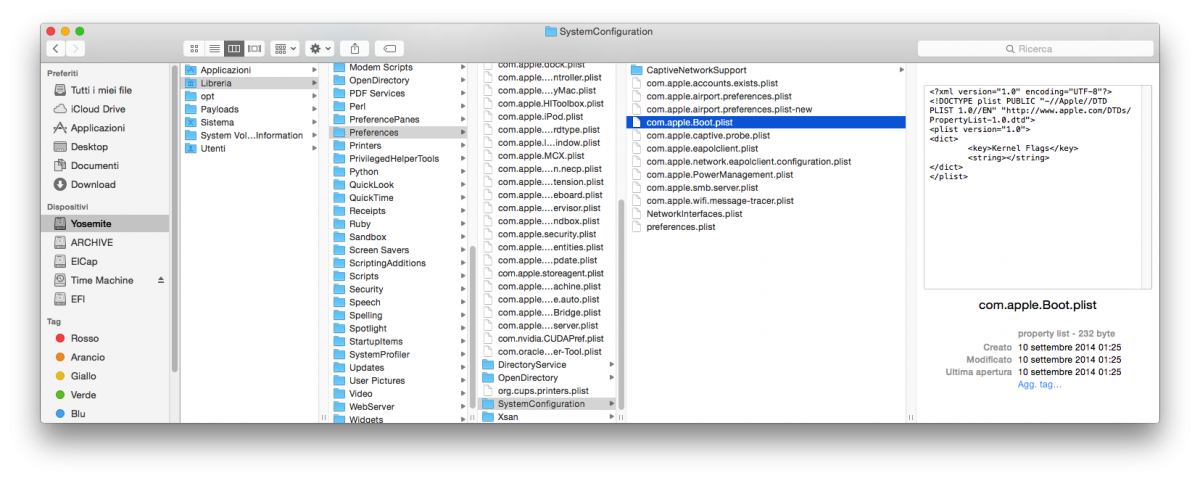

Ricontrolla che nella nvram non ci sia nvda_drv=1, poi guarda la foto che ti posto, accertati di non avere nvda_drv=1 nelle Kernel Flags:

Dal pannello di controllo Nvidia seleziona i drivers di sistema, poi rifai il comando sudo nvram -d boot-args, riavvia.

Asgardo · February 10, 2016

niente...

allego il config di clover. mi sa che c'è qualcosa di sbagliato. E' come se non prendesse la config da questo file ( in efi/clover )

edit: non posso accedere al pannello nvidia in quanto mi dice che c'è un errore e devo reinstallare i driver.

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>DropOEM_DSM</key>
			<dict>
				<key>ATI</key>
				<false/>
				<key>Firewire</key>
				<false/>
				<key>HDA</key>
				<false/>
				<key>HDMI</key>
				<false/>
				<key>IDE</key>
				<false/>
				<key>IntelGFX</key>
				<false/>
				<key>LAN</key>
				<false/>
				<key>LPC</key>
				<false/>
				<key>NVidia</key>
				<false/>
				<key>SATA</key>
				<false/>
				<key>SmBUS</key>
				<false/>
				<key>USB</key>
				<false/>
				<key>WIFI</key>
				<false/>
			</dict>
			<key>Fixes</key>
			<dict>
				<key>AddDTGP_0001</key>
				<false/>
				<key>AddHDMI_8000000</key>
				<false/>
				<key>AddIMEI_80000</key>
				<false/>
				<key>AddMCHC_0008</key>
				<false/>
				<key>AddPNLF_1000000</key>
				<false/>
				<key>DeleteUnused_400000</key>
				<false/>
				<key>FIX_ACST_4000000</key>
				<false/>
				<key>FIX_ADP1_800000</key>
				<false/>
				<key>FIX_INTELGFX_100000</key>
				<false/>
				<key>FIX_RTC_20000</key>
				<false/>
				<key>FIX_S3D_2000000</key>
				<false/>
				<key>FIX_TMR_40000</key>
				<false/>
				<key>FIX_WAK_200000</key>
				<false/>
				<key>FakeLPC_0020</key>
				<false/>
				<key>FixAirport_4000</key>
				<false/>
				<key>FixDarwin_0002</key>
				<false/>
				<key>FixDisplay_0100</key>
				<false/>
				<key>FixFirewire_0800</key>
				<false/>
				<key>FixHDA_8000</key>
				<false/>
				<key>FixHPET_0010</key>
				<false/>
				<key>FixIDE_0200</key>
				<false/>
				<key>FixIPIC_0040</key>
				<false/>
				<key>FixLAN_2000</key>
				<false/>
				<key>FixRegions_10000000</key>
				<false/>
				<key>FixSATA_0400</key>
				<false/>
				<key>FixSBUS_0080</key>
				<false/>
				<key>FixShutdown_0004</key>
				<false/>
				<key>FixUSB_1000</key>
				<false/>
				<key>NewWay_80000000</key>
				<false/>
			</dict>
			<key>Name</key>
			<string></string>
			<key>Patches</key>
			<array>
				<dict>
					<key>Comment</key>
					<string>This is for sample</string>
					<key>Find</key>
					<string>_NOT_SHOWN_</string>
					<key>Replace</key>
					<string>_NOT_SHOWN_</string>
				</dict>
			</array>
			<key>Patches count</key>
			<integer>0</integer>
			<key>ReuseFFFF</key>
			<false/>
			<key>Rtc8Allowed</key>
			<false/>
			<key>SuspendOverride</key>
			<false/>
		</dict>
		<key>DropTables</key>
		<array>
			<dict>
				<key>Length</key>
				<integer>0</integer>
				<key>Signature</key>
				<string>_NOT_SHOWN_</string>
				<key>TableId</key>
				<string>_NOT_SHOWN_</string>
			</dict>
		</array>
		<key>HaltEnabler</key>
		<false/>
		<key>PatchAPIC</key>
		<false/>
		<key>ResetAddress</key>
		<string>0x0000</string>
		<key>ResetValue</key>
		<string>0x0000</string>
		<key>SSDT</key>
		<dict>
			<key>C3Latency</key>
			<integer>0</integer>
			<key>DoubleFirstState</key>
			<false/>
			<key>DropOem</key>
			<false/>
			<key>EnableC2</key>
			<false/>
			<key>EnableC4</key>
			<false/>
			<key>EnableC6</key>
			<false/>
			<key>EnableC7</key>
			<false/>
			<key>Generate</key>
			<dict>
				<key>CStates</key>
				<false/>
				<key>PStates</key>
				<false/>
			</dict>
			<key>MaxMultiplier</key>
			<integer>0</integer>
			<key>MinMultiplier</key>
			<integer>0</integer>
			<key>PLimitDict</key>
			<integer>0</integer>
			<key>PluginType</key>
			<integer>0</integer>
			<key>UnderVoltStep</key>
			<integer>0</integer>
			<key>UseSystemIO</key>
			<false/>
		</dict>
		<key>smartUPS</key>
		<false/>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string>-v npci=0x2000</string>
		<key>DefaultLoader</key>
		<string></string>
		<key>DefaultVolume</key>
		<string></string>
		<key>Fast</key>
		<false/>
		<key>Legacy</key>
		<string></string>
		<key>Log</key>
		<false/>
		<key>Timeout</key>
		<string>_NOT_SHOWN_</string>
		<key>XMPDetection</key>
		<integer>0</integer>
	</dict>
	<key>CPU</key>
	<dict>
		<key>BusSpeedkHz</key>
		<integer>100000</integer>
		<key>C2</key>
		<false/>
		<key>C4</key>
		<false/>
		<key>C6</key>
		<false/>
		<key>EnabledCores</key>
		<integer>4</integer>
		<key>FrequencyMHz</key>
		<integer>3400</integer>
		<key>Latency</key>
		<integer>0</integer>
		<key>QPI</key>
		<integer>0</integer>
		<key>SavingMode</key>
		<integer>0</integer>
		<key>Type</key>
		<integer>1540</integer>
	</dict>
	<key>ConfigName</key>
	<string></string>
	<key>Devices</key>
	<dict>
		<key>AddProperties</key>
		<array>
			<dict>
				<key>Device</key>
				<string>XXX</string>
				<key>Key</key>
				<string>AAPL,XXX</string>
				<key>Value</key>
				<string>0xffff</string>
			</dict>
		</array>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<false/>
		</dict>
		<key>FakeID</key>
		<dict>
			<key>ATI</key>
			<string>0x0000</string>
			<key>IMEI</key>
			<string>0x0000</string>
			<key>IntelGFX</key>
			<string>0x0000</string>
			<key>LAN</key>
			<string>0x0000</string>
			<key>NVidia</key>
			<string>0x0000</string>
			<key>SATA</key>
			<string>0x0000</string>
			<key>WIFI</key>
			<string>0x0000</string>
			<key>XHCI</key>
			<string>0x0000</string>
		</dict>
		<key>Inject</key>
		<false/>
		<key>NoDefaultProperties</key>
		<false/>
		<key>Properties</key>
		<string>_NOT_SHOWN_</string>
		<key>USB</key>
		<dict>
			<key>AddClockID</key>
			<false/>
			<key>FixOwnership</key>
			<false/>
			<key>HighCurrent</key>
			<false/>
			<key>Inject</key>
			<false/>
		</dict>
		<key>UseIntelHDMI</key>
		<true/>
	</dict>
	<key>DisableDrivers</key>
	<array>
		<string>_NOT_SHOWN_</string>
	</array>
	<key>GUI</key>
	<dict>
		<key>Custom</key>
		<dict>
			<key>Comment</key>
			<string>These values wrong, they present for sample</string>
			<key>Entries</key>
			<array>
				<dict>
					<key>Arguments</key>
					<string>_NOT_SHOWN_</string>
					<key>Comment</key>
					<string>These values wrong, they present for sample</string>
					<key>Disabled</key>
					<true/>
					<key>FullTitle</key>
					<string>_NOT_SHOWN_</string>
					<key>Hidden</key>
					<true/>
					<key>Hotkey</key>
					<string>_NOT_SHOWN_</string>
					<key>Image</key>
					<string>_NOT_SHOWN_</string>
					<key>InjectKexts</key>
					<true/>
					<key>NoCaches</key>
					<false/>
					<key>Path</key>
					<string>_NOT_SHOWN_</string>
					<key>SubEntries</key>
					<array>
						<dict>
							<key>AddArguments</key>
							<string>_NOT_SHOWN_</string>
							<key>Title</key>
							<string>_NOT_SHOWN_</string>
						</dict>
					</array>
					<key>Title</key>
					<string>_NOT_SHOWN_</string>
					<key>Type</key>
					<string>_NOT_SHOWN_</string>
					<key>Volume</key>
					<string>VolumeUUID_NOT_SHOWN</string>
				</dict>
			</array>
			<key>Legacy</key>
			<array>
				<dict>
					<key>Disabled</key>
					<true/>
					<key>Hidden</key>
					<true/>
					<key>Hotkey</key>
					<string>_NOT_SHOWN_</string>
					<key>Title</key>
					<string>_NOT_SHOWN_</string>
					<key>Type</key>
					<string>_NOT_SHOWN_</string>
					<key>Volume</key>
					<string>VolumeUUID_NOT_SHOWN</string>
				</dict>
			</array>
			<key>Tool</key>
			<array>
				<dict>
					<key>Arguments</key>
					<string>_NOT_SHOWN_</string>
					<key>Disabled</key>
					<true/>
					<key>Hidden</key>
					<true/>
					<key>Hotkey</key>
					<string>_NOT_SHOWN_</string>
					<key>Path</key>
					<string>_NOT_SHOWN_</string>
					<key>Title</key>
					<string>_NOT_SHOWN_</string>
					<key>Type</key>
					<string>_NOT_SHOWN_</string>
					<key>Volume</key>
					<string>VolumeUUID_NOT_SHOWN</string>
				</dict>
			</array>
		</dict>
		<key>CustomIcons</key>
		<false/>
		<key>Hide</key>
		<array>
			<string>VolumeName_NOT_SHOWN</string>
			<string>VolumeUUID_NOT_SHOWN</string>
			<string>EntryPath_NOT_SHOWN</string>
		</array>
		<key>Language</key>
		<string></string>
		<key>Mouse</key>
		<dict>
			<key>DoubleClick</key>
			<integer>72057594037927936</integer>
			<key>Enabled</key>
			<false/>
			<key>Mirror</key>
			<false/>
			<key>Speed</key>
			<integer>0</integer>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Comment</key>
			<string>These values wrong, they present for sample</string>
			<key>Entries</key>
			<true/>
			<key>Legacy</key>
			<true/>
			<key>Tool</key>
			<true/>
		</dict>
		<key>TextOnly</key>
		<false/>
		<key>Theme</key>
		<string>BGM</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>CustomEDID</key>
		<string>_NOT_SHOWN_</string>
		<key>DualLink</key>
		<integer>0</integer>
		<key>FBName</key>
		<string></string>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<false/>
			<key>Intel</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>InjectEDID</key>
		<false/>
		<key>LoadVBios</key>
		<false/>
		<key>NVCAP</key>
		<string>0000000000000000000000000000000000000000</string>
		<key>PatchVBios</key>
		<false/>
		<key>PatchVBiosBytes</key>
		<array>
			<dict>
				<key>Find</key>
				<string>_NOT_SHOWN_</string>
				<key>Replace</key>
				<string>_NOT_SHOWN_</string>
			</dict>
		</array>
		<key>PatchVBiosBytes Count</key>
		<integer>281505041481728</integer>
		<key>VRAM</key>
		<integer>0</integer>
		<key>VideoPorts</key>
		<integer>0</integer>
		<key>display-cfg</key>
		<string>0000000000000000</string>
		<key>ig-platform-id</key>
		<string>0x0000</string>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<false/>
		<key>AsusAICPUPM</key>
		<false/>
		<key>Debug</key>
		<false/>
		<key>KernelCpu</key>
		<false/>
		<key>KernelLapic</key>
		<false/>
		<key>KernelPm</key>
		<false/>
		<key>KextPatchesAllowed</key>
		<false/>
		<key>KextsToPatch</key>
		<array/>
		<key>Number_of_KextsToPatch</key>
		<integer>0</integer>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>LogEveryBoot</key>
		<string>_NOT_SHOWN_</string>
		<key>LogLineCount</key>
		<integer>0</integer>
		<key>MLB</key>
		<string>C02140302D5DMT31M</string>
		<key>MountEFI</key>
		<string>_NOT_SHOWN_</string>
		<key>ROM</key>
		<string>_NOT_SHOWN_</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BiosReleaseDate</key>
		<string>11/15/2012</string>
		<key>BiosVendor</key>
		<string>Apple Inc.</string>
		<key>BiosVersion</key>
		<string>IM131.88Z.010A.B05.1211151146</string>
		<key>Board-ID</key>
		<string>Mac-FC02E91DDD3FA6A4</string>
		<key>BoardManufacturer</key>
		<string>Apple Inc.</string>
		<key>BoardSerialNumber</key>
		<string>C02140302D5DMT31M</string>
		<key>BoardType</key>
		<integer>10</integer>
		<key>BoardVersion</key>
		<string>iMac13,2</string>
		<key>ChassisAssetTag</key>
		<string>iMac-Aluminum</string>
		<key>ChassisManufacturer</key>
		<string>Apple Inc.</string>
		<key>ChassisType</key>
		<string>0x000d</string>
		<key>Family</key>
		<string>iMac</string>
		<key>LocationInChassis</key>
		<string>Part Component</string>
		<key>Manufacturer</key>
		<string>Apple Inc.</string>
		<key>Mobile</key>
		<false/>
		<key>OEMBoard</key>
		<string>Z77 Pro4</string>
		<key>OEMProduct</key>
		<string>To Be Filled By O.E.M.</string>
		<key>OEMVendor</key>
		<string>ASRock</string>
		<key>ProductName</key>
		<string>iMac13,2</string>
		<key>SerialNumber</key>
		<string>C02JB041DNCW</string>
		<key>SmUUID</key>
		<string>00020003-0004-0005-0006-000700080009</string>
		<key>Trust</key>
		<true/>
		<key>Version</key>
		<string>1.0</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>BacklightLevel</key>
		<string>0x0000</string>
		<key>CustomUUID</key>
		<string></string>
		<key>InjectKexts</key>
		<string>Detect</string>
		<key>InjectSystemID</key>
		<false/>
	</dict>
</dict>
</plist>
Error the version of clover-genconfig didn't match current booted clover version
len=2551 sizeof=2685

DsdtFix=0
DsdtFix offset=1972
HDALayoutId offset=2164
64 bit generator

Ciro82 · February 10, 2016

niente...

allego il config di clover. mi sa che c'è qualcosa di sbagliato. E' come se non prendesse la config da questo file ( in efi/clover )

edit: non posso accedere al pannello nvidia in quanto mi dice che c'è un errore e devo reinstallare i driver.

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>DropOEM_DSM</key>
			<dict>
				<key>ATI</key>
				<false/>
				<key>Firewire</key>
				<false/>
				<key>HDA</key>
				<false/>
				<key>HDMI</key>
				<false/>
				<key>IDE</key>
				<false/>
				<key>IntelGFX</key>
				<false/>
				<key>LAN</key>
				<false/>
				<key>LPC</key>
				<false/>
				<key>NVidia</key>
				<false/>
				<key>SATA</key>
				<false/>
				<key>SmBUS</key>
				<false/>
				<key>USB</key>
				<false/>
				<key>WIFI</key>
				<false/>
			</dict>
			<key>Fixes</key>
			<dict>
				<key>AddDTGP_0001</key>
				<false/>
				<key>AddHDMI_8000000</key>
				<false/>
				<key>AddIMEI_80000</key>
				<false/>
				<key>AddMCHC_0008</key>
				<false/>
				<key>AddPNLF_1000000</key>
				<false/>
				<key>DeleteUnused_400000</key>
				<false/>
				<key>FIX_ACST_4000000</key>
				<false/>
				<key>FIX_ADP1_800000</key>
				<false/>
				<key>FIX_INTELGFX_100000</key>
				<false/>
				<key>FIX_RTC_20000</key>
				<false/>
				<key>FIX_S3D_2000000</key>
				<false/>
				<key>FIX_TMR_40000</key>
				<false/>
				<key>FIX_WAK_200000</key>
				<false/>
				<key>FakeLPC_0020</key>
				<false/>
				<key>FixAirport_4000</key>
				<false/>
				<key>FixDarwin_0002</key>
				<false/>
				<key>FixDisplay_0100</key>
				<false/>
				<key>FixFirewire_0800</key>
				<false/>
				<key>FixHDA_8000</key>
				<false/>
				<key>FixHPET_0010</key>
				<false/>
				<key>FixIDE_0200</key>
				<false/>
				<key>FixIPIC_0040</key>
				<false/>
				<key>FixLAN_2000</key>
				<false/>
				<key>FixRegions_10000000</key>
				<false/>
				<key>FixSATA_0400</key>
				<false/>
				<key>FixSBUS_0080</key>
				<false/>
				<key>FixShutdown_0004</key>
				<false/>
				<key>FixUSB_1000</key>
				<false/>
				<key>NewWay_80000000</key>
				<false/>
			</dict>
			<key>Name</key>
			<string></string>
			<key>Patches</key>
			<array>
				<dict>
					<key>Comment</key>
					<string>This is for sample</string>
					<key>Find</key>
					<string>_NOT_SHOWN_</string>
					<key>Replace</key>
					<string>_NOT_SHOWN_</string>
				</dict>
			</array>
			<key>Patches count</key>
			<integer>0</integer>
			<key>ReuseFFFF</key>
			<false/>
			<key>Rtc8Allowed</key>
			<false/>
			<key>SuspendOverride</key>
			<false/>
		</dict>
		<key>DropTables</key>
		<array>
			<dict>
				<key>Length</key>
				<integer>0</integer>
				<key>Signature</key>
				<string>_NOT_SHOWN_</string>
				<key>TableId</key>
				<string>_NOT_SHOWN_</string>
			</dict>
		</array>
		<key>HaltEnabler</key>
		<false/>
		<key>PatchAPIC</key>
		<false/>
		<key>ResetAddress</key>
		<string>0x0000</string>
		<key>ResetValue</key>
		<string>0x0000</string>
		<key>SSDT</key>
		<dict>
			<key>C3Latency</key>
			<integer>0</integer>
			<key>DoubleFirstState</key>
			<false/>
			<key>DropOem</key>
			<false/>
			<key>EnableC2</key>
			<false/>
			<key>EnableC4</key>
			<false/>
			<key>EnableC6</key>
			<false/>
			<key>EnableC7</key>
			<false/>
			<key>Generate</key>
			<dict>
				<key>CStates</key>
				<false/>
				<key>PStates</key>
				<false/>
			</dict>
			<key>MaxMultiplier</key>
			<integer>0</integer>
			<key>MinMultiplier</key>
			<integer>0</integer>
			<key>PLimitDict</key>
			<integer>0</integer>
			<key>PluginType</key>
			<integer>0</integer>
			<key>UnderVoltStep</key>
			<integer>0</integer>
			<key>UseSystemIO</key>
			<false/>
		</dict>
		<key>smartUPS</key>
		<false/>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string>-v npci=0x2000</string>
		<key>DefaultLoader</key>
		<string></string>
		<key>DefaultVolume</key>
		<string></string>
		<key>Fast</key>
		<false/>
		<key>Legacy</key>
		<string></string>
		<key>Log</key>
		<false/>
		<key>Timeout</key>
		<string>_NOT_SHOWN_</string>
		<key>XMPDetection</key>
		<integer>0</integer>
	</dict>
	<key>CPU</key>
	<dict>
		<key>BusSpeedkHz</key>
		<integer>100000</integer>
		<key>C2</key>
		<false/>
		<key>C4</key>
		<false/>
		<key>C6</key>
		<false/>
		<key>EnabledCores</key>
		<integer>4</integer>
		<key>FrequencyMHz</key>
		<integer>3400</integer>
		<key>Latency</key>
		<integer>0</integer>
		<key>QPI</key>
		<integer>0</integer>
		<key>SavingMode</key>
		<integer>0</integer>
		<key>Type</key>
		<integer>1540</integer>
	</dict>
	<key>ConfigName</key>
	<string></string>
	<key>Devices</key>
	<dict>
		<key>AddProperties</key>
		<array>
			<dict>
				<key>Device</key>
				<string>XXX</string>
				<key>Key</key>
				<string>AAPL,XXX</string>
				<key>Value</key>
				<string>0xffff</string>
			</dict>
		</array>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<false/>
		</dict>
		<key>FakeID</key>
		<dict>
			<key>ATI</key>
			<string>0x0000</string>
			<key>IMEI</key>
			<string>0x0000</string>
			<key>IntelGFX</key>
			<string>0x0000</string>
			<key>LAN</key>
			<string>0x0000</string>
			<key>NVidia</key>
			<string>0x0000</string>
			<key>SATA</key>
			<string>0x0000</string>
			<key>WIFI</key>
			<string>0x0000</string>
			<key>XHCI</key>
			<string>0x0000</string>
		</dict>
		<key>Inject</key>
		<false/>
		<key>NoDefaultProperties</key>
		<false/>
		<key>Properties</key>
		<string>_NOT_SHOWN_</string>
		<key>USB</key>
		<dict>
			<key>AddClockID</key>
			<false/>
			<key>FixOwnership</key>
			<false/>
			<key>HighCurrent</key>
			<false/>
			<key>Inject</key>
			<false/>
		</dict>
		<key>UseIntelHDMI</key>
		<true/>
	</dict>
	<key>DisableDrivers</key>
	<array>
		<string>_NOT_SHOWN_</string>
	</array>
	<key>GUI</key>
	<dict>
		<key>Custom</key>
		<dict>
			<key>Comment</key>
			<string>These values wrong, they present for sample</string>
			<key>Entries</key>
			<array>
				<dict>
					<key>Arguments</key>
					<string>_NOT_SHOWN_</string>
					<key>Comment</key>
					<string>These values wrong, they present for sample</string>
					<key>Disabled</key>
					<true/>
					<key>FullTitle</key>
					<string>_NOT_SHOWN_</string>
					<key>Hidden</key>
					<true/>
					<key>Hotkey</key>
					<string>_NOT_SHOWN_</string>
					<key>Image</key>
					<string>_NOT_SHOWN_</string>
					<key>InjectKexts</key>
					<true/>
					<key>NoCaches</key>
					<false/>
					<key>Path</key>
					<string>_NOT_SHOWN_</string>
					<key>SubEntries</key>
					<array>
						<dict>
							<key>AddArguments</key>
							<string>_NOT_SHOWN_</string>
							<key>Title</key>
							<string>_NOT_SHOWN_</string>
						</dict>
					</array>
					<key>Title</key>
					<string>_NOT_SHOWN_</string>
					<key>Type</key>
					<string>_NOT_SHOWN_</string>
					<key>Volume</key>
					<string>VolumeUUID_NOT_SHOWN</string>
				</dict>
			</array>
			<key>Legacy</key>
			<array>
				<dict>
					<key>Disabled</key>
					<true/>
					<key>Hidden</key>
					<true/>
					<key>Hotkey</key>
					<string>_NOT_SHOWN_</string>
					<key>Title</key>
					<string>_NOT_SHOWN_</string>
					<key>Type</key>
					<string>_NOT_SHOWN_</string>
					<key>Volume</key>
					<string>VolumeUUID_NOT_SHOWN</string>
				</dict>
			</array>
			<key>Tool</key>
			<array>
				<dict>
					<key>Arguments</key>
					<string>_NOT_SHOWN_</string>
					<key>Disabled</key>
					<true/>
					<key>Hidden</key>
					<true/>
					<key>Hotkey</key>
					<string>_NOT_SHOWN_</string>
					<key>Path</key>
					<string>_NOT_SHOWN_</string>
					<key>Title</key>
					<string>_NOT_SHOWN_</string>
					<key>Type</key>
					<string>_NOT_SHOWN_</string>
					<key>Volume</key>
					<string>VolumeUUID_NOT_SHOWN</string>
				</dict>
			</array>
		</dict>
		<key>CustomIcons</key>
		<false/>
		<key>Hide</key>
		<array>
			<string>VolumeName_NOT_SHOWN</string>
			<string>VolumeUUID_NOT_SHOWN</string>
			<string>EntryPath_NOT_SHOWN</string>
		</array>
		<key>Language</key>
		<string></string>
		<key>Mouse</key>
		<dict>
			<key>DoubleClick</key>
			<integer>72057594037927936</integer>
			<key>Enabled</key>
			<false/>
			<key>Mirror</key>
			<false/>
			<key>Speed</key>
			<integer>0</integer>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Comment</key>
			<string>These values wrong, they present for sample</string>
			<key>Entries</key>
			<true/>
			<key>Legacy</key>
			<true/>
			<key>Tool</key>
			<true/>
		</dict>
		<key>TextOnly</key>
		<false/>
		<key>Theme</key>
		<string>BGM</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>CustomEDID</key>
		<string>_NOT_SHOWN_</string>
		<key>DualLink</key>
		<integer>0</integer>
		<key>FBName</key>
		<string></string>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<false/>
			<key>Intel</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>InjectEDID</key>
		<false/>
		<key>LoadVBios</key>
		<false/>
		<key>NVCAP</key>
		<string>0000000000000000000000000000000000000000</string>
		<key>PatchVBios</key>
		<false/>
		<key>PatchVBiosBytes</key>
		<array>
			<dict>
				<key>Find</key>
				<string>_NOT_SHOWN_</string>
				<key>Replace</key>
				<string>_NOT_SHOWN_</string>
			</dict>
		</array>
		<key>PatchVBiosBytes Count</key>
		<integer>281505041481728</integer>
		<key>VRAM</key>
		<integer>0</integer>
		<key>VideoPorts</key>
		<integer>0</integer>
		<key>display-cfg</key>
		<string>0000000000000000</string>
		<key>ig-platform-id</key>
		<string>0x0000</string>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<false/>
		<key>AsusAICPUPM</key>
		<false/>
		<key>Debug</key>
		<false/>
		<key>KernelCpu</key>
		<false/>
		<key>KernelLapic</key>
		<false/>
		<key>KernelPm</key>
		<false/>
		<key>KextPatchesAllowed</key>
		<false/>
		<key>KextsToPatch</key>
		<array/>
		<key>Number_of_KextsToPatch</key>
		<integer>0</integer>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>LogEveryBoot</key>
		<string>_NOT_SHOWN_</string>
		<key>LogLineCount</key>
		<integer>0</integer>
		<key>MLB</key>
		<string>C02140302D5DMT31M</string>
		<key>MountEFI</key>
		<string>_NOT_SHOWN_</string>
		<key>ROM</key>
		<string>_NOT_SHOWN_</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BiosReleaseDate</key>
		<string>11/15/2012</string>
		<key>BiosVendor</key>
		<string>Apple Inc.</string>
		<key>BiosVersion</key>
		<string>IM131.88Z.010A.B05.1211151146</string>
		<key>Board-ID</key>
		<string>Mac-FC02E91DDD3FA6A4</string>
		<key>BoardManufacturer</key>
		<string>Apple Inc.</string>
		<key>BoardSerialNumber</key>
		<string>C02140302D5DMT31M</string>
		<key>BoardType</key>
		<integer>10</integer>
		<key>BoardVersion</key>
		<string>iMac13,2</string>
		<key>ChassisAssetTag</key>
		<string>iMac-Aluminum</string>
		<key>ChassisManufacturer</key>
		<string>Apple Inc.</string>
		<key>ChassisType</key>
		<string>0x000d</string>
		<key>Family</key>
		<string>iMac</string>
		<key>LocationInChassis</key>
		<string>Part Component</string>
		<key>Manufacturer</key>
		<string>Apple Inc.</string>
		<key>Mobile</key>
		<false/>
		<key>OEMBoard</key>
		<string>Z77 Pro4</string>
		<key>OEMProduct</key>
		<string>To Be Filled By O.E.M.</string>
		<key>OEMVendor</key>
		<string>ASRock</string>
		<key>ProductName</key>
		<string>iMac13,2</string>
		<key>SerialNumber</key>
		<string>C02JB041DNCW</string>
		<key>SmUUID</key>
		<string>00020003-0004-0005-0006-000700080009</string>
		<key>Trust</key>
		<true/>
		<key>Version</key>
		<string>1.0</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>BacklightLevel</key>
		<string>0x0000</string>
		<key>CustomUUID</key>
		<string></string>
		<key>InjectKexts</key>
		<string>Detect</string>
		<key>InjectSystemID</key>
		<false/>
	</dict>
</dict>
</plist>
Error the version of clover-genconfig didn't match current booted clover version
len=2551 sizeof=2685

DsdtFix=0
DsdtFix offset=1972
HDALayoutId offset=2164
64 bit generator

Allegalo da More reply options... e poi quel config è errato:

Error the version of clover-genconfig didn't match current booted clover version

len=2551 sizeof=2685

DsdtFix=0

DsdtFix offset=1972

HDALayoutId offset=2164

64 bit generator

Asgardo · February 10, 2016

Come faccio a sapere, anzi a capire da dove prende il config.plist giusto clover?

Non è sicuramente questo...

Ciro82 · February 10, 2016

Come faccio a sapere, anzi a capire da dove prende il config.plist giusto clover?

Non è sicuramente questo...

A questa domanda non so risponderti, in quanto solo tu puoi sapere come e dove hai installato Clover.

Se clover non carica il config corrente, bisogna correggerlo.

Allegalo...

Asgardo · February 10, 2016

Un secondo che comincio a non capirti niente. Clover ce l'ho correttamente sotto EFI/CLOVER, in cui c'è il config.plist che ho messo prima in <code>.

Il problema è che dubito altamente sia il file di configurazione che attualmente carica e sta usando. Non so come fare a capire quale sia quello corretto e soprattutto dove.

Ciro82 · February 10, 2016

Un secondo che comincio a non capirti niente. Clover ce l'ho correttamente sotto EFI/CLOVER, in cui c'è il config.plist che ho messo prima in <code>.

Il problema è che dubito altamente sia il file di configurazione che attualmente carica e sta usando. Non so come fare a capire quale sia quello corretto e soprattutto dove.

Non te lo ripeto più, allega qui il config così lo correggo e te lo ripasso.

Installazione pulita su z77pro4.

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
