Help with internal monitor

5470 ati HP G62 b12eo

  • Please log in to reply
3 replies to this topic



    InsanelyMac Protégé

  • Members
  • Pip
  • 4 posts



From yesterday, I have been trying to turn my HP G62-B12eo to Hackbook. The only working this is Atheros  AR9285 WiFi. My graphics card ATI 5470M is also working oob but it cannot recognise my internal monitor.


On boot, kernel chooses Eumelar as default device frame buffer, but when it comes to start screen it shows a White screen. I have to connect the laptop with external screen with VGA cable in order to see an image.


I have tried to inject edid in DisplayVendorID-756e6b6e and DisplayProductID-717 ... but it still can´t recognise the edid. Can anyone help me with this {censored}!!


I have attached IOReg and DisplayId-717 file

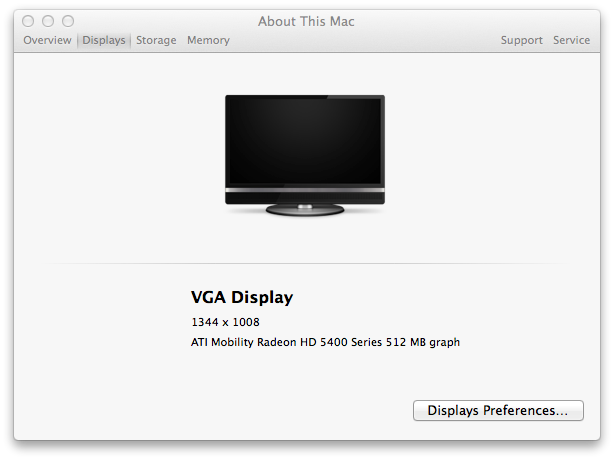

VGA Profile looks likes this:


Attached File  screen.jpg   55.47KB   0 downloads


Edit: Using chimera as a bootloader, Couldnot use Clover as it gave boot0: error and dd if=/... didn´t fixed it.

If I use kernal flag, AtiConfig=Hoolock then I have to connect laptop to HDMI cable, then I can use internal monitor (Really weird)


Thank you!


Attached Files




  • Banned
  • PipPipPipPipPipPipPipPipPipPipPip
  • 3,807 posts
  • Gender:Male
  • Location:Bcn-Spain

FixEDID V2.0, Application to generate overrides automatically for Apple Displays - Developers Corner - InsanelyMac Forum



    InsanelyMac Protégé

  • Members
  • Pip
  • 4 posts


It works great! Thank you very much ..


My book can sleep and on waking up the screen doesn´t wake up .. Do you know by any chance how I can solve this?



    InsanelyMac Sage

  • Local Moderators
  • 311 posts
  • Gender:Male
  • Location:USA, East Coast
  • Interests:All technology, computers, network security, iOS app dev, etc

Moving this to the proper forum: Notebooks.
