Graphics Card Identification

Intel Graphics

  • Please log in to reply
4 replies to this topic

#1
YearZiro

YearZiro

    InsanelyMac Protégé

  • Members
  • Pip
  • 19 posts
Currently Running ML 10.8.2 and pretty much everything but Wifi (AR9485) card and graphics card are working trying to identify which card i have

Current system is Gateway NE56r10u
celeron 1.70 GHZ processor B270

All the box says is intel HD graphics i have tried installing that kext but i still get a heavy buffer and lag with video

<Quote>0:00.0 Host bridge [0600]: Intel Corporation 2nd Generation Core Processor Family DRAM Controller [8086:0104] (rev 09)
00:02.0 VGA compatible controller [0300]: Intel Corporation 2nd Generation Core Processor Family Integrated Graphics Controller [8086:0106] (rev 09)
00:16.0 Communication controller [0780]: Intel Corporation 7 Series/C210 Series Chipset Family MEI Controller #1 [8086:1e3a] (rev 04)
00:1a.0 USB controller [0c03]: Intel Corporation 7 Series/C210 Series Chipset Family USB Enhanced Host Controller #2 [8086:1e2d] (rev 04)
00:1b.0 Audio device [0403]: Intel Corporation 7 Series/C210 Series Chipset Family High Definition Audio Controller [8086:1e20] (rev 04)
00:1c.0 PCI bridge [0604]: Intel Corporation 7 Series/C210 Series Chipset Family PCI Express Root Port 1 [8086:1e10] (rev c4)
00:1c.1 PCI bridge [0604]: Intel Corporation 7 Series/C210 Series Chipset Family PCI Express Root Port 2 [8086:1e12] (rev c4)
00:1d.0 USB controller [0c03]: Intel Corporation 7 Series/C210 Series Chipset Family USB Enhanced Host Controller #1 [8086:1e26] (rev 04)
00:1f.0 ISA bridge [0601]: Intel Corporation 7 Series Chipset Family LPC Controller [8086:1e5e] (rev 04)
00:1f.2 SATA controller [0106]: Intel Corporation 7 Series Chipset Family 6-port SATA Controller [AHCI mode] [8086:1e03] (rev 04)
00:1f.3 SMBus [0c05]: Intel Corporation 7 Series/C210 Series Chipset Family SMBus Controller [8086:1e22] (rev 04)
02:00.0 Ethernet controller [0200]: Broadcom Corporation NetLink BCM57785 Gigabit Ethernet PCIe [14e4:16b5] (rev 10)
02:00.1 SD Host controller [0805]: Broadcom Corporation NetXtreme BCM57765 Memory Card Reader [14e4:16bc] (rev 10)
02:00.2 System peripheral [0880]: Broadcom Corporation Device [14e4:16be] (rev 10)
02:00.3 System peripheral [0880]: Broadcom Corporation Device [14e4:16bf] (rev 10)
03:00.0 Network controller [0280]: Atheros Communications Inc. AR9485 Wireless Network Adapter [168c:0032] (rev 01)</Quote>

#2
trik82

trik82

    InsanelyMac Protégé

  • Members
  • Pip
  • 20 posts
intel hd 3000

#3
YearZiro

YearZiro

    InsanelyMac Protégé

  • Members
  • Pip
  • 19 posts
thanks i found that part out and followed the directions from here but cant seem to figure out how to get an graphics accleration....

http://www.insanelym...ration-for-108/

Anyone with this card...PCI\VEN_8086&DEV_0106&SUBSYS_06491025&REV_09...have any luck care to share your method....











#4
YearZiro

YearZiro

    InsanelyMac Protégé

  • Members
  • Pip
  • 19 posts

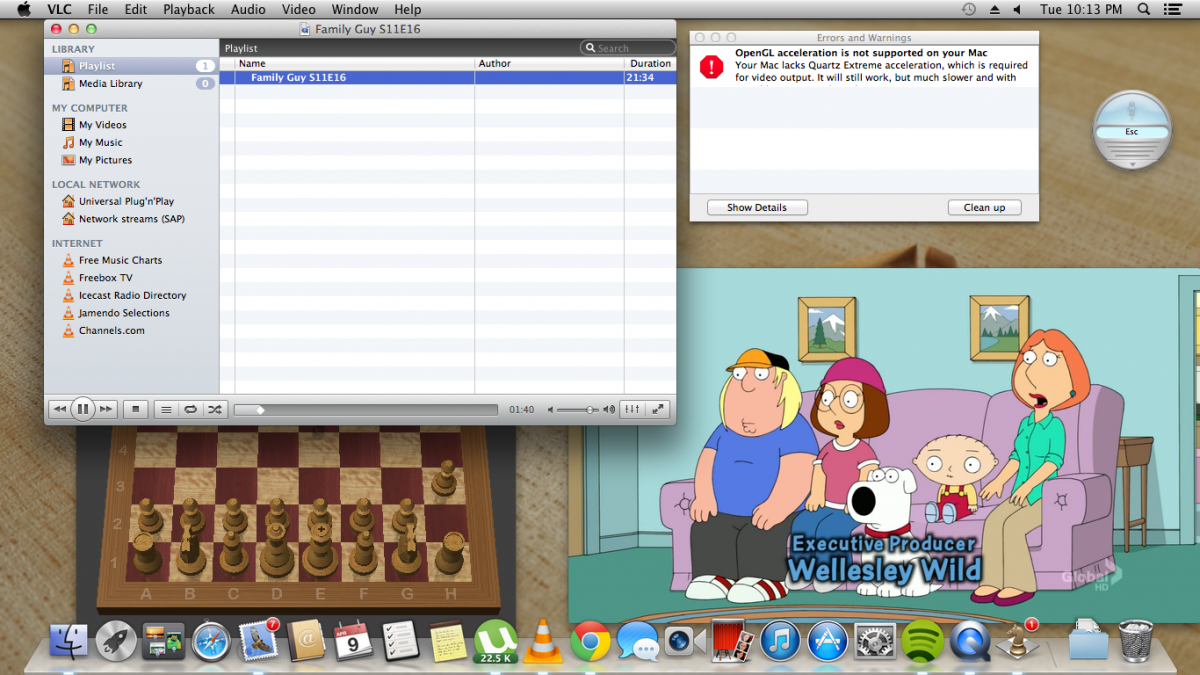

Anyone??? i really would love to be able to use VLC and i keep getting this error.....i can play video with quicktime no problem play chess and screensavers work....

Attached Files



#5
rafirafi

rafirafi

    InsanelyMac Protégé

  • Members
  • PipPip
  • 88 posts

00:02.0 VGA compatible controller [0300]: Intel Corporation 2nd Generation Core Processor Family Integrated Graphics Controller [8086:0106] (rev 09)


It's sandy bridge gt1 mobile version, also know as HD2000.
