Video Decode Acceleration on Fermi/... GPUs ?

vda nvidia Video Decode Acceleration Reverse Engineering disassembly development

  • Please log in to reply
12 replies to this topic

#1
iLeopod

iLeopod

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 435 posts
  • Gender:Male
  • Location:Germany
  • Interests:ileopod.wordpress.com
Video Decode Acceleration is not working for me an many others with Nvidia GPUS. I wonder if its possible to get it working with some binpatching.

Things I noticed so far:
  • AppleVAFramework request an higher/other GPU Power state
    AVF error: AVAHDGPURendererVP2VP3BoostVP3: AGPMSetBoost code = 0 returned 0xe00002c2 (ig)
    this error can be hidden by using MacPro 3,1 SMBIOS (completley disables AGPM/VDA)or adding BoostPState to AGPM info.plistbut this is causing safri to crash often
  • when using VDADecodeCheck
    AVF info: Successfully connected to the Intel plugin, offline Gen6
    intel quick sync enables AirPlay Mirroring but VDA is not possible together with a dedicated GPU for me (with HD4000 this is may different)
  • when disabling iGPU in bios and using iMac12,2 SMBIOS and unloading all INTELHD kexts and efi/dsdt info
    AVF info: Successfully connected to the Intel plugin, offline Gen6
    is still present.
The question is what enables VDA: device-id, subsystem-id, GPU name, Architectureand can we patch it like OpenCL?

#2
rvxtm

rvxtm

    InsanelyMac Protégé

  • Members
  • PipPip
  • 95 posts
  • Gender:Male
  • Location:Timisoara, Romania
  • Interests:Tech, Science, Biology, OSX86 stuff
I'm curious about this too, what enables the VDA ? Since 10.7.4 i can't get it to work...

#3
iLeopod

iLeopod

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 435 posts
  • Gender:Male
  • Location:Germany
  • Interests:ileopod.wordpress.com
interesting ... no sure if it was also working with 10.7.4 for me.

The file we should look at are:

/System/Library/PrivateFrameworks/AppleVA.framework/Versions/A/AppleVA
/System/Library/Extensions/GeForceVADriver.bundle/Contents/MacOS/GeForceVADriver

i had a look with otool but no idea where to start.
So skilled Devs in Reverse Engineering are welcome.

#4
rvxtm

rvxtm

    InsanelyMac Protégé

  • Members
  • PipPip
  • 95 posts
  • Gender:Male
  • Location:Timisoara, Romania
  • Interests:Tech, Science, Biology, OSX86 stuff
I needed to use imac 12,1 smbios with powerstates in the graphics power management kext to be able to have vda in 10.7.4 , in 10.7.5, something changed and since then i could not get it to work again... it would be noce if someone could point us in the right direction...

#5
iLeopod

iLeopod

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 435 posts
  • Gender:Male
  • Location:Germany
  • Interests:ileopod.wordpress.com
I've searched for nvidia vendor-ids in files used (ActivityMonitor) by quick time related to VDA:

assuming byte-flipped 10de --> de10


/System/Library/PrivateFrameworks/AppleGVA.framework/Versions/A/AppleGVA
FFCBDE10F381
FAF4DE10F00C
33DDDE10E4DF
0F0000DE100000
8118DE1081E2

/System/Library/Extensions/GeForceVADriver.bundle/Contents/MacOS/GeForceVADriver
C0E2DE10E907


/System/Library/Frameworks/VideoDecodeAcceleration.framework/Versions/A/VideoDecodeAcceleration
none


#6
Rampage Dev

Rampage Dev

    InsanelyMac Deity

  • Local Moderators
  • 1,956 posts
  • Gender:Male
Link?

#7
theconnactic

theconnactic

    Stubborn AMD user

  • Local Moderators
  • 2,826 posts
  • Gender:Male
On my nVidia GeForce 9800GT - which is not, of course, a Fermi card - Video Decode Acceleration works without any issues:

Attached File  Screen Shot 2013-04-18 at 12.28.05 AM.png   82.38KB   71 downloads

All the best!

#8
theconnactic

theconnactic

    Stubborn AMD user

  • Local Moderators
  • 2,826 posts
  • Gender:Male

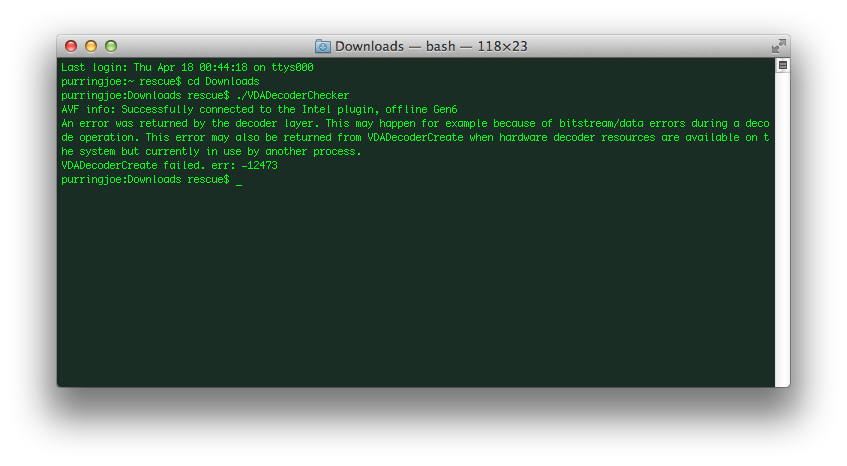

P.S.: but apparently it's not supported with my Radeon HD 5450 Silent:

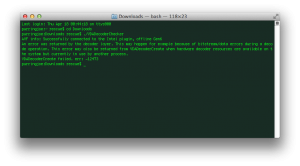

Attached File  Screen Shot 2013-04-18 at 1.52.29 AM.png   43.63KB   49 downloads

#9
theconnactic

theconnactic

    Stubborn AMD user

  • Local Moderators
  • 2,826 posts
  • Gender:Male
Stefe, with me it's quite the opposite: GeForce works fine, my HD5450 refuses to do it.

All the best!

#10
iLeopod

iLeopod

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 435 posts
  • Gender:Male
  • Location:Germany
  • Interests:ileopod.wordpress.com
@ Stefe Hobs how?

@ theconnactic it looks for me that the intel ivy dose the decoding. With intel sandy bridge i have the problem that it will only enable air play mirroring. But at the other hand slow down the system performance.

#11
beta992

beta992

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 338 posts
  • Gender:Male
Any update on this?

21-04-13 19:34:57,669 VDCAssistant[720]: AVF encoder error: fail to create accelerator instance
21-04-13 19:52:43,390 VDCAssistant[444]: AVF encoder error: fail to create accelerator instance
21-04-13 19:57:42,421 VDCAssistant[385]: AVF encoder error: fail to create accelerator instance


#12
theconnactic

theconnactic

    Stubborn AMD user

  • Local Moderators
  • 2,826 posts
  • Gender:Male

@ theconnactic it looks for me that the intel ivy dose the decoding. With intel sandy bridge i have the problem that it will only enable air play mirroring. But at the other hand slow down the system performance.


It works with my Atom netbook, so i think the discrete card also does the decode. Only my HD 5450 refused to support it.

#13
iLeopod

iLeopod

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 435 posts
  • Gender:Male
  • Location:Germany
  • Interests:ileopod.wordpress.com
My Atom Netbook with ION aka 9400m is fully supported too. But the 9800gt was not working for me(broken so cannot test again).
