Blinking strips of ATI-card


  • Please log in to reply
3 replies to this topic

#1
Alex Auditore

Alex Auditore

    InsanelyMac Legend

  • Donators
  • 700 posts
  • Gender:Male
Hello. I have a little problem with ATICard. It doesn't metter on what I look at site, programe, or picture.
When I have lines which located very close by each other, I see the glimmer.
Am I can try to correct it? Or there is unfounded waste of time?
There is my video bios
Last login: Sat Jun 23 21:04:12 on ttys000
imac-admin:~ admin$ sudo -s
Password:
bash-3.2# /Users/admin/Desktop/redsock_bios_decoder </Users/admin/Desktop/vgabios.dmp
BR35516.001 :

BROADWAY Pro with DDR3 800m/625e

Subsystem Vendor ID: 1025
	 Subsystem ID: 30a
Object Header Structure Size: 258
Connector Object Table Offset: 3e
Router Object Table Offset: 0
Encoder Object Table Offset: c6
Display Path Table Offset: 12
Connector Object Id [14] which is [LVDS]
encoder obj id [0x1e] which is [INTERNAL_UNIPHY (osx txmit 0x10 [duallink 0x0] enc 0x0)] linkb: false
Connector Object Id [19] which is [DISPLAY_PORT]
encoder obj id [0x21] which is [INTERNAL_UNIPHY2 (osx txmit 0x12 [duallink 0x2] enc 0x4)] linkb: false
Connector Object Id [12] which is [HDMI_TYPE_A]
encoder obj id [0x20] which is [INTERNAL_UNIPHY1 (osx txmit 0x11 [duallink 0x1] enc 0x2)] linkb: false
Connector Object Id [5] which is [VGA]
encoder obj id [0x15] which is [INTERNAL_KLDSCP_DAC1 (osx txmit 0x00 enc 0x10?)] linkb: false
bash-3.2#
mac-admin:~ admin$ /Users/admin/Downloads/radeon_bios_decode < /Users/admin/Desktop/Turks.bin
ATOM BIOS Rom:
SubsystemVendorID: 0x1025 SubsystemID: 0x030a
IOBaseAddress: 0x2000
Filename: BR35516.001
BIOS Bootup Message:
BROADWAY Pro with DDR3 800m/625e

PCI ID: 1002:68a1
Connector at index 0
Type [@offset 45414]: LVDS (7)
Encoder [@offset 45418]: INTERNAL_UNIPHY (0x1e)
i2cid [@offset 45506]: 0x93, OSX senseid: 0x4
Connector at index 1
Type [@offset 45424]: DisplayPort (10)
Encoder [@offset 45428]: INTERNAL_UNIPHY2 (0x21)
i2cid [@offset 45529]: 0x91, OSX senseid: 0x2
Connector at index 2
Type [@offset 45434]: HDMI-A (11)
Encoder [@offset 45438]: INTERNAL_UNIPHY1 (0x20)
i2cid [@offset 45556]: 0x90, OSX senseid: 0x1
Connector at index 3
Type [@offset 45444]: VGA (1)
Encoder [@offset 45448]: INTERNAL_KLDSCP_DAC1 (0x15)
i2cid [@offset 45583]: 0x92, OSX senseid: 0x3
mac-admin:~ admin$
There is native vervet
0000000 00 04 00 00 00 04 00 00 00 71 00 00 12 04 04 02
0000010 04 00 00 00 14 00 00 00 00 71 00 00 01 12 01 04
0000020 00 02 00 00 14 00 00 00 00 71 00 00 00 00 06 03
0000030 00 08 00 00 00 02 00 00 00 71 00 00 22 05 05 01
And it is patched vervet
02 00 00 00 40 00 00 00 09 00 00 00 10 00 00 04
00 04 00 00 04 07 00 00 00 00 00 00 12 04 01 02
00 08 00 00 04 02 00 00 00 00 00 00 11 02 02 01
10 00 00 00 10 00 00 00 00 00 00 00 00 10 03 03

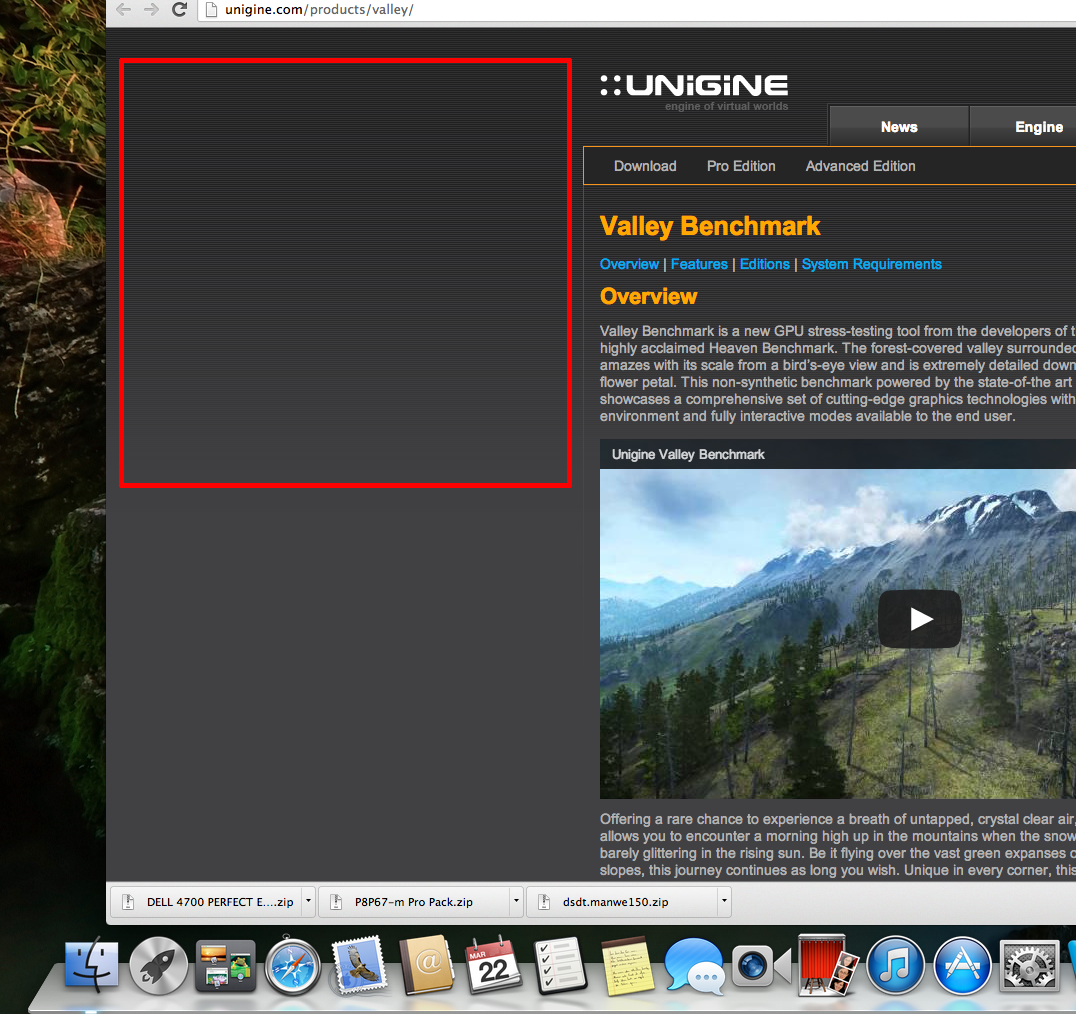

When I have something like this with little stipes I see shimmering.
Attached File  Screen Shot 2013-03-22 at 4.53.44 PM.png   645.79KB   60 downloads

#2
eep357

eep357

    Triple Platinum

  • Supervisors
  • 2,527 posts
  • Gender:Male
  • Location:Dark Side of The Wall
  • Interests:things and stuff
maybe edit Alouatta instead since it's mobile with LVDS already?

#3
Alex Auditore

Alex Auditore

    InsanelyMac Legend

  • Donators
  • 700 posts
  • Gender:Male

maybe edit Alouatta instead since it's mobile with LVDS already?

Thank you that your answer me but the problem remained with Alouatta as well.(I checked it on this link http://unigine.com/products/valley/) Namely checked it on site, not programe
Attached my DSDT just in case(replaced Vervet to Alouatta). My DSDT is injector for Graphics.
Any suggestions else?

Attached Files



#4
Alex Auditore

Alex Auditore

    InsanelyMac Legend

  • Donators
  • 700 posts
  • Gender:Male
I think that I took a trace. The problem is that some of the parameters don't coincide that Windows has.

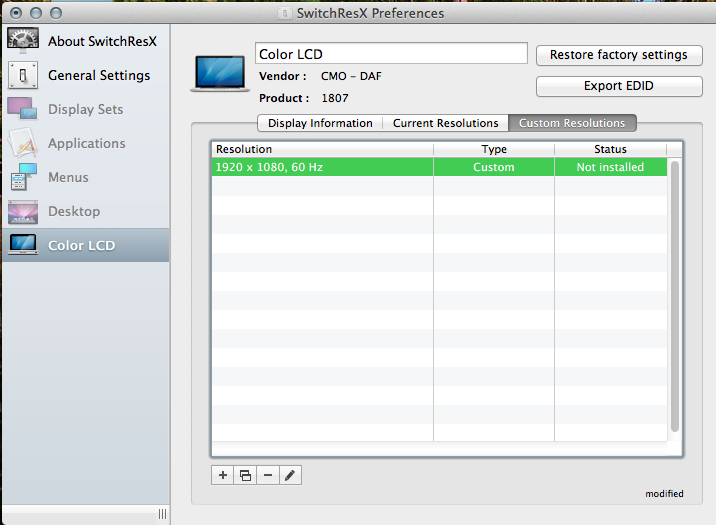

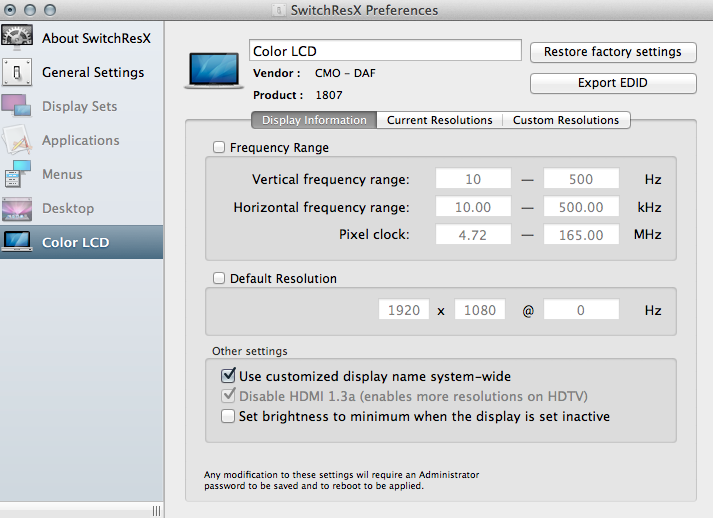

And it seem's that problem can be solved by the program called SwitchResX.
But I could save profile, but unfortunately I couldn't install it.
How to install profile of SwitchRexX?

This information have taken by Windows 8
EDID ( Extended Display Identification Data) Report

Vendor/Product Identification:
Monitor Name :
Monitor Serial Number :
Manufacturer Name :  CMO
Product Id :  1807
Serial Number :  0
Week Of Manufacture :  2
Year Of Manufacture :  2009
EDIDVersion :  V1.3
Number Of Extension Flag :  0
Display parameters:
Video Input Definition :  Digital Signal
DFP1X Compatible Interface :  False
Max Horizontal Image Size :  410 mm
Max Vertical Image Size :  230 mm
Max Display Size :  18,5 Inches
Power Management and Features:
Standby :  Not Supported
Suspend :  Not Supported
ActiveOff :  Not Supported
Video Input :  1
sRGB Default ColorSpace :  False
Default GTF :  Not Supported
Prefered Timing Mode :  True
Gamma/Color and Etablished Timings:
Display Gamma :  2,2
Red :  x = 0,624 - y = 0,361
Green :  x = 0,337 - y = 0,607
Blue :  x = 0,164 - y = 0,086
White :  x = 0,313 - y = 0,329
Etablished Timings :
Display Type :  RGB Color Display
Standard Timing:

Preferred Detailed Timing:
Pixel Clock :  138,65 Mhz
Horizontal Active :  1920 pixels
Horizontal Blanking :  160 pixels
Horizontal Sync Offset :  48 pixels
Horizontal Sync Pulse Width :  32 pixels
Horizontal Border :  0 pixels
Horizontal Size :  408 mm
Vertical Active :  1080 lines
Vertical Blanking :  31 lines
Vertical Sync Offset :  3 lines
Vertical Sync Pulse Width :  5 lines
Vertical Border :  0 lines
Vertical Size :  230 mm
Input Type :  Digital Separate
Interlaced :  False
VerticalPolarity :  False
HorizontalPolarity :  False
Monitor Range Limit:
Maximum Vertical Frequency :  0 Hz
Minimum Vertical Frequency :  0 Hz
Maximum Horizontal Frequency :  0 KHz
Minimum Horizontal Frequency :  0 KHz
Maximum Pixel Clock :  0 MHz
Stereo Display:
Stereo Display :  Normal display (no stereo)
RAW Data:
0x00  00 FF FF FF FF FF FF 00 0D AF 07 18 00 00 00 00
0x10  02 13 01 03 80 29 17 78 0A E6 05 9F 5C 56 9B 2A
0x20  16 50 54 00 00 00 01 01 01 01 01 01 01 01 01 01
0x30  01 01 01 01 01 01 29 36 80 A0 70 38 1F 40 30 20
0x40  35 00 98 E6 10 00 00 18 00 00 00 FE 00 4E 31 38
0x50  34 48 36 2D 4C 30 32 0A 20 20 00 00 00 FE 00 43
0x60  4D 4F 0A 20 20 20 20 20 20 20 20 20 00 00 00 FE
0x70  00 4E 31 38 34 48 36 2D 4C 30 32 0A 20 20 00 35
Attached File  Screen Shot 2013-04-23 at 5.14.39 PM.png   68.36KB   7 downloads
Attached File  Screen Shot 2013-04-23 at 5.16.48 PM.png   91.36KB   5 downloads
Help me, please! I can't find a solution of this issue. :( :wallbash:
