ML 10.8.2 8086:1e20 no audio out


  • Please log in to reply
5 replies to this topic

#1
hampel

hampel

    InsanelyMac Protégé

  • Members
  • Pip
  • 15 posts
Hi,

I've got some trouble getting my audio out to work.

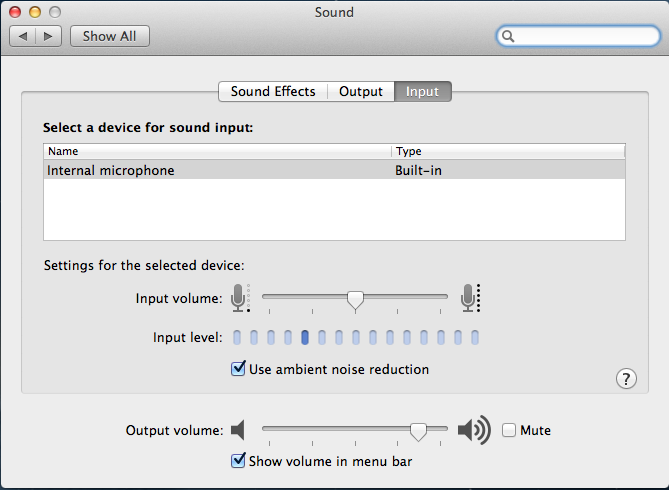

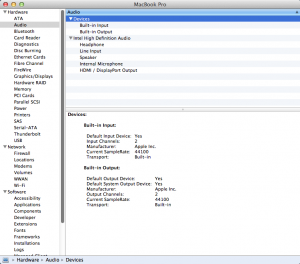

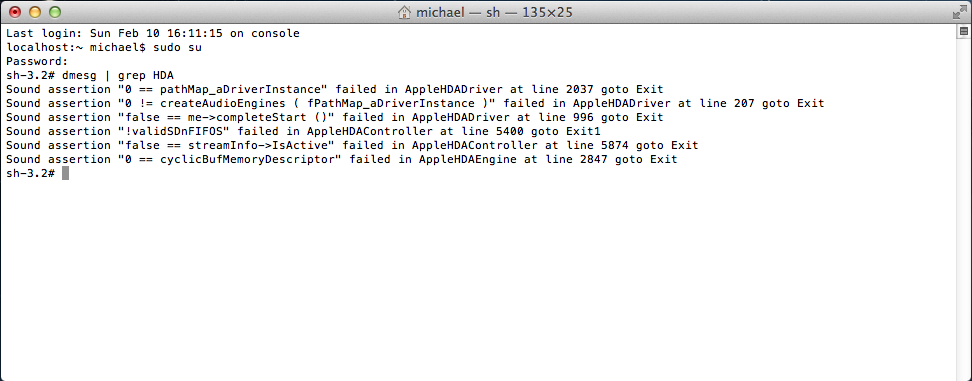

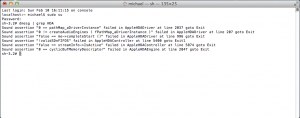

I'm running ML 10.8.2 with custom DSDT and AppleHDA.kext. Audio input seems to work, at least I get some movement in System Preferences Audio input. Everything regarding audio out shows up, I've got a device in Device Manager, OSD when I push my fn keys to toggle sound. My Notebook recognizes, if I plug in headphones and switches the output device to headphones. Still got some errors though (see attached screenshot "dmesg").
So I dont think, there's much left to be done to get audio out working, but I dont know where to look...
If you need any more information, let me know :-)

Attached Files



#2
slayer2333

slayer2333

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 241 posts
  • Gender:Male
I'm also interrested in your problem, i have the same audio chip and i don't really like VoodooHDA. Please let me know how it goes and attach your AppleHDA and HDEF section in DSDT if any improvement.
Thanks!

#3
hampel

hampel

    InsanelyMac Protégé

  • Members
  • Pip
  • 15 posts
OK,

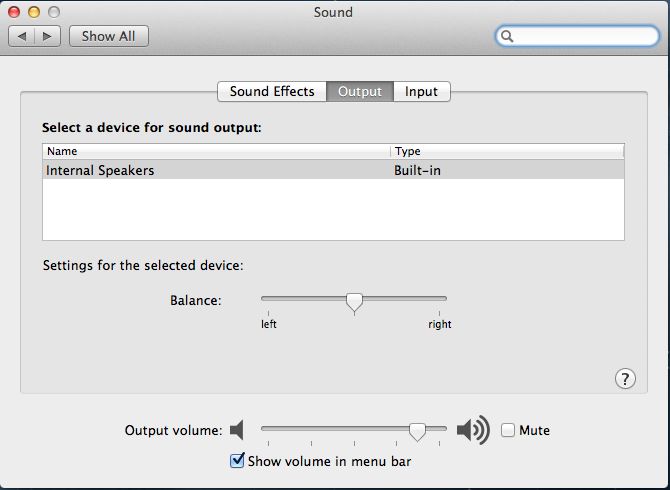

got it working. At least internal speakers with autoswitch to headphone. No sound thru HDMI so far with my machine

Device (HDEF)
		 {
			 Name (_ADR, 0x001B0000)
			 Name (_S3D, 0x03)
			 Name (RID, Zero)
			 Name (_PRW, Package (0x02)
			 {
				 0x0D,
				 0x04
			 })
			 Method (_PSW, 1, NotSerialized)
			 {
				 Noop
			 }
			 Method (_DSM, 4, NotSerialized)
			 {
				 Store (Package (0x0E)
					 {
						 "built-in",
						 Buffer (One)
						 {
							 0x01
						 },
						 "Codec-id",
						 Buffer (0x04)
						 {
							 0x3E, 0x3A, 0xEC, 0x10
						 },
						 "layout-id",
						 Buffer (0x04)
						 {
							 0x0C, 0x00, 0x00, 0x00
						 },
						 "model",
						 Buffer (0x1A)
						 {
							 "HD Audio Conexant Cx20590"
						 },
						 "device-type",
						 Buffer (0x11)
						 {
							 "Audio Controller"
						 },
						 "hda-gfx",
						 Buffer (0x0A)
						 {
							 "onboard-1"
						 },
						 "PinConfigurations",
						 Buffer (Zero) {}
					 }, Local0)
				 DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
				 Return (Local0)
			 }
		 }
	 }

Attached Files



#4
sarim khan

sarim khan

    InsanelyMac Protégé

  • Members
  • Pip
  • 20 posts
laptop, lenovo G480. Audio id shows as 8086:1e20
Audio device: Intel Corporation Panther Point High Definition Audio Controller (rev 04)

I'm not sure which codec is 8086:1e20 ? I tried several patched AppleHDA with dsdt fix, not worked. this topic's kext and dsdt,
Sound assertion in AppleHDAController at line 483
:(

But i'm using 10.8.0. Any help or link ? for 10.8.0 and 8086:1e20 which one to use ?

#5
philcebutv

philcebutv

    InsanelyMac Protégé

  • Members
  • Pip
  • 8 posts

OK,

got it working. At least internal speakers with autoswitch to headphone. No sound thru HDMI so far with my machine

Device (HDEF)
		 {
			 Name (_ADR, 0x001B0000)
			 Name (_S3D, 0x03)
			 Name (RID, Zero)
			 Name (_PRW, Package (0x02)
			 {
				 0x0D,
				 0x04
			 })
			 Method (_PSW, 1, NotSerialized)
			 {
				 Noop
			 }
			 Method (_DSM, 4, NotSerialized)
			 {
				 Store (Package (0x0E)
					 {
						 "built-in",
						 Buffer (One)
						 {
							 0x01
						 },
						 "Codec-id",
						 Buffer (0x04)
						 {
							 0x3E, 0x3A, 0xEC, 0x10
						 },
						 "layout-id",
						 Buffer (0x04)
						 {
							 0x0C, 0x00, 0x00, 0x00
						 },
						 "model",
						 Buffer (0x1A)
						 {
							 "HD Audio Conexant Cx20590"
						 },
						 "device-type",
						 Buffer (0x11)
						 {
							 "Audio Controller"
						 },
						 "hda-gfx",
						 Buffer (0x0A)
						 {
							 "onboard-1"
						 },
						 "PinConfigurations",
						 Buffer (Zero) {}
					 }, Local0)
				 DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
				 Return (Local0)
			 }
		 }
	 }


I have tried your kext and it does not work on my laptop. I have the same sound card with the same vendor and device ID

#6
Mochrira

Mochrira

    InsanelyMac Protégé

  • Members
  • Pip
  • 2 posts

good job hampel, finally i got my Satellite L840 sound working. After finding for a month, finally i got this working, My Graphics and Audio, but the sound only working with -f on kernel flags, so i add -f to org.chameleon.boot.plist kernel flags. Thanks.
