Hello,

I recently bought an AR5B91 and an adapter for my PC. Reason as my USB Wireless didn't work on Lion. I know the AR5B91 works as I have the exact same in my laptop but Lion doesn't see it. I installed Lion on my AMD system in my signature using this guide,

www.insanelymac.com/forum/topic/278181-amd-1073-guide-experimental-only/

and this is the adapter I got.

http://www.ebay.co.u...984.m1497.l2649

How can I get it working?

#2
LatinMcG

LatinMcG

    Insanely digesting DSDT

  • Members
  • PipPipPipPipPipPipPipPipPipPipPip
  • 2,509 posts
  • Gender:Male
  • Location:Tampa, Florida
it should work out of the box. unless u using ionetworkignfamily without atheros 40 kext.
post ioreg (from ioregistry explorer) http://www.mediafire...3zy1jak437iy6b3
if it was irqs it would show up but work intermitently. so i think its soft issues . or disable quickboot in bios.. after all its amd so im sure u had to use hack kexts.

how many slots of pci-e u have ?

#3
Shaneee

Shaneee

    AMD Dev Tester

  • Retired
  • 1,002 posts
  • Gender:Male
  • Location:Scotland
  • Interests:Web Design. OS X. Music.

it should work out of the box. unless u using ionetworkignfamily without atheros 40 kext.
post ioreg (from ioregistry explorer) http://www.mediafire...3zy1jak437iy6b3
if it was irqs it would show up but work intermitently. so i think its soft issues . or disable quickboot in bios.. after all its amd so im sure u had to use hack kexts.

how many slots of pci-e u have ?


Not sure if this is right but this is the ioreg output.

http://dl.dropbox.co...hane’s iMac.zip

Here are the PCI slots I have,

  • 1 PCI Express x16 slot for graphics card

  • 2 PCI Express x1 slots

  • 1 PCI slot


#4
LatinMcG

LatinMcG

    Insanely digesting DSDT

  • Members
  • PipPipPipPipPipPipPipPipPipPipPip
  • 2,509 posts
  • Gender:Male
  • Location:Tampa, Florida
have u tried different slots.. dsdt irq's removed ?

post dsdt.
this is the location of it to insert the dsdt fix
PCI0@180000/BR12@c0000

also this is an nforce chipset. not intel chipset...i would have given up already being its nforce and amd.
(nvidia does not release much to the community.. nforce chipset specs. not completely standard as intels, ask verdant )

i wiped my inspiron 1520 osx . was selling it so i installed win7 and linuxmint 13 but have desktop with 10.6 and 10.7/8

#5
Shaneee

Shaneee

    AMD Dev Tester

  • Retired
  • 1,002 posts
  • Gender:Male
  • Location:Scotland
  • Interests:Web Design. OS X. Music.

have u tried different slots.. dsdt irq's removed ?

post dsdt.
this is the location of it to insert the dsdt fix
PCI0@180000/BR12@c0000

also this is an nforce chipset. not intel chipset...i would have given up already being its nforce and amd.
(nvidia does not release much to the community.. nforce chipset specs. not completely standard as intels, ask verdant )

i wiped my inspiron 1520 osx . was selling it so i installed win7 and linuxmint 13 but have desktop with 10.6 and 10.7/8


Here is the DSDT. Just extraced it. Didn't have one on as I don't know anything about them,

http://dl.dropbox.co...53/DSDT.aml.zip

I have tried both PCI slots and same thing. Wireless is the only thing not working so far on this.

#6
LatinMcG

LatinMcG

    Insanely digesting DSDT

  • Members
  • PipPipPipPipPipPipPipPipPipPipPip
  • 2,509 posts
  • Gender:Male
  • Location:Tampa, Florida
ok wil give it a shot.. but remember its nforce so i cant guarantee anything.

#7
Shaneee

Shaneee

    AMD Dev Tester

  • Retired
  • 1,002 posts
  • Gender:Male
  • Location:Scotland
  • Interests:Web Design. OS X. Music.

ok wil give it a shot.. but remember its nforce so i cant guarantee anything.


Ok thanks. If it doesn't is there anything else I can try?

#8
LatinMcG

LatinMcG

    Insanely digesting DSDT

  • Members
  • PipPipPipPipPipPipPipPipPipPipPip
  • 2,509 posts
  • Gender:Male
  • Location:Tampa, Florida
try this

Attached Files



#9
Shaneee

Shaneee

    AMD Dev Tester

  • Retired
  • 1,002 posts
  • Gender:Male
  • Location:Scotland
  • Interests:Web Design. OS X. Music.

try this

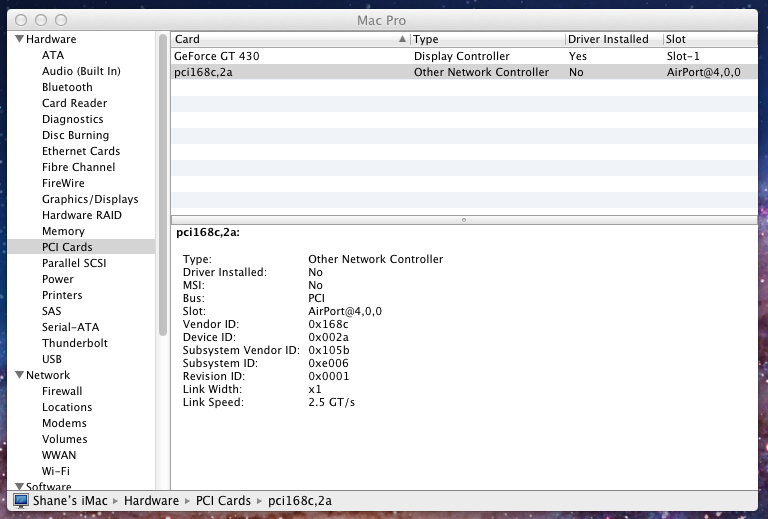

It is showing in system profiler now under PCI Cards but it says no driver installed.

Attached File  PCI.png   111.46KB   15 downloads

#10
LatinMcG

LatinMcG

    Insanely digesting DSDT

  • Members
  • PipPipPipPipPipPipPipPipPipPipPip
  • 2,509 posts
  • Gender:Male
  • Location:Tampa, Florida
its your kext then. check the older kext 10.6.8 for 10.7

#11
Shaneee

Shaneee

    AMD Dev Tester

  • Retired
  • 1,002 posts
  • Gender:Male
  • Location:Scotland
  • Interests:Web Design. OS X. Music.

its your kext then. check the older kext 10.6.8 for 10.7


Tried IO80211Family.kext from 10.6.8 and it now it shows a driver installed but it shows as no hardware installed on the status bar. I modified the kext to add the device and vendor ID but it didn't work 100%

#12
LatinMcG

LatinMcG

    Insanely digesting DSDT

  • Members
  • PipPipPipPipPipPipPipPipPipPipPip
  • 2,509 posts
  • Gender:Male
  • Location:Tampa, Florida
what card is it u say AR5B91 but it sounds like ar5b92

#13
Shaneee

Shaneee

    AMD Dev Tester

  • Retired
  • 1,002 posts
  • Gender:Male
  • Location:Scotland
  • Interests:Web Design. OS X. Music.

what card is it u say AR5B91 but it sounds like ar5b92


Its a AR5B91

This is the card here http://www.ebay.co.u...984.m1497.l2649

The ID's are 168c 002a

#14
LatinMcG

LatinMcG

    Insanely digesting DSDT

  • Members
  • PipPipPipPipPipPipPipPipPipPipPip
  • 2,509 posts
  • Gender:Male
  • Location:Tampa, Florida
ahh u ee it missing some pins. thats the one with issues on some pcs.. i use ar5b91-X that has full pinouts.

compare gold pins to this one http://www.ebay.co.u...d-/170808675956
or this one ( i used this one) http://www.ebay.co.u...5-/350617020692

#15
Shaneee

Shaneee

    AMD Dev Tester

  • Retired
  • 1,002 posts
  • Gender:Male
  • Location:Scotland
  • Interests:Web Design. OS X. Music.

ahh u ee it missing some pins. thats the one with issues on some pcs.. i use ar5b91-X that has full pinouts.

compare gold pins to this one http://www.ebay.co.u...d-/170808675956


Its the same as the one in my laptop. Is there no way to get it working then?

#16
LatinMcG

LatinMcG

    Insanely digesting DSDT

  • Members
  • PipPipPipPipPipPipPipPipPipPipPip
  • 2,509 posts
  • Gender:Male
  • Location:Tampa, Florida
ive ran into some users that the missing pins kind wont work likely due to pci not properly used..

last time i used amd and mac was 2007 but i do remember it acting totaly strange.

i dunno what else to tell u.

#17
Shaneee

Shaneee

    AMD Dev Tester

  • Retired
  • 1,002 posts
  • Gender:Male
  • Location:Scotland
  • Interests:Web Design. OS X. Music.

ive ran into some users that the missing pins kind wont work likely due to pci not properly used..

last time i used amd and mac was 2007 but i do remember it acting totaly strange.

i dunno what else to tell u.


So the best thing would be buy the one you posted? Its not expensive. The card is detected and it says the drivers are installed and during verbose boot it mentions something about atheros mac and phy. The airport icon up the top says no hardware installed.

#18
LatinMcG

LatinMcG

    Insanely digesting DSDT

  • Members
  • PipPipPipPipPipPipPipPipPipPipPip
  • 2,509 posts
  • Gender:Male
  • Location:Tampa, Florida
tape pin 20 on card... sounds like a bad lion atheros kext.

but i have seen issues with the ones with missing pins on some computers. (toshiba and acer) on my dell inspiron 1520 it works fine with or without missing pins ( i tested both)

#19
Shaneee

Shaneee

    AMD Dev Tester

  • Retired
  • 1,002 posts
  • Gender:Male
  • Location:Scotland
  • Interests:Web Design. OS X. Music.

tape pin 20 on card... sounds like a bad lion atheros kext.

but i have seen issues with the ones with missing pins on some computers. (toshiba and acer) on my dell inspiron 1520 it works fine with or without missing pins ( i tested both)


What do you mean tape pin 20?

I have an external HDD with 10.7 and AMD kernel on it and with the DSDT it loads the card and it works. I copied the IO80211Family from 10.7 to 10.7.4 but it still doesn't load. In System Profiler it has the IO80211Family Loaded but next to configd plug-in it says none. What other kexts apart from IO80211Family deal with the network?

EDIT:
Its all working now. Must have been a bad kext. I cloned the 10.7 HDD to my main one. Updated to 10.7.4, Replaced needed files including the IO80211Family from the 10.7 HDD and now its working =]

Thanks a lot LatinMcG for the DSDT to get it working.
