Snow Leopard installation / Asus N53JQ / DSDT


  • Please log in to reply
37 replies to this topic

#1
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 11,139 posts
  • Gender:Male
  • Location:Rio de Janeiro
Attached File  ASUS_N53JQ_A1_Laptop.jpg   16.17KB   172 downloads

Files for Asus N53JQ

-Extra folder
Attached File  Extra.zip   497.38KB   490 downloads
-Kexts for System/Library/Extensions
Attached File  S_L_E.zip   344.79KB   403 downloads
-Boot CD
Download HackBoot

-Snow Leopard Retail DVD
Snow Leopard Retail

-DSDT Auto-Patcher Asus N53JQ
Attached File  DSDT_Auto_Patcher____Asus_N53JQ.zip   497.07KB   419 downloads
-Ethernet
http://code.google.com/p/iats/

Installation

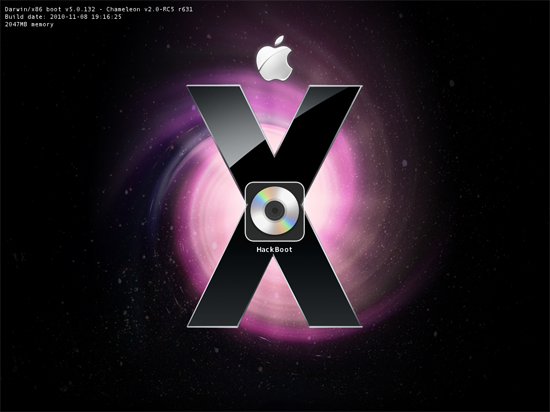

Boot the HackBoot CD
Attached File  MaLd0n_2011_02_23___s_23.35.47.png   245.76KB   191 downloads
Remove the CD, insert Snow Leopard DVD, wait a few seconds and press F5, then select the DVD and press Enter.

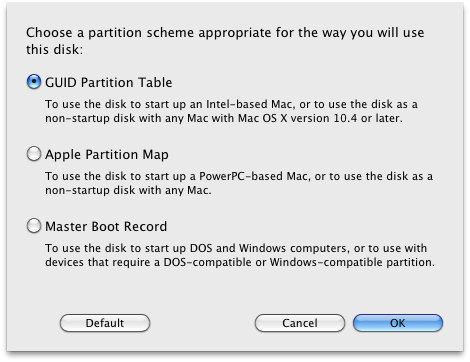

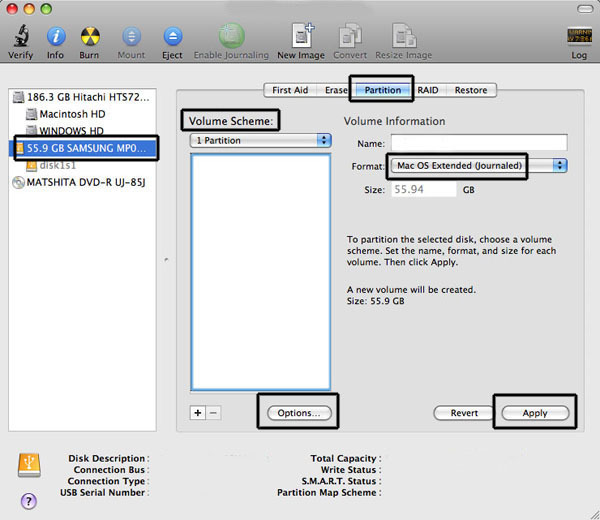

After booting the DVD and selecting your language, wait for the "Install Mac OS X" screen. Go to menu "Utilities --> Disk Utility”, select the HD you want to format and click the "Partition" tab. In the "Volume Scheme" combo, choose how many partitions you want. Below, in "Options", choose "GUID", then select "Mac Os Extended (Journaled)", click the apply button and wait.
Attached File  diskutility.jpg   85.75KB   181 downloads
Attached File  guidb.jpg   53.15KB   105 downloads

With this process done, close Disk Utility.
Select the destination HD and go on with the installation.

After the installation, boot using HackBoot again.

The system is running but it needs HackBoot to start, so we have to install the boot loader (Chameleon), the essential kexts and the patched DSDT.

Post installation

1- Install Chameleon RC5 (in Snow Leopard or EFI partition)
2- Copy the Extra folder to your boot partition
3- Run DSDT Auto-Patcher and copy the generated DSDT to the Extra folder
4- Update the system to 10.6.7
5- Install the nVidia Fermi drivers

Edit the distribution file inside the mpkg and remove the check, or add MacBookPro6,2 to the list of supported models
-show package contents
-edit distribution.dist
var system_models = ["MacPro3,1", "MacPro4,1", "MacPro5,1", "MacBookPro6,2"];

* Copy the mpkg to the desktop, if you edit it inside the dmg you won't be able to save the changes


6- Add GraphicsEnabler=Yes to boot.plist in the Extra folder
7- Copy the kexts from S_L_E.zip to System/Library/Extensions

After the above steps are done, double click KextUtility and wait until it finishes.

Restart using -v (boot verbose)

Patches applied by DSDT Auto-Patcher

-PARSEOP_IF
-_DSM
-And (CTRL, 0x1E, CTRL)
-Atheros 9285
-DTGP
-EHCI
-FN
-GDSP
-HDEF
-HPET
-IRQs
-MUTE
-OS
-PNLF
-RENAME
-RTC
-SMBUS
-SHUTDOWN
-T_x rename
-UHCI

Vanilla power management (SpeedStep)
Use MacBookPro6,2 SMBIOS

Restart fix use Chameleon RC5

Credits and thanks to El Coniglio, oldnapalm and all people in the community who developed the original patches and kexts.

#2
JahStories

JahStories

    InsanelyMac Legend

  • Local Moderators
  • 1,340 posts
  • Gender:Male
  • Location:Sicily, Italy.
  • Interests:Everything that got a screen on it, skateboarding, reggae music, PowerPcs, Amigas and retrogamin...
hi there, thanks for the tut, i have a notebook like yours, but another revision n53jL, i'm getting stuck'd when updating to 10.6.6 or 10.6.7, i always get a KP at the and of the installation process, i tried to pop out the drive connect it to another mac to update it via usb, but when i put it back it stuck during the boot process, i'm getting crazy, any help?

#3
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 11,139 posts
  • Gender:Male
  • Location:Rio de Janeiro
post a photo

#4
JahStories

JahStories

    InsanelyMac Legend

  • Local Moderators
  • 1,340 posts
  • Gender:Male
  • Location:Sicily, Italy.
  • Interests:Everything that got a screen on it, skateboarding, reggae music, PowerPcs, Amigas and retrogamin...
i'm having problem even with my camera :P anyway the panic came'd from some pci intel thing, the graphic card i suppose and when i try a safe boot it appear to boot but with 4 glitches squared images, unusable...
this after updating to 10.6.6 and installing nvidia drivers, kexts, dsld, e chameleon rc5 750.
P.S.
it looks like chameleon is not working as it should because i can see a line during its boot showing unable to patch nvidia rom...
help :P
edit:
here are the pictures
KP
Posted Image
UNsafeboot ;)
Posted Image

#5
JahStories

JahStories

    InsanelyMac Legend

  • Local Moderators
  • 1,340 posts
  • Gender:Male
  • Location:Sicily, Italy.
  • Interests:Everything that got a screen on it, skateboarding, reggae music, PowerPcs, Amigas and retrogamin...
anyway when i was on 10.6.3 it booted but obviously in vesa and without wifi & trackpad working, it looks like a very hard hackintoshable notebook... i really need help... anyway i can boot the drive from an imac with a firewire box to make fixes...
P.S.
the kernel panik camed from the intelhdgrafic kext, i suppose that chameleon didn't patched the rom of the 425m gfx so it tries with the integrated intel card... HELP :P

#6
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 11,139 posts
  • Gender:Male
  • Location:Rio de Janeiro
-Remove AppleIntelHDGraphics

http://www.insanelym...p;#entry1595491
GraphicsEnabler=Yes

#7
JahStories

JahStories

    InsanelyMac Legend

  • Local Moderators
  • 1,340 posts
  • Gender:Male
  • Location:Sicily, Italy.
  • Interests:Everything that got a screen on it, skateboarding, reggae music, PowerPcs, Amigas and retrogamin...
thanks, it boots but in vesa :angel:, installed drivers and <key>GraphicsEnabler</key>
<string>yes</string> on the boot.plist in extra, i can't even use the wifi it shows connections, connect but with no internet connection
can it be chameleon? there is that nvidia patching rom failed thing, is it right?

#8
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 11,139 posts
  • Gender:Male
  • Location:Rio de Janeiro

thanks, it boots but in vesa :angel:, installed drivers and <key>GraphicsEnabler</key>
<string>yes</string> on the boot.plist in extra, i can't even use the wifi it shows connections, connect but with no internet connection
can it be chameleon? there is that nvidia patching rom failed thing, is it right?


two GPUs?
IntelHd and Nvidia?

Atheros 9285?

#9
JahStories

JahStories

    InsanelyMac Legend

  • Local Moderators
  • 1,340 posts
  • Gender:Male
  • Location:Sicily, Italy.
  • Interests:Everything that got a screen on it, skateboarding, reggae music, PowerPcs, Amigas and retrogamin...

two GPUs?
IntelHd and Nvidia?

Atheros 9285?

yes, yes
it got the same specs of the n53jq but with another screen and processor
any idea?

#10
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 11,139 posts
  • Gender:Male
  • Location:Rio de Janeiro

yes, yes
it got the same specs of the n53jq but with another screen and processor
any idea?

I have no idea
use search forum

#11
JahStories

JahStories

    InsanelyMac Legend

  • Local Moderators
  • 1,340 posts
  • Gender:Male
  • Location:Sicily, Italy.
  • Interests:Everything that got a screen on it, skateboarding, reggae music, PowerPcs, Amigas and retrogamin...
i've searched a lot but no answers maybe you're using a different version of chameleon i really get stuck'd :'(

#12
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 11,139 posts
  • Gender:Male
  • Location:Rio de Janeiro

version of chameleon


I use the 750
Attached File  01c.png   1.09KB   40 downloads

#13
JahStories

JahStories

    InsanelyMac Legend

  • Local Moderators
  • 1,340 posts
  • Gender:Male
  • Location:Sicily, Italy.
  • Interests:Everything that got a screen on it, skateboarding, reggae music, PowerPcs, Amigas and retrogamin...
it's the sameeeee :( god help, its really strange it's the same gpu what can i do? i'm freaking out

#14
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 11,139 posts
  • Gender:Male
  • Location:Rio de Janeiro
only nvidia 425m
I do not have the intel HD

#15
JahStories

JahStories

    InsanelyMac Legend

  • Local Moderators
  • 1,340 posts
  • Gender:Male
  • Location:Sicily, Italy.
  • Interests:Everything that got a screen on it, skateboarding, reggae music, PowerPcs, Amigas and retrogamin...

only nvidia 425m
I do not have the intel HD


that's it so :D gasp i hope there is a solution so far

#16
JahStories

JahStories

    InsanelyMac Legend

  • Local Moderators
  • 1,340 posts
  • Gender:Male
  • Location:Sicily, Italy.
  • Interests:Everything that got a screen on it, skateboarding, reggae music, PowerPcs, Amigas and retrogamin...
as far you know is it possible to make it work? i saw lots of threads about others optimus notebook but no help at all

#17
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 11,139 posts
  • Gender:Male
  • Location:Rio de Janeiro
I have no idea

#18
SHMIDT911

SHMIDT911

    InsanelyMac Protégé

  • Members
  • Pip
  • 10 posts
Can I use your "DSDT_Auto_Patcher____Asus_N53JQ.zip" for my ASUS N53JF?

#19
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 11,139 posts
  • Gender:Male
  • Location:Rio de Janeiro

Can I use your "DSDT_Auto_Patcher____Asus_N53JQ.zip" for my ASUS N53JF?

send me files
http://www.insanelym...p...st&id=81816
and complete "specs"

#20
SHMIDT911

SHMIDT911

    InsanelyMac Protégé

  • Members
  • Pip
  • 10 posts
Make the files. There dsdt made ​​by your autopatcher.

Intel Core i5-460M (2.53)
Intel HM55 Express

DDR3 (4096mb)

1366 x 768 pix
NVIDIA GeForce GT425M (1024mb) + IntelHD 5700 (nvidia optimus)
Realtek ALC269 - High Definition Audio Controller
AR8131 PCI-E Gigabit Ethernet Controller
Atheros AR9285 Wireless Network Adapter

Information collected by Everest in html

Attached Files
