brumas2025 Posted January 13 Author Share Posted January 13 23 minutes ago, Asural said: I understand, I guess the only way to control Sleep/Wake is with a toggle switch. I've attached a file that sets PciRoot(0x0)/Pci(0x2,0x0) in Base7-6-9.plist and prohibits AppleALC.kext, so please check that it works. I think that's probably as far as I can go. Base.plist 37.5 kB · 1 download Base.plist - loading into two black screens failed. restart via the button... 1 Quote Link to comment https://www.insanelymac.com/forum/topic/362102-asrock-h310m-hdv-dual-monitor-problems/page/12/#findComment-2846357 Share on other sites More sharing options...
brumas2025 Posted January 13 Author Share Posted January 13 (edited) 30 minutes ago, deeveedee said: I think that a logical test would be to take the config-H31-test-7-6-9.plist from here (which fixes the horizontal lines) and add property force-online = 1. Please test the attached config.plist. config-H31-test-7-6-9-2.plist.zip 6.97 kB · 1 download Thanks, it's a complete victory now! They wake up from clicking! You are my savior again! How am I going to live without tests?.....😀 https://dropmefiles.com/TyHS8 Edited January 13 by brumas2025 2 Quote Link to comment https://www.insanelymac.com/forum/topic/362102-asrock-h310m-hdv-dual-monitor-problems/page/12/#findComment-2846358 Share on other sites More sharing options...
deeveedee Posted January 13 Share Posted January 13 @brumas2025 Thank @Max.1974. He's the one who recognized that force-online was missing from DeviceProperties. You're the one who found the working DeviceProperties that allowed both displays to work. Your patience and persistence paid off. it was a good team effort. Well done. 1 2 Quote Link to comment https://www.insanelymac.com/forum/topic/362102-asrock-h310m-hdv-dual-monitor-problems/page/12/#findComment-2846359 Share on other sites More sharing options...
brumas2025 Posted January 13 Author Share Posted January 13 2 minutes ago, deeveedee said: @brumas2025 Thank @Max.1974. He's the one who recognized that force-online was missing from DeviceProperties. You're the one who found the working DeviceProperties that allowed both displays to work. Your patience and persistence paid off. it was a good team effort. Well done. Yes, thank you very much to him and to you and to everyone who helped me! 1 Quote Link to comment https://www.insanelymac.com/forum/topic/362102-asrock-h310m-hdv-dual-monitor-problems/page/12/#findComment-2846360 Share on other sites More sharing options...
Max.1974 Posted January 13 Share Posted January 13 Hello my friends @Deeveedee @brumas2025 @Asural, patience truly keeps breaking down barriers. I was patient with my Lenovo E470 and T14 laptops for almost a year, but little by little, step by step, reading and researching, I managed to recall the necessary patches and also remember the video from three years ago by @luchina. I personally do not need it because I already use the correct pipes and Bus IDs, and power and laptop kexts are easier to deal with. Desktops, on the other hand, are difficult by nature because they depend on a series of factors. But the effort is worth it when we help people who dream of using Hackintosh. It is a pity that the major experts and developers did not continue the crucial framebuffer projects, but with what we have, we can still adjust things and manage well. I just hope everyone understands that when we speak and post links, they are only meant as attempts to help. That is what matters to me: helping the community in the Hackintosh scene. There is no lack of goodwill, and I am now pursuing my third degree, this time in Software Engineering, to earn extra income and to help those who need it Best Regards Nice video my friend, with an Apple and all hahahaha!! 1 2 Quote Link to comment https://www.insanelymac.com/forum/topic/362102-asrock-h310m-hdv-dual-monitor-problems/page/12/#findComment-2846361 Share on other sites More sharing options...
deeveedee Posted January 13 Share Posted January 13 @brumas2025 if you miss the testing (I doubt you're going to miss testing for a while), you may want to simplify your config.plist by removing unnecessary entries in your config-H31-test-7-6-9-2.plist DeviceProperties. Start by removing the commented-out lines (those lines that have a # at the beginning). Then remove the unnecessary properties for con0 (which your hack is not using, since your displays are on con1 and con2). You can remove the con0 properties one at a time (but don't remove framebuffer-con0-enable, since it's required to enable the other con0 properties). This is just my personal preference, but I always like to have the most simple DeviceProperties with minimal properties, because I think it's easier to maintain and to change if necessary. Again, well done. 👏 1 1 Quote Link to comment https://www.insanelymac.com/forum/topic/362102-asrock-h310m-hdv-dual-monitor-problems/page/12/#findComment-2846362 Share on other sites More sharing options...
Max.1974 Posted January 13 Share Posted January 13 (edited) 15 minutes ago, deeveedee said: @brumas2025se você perder o teste (duvido que perca o teste por um tempo), você pode simplificar seu config.plist removendo entradas desnecessárias em seu config-H31-test-7-6-9-2.plist DeviceProperties. Comece removendo as linhas comentadas (aquelas linhas que têm um # no início). Em seguida, remova as propriedades desnecessárias para con0 (que seu hack não está usando, já que suas exibições estão em con1 e con2). Você pode remover as propriedades con0 uma de cada vez (mas não remova framebuffer-con0-enable, pois é necessário habilitar as outras propriedades con0). Esta é apenas a minha preferência pessoal, mas sempre gosto de ter as Propriedades de Dispositivo mais simples com propriedades mínimas, porque acho que é mais fácil de manter e alterar, se necessário. Novamente, muito bem.👏 And @brumas2025 save this config.plist, then I will look at your EFI under seven locks (or seven hard drives) lol 😆 PS: I believe your EFI contains unnecessary SSDTs. Since you have already mapped everything, you can remove SSDT-USB-Reset, and SSDT-ALS0 as well — I am not sure it helps in your case, because it is meant for ambient light in laptops. And does your USB mapping kext not contain any internal 255 device (Bluetooth or some other internal device)? Don’t you have any PCIe USB card connected to the motherboard? HS02, HS03, and HS04 are set to connector type 3 in the config, but in general they should be 255 (internal) or 0, not 3. It should only be 255 if it is Bluetooth or another internal device, and 0 if it is a regular USB port, while SS01, etc., should be 3, 9, or 10 depending on whether it is USB-C. Edited January 13 by Max.1974 1 Quote Link to comment https://www.insanelymac.com/forum/topic/362102-asrock-h310m-hdv-dual-monitor-problems/page/12/#findComment-2846363 Share on other sites More sharing options...

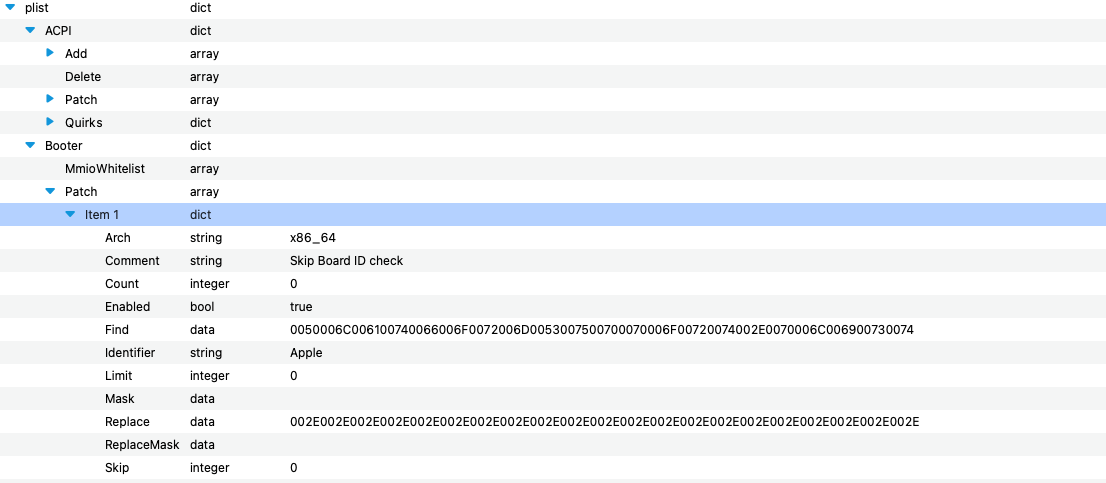

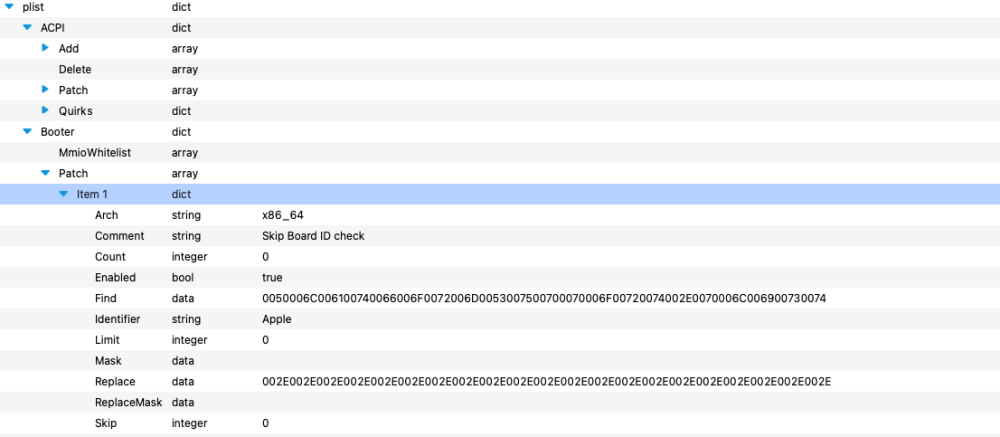

Max.1974 Posted January 13 Share Posted January 13 @brumas2025 you can add Booter Patch to disable filevault Check my tutorial: 1 Quote Link to comment https://www.insanelymac.com/forum/topic/362102-asrock-h310m-hdv-dual-monitor-problems/page/12/#findComment-2846365 Share on other sites More sharing options...

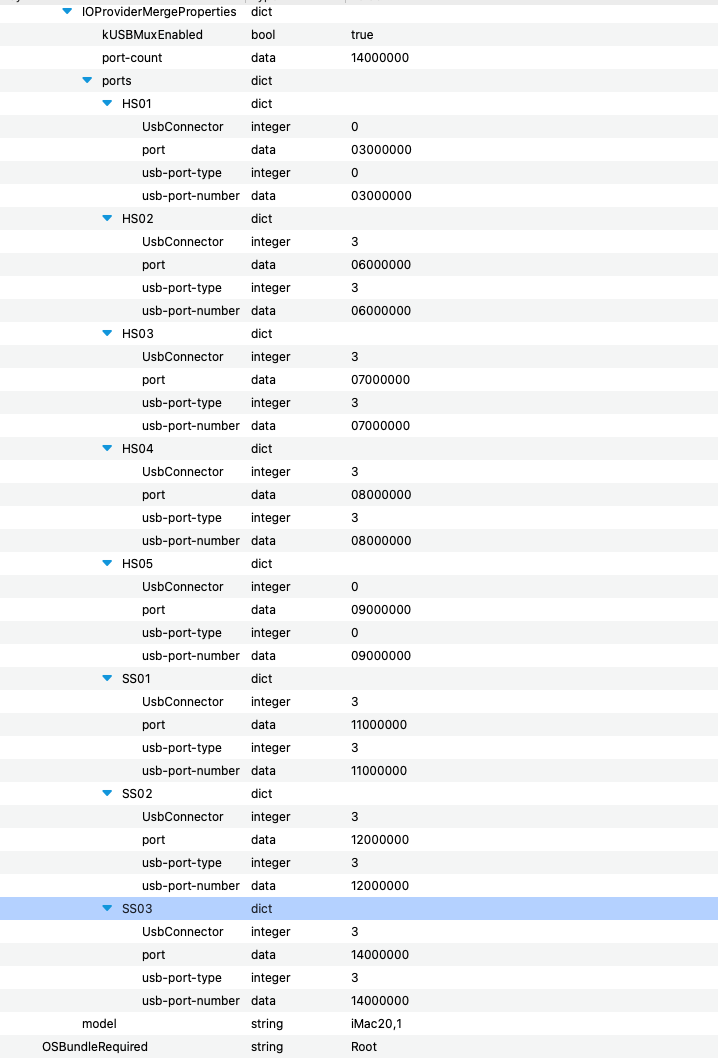

brumas2025 Posted January 13 Author Share Posted January 13 (edited) 1 hour ago, Max.1974 said: And @brumas2025 save this config.plist, then I will look at your EFI under seven locks (or seven hard drives) lol 😆 And does your USB mapping kext not contain any internal 255 device (Bluetooth or some other internal device)? Don’t you have any PCIe USB card connected to the motherboard? I had an Atheros WiFi card for a long time, which remained after being replaced with a mac-compatible Brodcom card in an Asus 756 laptop, I bought an adapter and use the card in Windows, but of course it doesn't work in hickintosh, probably it is determined. ( I'll replace it with Wi-Fi BCM94360CS2 + NGFF M soon.2 Key A/E WIFI BT 4.0 802.11Ac for 11 inch A1465 13 inch A1466). Quote Edited January 13 by brumas2025 1 Quote Link to comment https://www.insanelymac.com/forum/topic/362102-asrock-h310m-hdv-dual-monitor-problems/page/12/#findComment-2846368 Share on other sites More sharing options...
brumas2025 Posted January 13 Author Share Posted January 13 42 minutes ago, Max.1974 said: @brumas2025 you can add Booter Patch to disable filevault thank you! I added it! Very interesting 1 Quote Link to comment https://www.insanelymac.com/forum/topic/362102-asrock-h310m-hdv-dual-monitor-problems/page/12/#findComment-2846370 Share on other sites More sharing options...
deeveedee Posted January 13 Share Posted January 13 @brumas2025 You might want to rename the title of this thread to "[Solved] ASRock H310M-HDV - dual monitor problems" - I think your success will be helpful to many others. 4 Quote Link to comment https://www.insanelymac.com/forum/topic/362102-asrock-h310m-hdv-dual-monitor-problems/page/12/#findComment-2846374 Share on other sites More sharing options...
