Unlocking Dell bios from UEFI shell with CFGLock.efi using Clover USB installer

[Unoxa]

I wanted to unlock the MSR E2 region in the bios of my Optiplex 7070 MT before installing Mojave. Struggled a bit looking for ways to unlock it but ended up copying CFGLock.efi to the tools folder in the Clover folder on the EFI partition of the USB installer. I then booted from the USB installer, selected UEFI shell, navigated to the tools folder and ran CFGLock.efi from the shell. Then I could unlock the bios and after a restart check that it had stayed unlocked. For me this turned out to be the easiest way to unlock MSR E2 and it worked with Clover.

[Unoxa]

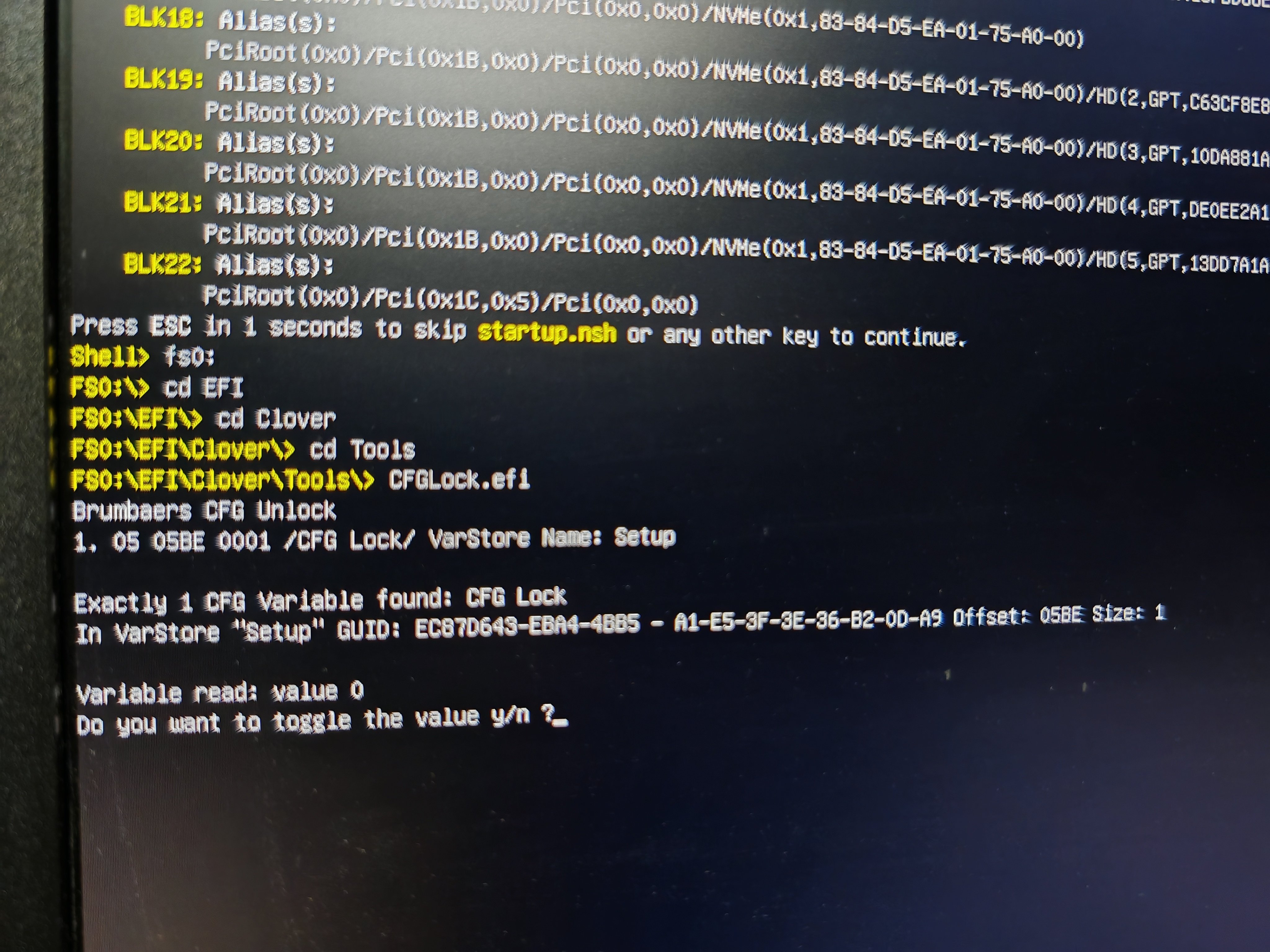

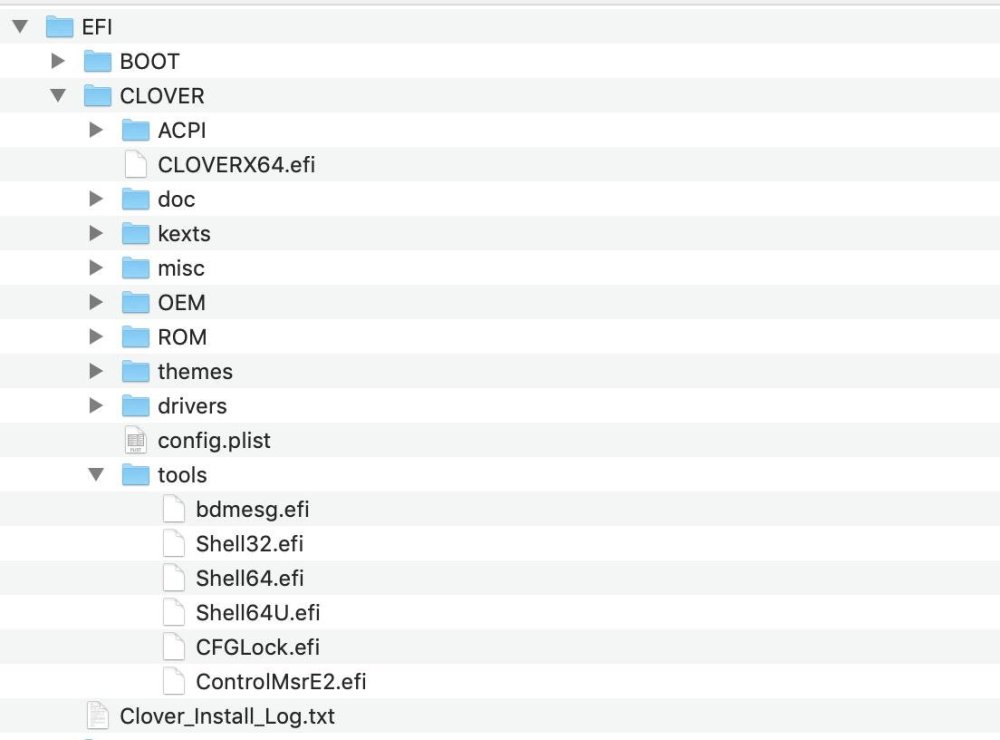

Just want to add some more info on this, have taken a picture of the Clover folder on the EFI partition and of how unlocking with CFGLock.efi looks when using the UEFI shell. This might make it easier for other new users.

[fspkwonx86]

theres a repo the 2020 build of UEFIPatch might do this all and then some, theres a common method among

dells that use a Pin Bridge BIOS Unlock "but STILL says even a Realtek ALC Chip if its not Intel HDA short pins SDATA_OUT and DVDD Pins on your specific Chip for BIOS Flash descriptor Unlock is called the HDA_SDO[Descriptor Unlock]" this basically in the unlocked state using the FPTWTool. is what its called should have a read-back bios function and thats what you use to verify unlock dump bios patch and reflash , pins are extremely fragile seeing as how the Replace Function is Disabled we have to find a build of UEFITool that re-enables this so far my only bitmap render came out in Monochrome Red

Edited November 20, 2025 by fspkwonx86

[clone13 job]

On 11/20/2025 at 12:34 AM, Unoxa said:

Just want to add some more info on this, have taken a picture of the Clover folder on the EFI partition and of how unlocking with CFGLock.efi looks when using the UEFI shell. This might make it easier for other new users.
