[SUCCESS/HELP] MSI B760 GAMING PLUS WIFI + i7-14700 + RX 580(2048SP Moded) [Tahoe Beta 6]

[sims]

Hello InsanelyMac community,

After an incredible run from 2013 to Last Week, I have finally retired my trusty old Hackintosh and built a new one. I'm creating this topic to share the success/help and details of my new machine, but first, I wanted to pay a small tribute to the build that served me faithfully for over 12 years.

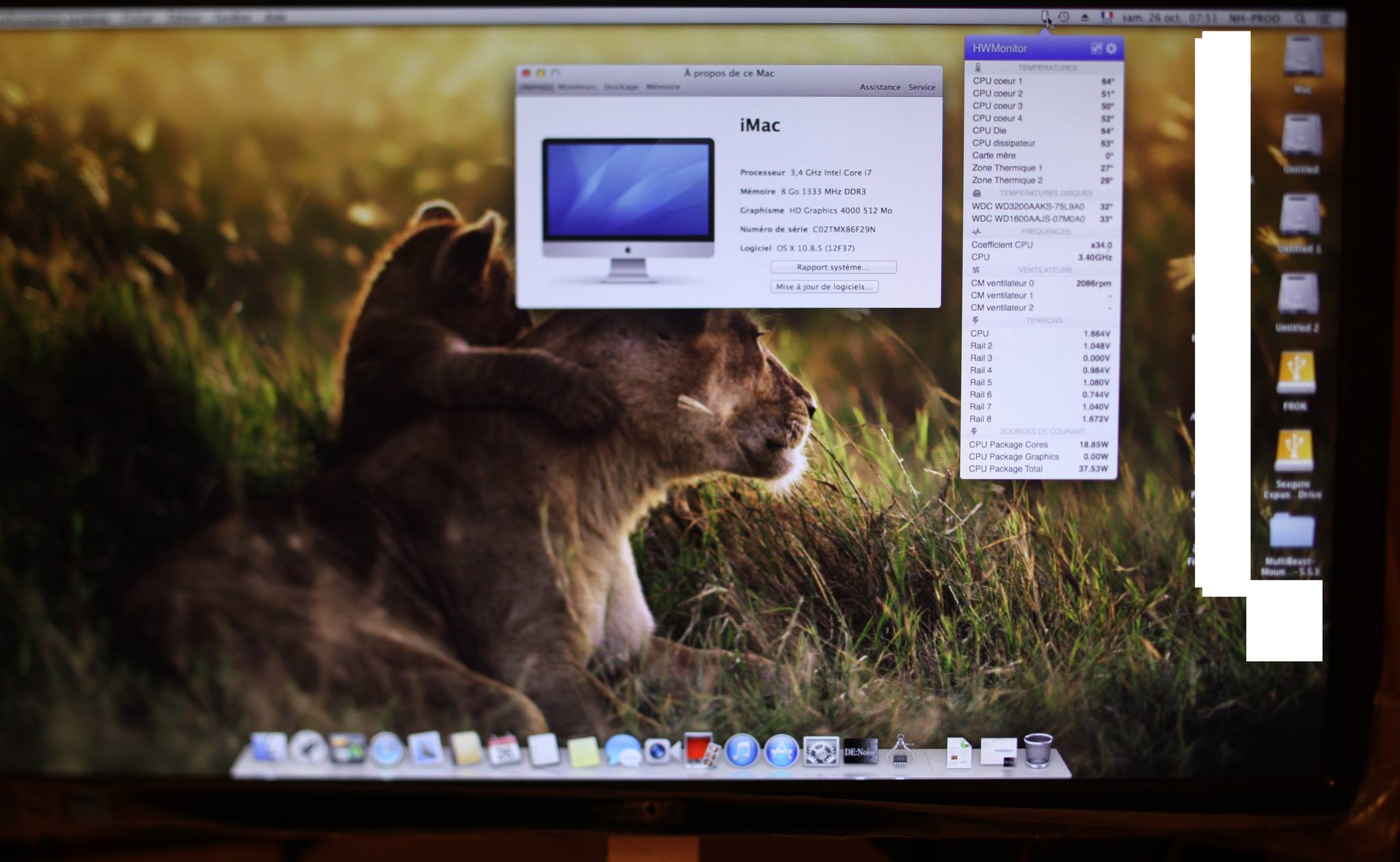

A Long Journey: My Z77 Build (2013-2025)



This machine was my daily driver for more than a decade, taking me from OS X to macOS. It's a testament to how long a well-chosen Hackintosh can last.

• MB: MSI Z77A-G45 Thunderbolt

• CPU: Intel® Core™ i7-3770 (Ivy Bridge)

• Memory: Started with 8GB, later upgraded to 24GB DDR3

• Video: Initially used the integrated Intel HD 4000 graphics. To keep up with modern macOS, I later upgraded to a modded AMD Radeon RX 580 2048SP.

• Bootloader: Started with Clover for the early years and eventually migrated to OpenCore for the best compatibility with recent macOS versions.

• OS History: This machine ran everything from OS X 10.8.5 Mountain Lion all the way up to macOS Sonoma.

It was a fantastic and reliable machine. Now, onto the main event: my new build for 2025

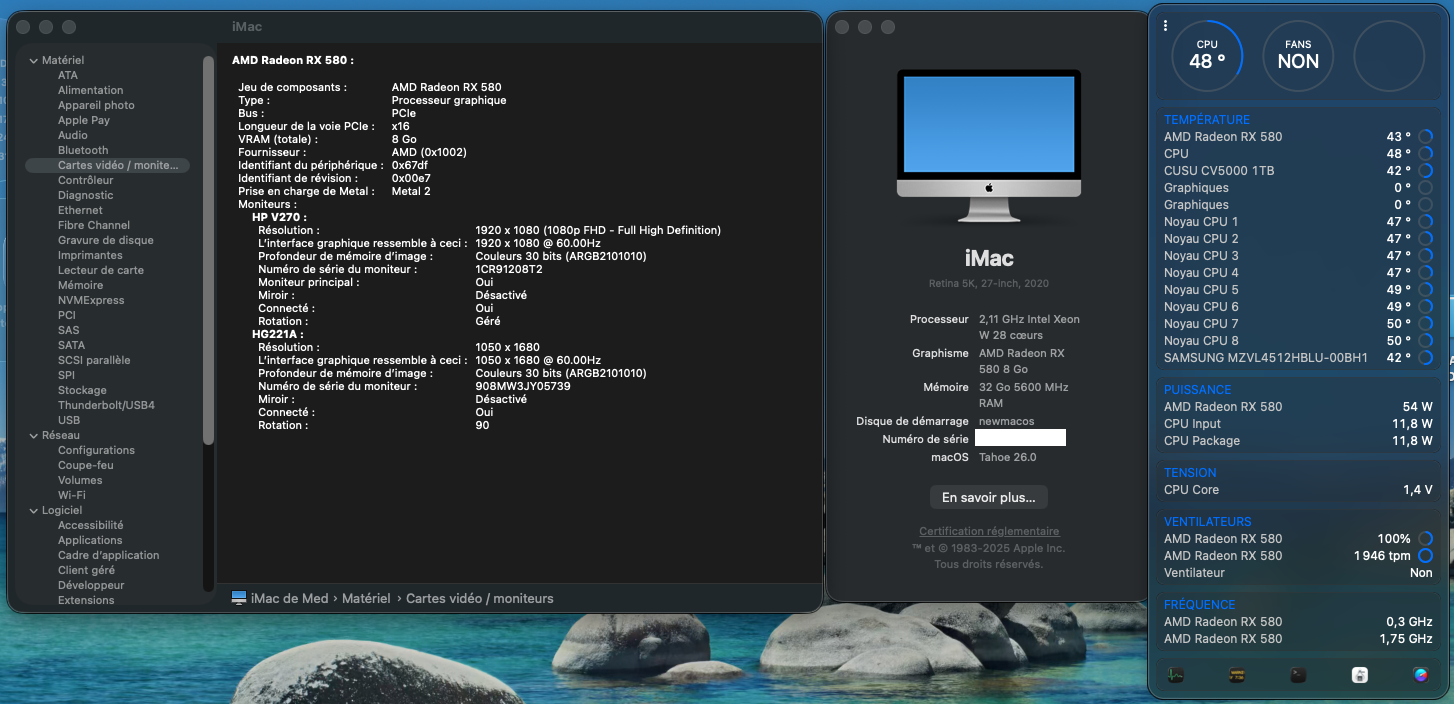

The New Build: MSI B760 GAMING PLUS WIFI i7-14700 Rx580 2048sp 8gb Modded rx580

Hardware



• MB: MSI B760 GAMING PLUS WIFI

• CPU: Intel® Core™ i7-14700

• Chipset: Intel B760

• Memory: 32GB DDR5 RAM 5600MHz

• Video: AMD Radeon RX 580 2048SP (Modded to standard RX 580 firmware)

• Monitor: Dual Monitor Setup

• SSD / HDD: 512GB NVMe M.2(Tahoe) , 3x1TB SATA SSD 1x1TB NVMe for Win 11

• WiFi / Bluetooth: Onboard Intel Wi-Fi 6E AX211

• LAN: Realtek® RTL8125BG 2.5G LAN

• Audio: Realtek ALC897 Codec

• Mac model: iMac20,1

• macOS version tested: [Sequoia 15.0, Tahoe Beta 6]


  What Works?

• Full Graphics Acceleration on RX 580

• Audio via HDMI and Bluetooth devices (Only)

• Ethernet (2.5G)

• Wi-Fi (via itlwm.kext and HeliPort) not stable

• Bluetooth

• USB Ports [Not Mapped Yet]

• CPU Power Management


  What Doesn't Work or is Untested?

• Onboard Audio (ALC897): Currently not working via the audio jacks.

• Sleep Mode: Untested.

• USB-C Ports: Untested.



• Bootloader: OpenCore [1.0.5]

• SSDTs: SSDT-EC, SSDT-PLUG-ALT, SSDT-RTCAWAC, SSDT-SBUS, SSDT-USB-Reset, SSDT-USBX

• Kexts:

  • Lilu.kext

  • VirtualSMC.kext (with SMCProcessor and SMCSuperIO plugins)

  • WhateverGreen.kext

  • AppleALC.kext

  • LucyRTL8125Ethernet.kext (for 2.5G LAN)

  • itlwm.kext (for Wi-Fi, used with Heliport)

  • IntelBluetoothFirmware.kext & BlueToolFixup.kext (for Bluetooth)

  • NVMeFix.kext

  • RestrictEvents.kext

  • CpuTopologyRebuild.kext

  • XHCI-unsupported.kext



    Questions & Areas for Improvement



    While the build is running very well, I'm hoping to solve the remaining issues and would appreciate any advice from the community on the following points:

  • Onboard Audio (ALC897): I'm using AppleALC.kext with alcid=11 12 66 98 99, but the onboard audio jacks are not working. Has anyone with this codec found a working layout-id or required device properties for macOS Tahoe?

  • Wi-Fi Stability (Intel AX211): The Wi-Fi works with itlwm.kext and Heliport but no ip adresses from dhcp, Are there specific settings?

  •

  • Verifying CPU Performance (i7-14700): How can I best verify that macOS is managing my CPU correctly All 20 Core? i know that the name of cpu are not correct ( i can change it in the config.plist nvram ) I want to ensure it's idling at low frequencies and boosting properly under load.

    Thank you for reading, and thanks in advance for any help you can provide!

Edited August 19, 2025 by sims
The new build title missing
