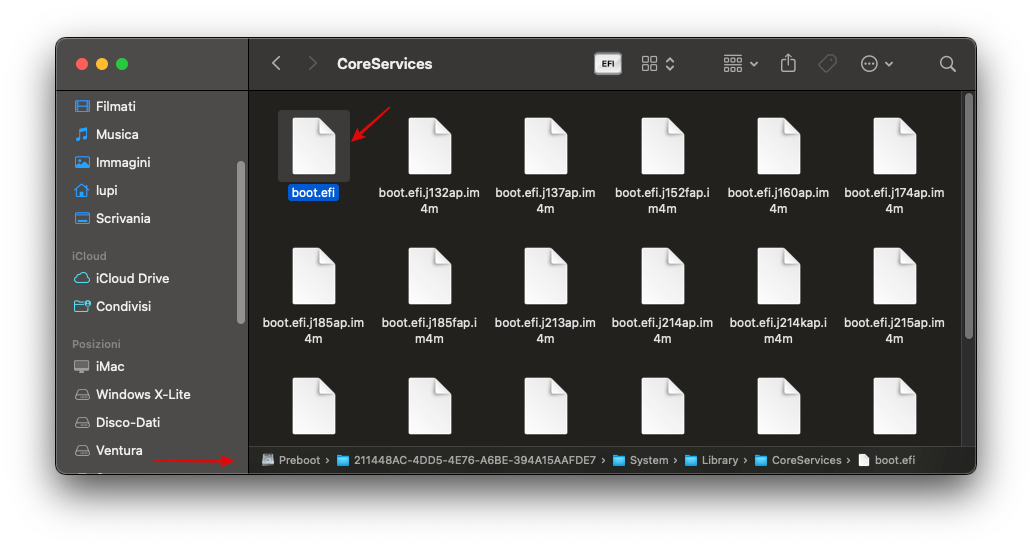

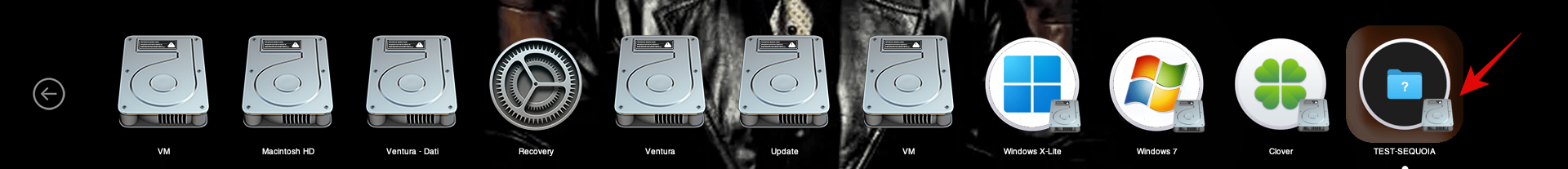

Anto65 Posted May 26, 2025 Share Posted May 26, 2025 I finally managed it yesterday, the boot file is here Spoiler The created entry was visible and booted Only they were also visible as you can see an infinity of volumes : Mcacintosh HD , Update , VM , .... that I tried to hide them without success In the end I permanently deleted the entry ... I think it's not worth it If the problem is the names of the volumes just follow here https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/353/#findComment-2825841 and solve it in a few minutes Link to comment https://www.insanelymac.com/forum/topic/361107-boot-macos-sequoia-and-macos-sequoia-miscentries/page/2/#findComment-2832603 Share on other sites More sharing options...
kaoskinkae Posted May 28, 2025 Author Share Posted May 28, 2025 On 5/26/2025 at 11:02 AM, Anto65 said: I finally managed it yesterday, the boot file is here Reveal hidden contents The created entry was visible and booted Only they were also visible as you can see an infinity of volumes : Mcacintosh HD , Update , VM , .... that I tried to hide them without success In the end I permanently deleted the entry ... I think it's not worth it If the problem is the names of the volumes just follow here https://www.insanelymac.com/forum/topic/350754-opencore-general-discussion/page/353/#findComment-2825841 and solve it in a few minutes Thanks for your time and effort. I'm going to study it for myself and my Hackintosh Spain groups. Link to comment https://www.insanelymac.com/forum/topic/361107-boot-macos-sequoia-and-macos-sequoia-miscentries/page/2/#findComment-2832631 Share on other sites More sharing options...
webipsum Posted June 21, 2025 Share Posted June 21, 2025 (edited) @Anto65 @kaoskinkae and friends. I successfully added Windows entries in the MISC > ENTRIES option. I tried to manually add macOS entries, but I was unsuccessful. From what I understand, it is possible to include Windows and Linux in MISC > ENTRIES. But macOS no. Here in this topic, attempts were made without success. Is that right? EDIT 1: Pls. What is the correct syntax after?: Example: PciRoot(0x0)/Pci(0x17,0x0)/Sata(0x5,0xFFFF,0x0)/HD(1,GPT,nnnnnnnn-nnnn-nnnn-nnnn-nnnnnnnnnnnn,nxnn,nxnnnnn) with /System/Volumes/Preboot/UUID/System/Library/CoreServices/boot.efi EDIT 2 (Curiosity): I used OpenShell.efi to get the Map Table. The following are displayed: FS0:,FS1:,FS2:,FS3:,FS4:,FS5:,FS6:,BLK0:,BLK2:,BLK3:,BLK4:,BLK5:,BLK6:,BLK7:,BLK8:, BLK10:,BLK11:,BLK13:,BLK14:,BLK15:,BLK16:,BLK17:,BLK18:,BLK20:,BLK24:,BLK25:. But not all of them are accessible to list the directory: BLK0:,BLK2:,BLK3:,BLK4:,BLK5:,BLK6:,BLK7:,BLK8:,BLK10:,BLK11:,BLK13:,BLK14:,BLK15:, BLK16:,BLK17:,BLK18:,BLK20:,BLK24:,BLK25:. And I was able to access others that do not appear in the Map Table and it was possible to list the directory.: BLK1:,BLK9:,BLK12:,BLK19:,BLK21:,BLK22:,BLK23: Is it some OpenCore configuration? Edited June 21, 2025 by webipsum Syntax, Map Table, kaoskinkae Link to comment https://www.insanelymac.com/forum/topic/361107-boot-macos-sequoia-and-macos-sequoia-miscentries/page/2/#findComment-2834340 Share on other sites More sharing options...

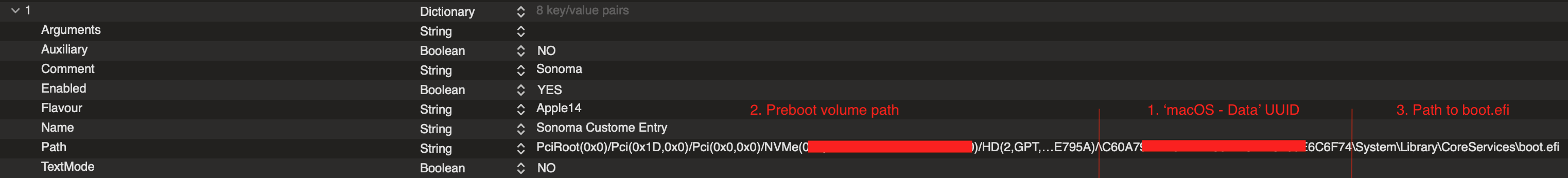

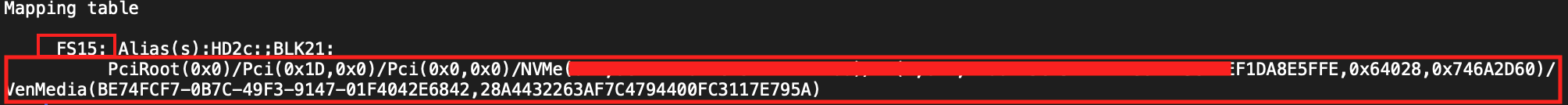

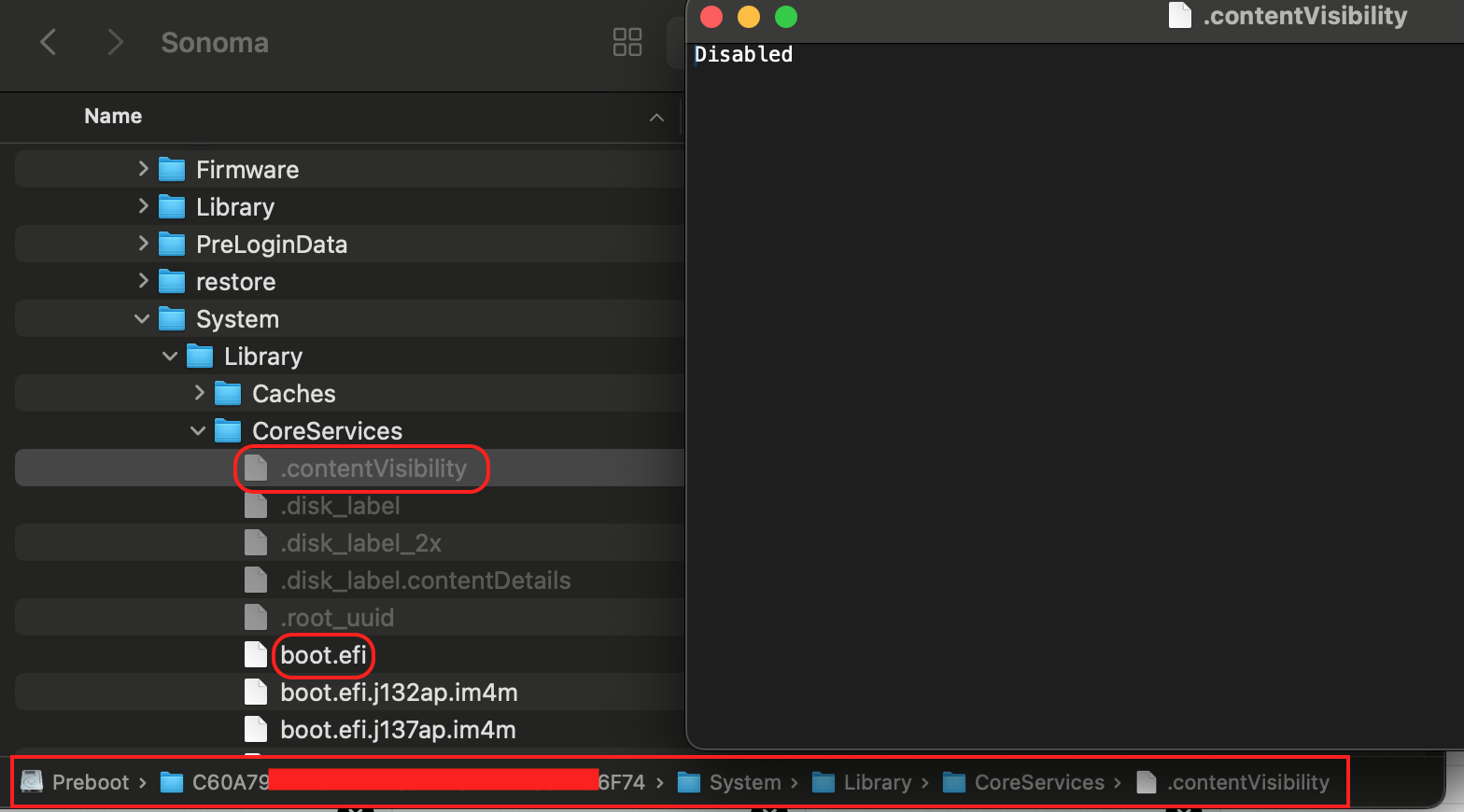

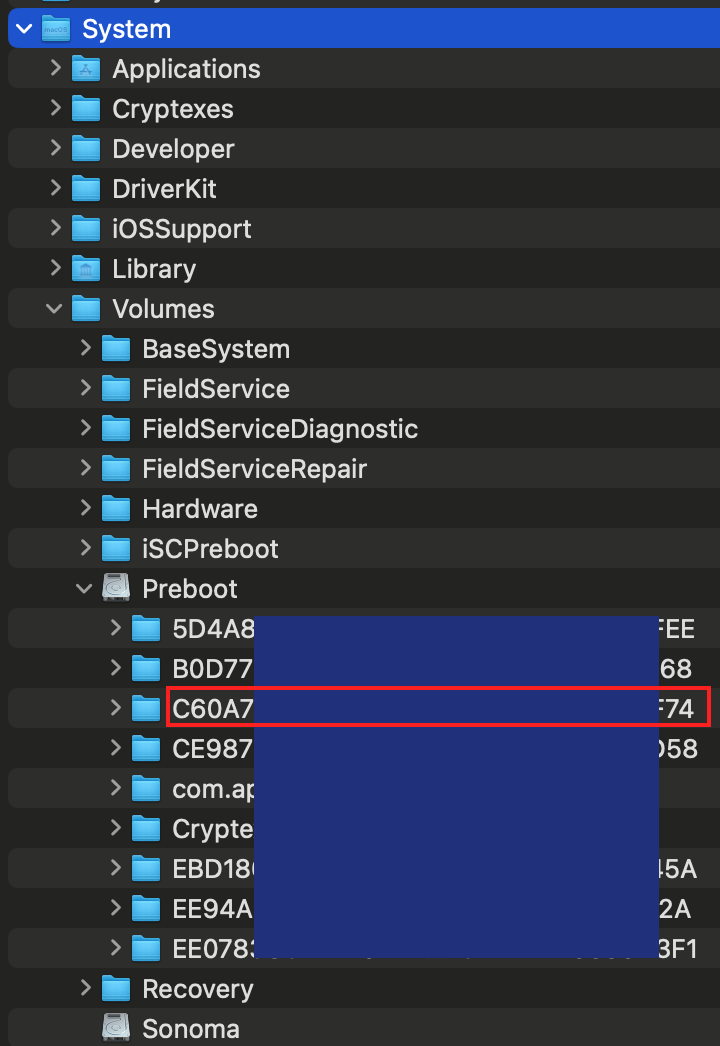

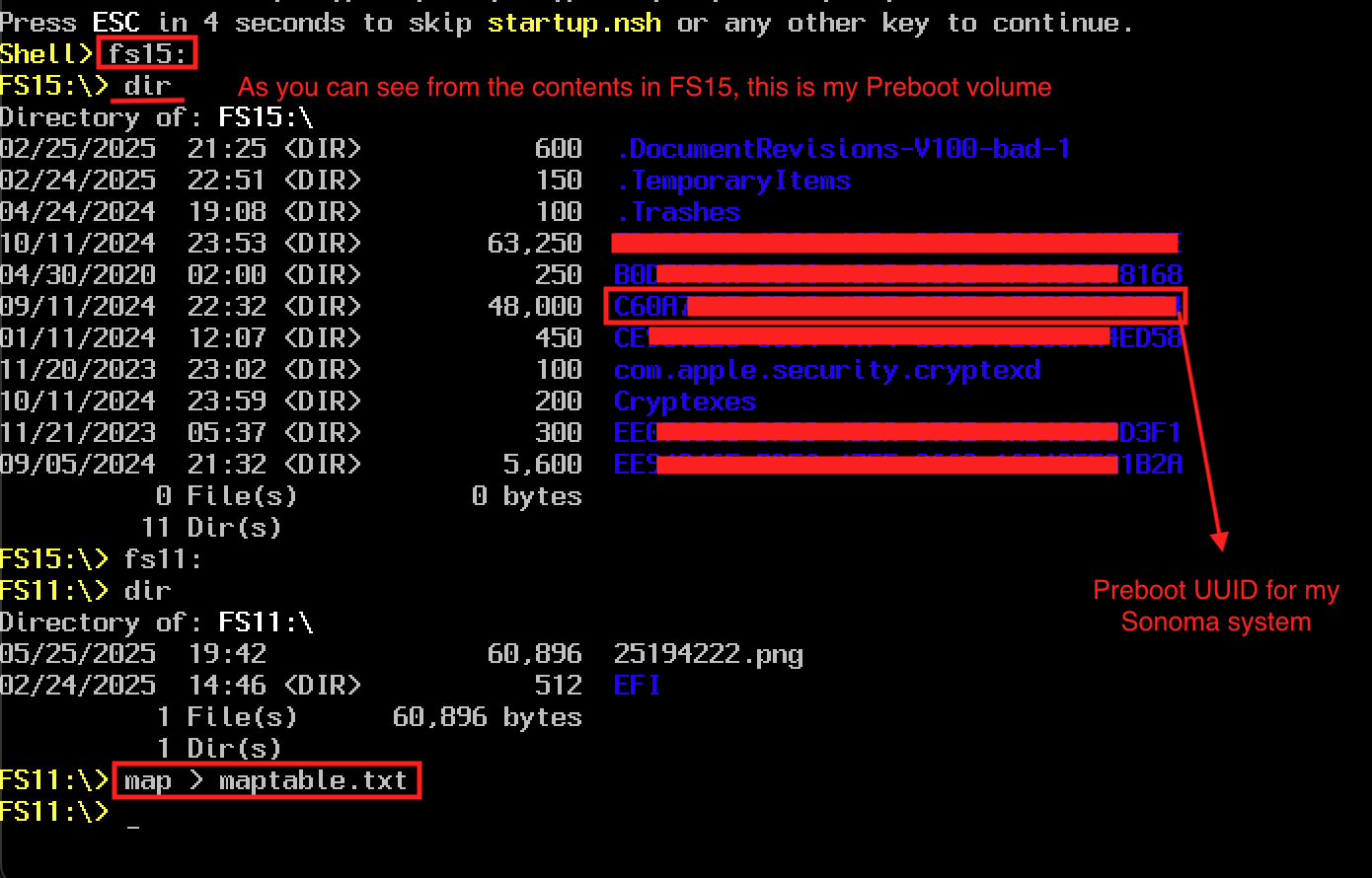

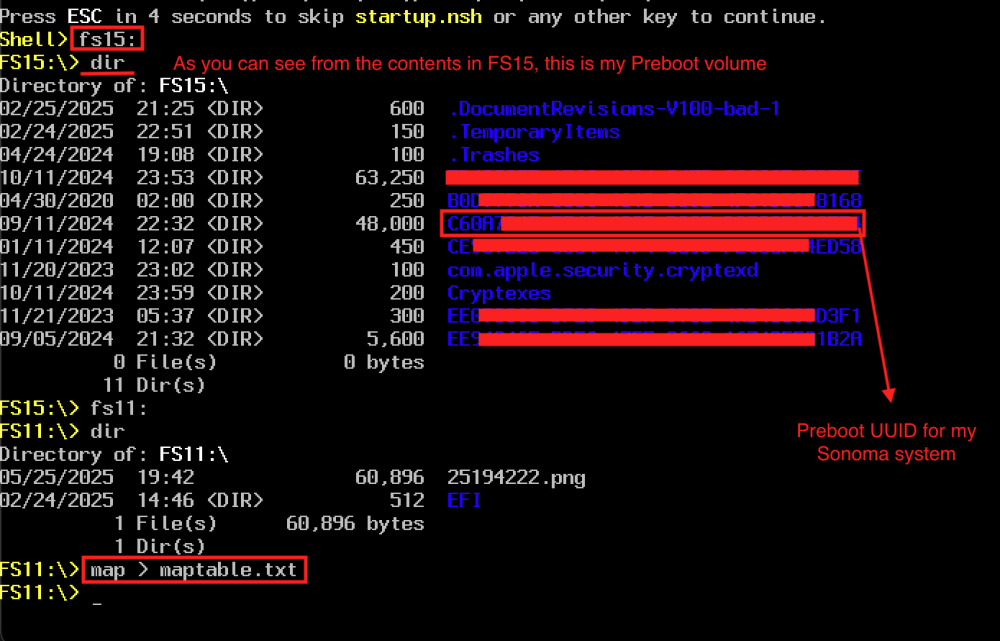

FirstCustomac Posted June 22, 2025 Share Posted June 22, 2025 (edited) @webipsum I am just going to post the whole procedure for what I do to make custom entries. 1. Find UUID for 'xxxx - Data'. (You may have multiple UUIDs in Preboot volume if you've installed multiple macOSes on the same APFS Container. In this case, to find UUID of your "xxxx - Data", follow the @Anto65 post here or use diskutil info for "xxxx - Data" partition of the system. 2. Find PCI path of Preboot volume using OpenShell and maptable txt. In my case, FS15 -> Preboot volume Generate maptable.txt Open the generated maptable.txt and find PCI path under FSxx. In my case it's FS15 3. Update config.plist 4. Hide duplicate entries. To avoid having duplicate entries at boot picker after creating custom entries, you may place .contentVisibility file in /System/Volumes/Preboot/xxx.UUID.xxxx.xxxx/System/Library/CoreServices where boot.efi for your system exist. In this way, not only you can rename entries in config plist but customizing the order of entries is also possible. However, you may not be able to set default boot entry with custom entries using Ctrl + Enter at boot picker. Hope this helps. Edit: Fixed typo in screenshot. Edited June 23, 2025 by FirstCustomac 2 Link to comment https://www.insanelymac.com/forum/topic/361107-boot-macos-sequoia-and-macos-sequoia-miscentries/page/2/#findComment-2834491 Share on other sites More sharing options...
webipsum Posted June 22, 2025 Share Posted June 22, 2025 (edited) SOLVED. @FirstCustomac I'm sorry. Your response and attention were very important to me and motivated me to continue researching the subject. Since I'm new to OpenShell.efi and all the information I got said to put OpenShell.efi in UEFI > Drivers (TRUE), I did that and it was a mistake. OMG IA! I should have just copied it to the EFI > OC > Tools folder and nothing else. As I had done (in UEFI > Drivers (TRUE)) the Shell entered before the OC, that's why I couldn't see the APFS partitions. After I removed it from Drivers and put it in EFI > OC > Tools, OpenShell.efi became available in Auxiliary and the Shell with the APFS scanned by the OC showed the devices with preboot and so on. Have a good week! EDIT: Another problem occurred... Reason: OpenShell.efi (1.2M) updated. I reverted to the previous version of OpenShell.eif (1.1M) and the problem was solved. . Edited June 30, 2025 by webipsum @Anto65 @kaoskinkae and friends. fyi 2 Link to comment https://www.insanelymac.com/forum/topic/361107-boot-macos-sequoia-and-macos-sequoia-miscentries/page/2/#findComment-2834496 Share on other sites More sharing options...
