sash Posted December 23, 2024 Share Posted December 23, 2024 (edited) Greetings! I have successfully installed latest Ventura on MInisforum MS-01 hardware. Everything seems to work, except the sound. For the life of me I cannot get AppleALC to work with ALC269 codec. Windows identifies it as ALC269, while LInux says it is ALC269VC. Driver fails to load. Switching to VooDooHDA method works and I have sound, but I'd rather stick with AppleALC method if possible. Attached are my ioreg and Lilu debug log. EFI is downloadable from the github. Link is in the signature. Please help.... Lilu_1.7.0_22.6.txt MS-01.ioreg Edited December 23, 2024 by sash greetings Quote Link to comment https://www.insanelymac.com/forum/topic/360405-minisforum-ms-01-no-sound-on-alc269-codec/ Share on other sites More sharing options...
LockDown Posted December 23, 2024 Share Posted December 23, 2024 Try with layout 111 Quote Link to comment https://www.insanelymac.com/forum/topic/360405-minisforum-ms-01-no-sound-on-alc269-codec/#findComment-2829110 Share on other sites More sharing options...

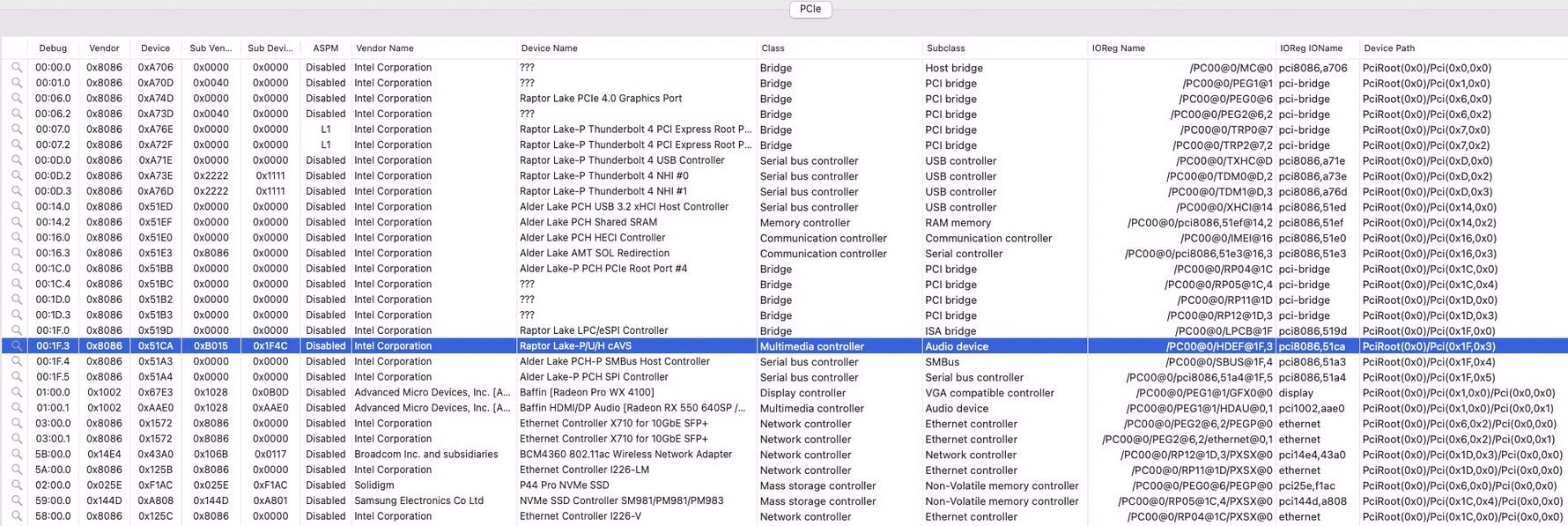

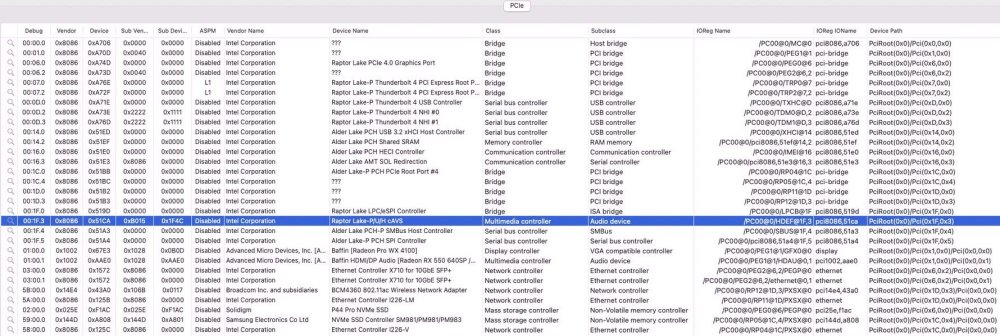

sash Posted December 23, 2024 Author Share Posted December 23, 2024 No go. I see the audio device is identified as Raptor Lake-P/U/H cAVS with device-id 51CA under device path PciRoot(0x0)/Pci(0x1F,0x3) Quote Link to comment https://www.insanelymac.com/forum/topic/360405-minisforum-ms-01-no-sound-on-alc269-codec/#findComment-2829111 Share on other sites More sharing options...
LockDown Posted December 23, 2024 Share Posted December 23, 2024 Post complete device path Quote Link to comment https://www.insanelymac.com/forum/topic/360405-minisforum-ms-01-no-sound-on-alc269-codec/#findComment-2829112 Share on other sites More sharing options...
sash Posted December 23, 2024 Author Share Posted December 23, 2024 IOReg path: IOService:/AppleACPIPlatformExpert/PC00@0/AppleACPIPCI/HDEF@1F,3 Device path: PciRoot(0x0)/Pci(0x1F,0x3) Quote Link to comment https://www.insanelymac.com/forum/topic/360405-minisforum-ms-01-no-sound-on-alc269-codec/#findComment-2829119 Share on other sites More sharing options...
sash Posted December 24, 2024 Author Share Posted December 24, 2024 (edited) Also attaching original dsdt and a couple of modified apci tables and APCI log. DSDT.amlSSDT-HPET_RTC_TIMR-fix.amlSSDT-IPIC.amlACPI.log Edited December 24, 2024 by sash Quote Link to comment https://www.insanelymac.com/forum/topic/360405-minisforum-ms-01-no-sound-on-alc269-codec/#findComment-2829124 Share on other sites More sharing options...
