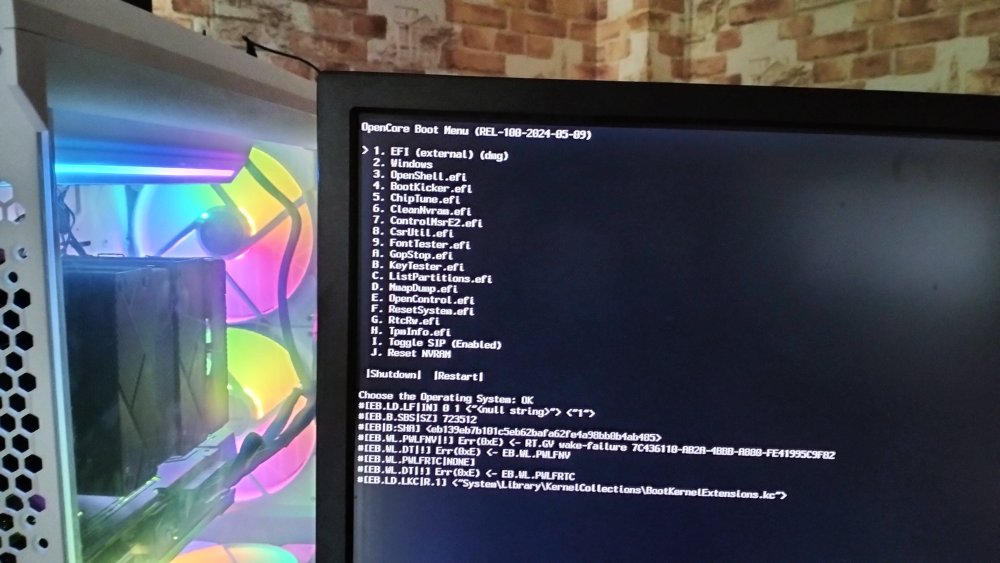

EB.WL.PWLFNV err(0xe) RT.GV wake-failure - upon starting install

[bhuether]

Hi, made USB stick on windows. Installing Sonoma 14.5 on Asus z790 Proart 14700k 6950 XT.



Right after choosing to install I get this error. Then install continues (then loop error regarding failed lookup name com.apple.dock.fullscreen, but will post on that separately).



Maybe this wake error is related to GPU?



Here is what I have done



1. Built ssdts in ssdttime.

2. Used fairly standard kexts for my sort of setup.

3. Added some additional ssdts based on my setup, decompiling to read .DSL and trying to confirm in device properties and reading dsdt dump that the ssdts seem normal.

4. Bios set as typically recommend.

5. Disabled non essential kexts and ssdts in config to see if anything changes.

6. Config done in propertree on windows using dortania guide, and looking at config of people using this mb or the z690 version.



Using Opencore 1.0.0 release.



Removed kexts folder in attached to keep file size down.



Anyone see something glaring?

EFI Asus z790 Proart 6950xt.zip

Edited May 30, 2024 by bhuether
Attached file

[bhuether]

I don't see that there are newer versions. That validator is not showing versions for my kexts and hence showing many as red but I downloaded them all under latest releases from the repositories. Fixed those other problems.here is config, nothing else changed. I disables OpenCanopy so that error about not setting External should go away.



thanks

config.plist
