i9 9980XE/6900XT/Asus X299 Mark 2 Ultimate Hackintosh

[HurricaneX]

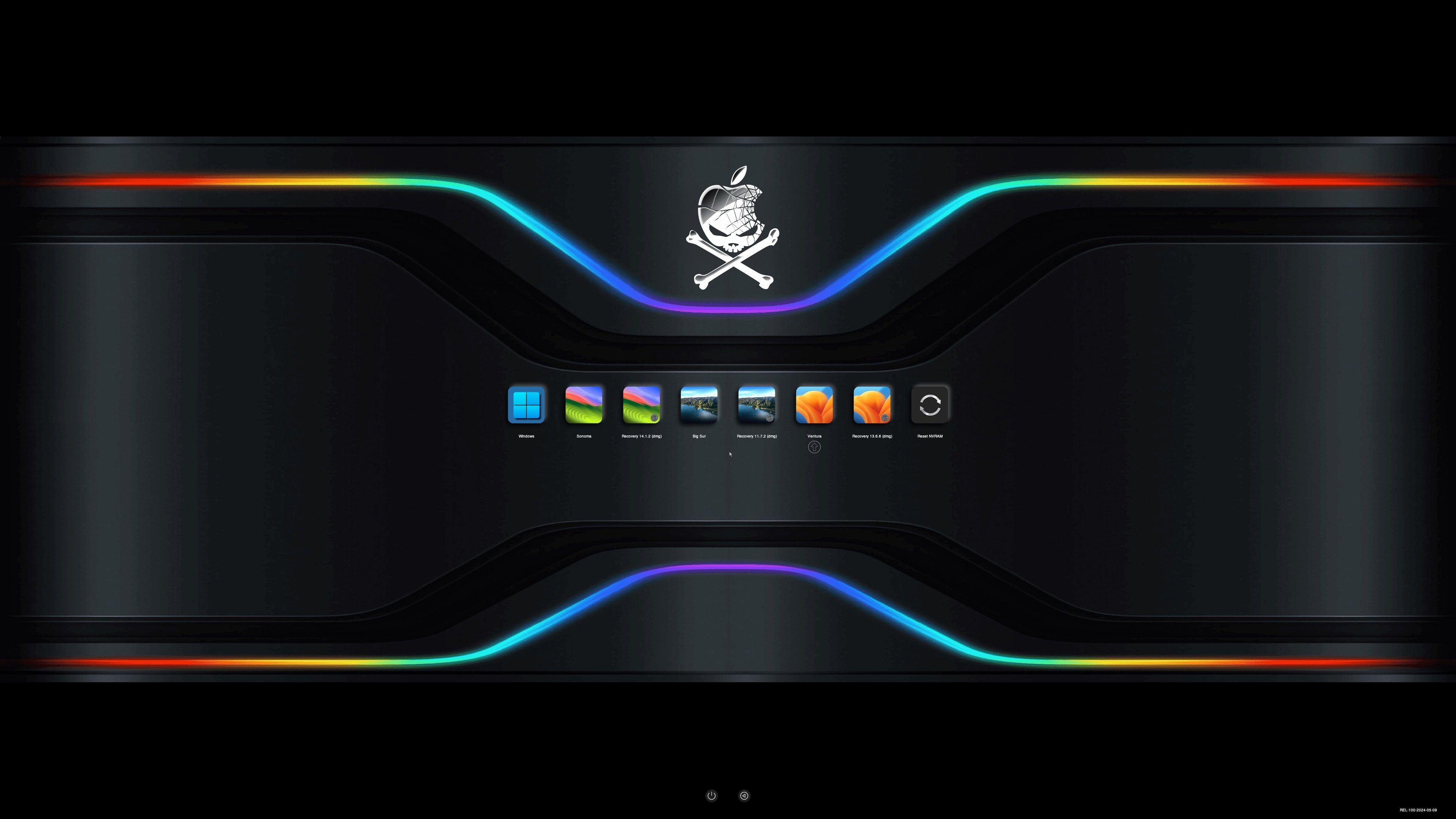

OpenCore:1.0.0

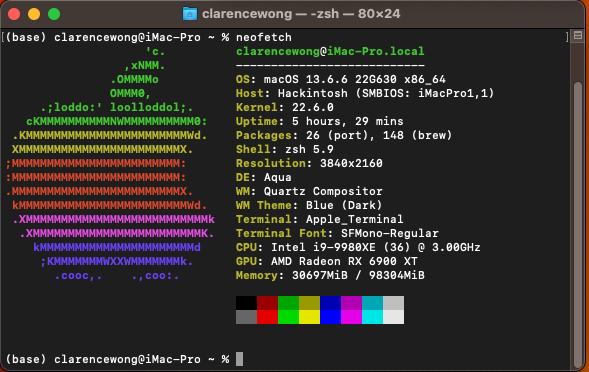

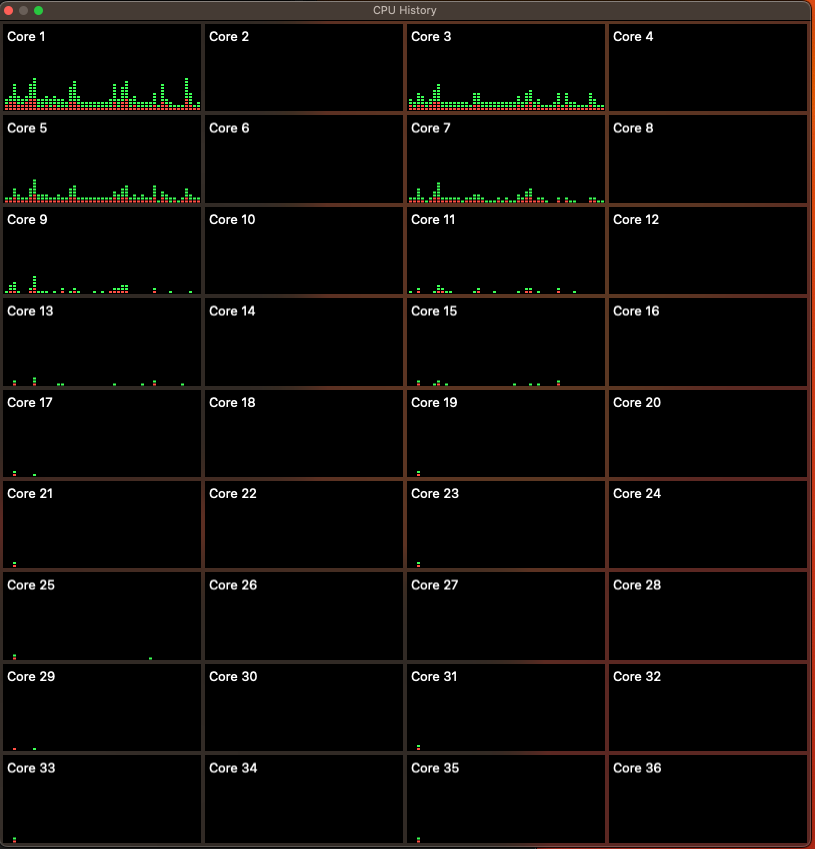

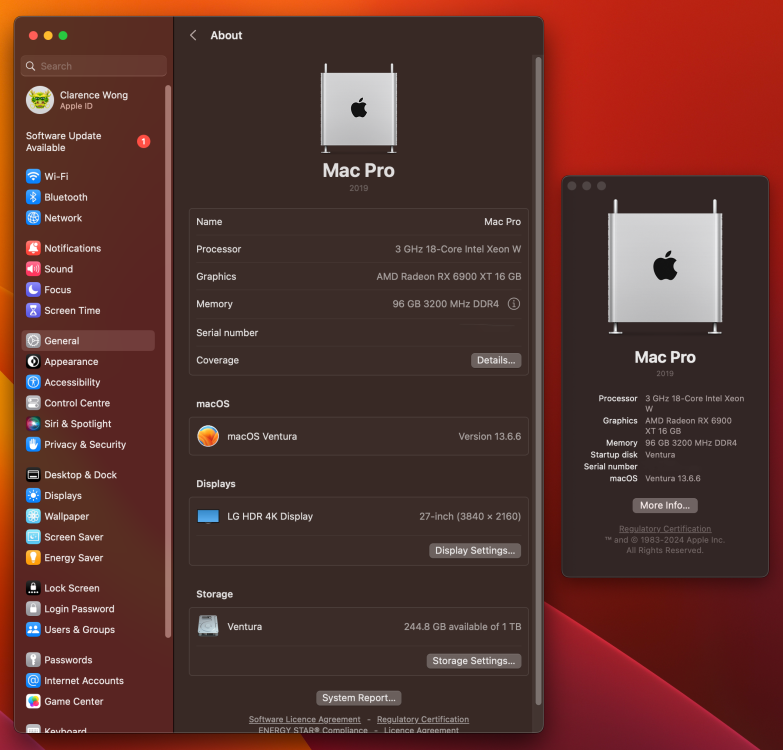

Processor: Intel Core i9-9980X @ 3.0 GHz (18 cores, 36 threads)
Motherboard: Asus TUF X299 MARK 2 (BIOS Ver. 2002)

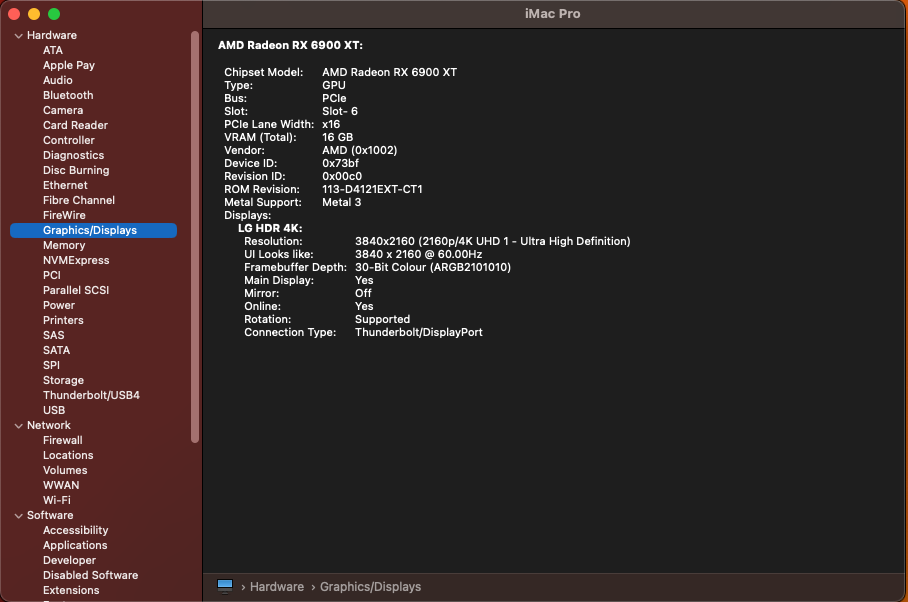

Graphics Card: AMD Radeon RX 6900 XT 16 GB Toxic(OOB)
RAM: 96 GB 3200 MHz DDR4
SSD:
⭐Samsung 980 PRO NVME 1TB(macOS 13 installed)
⭐Samsung SATA 3.0 870 QVO 1TB(macOS 14 installed)
⭐Samsung SATA 3.0 870 EVO 500GB(macOS 11 installed)
Audio: Realtek ALC S1220A 8-Channel Audio CODEC
Network: Intel I219V Gigabit Ethernet

WiFi+Bluetooth：BCM943602CS























Edited July 31, 2024 by HurricaneX

[miliuco]

@HurricaneX

Of course you can have more than 15 ports using USBInjectAll. The drawback is that there are issues very often, especially sleep and wake do not work properly. I don't know if it happens to you.

[HurricaneX]

44 minutes ago, miliuco said:

@HurricaneX

Of course you can have more than 15 ports using USBInjectAll. The drawback is that there are issues very often, especially sleep and wake do not work properly. I don't know if it happens to you.

 sleep and wake do not work properly---Not yet,sleep and wake r working perfectly so far,but few ports(USB 3.1) doesnt seem to be working.

[HurricaneX]

22 minutes ago, eSaF said:

@HurricaneX  As Apple officially only caters for the maximum of 15 ports in Macs, the general consensus is that we should aim for the same or less.

as @miliuco pointed out there is nothing wrong with having more than but you can/may run into issues with some USB or other related issues having that many.

If you're happy with the operation of your machine, by all means carry on, as the saying goes........'One man's meat is another man's'......... etc, etc.

Cheers.

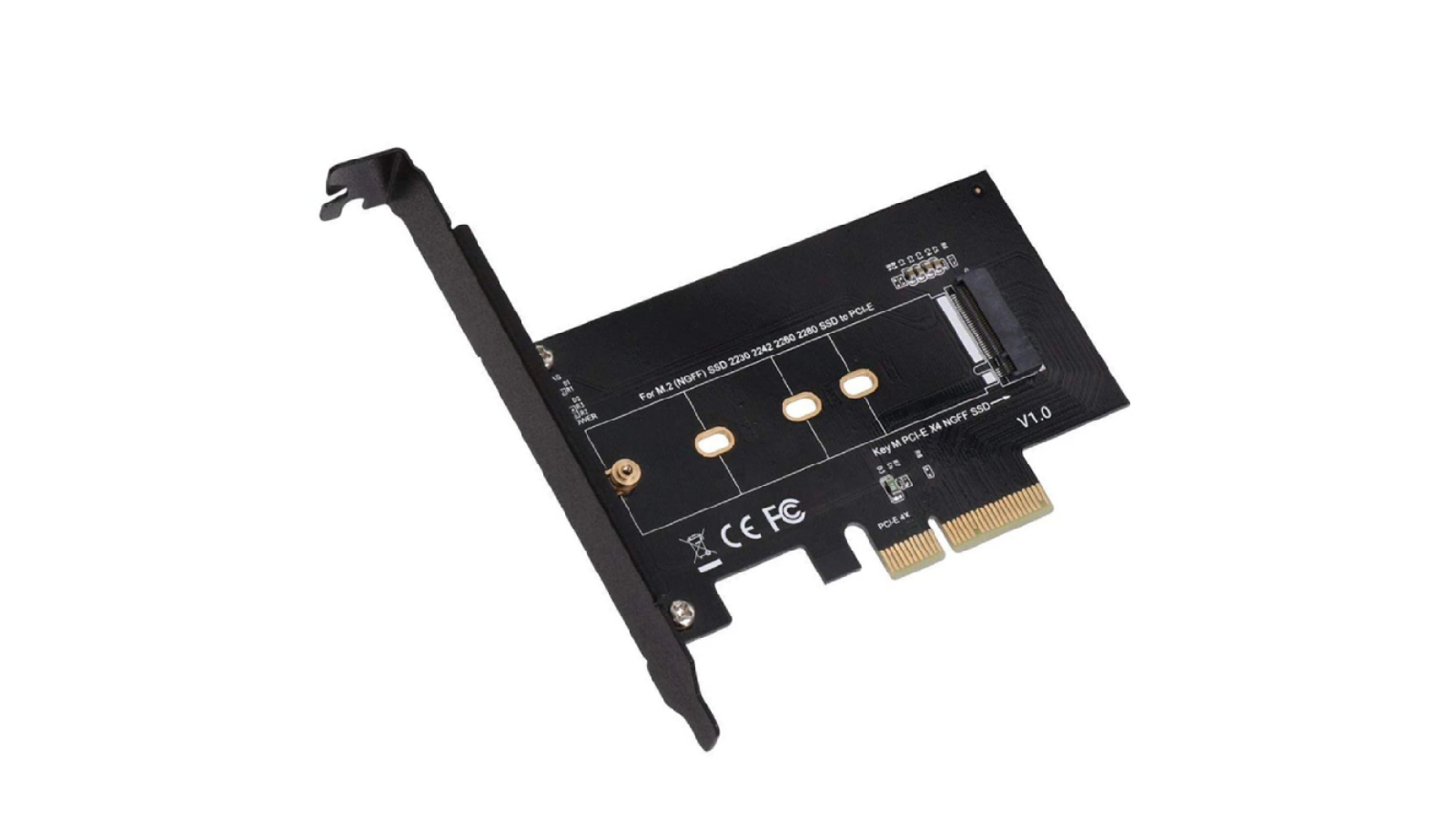

Understood!By the way,Does hackintosh support M. 2 NVMe SSDs installed on an expansion slot?

Edited May 10, 2024 by HurricaneX
