MSI H81I, i3-4130 ,Haswell , AMD HD 5570 I can't change ECH1-2 - ECH01-2

[sashacot1]

Hello

My computer



:MSI H81I (MS-7851)
 :DualCore Intel Core i3-4130 Haswell
 :AMD HD 5570
 Opencore 0.9.6



Help me please ,

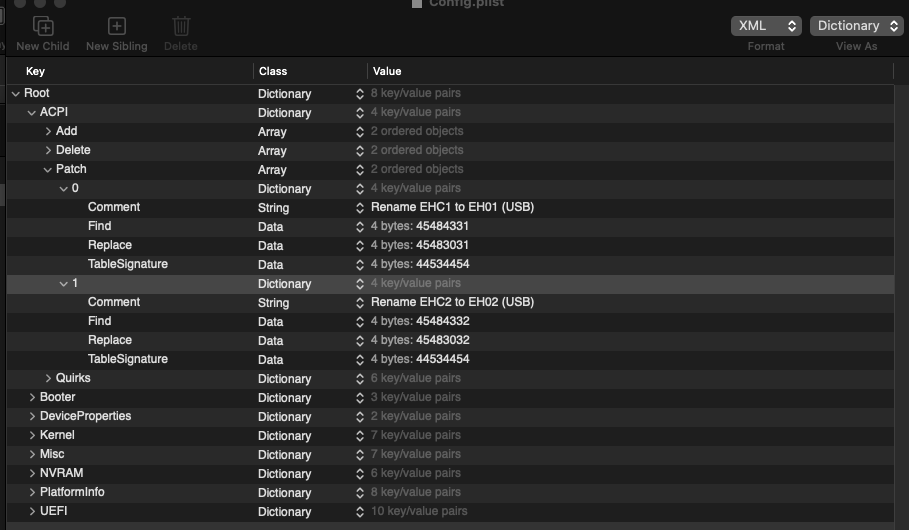

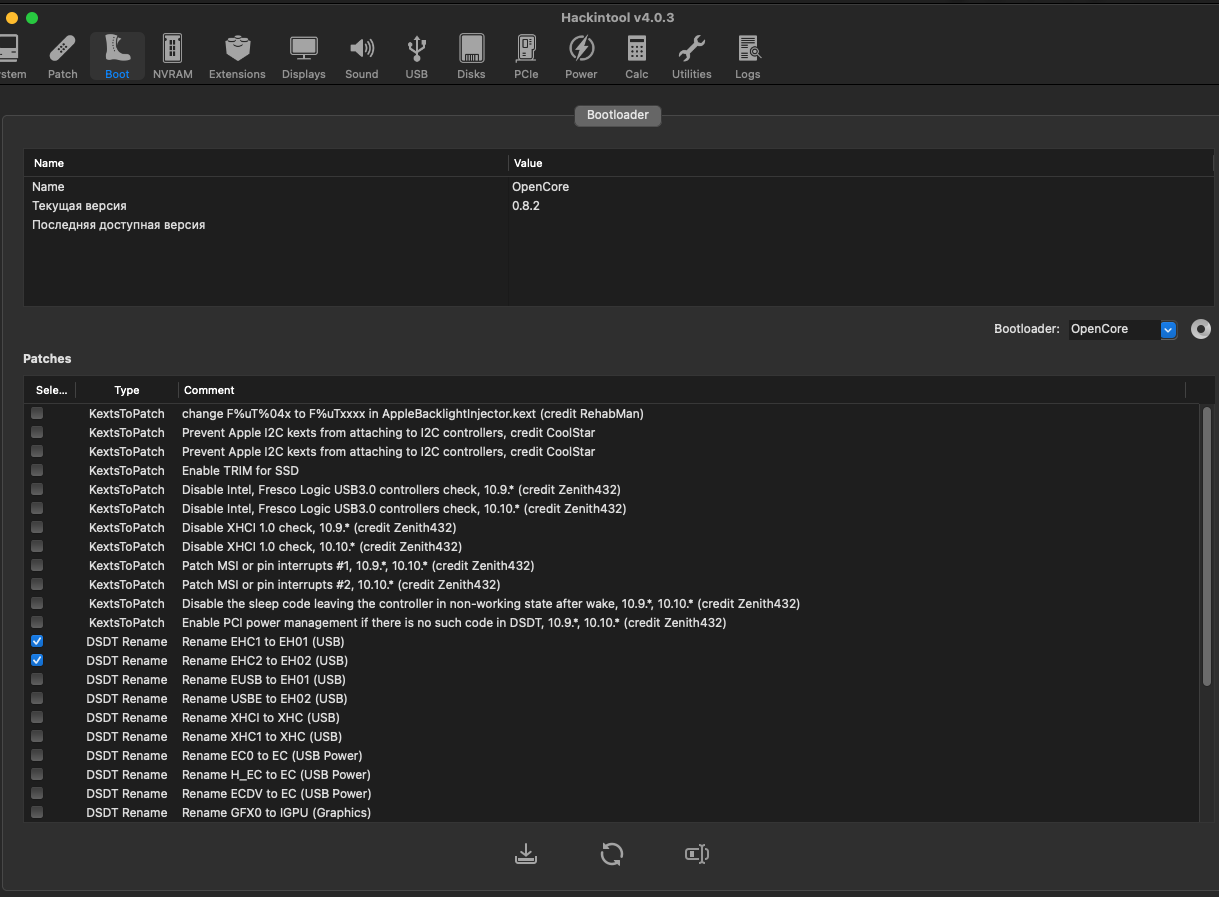

I have registered two patches via Hackintool in config.plist.

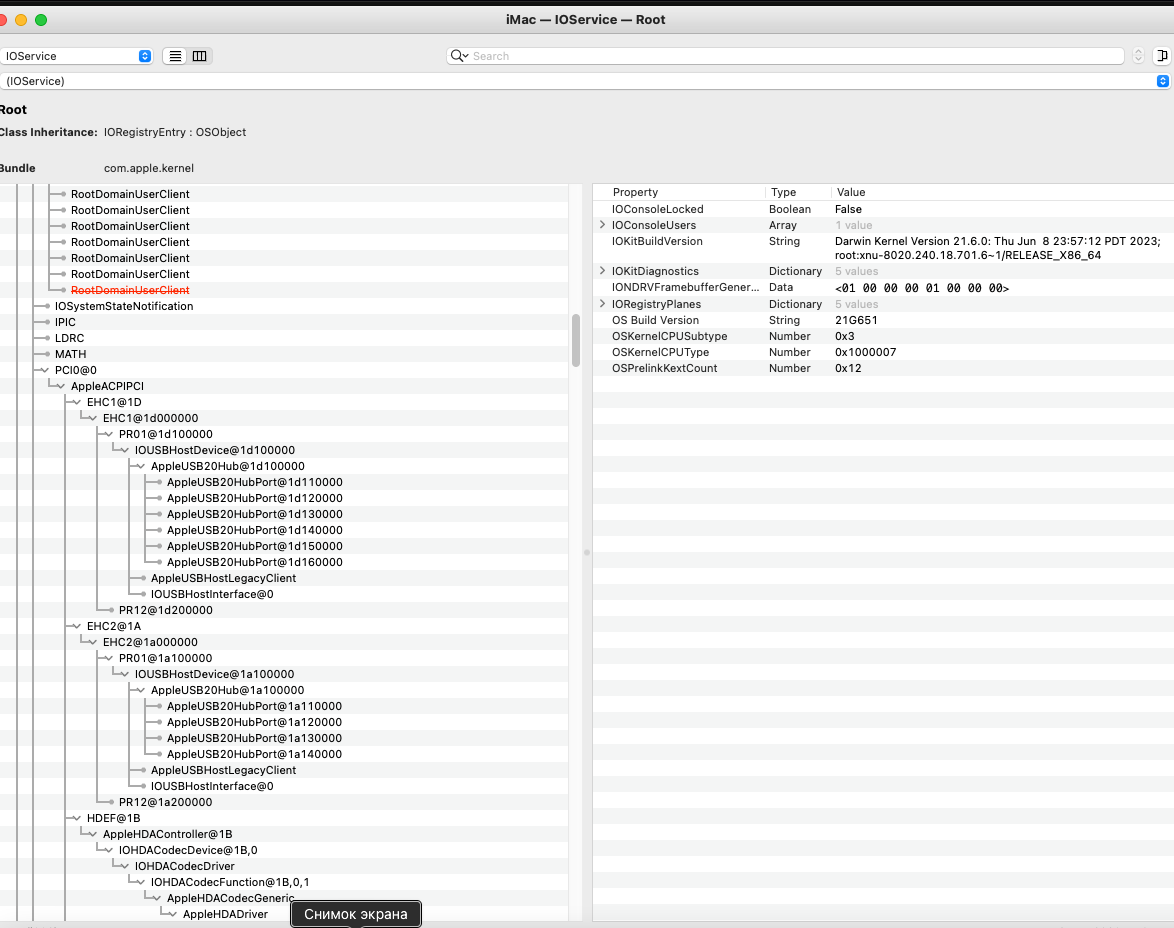

But when I go to IOreg ,

ECH1-2 does not change to ECH01-2

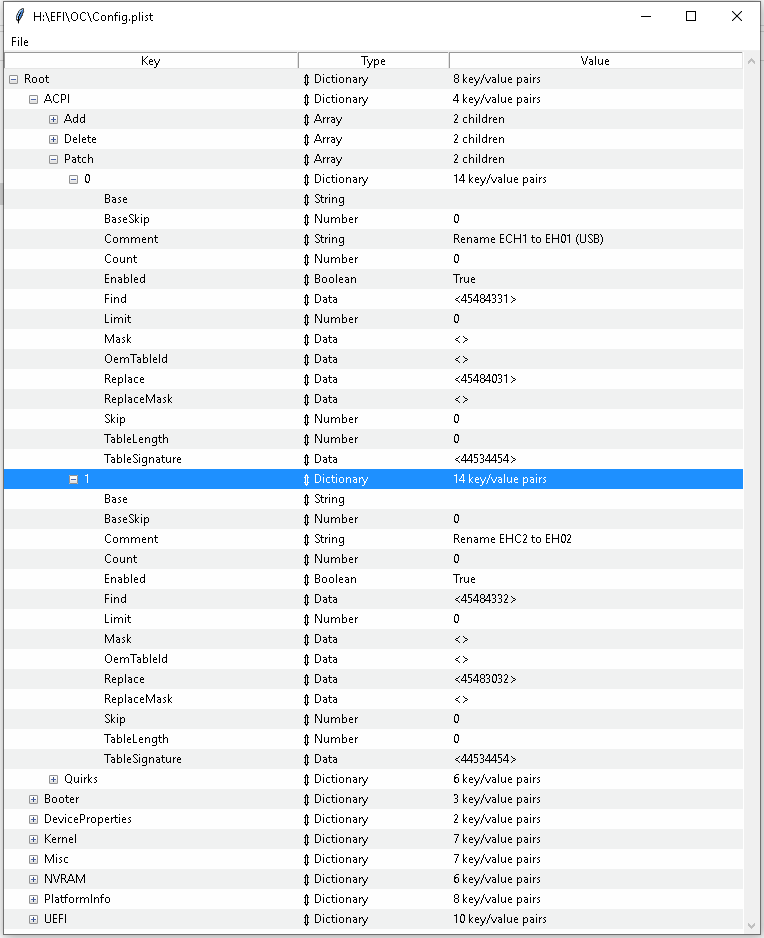

ProperTree-master  snapshot ok



Thx





[MaLd0n]

U don't need rename these devices. The best in this case is disable these devices. Ur hardware need only XHC device.

In old time we injected _dsm to disable these devices. Now u can use one patch created by ACDT

Quote

Scope (\)
    {
        OperationRegion (RCRG, SystemMemory, 0xFED1F418, One)
        Field (RCRG, DWordAcc, Lock, Preserve)
        {
                ,   13,
            EH2D,   1,
                ,   1,
            EH1D,   1
        }

        Method (_INI, 0, NotSerialized)  // _INI: Initialize
        {
            If (_OSI ("Darwin"))
            {
                EH1D = One
                EH2D = One
            }
        }
    }



[sashacot1]

23 minutes ago, MaLd0n said:

U don't need rename these devices. The best in this case is disable these devices. Ur hardware need only XHC device.

In old time we injected _dsm to disable these devices. Now u can use one patch created by ACDT



Thanks , I 'll try and come back )

[sashacot1]

1 hour ago, MaLd0n said:

U don't need rename these devices. The best in this case is disable these devices. Ur hardware need only XHC device.

In old time we injected _dsm to disable these devices. Now u can use one patch created by ACDT



config.rar

Edited November 24, 2023 by sashacot1
Ok. SSDT-Ecx-DISABLE turned off unnecessary USB (snapshot 1) there were fewer of them and ehc12 disappeared. While we close the question about USB, The same situation is with GFX0 to IGPU . HACK TOOL path (Figure 2) in Config .plist (Figure 3). but it d

[sashacot1]

Sory some trubl

FOTO IN UP POST

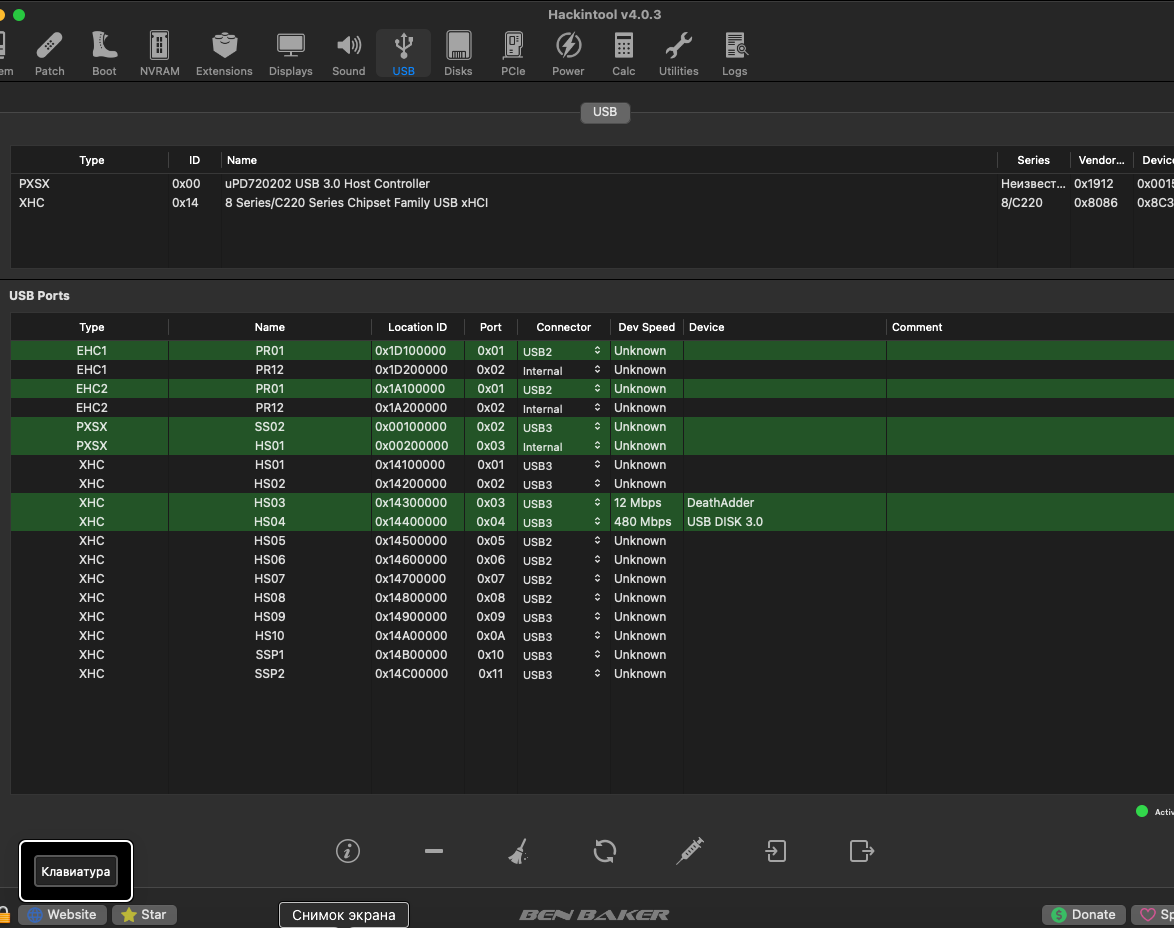

Ok. SSDT-Ecx-DISABLE turned off unnecessary USB (snapshot 1) there were fewer of them and ehc12 disappeared.

While we close the question about USB,

The same situation is with GFX0 to IGPU .

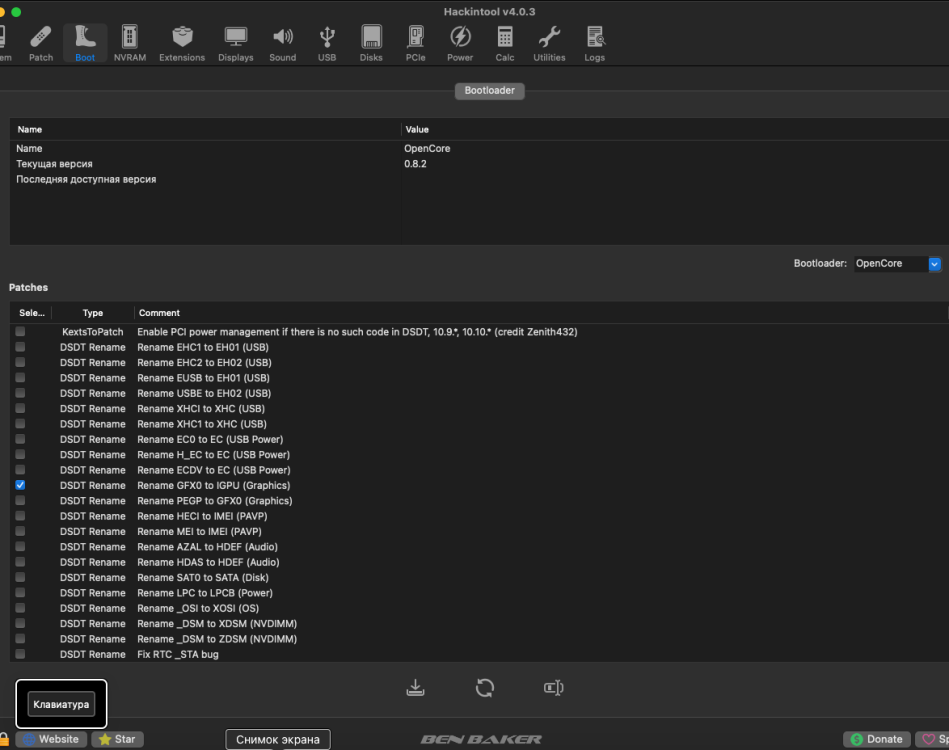

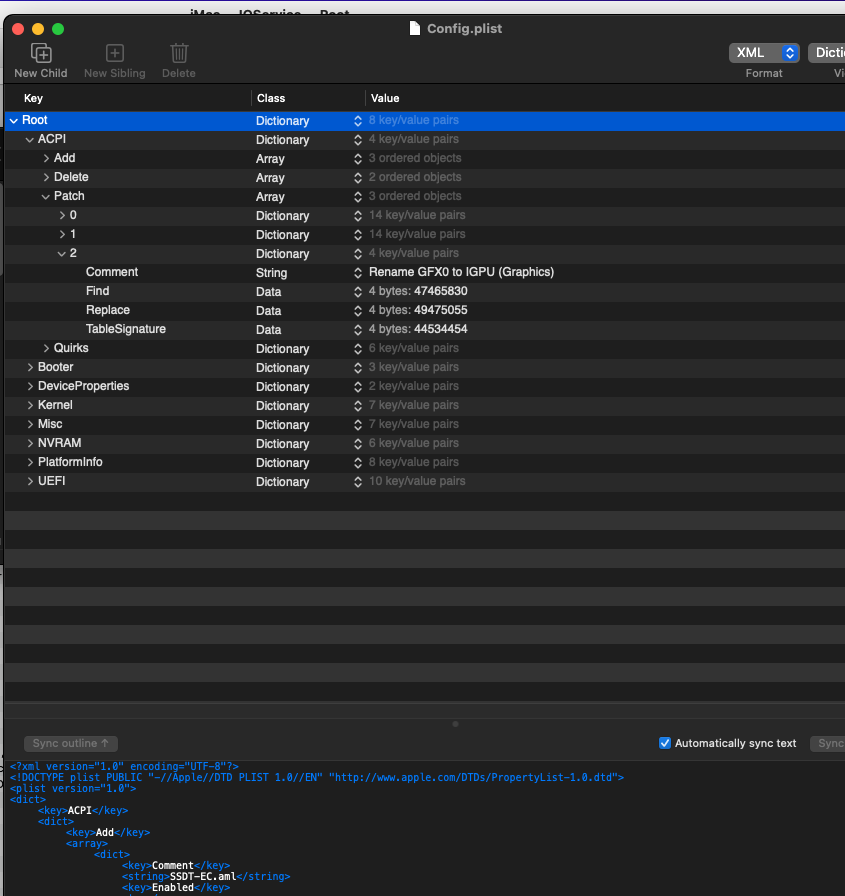

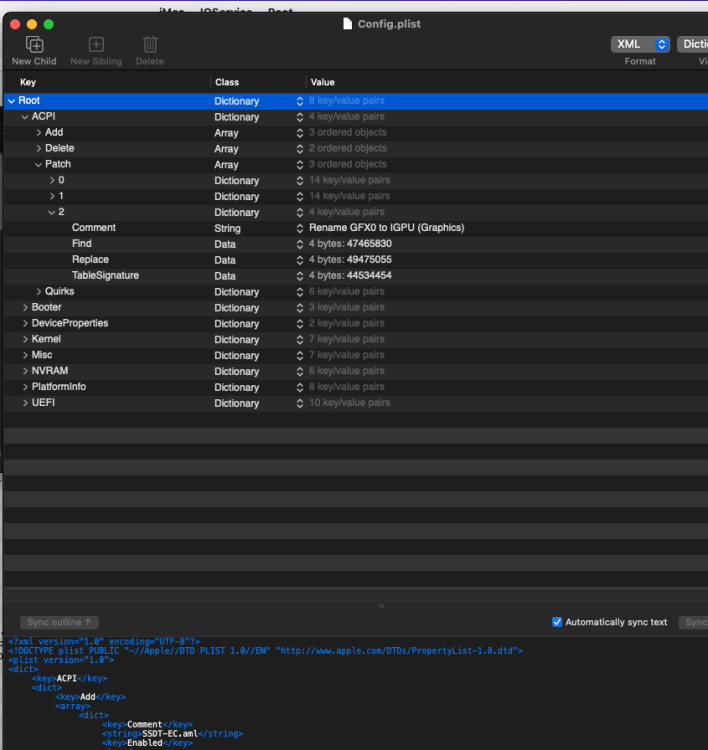

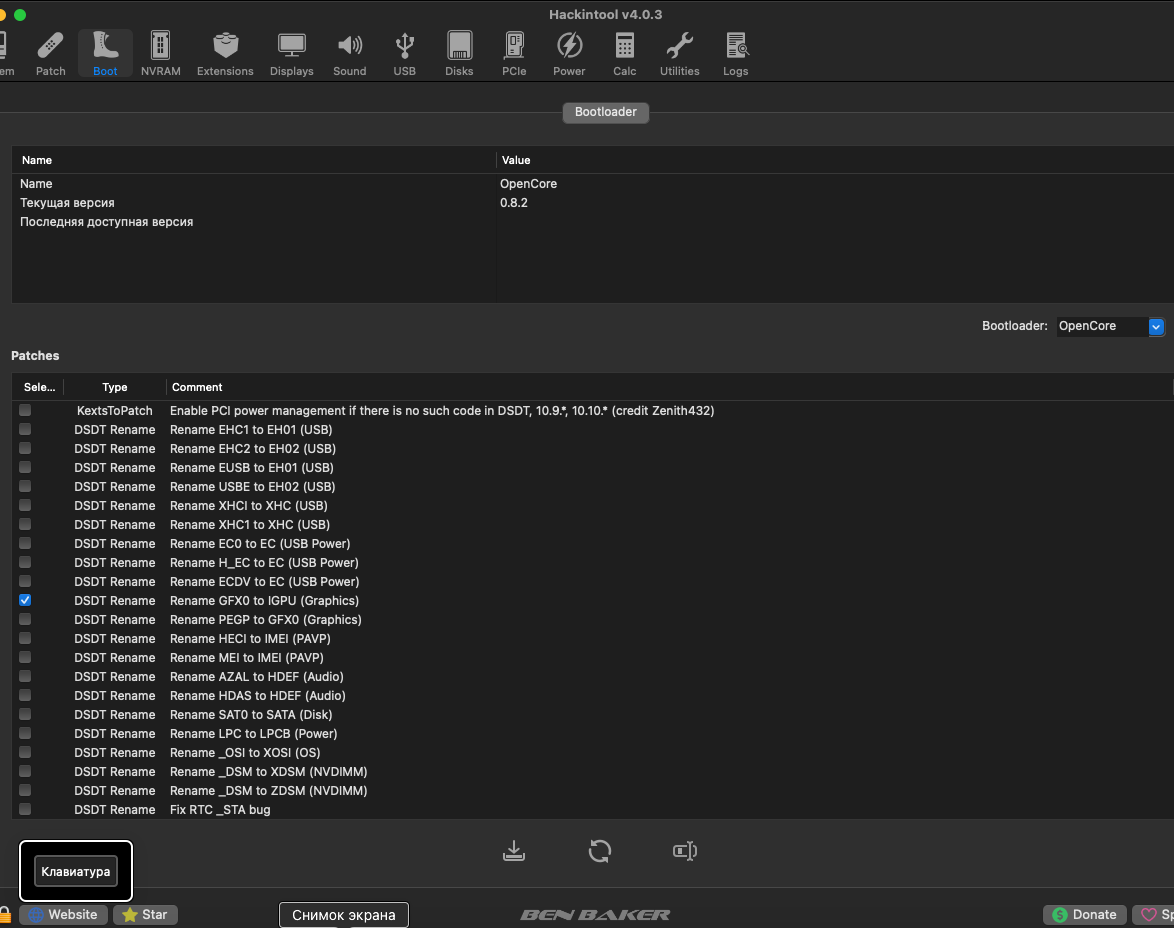

HACK TOOL path (Figure 2) in Config .plist
(Figure 3).

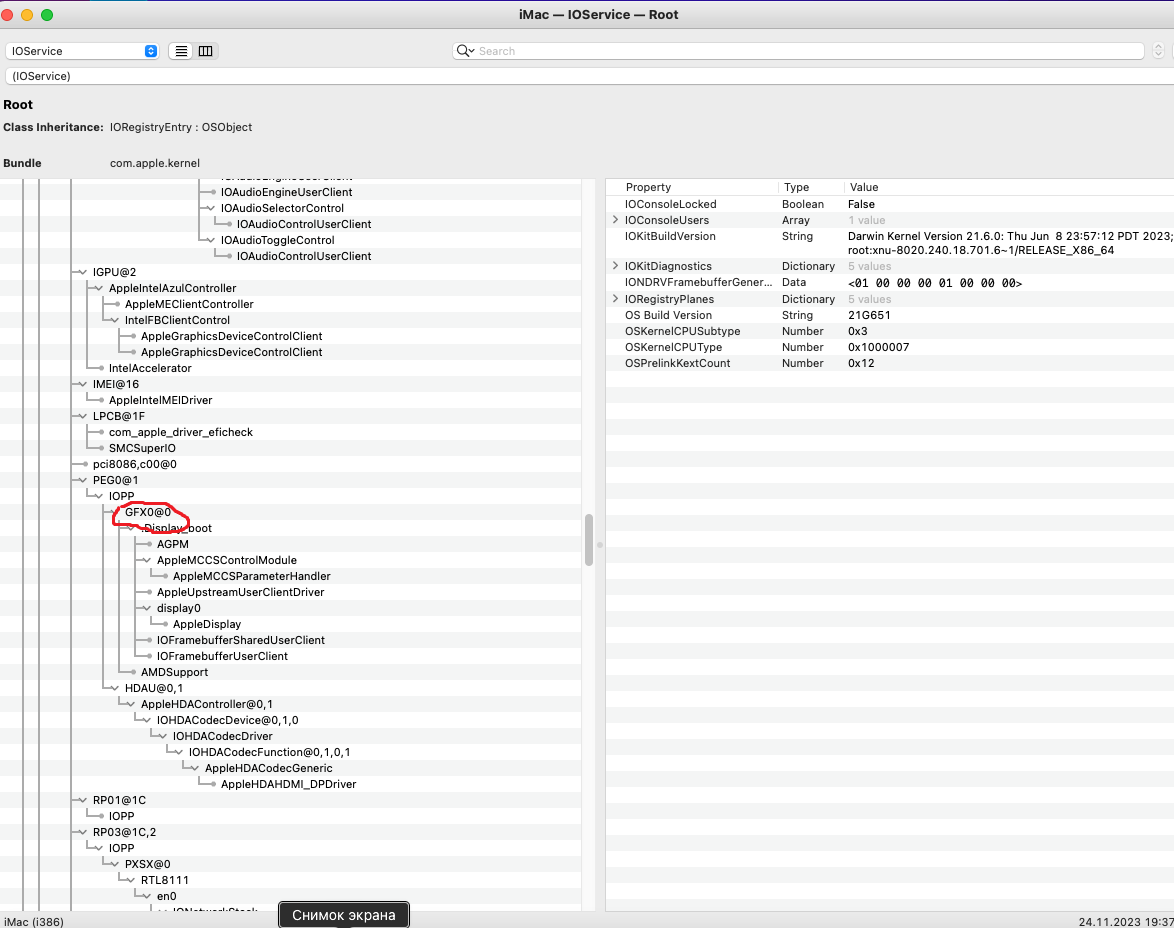

but it doesn't change in IOreg (Figure 4)

Thanks

[MaLd0n]

U don't need renames(GFX0, IMEI). Whatevergreen work on this on the fly.

[sashacot1]

8 hours ago, MaLd0n said:

U don't need renames(GFX0, IMEI). Whatevergreen work on this on the fly.

Wait!
What about IOreg ,?
shouldn't it be showing correctly?

Thanks

[sashacot1]

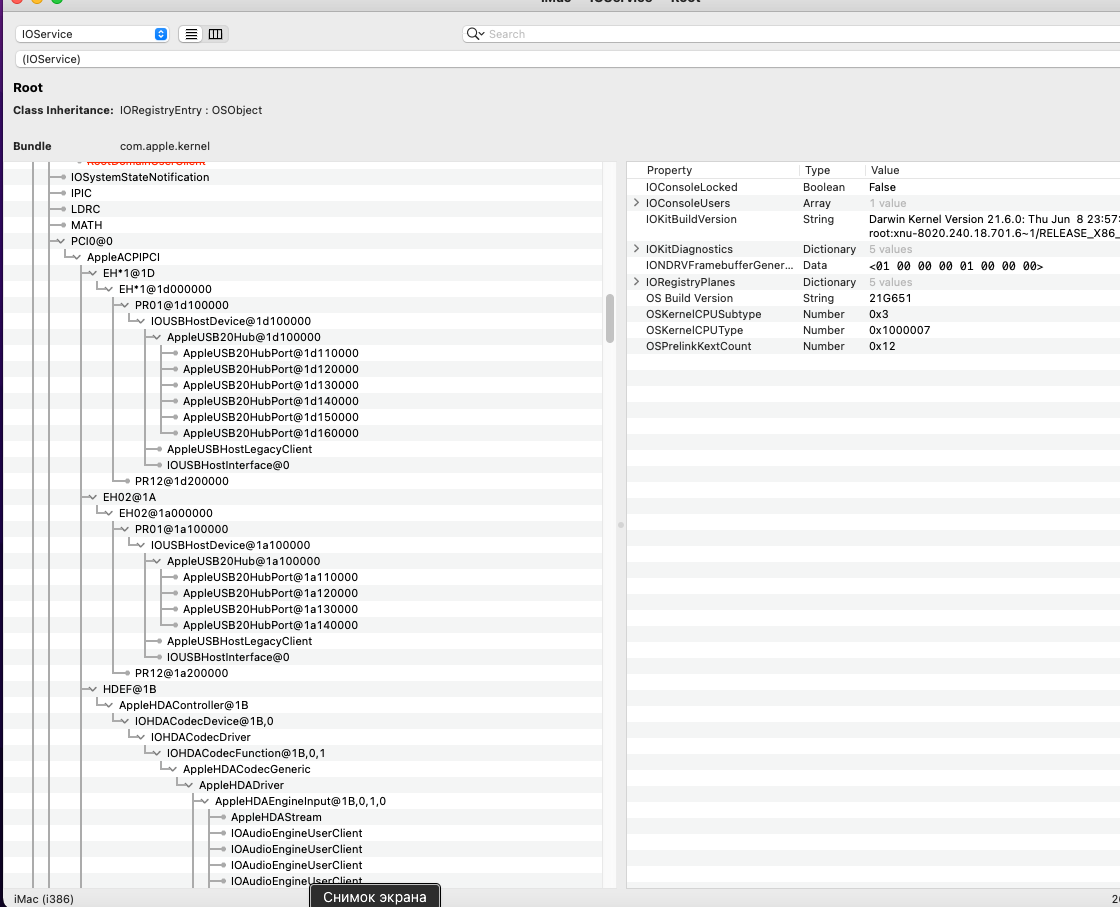

On another forum, they told me how to change it, but another problem appeared EC*1

Config.rar
