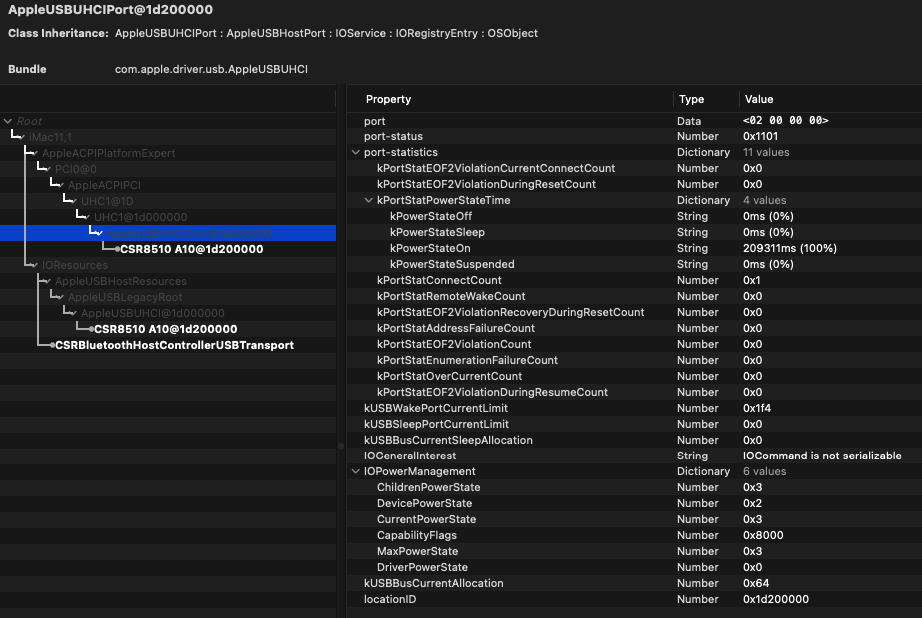

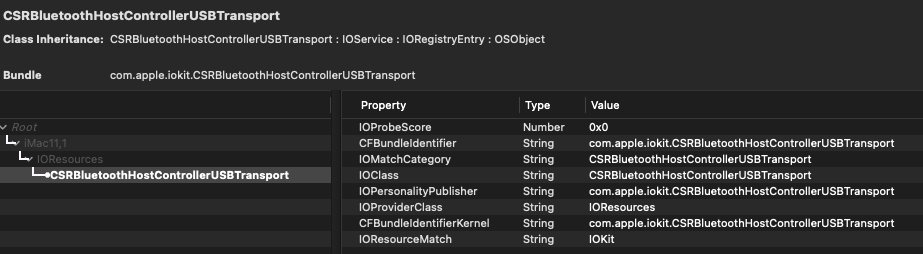

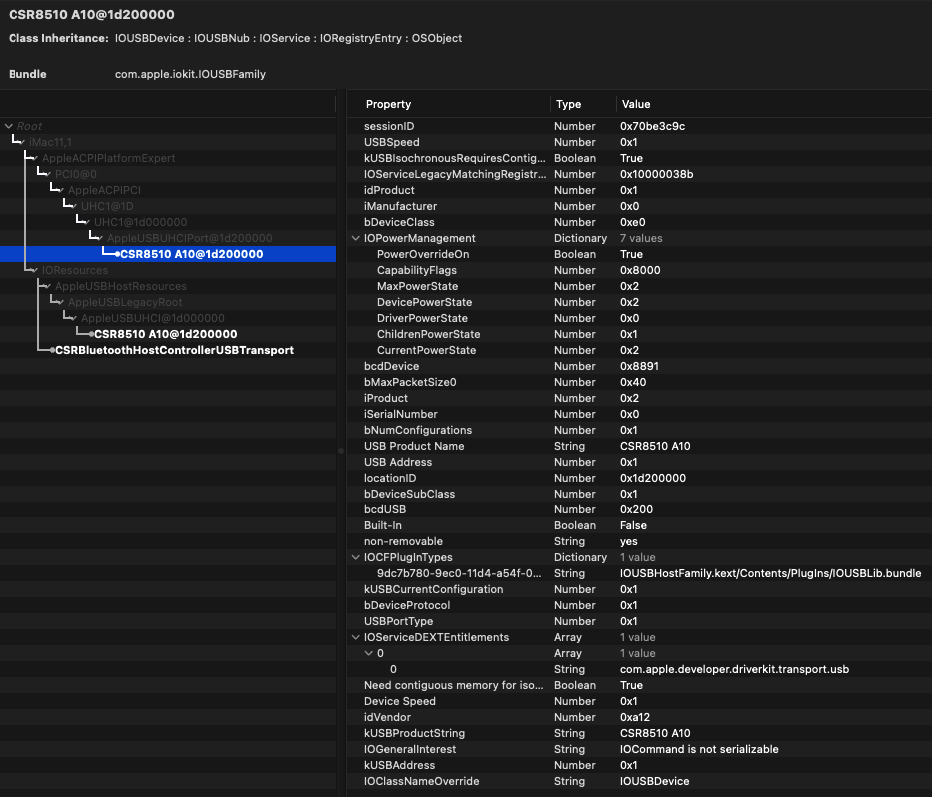

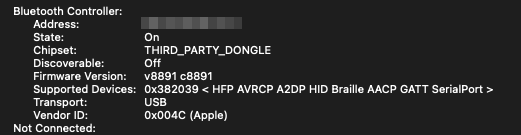

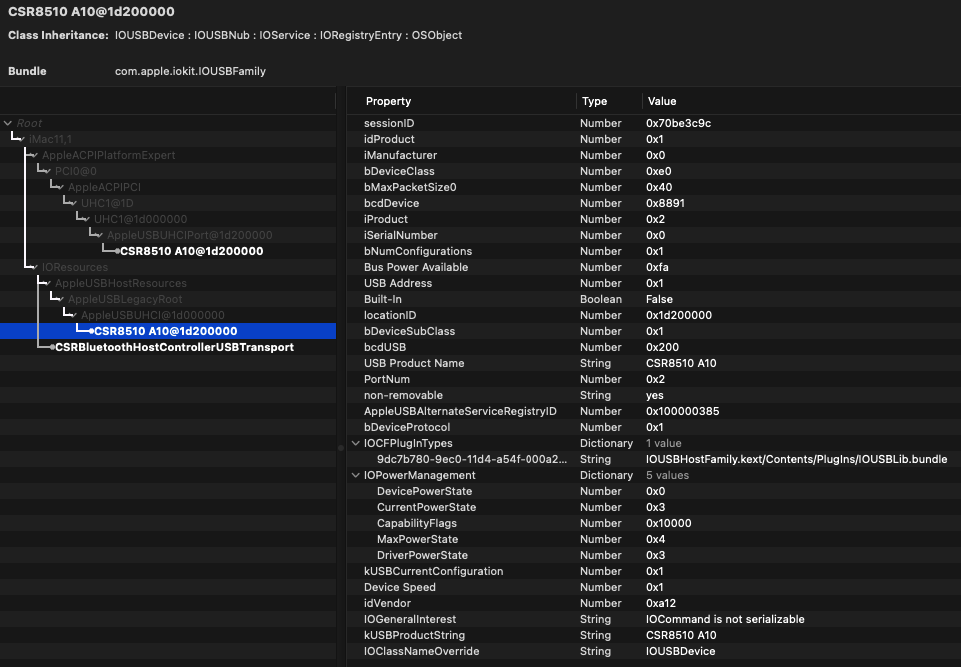

mrmacdi2 Posted October 31, 2023 Share Posted October 31, 2023 (edited) Hello, I'm using 3rd party CSR8510 Bluetooth 4.0 USB 1.1 dongle and it stops working after waking from sleep: unplugging, turning on/off, plugging back makes no difference: Bluetooth not available. I see that USB power is supplied after wake to the Bluetooth dongle - led is on, so it has power. Only reboot fixes the issue. macOS Ventura 13.6 OCLP Root patch for USB 1.1 AppleUSBUHCI.kext and AppleUSBUHCIPCI.kext are injected via OC to add USB 1.1 back. BlueToolFixup.kext (2.6.8) is injected via OC USB ports are mapped via USBTool Suspend S3 works fine I think the issue with CSR8510 can be related to BlueToolFixup System info: IOReg: When Bluetooth stops working: When Bluetooth dongle works: Edited November 4, 2023 by mrmacdi2 Link to comment https://www.insanelymac.com/forum/topic/357956-solved-csr8510-usb-bluetooth-not-working-after-wake-from-sleep-in-ventura/ Share on other sites More sharing options...
mrmacdi2 Posted November 3, 2023 Author Share Posted November 3, 2023 Unplugging CSR8510 from PC USB port and plugging in USB HUB solves the issue - bluetooth dongle is usable. Issue can be related to AppleUSBUHCIPCI (is it responsible for USB 1.1?), which, probably, fails after wake. Link to comment https://www.insanelymac.com/forum/topic/357956-solved-csr8510-usb-bluetooth-not-working-after-wake-from-sleep-in-ventura/#findComment-2813098 Share on other sites More sharing options...
FirstCustomac Posted November 3, 2023 Share Posted November 3, 2023 6 hours ago, mrmacdi2 said: Issue can be related to AppleUSBUHCIPCI (is it responsible for USB 1.1?), which, probably, fails after wake. Does this happen to keyboard if connected to PC USB port? Link to comment https://www.insanelymac.com/forum/topic/357956-solved-csr8510-usb-bluetooth-not-working-after-wake-from-sleep-in-ventura/#findComment-2813104 Share on other sites More sharing options...
mrmacdi2 Posted November 3, 2023 Author Share Posted November 3, 2023 20 minutes ago, FirstTimeCustomac said: Does this happen to keyboard if connected to PC USB port? Keyboard doesn't work at all, if I connect it to any USB port of my PC, it works only via USB Hub, despite having USB 1.1 patch via OCLP and injecting AppleUSBUHCI and AppleUSBUHCIPCI. But USB Bluetooth works when I connect to USB ports of my PC, but it's way of work is different - it's not HID for keyboard. Link to comment https://www.insanelymac.com/forum/topic/357956-solved-csr8510-usb-bluetooth-not-working-after-wake-from-sleep-in-ventura/#findComment-2813108 Share on other sites More sharing options...
FirstCustomac Posted November 3, 2023 Share Posted November 3, 2023 27 minutes ago, mrmacdi2 said: Keyboard doesn't work at all, if I connect it to any USB port of my PC, Do you currently have IOHIDFamily patch in place? Link to comment https://www.insanelymac.com/forum/topic/357956-solved-csr8510-usb-bluetooth-not-working-after-wake-from-sleep-in-ventura/#findComment-2813112 Share on other sites More sharing options...
mrmacdi2 Posted November 3, 2023 Author Share Posted November 3, 2023 1 hour ago, FirstTimeCustomac said: Do you currently have IOHIDFamily patch in place? Yes, it’s enabled in OC. Maybe it’s outdated - I’ve made my config long time ago, so maybe the patch needs to be updated. Link to comment https://www.insanelymac.com/forum/topic/357956-solved-csr8510-usb-bluetooth-not-working-after-wake-from-sleep-in-ventura/#findComment-2813117 Share on other sites More sharing options...
mrmacdi2 Posted November 4, 2023 Author Share Posted November 4, 2023 New idea: in Ventura Apple has deleted kexts from System, which were used for USB 1.1. HID devices, so in this case IOHIDFamily patch won't work: no kexts, no cache - nothing to apply. Link to comment https://www.insanelymac.com/forum/topic/357956-solved-csr8510-usb-bluetooth-not-working-after-wake-from-sleep-in-ventura/#findComment-2813129 Share on other sites More sharing options...
FirstCustomac Posted November 4, 2023 Share Posted November 4, 2023 2 hours ago, mrmacdi2 said: New idea: in Ventura Apple has deleted kexts from System, which were used for USB 1.1. HID devices, so in this case IOHIDFamily patch won't work: no kexts, no cache - nothing to apply. Eh... Bad idea... Please look more into what this patch does and what it patches. Link to comment https://www.insanelymac.com/forum/topic/357956-solved-csr8510-usb-bluetooth-not-working-after-wake-from-sleep-in-ventura/#findComment-2813132 Share on other sites More sharing options...
mrmacdi2 Posted November 4, 2023 Author Share Posted November 4, 2023 1 hour ago, FirstTimeCustomac said: Eh... Bad idea... Please look more into what this patch does and what it patches. Haven't researched it btw. HID issue is present despite having the patch. Will try to investigate. CSR8510 works fine when I use USB Hub, no issue after wake, PC sleeps well etc. Link to comment https://www.insanelymac.com/forum/topic/357956-solved-csr8510-usb-bluetooth-not-working-after-wake-from-sleep-in-ventura/#findComment-2813136 Share on other sites More sharing options...
notobo Posted January 27 Share Posted January 27 (edited) On 10/31/2023 at 3:44 PM, mrmacdi2 said: Hello, I'm using 3rd party CSR8510 Bluetooth 4.0 USB 1.1 dongle and it stops working after waking from sleep: unplugging, turning on/off, plugging back makes no difference: Bluetooth not available. I see that USB power is supplied after wake to the Bluetooth dongle - led is on, so it has power. Only reboot fixes the issue. macOS Ventura 13.6 OCLP Root patch for USB 1.1 AppleUSBUHCI.kext and AppleUSBUHCIPCI.kext are injected via OC to add USB 1.1 back. BlueToolFixup.kext (2.6.8) is injected via OC USB ports are mapped via USBTool Suspend S3 works fine I think the issue with CSR8510 can be related to BlueToolFixup System info: IOReg: When Bluetooth stops working: When Bluetooth dongle works: Try with -btlfxnvramcheck in boot-args. In Ventura it sometime helps, in Sonoma not. Edited January 27 by notobo Link to comment https://www.insanelymac.com/forum/topic/357956-solved-csr8510-usb-bluetooth-not-working-after-wake-from-sleep-in-ventura/#findComment-2846880 Share on other sites More sharing options...
