koobit Posted October 7, 2023 Share Posted October 7, 2023 Hi everyone, Here is my desktop specs: Motherboard MSI B460 Tomahawk CPU Intel 10400 GPU AMD RX480 Crucial 2*8GB DDR4 500GB SSD disk drive (Kioxia) I had also config my motherboard bios disable Fastboot, disable Secure boot, disable CFG-Lock... as Dortania Opencore's guides. Then I try to install MacOS 13 Ventura with Opencore 0.9.5 but still got stuck at "[EB|LOG:EXITBS:START]". I tried the #Kernel Issues on Dortania guides: * enable / disable DevirtualiseMmio * try to MmioWhitelist with disable DevirtualiseMmio ... But it won't work after all, stick stuck at [EB|LOG:EXITBS:START]. Here is my log: 00:000 00:000 BS: Starting OpenCore application... 00:000 00:000 BS: Booter path - \EFI\BOOT\BOOTX64.EFI 00:000 00:000 OCFS: Trying to locate filesystem on 98223F98 9A83BB18 00:000 00:000 OCFS: Filesystem DP - \EFI\BOOT\BOOTX64.EFI 00:000 00:000 BS: Trying to load OpenCore image... 00:000 00:000 BS: Relative path - EFI 00:000 00:000 BS: Startup path - EFI\OpenCore.efi (0) 00:000 00:000 BS: Fallback to absolute path - EFI\OC\OpenCore.efi 00:000 00:000 BS: Read OpenCore image of 835584 bytes 00:000 00:000 OCM: Loaded image at 98A54E98 handle 00:000 00:000 OCM: Loaded image has DeviceHandle 98223F98 FilePath 98AAA598 ours DevicePath 98AAA798 00:000 00:000 OCCPU: TSC Adjust 0 00:000 00:000 OCCPU: Core Crystal Clock Frequency from TSC 24000055Hz = 2904006716Hz * 2 / 242 00:000 00:000 OCCPU: CPUFrequencyFromART 2900000000Hz 2900MHz = 24000055 * 242 / 2 00:000 00:000 OC: Starting OpenCore... 00:000 00:000 OC: Booter path - EFI\OC\OpenCore.efi 00:000 00:000 OCFS: Trying to locate filesystem on 98223F98 98AAA598 00:000 00:000 OCFS: Filesystem DP - EFI\OC\OpenCore.efi 00:000 00:000 OC: Absolute booter path - EFI\OC\OpenCore.efi 00:000 00:000 OC: Storage root EFI\OC\OpenCore.efi 00:000 00:000 OCST: Missing vault data, ignoring... 00:000 00:000 OC: OcMiscEarlyInit... 00:000 00:000 OC: Loaded configuration of 32487 bytes 00:000 00:000 OCS: Missing key DisableIoMapperMapping, context <Quirks>! 00:000 00:000 OCS: Missing key InstanceIdentifier, context <Boot>! 00:000 00:000 OCS: Missing key ConsoleFont, context <Output>! 00:000 00:000 OCS: Missing key GopBurstMode, context <Output>! 00:000 00:000 OCS: Missing key InitialMode, context <Output>! 00:000 00:000 OCS: Missing key PciIo, context <ProtocolOverrides>! 00:000 00:000 OCS: Missing key ResizeUsePciRbIo, context <Quirks>! 00:000 00:000 OCS: Missing key ShimRetainProtocol, context <Quirks>! 00:000 00:000 OC: Got 2 drivers 00:000 00:000 OC: Watchdog status is 0 00:063 00:063 OC: OpenCore DBG-095-2023-09-11 is loading in Optional mode (0/0)... 00:091 00:028 OC: Boot timestamp - 2023.10.07 14:08:40 00:126 00:035 OCCPU: MP services threads 12 (enabled 12) - Success 00:154 00:027 OCCPU: MP services Pkg 1 Cores 6 Threads 2 - Success 00:183 00:029 OCCPU: Found Intel(R) Core(TM) i5-10400 CPU @ 2.90GHz 00:220 00:037 OCCPU: Signature A0655 Stepping 5 Model A5 Family 6 Type 0 ExtModel A ExtFamily 0 uCode E2 CPUID MAX (16/80000008) 00:247 00:027 OCCPU: EIST CFG Lock 0 00:274 00:026 OCCPU: TSC Adjust 0 00:413 00:139 OCCPU: Core Crystal Clock Frequency from TSC 24000028Hz = 2904003406Hz * 2 / 242 00:445 00:032 OCCPU: CPUFrequencyFromART 2900000000Hz 2900MHz = 24000028 * 242 / 2 00:480 00:034 OCCPU: Timer address is 1808 from PMC ACPI 00:540 00:059 OCCPU: Failed to get FSBFrequency data using Apple Platform Info - Not Found 00:671 00:131 OCCPU: Intel TSC: 2900000000Hz, 2900MHz; FSB: 100000000Hz, 100MHz; MaxBusRatio: 29 00:712 00:040 OCCPU: Detected Apple Processor Type: 06 -> 0609 00:739 00:027 OCCPU: CPUFrequencyFromTSC 2903998150Hz 2903MHz 00:775 00:035 OCCPU: CPUFrequency 2900000000Hz 2900MHz 00:806 00:031 OCCPU: FSBFrequency 100000000Hz 100MHz 00:834 00:027 OCCPU: Pkg 1 Cores 6 Threads 12 00:870 00:036 OC: OcLoadNvramSupport... 00:897 00:026 OCVAR: Locate emulated NVRAM protocol - Not Found 00:927 00:029 OC: Deleting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Not Found 00:964 00:037 OC: Not deleting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:rtc-blacklist, matches add 00:991 00:027 OC: Not deleting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args, matches add 01:026 00:035 OC: Not deleting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:ForceDisplayRotationInEFI, matches add 01:058 00:032 OCVAR: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Success 01:087 00:028 OCVAR: Setting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:rtc-blacklist - Not Found 01:149 00:061 OCVAR: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:ForceDisplayRotationInEFI - ignored, exists 01:176 00:027 OCVAR: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:SystemAudioVolume - ignored, exists 01:205 00:029 OCVAR: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args - ignored, exists 01:242 00:037 OCVAR: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:csr-active-config - ignored, exists 01:269 00:027 OCVAR: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:prev-lang:kbd - ignored, exists 01:328 00:058 OCVAR: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:run-efi-updater - ignored, exists 01:359 00:030 OC: Current version is DBG-095-2023-09-11 01:387 00:028 OC: OcMiscMiddleInit... 01:423 00:035 OC: StorageHandle 98223F98 with Disabled LauncherOption pointing to Default 01:451 00:027 OC: OcLoadUefiSupport... 01:480 00:029 OCAU: OcAudioInstallProtocols (0, 0) 01:517 00:037 OCAU: 4B228577-6274-4A48-82AE-0713A1171987 protocol - Not Found 01:544 00:027 OCAU: C32332DF-FC56-4FE1-9358-BA0D529B24CD protocol - Not Found 01:571 00:026 OCAU: F4CB0B78-243B-11E7-A524-B8E8562CBAFA protocol - Not Found 01:635 00:063 OCAU: 3224B169-EC34-46D2-B779-E1B1687F525F protocol - Not Found 01:663 00:028 OCAE: Builtin installed 01:699 00:035 OCRTC: Wake log is 0x00 0x00 0 0x00 01:726 00:027 OCEG: Discovered rotate NVRAM override to 0 01:756 00:029 OC: Automatic SB model j185 from model iMac20,1 01:793 00:037 OC: Loading Apple Secure Boot with j185 (level 1) 01:825 00:032 OCII: AIFTimerBoostInit Current timer is 10000 01:852 00:026 OC: Installing KeySupport... 01:890 00:038 OCII: gST->ConIn 9CE00350 vs found 9CE00350 01:918 00:027 AIK: Using 5 (50ms) 01:953 00:035 OCABC: ALRBL 0 RTDFRG 1 DEVMMIO 1 NOSU 1 NOVRWR 0 NOSB 0 FBSIG 0 NOHBMAP 0 SMSLIDE 1 WRUNPROT 0 01:981 00:027 OCABC: FEXITBS 0 PRMRG 0 CSLIDE 1 MSLIDE 0 PRSRV 1 RBMAP 1 VMAP 0 APPLOS 0 RTPERMS 1 ARBAR -1 RBIO 0 02:010 00:029 OCABC: Firmware has 4154426 free pages (619578 in lower 4 GB) 02:047 00:036 OCABC: Awaiting rendezvous with OpenRuntime r12 02:101 00:054 OC: RequestBootVarRouting 1 02:140 00:038 OCDM: Found 0x20046/0x20046 UEFI version (376 bytes, 0 rebuilding to 376) gST 9E994018 gBS 99980EF0 gBS->CreateEventEx 9997403C &gBS 9718C1D0 02:169 00:029 OC: AVX enabled - 1 02:206 00:037 OC: Got 2 drivers 02:234 00:027 OC: Driver OpenRuntime.efi at 0 (OpenRuntime.efi) is being loaded... 02:262 00:028 OCABC: EfiBootRt candidate - <nil> 02:300 00:038 OCABC: IsEfiBootRt 0 (BP 1, Apple 0) 02:328 00:028 OCB: Arch filtering 0(36864)->9741C018(36864) caps 4 - Success 02:364 00:036 OCABC: Recovering trashed GetMemoryMap pointer 02:392 00:027 OCABC: Got rendezvous with OpenRuntime r12 02:421 00:029 OCABC: MAT support is 1 02:459 00:037 OC: Driver OpenRuntime.efi at 0 is successfully loaded! 02:486 00:027 OC: Driver HfsPlus.efi at 1 (HfsPlus.efi) is being loaded... 02:515 00:028 OCABC: EfiBootRt candidate - <nil> 02:575 00:060 OCABC: IsEfiBootRt 0 (BP 1, Apple 0) 02:606 00:030 OCB: Arch filtering 0(37892)->9741C018(37892) caps 4 - Success 02:643 00:036 OCABC: Recovering trashed GetMemoryMap pointer 02:695 00:051 OC: Driver HfsPlus.efi at 1 is successfully loaded! 02:733 00:037 OC: Driver HfsPlus.efi at 1 needs connection. 02:761 00:027 OC: Connecting drivers... 02:959 00:197 OC: Connecting drivers done... 02:990 00:030 OC: Found 2 pointer devices - Success 03:028 00:037 OCJS: PartitionInfo is Success 03:056 00:028 OCC: Installing GOP (Unsupported) on ConsoleOutHandle... 03:083 00:027 OC: Requested resolution is 0x0@0 (max: 1, force: 0) from Max 03:119 00:035 OCC: Requesting 0x0@0 (max: 1) resolution, curr 0, total 8 03:148 00:029 OCC: Current FB at 0x4000000000 (0xE10000), format 1, res 2560x1440 scan 2560 03:185 00:037 OCC: Mode 0 - 2560x1440:1 03:213 00:027 OCC: Mode 1 - 640x480:1 03:264 00:051 OCC: Mode 2 - 800x600:1 03:304 00:039 OCC: Mode 3 - 1024x768:1 03:332 00:028 OCC: Mode 4 - 1280x1024:1 03:368 00:036 OCC: Mode 5 - 1400x1050:1 03:396 00:027 OCC: Mode 6 - 1600x1200:1 03:425 00:029 OCC: Mode 7 - 1280x960:1 03:462 00:037 OCC: Current mode matches desired mode 0 03:489 00:027 OC: Changed resolution to 0x0@0 (max: 1, force: 0) from Max - Already started 03:525 00:035 OC: Selected UIScale 1 based on 2560x1440 resolution 03:555 00:029 OC: Setting UIScale to 1 - Invalid Parameter 03:583 00:028 OCC: Using builtin text renderer with 1 scale 03:620 00:036 OCC: Install console control (97179F18/9996B000/0), current - Success 03:655 00:035 OCC: Setup ASCII Output - Success 03:697 00:042 OC: Requested console mode is 0x0 (max: 0) from 03:749 00:052 OC: Requested not to use audio 03:776 00:027 OC: OcMiscLoadSystemReport... 03:813 00:036 OC: OcLoadAcpiSupport... 03:842 00:029 OCA: Found 22 ACPI tables 03:879 00:036 OCA: Detected table FACP (50434146) (OEM 00002049204D2041) at 9DB8E000 of 276 bytes at index 0 03:907 00:027 OCA: Detected DSDT at 9DB55000 of 232438 bytes at index 0 03:933 00:026 OCA: Detected table MCFG (4746434D) (OEM 00002049204D2041) at 9DB92000 of 60 bytes at index 1 03:971 00:037 OCA: Detected table SSDT (54445353) (OEM 0074647353757043) at 9DB8F000 of 8365 bytes at index 2 04:000 00:028 OCA: Detected table FIDT (54444946) (OEM 00000049204D2041) at 9DB54000 of 156 bytes at index 3 04:036 00:035 OCA: Detected table SSDT (54445353) (OEM 0020746473536153) at 9DB50000 of 12762 bytes at index 4 04:063 00:027 OCA: Detected table SSDT (54445353) (OEM 0074647353676550) at 9DB4D000 of 10094 bytes at index 5 04:093 00:029 OCA: Detected table HPET (54455048) (OEM 00002049204D2041) at 9DB94000 of 56 bytes at index 6 04:133 00:039 OCA: Detected table SSDT (54445353) (OEM 7076525F72656854) at 9DB4B000 of 5243 bytes at index 7 04:185 00:051 OCA: Detected table SSDT (54445353) (OEM 3464766D635F6878) at 9DB47000 of 13030 bytes at index 8 04:243 00:058 OCA: Detected table NHLT (544C484E) (OEM 00002049204D2041) at 9DB93000 of 45 bytes at index 9 04:272 00:029 OCA: Detected table LPIT (5449504C) (OEM 00002049204D2041) at 9DB46000 of 148 bytes at index 10 04:300 00:027 OCA: Detected table SSDT (54445353) (OEM 6376654464697450) at 9DB42000 of 10016 bytes at index 11 04:337 00:036 OCA: Detected table SSDT (54445353) (OEM 4365707954746254) at 9DB3F000 of 9650 bytes at index 12 04:364 00:026 OCA: Detected table DBGP (50474244) (OEM 00002049204D2041) at 9DB3E000 of 52 bytes at index 13 04:403 00:038 OCA: Detected table DBG2 (32474244) (OEM 00002049204D2041) at 9DB3D000 of 84 bytes at index 14 04:431 00:028 OCA: Detected table SSDT (54445353) (OEM 6C62615443627355) at 9DB3B000 of 7015 bytes at index 15 04:458 00:027 OCA: Detected table VFCT (54434656) (OEM 00002049204D2041) at 9DB2C000 of 59524 bytes at index 16 04:494 00:035 OCA: Detected table BGRT (54524742) (OEM 00002049204D2041) at 9DB2B000 of 56 bytes at index 17 04:523 00:029 OCA: Detected table WSMT (544D5357) (OEM 00002049204D2041) at 9DB45000 of 40 bytes at index 18 04:559 00:036 OCA: Detected table APIC (43495041) (OEM 00002049204D2041) at 9DB29000 of 244 bytes at index 19 04:587 00:027 OCA: Detected table FPDT (54445046) (OEM 00000000004C4D43) at 9DB28000 of 68 bytes at index 20 04:614 00:026 OCA: Detected table BGRT (54524742) (OEM 00002049204D2041) at 9DB2A000 of 56 bytes at index 21 04:652 00:038 OCA: FACS signature is 0 (0) 04:705 00:052 OCA: Allocated new table SSDT at 9DD13000 04:741 00:036 OCA: Inserted table SSDT (54445353) (OEM 0000000043415741) of 73 bytes into ACPI at index 22 04:769 00:027 OCA: Allocated new table SSDT at 9DD11000 04:798 00:029 OCA: Inserted table SSDT (54445353) (OEM 0000434574647353) of 7341 bytes into ACPI at index 23 04:835 00:036 OCA: Allocated new table SSDT at 9DD10000 04:862 00:027 OCA: Inserted table SSDT (54445353) (OEM 0067756C50757043) of 693 bytes into ACPI at index 24 04:897 00:035 OCA: Allocated new table SSDT at 9DD0F000 04:927 00:029 OCA: Inserted table SSDT (54445353) (OEM 0066664F62756852) of 325 bytes into ACPI at index 25 04:955 00:028 OCA: Exposing XSDT table table FACP (50434146) (OEM 00002049204D2041) at 9DB8E000 of 276 bytes at index 0 04:991 00:036 OCA: Exposing XSDT table table MCFG (4746434D) (OEM 00002049204D2041) at 9DB92000 of 60 bytes at index 1 05:018 00:026 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0074647353757043) at 9DB8F000 of 8365 bytes at index 2 05:056 00:037 OCA: Exposing XSDT table table FIDT (54444946) (OEM 00000049204D2041) at 9DB54000 of 156 bytes at index 3 05:085 00:028 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0020746473536153) at 9DB50000 of 12762 bytes at index 4 05:112 00:027 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0074647353676550) at 9DB4D000 of 10094 bytes at index 5 05:170 00:058 OCA: Exposing XSDT table table HPET (54455048) (OEM 00002049204D2041) at 9DB94000 of 56 bytes at index 6 05:202 00:031 OCA: Exposing XSDT table table SSDT (54445353) (OEM 7076525F72656854) at 9DB4B000 of 5243 bytes at index 7 05:230 00:028 OCA: Exposing XSDT table table SSDT (54445353) (OEM 3464766D635F6878) at 9DB47000 of 13030 bytes at index 8 05:266 00:036 OCA: Exposing XSDT table table NHLT (544C484E) (OEM 00002049204D2041) at 9DB93000 of 45 bytes at index 9 05:318 00:051 OCA: Exposing XSDT table table LPIT (5449504C) (OEM 00002049204D2041) at 9DB46000 of 148 bytes at index 10 05:356 00:037 OCA: Exposing XSDT table table SSDT (54445353) (OEM 6376654464697450) at 9DB42000 of 10016 bytes at index 11 05:384 00:028 OCA: Exposing XSDT table table SSDT (54445353) (OEM 4365707954746254) at 9DB3F000 of 9650 bytes at index 12 05:420 00:035 OCA: Exposing XSDT table table DBGP (50474244) (OEM 00002049204D2041) at 9DB3E000 of 52 bytes at index 13 05:447 00:027 OCA: Exposing XSDT table table DBG2 (32474244) (OEM 00002049204D2041) at 9DB3D000 of 84 bytes at index 14 05:476 00:029 OCA: Exposing XSDT table table SSDT (54445353) (OEM 6C62615443627355) at 9DB3B000 of 7015 bytes at index 15 05:539 00:063 OCA: Exposing XSDT table table VFCT (54434656) (OEM 00002049204D2041) at 9DB2C000 of 59524 bytes at index 16 05:569 00:029 OCA: Exposing XSDT table table BGRT (54524742) (OEM 00002049204D2041) at 9DB2B000 of 56 bytes at index 17 05:605 00:036 OCA: Exposing XSDT table table WSMT (544D5357) (OEM 00002049204D2041) at 9DB45000 of 40 bytes at index 18 05:634 00:028 OCA: Exposing XSDT table table APIC (43495041) (OEM 00002049204D2041) at 9DB29000 of 244 bytes at index 19 05:671 00:036 OCA: Exposing XSDT table table FPDT (54445046) (OEM 00000000004C4D43) at 9DB28000 of 68 bytes at index 20 05:723 00:052 OCA: Exposing XSDT table table BGRT (54524742) (OEM 00002049204D2041) at 9DB2A000 of 56 bytes at index 21 05:750 00:026 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0000000043415741) at 9DD13000 of 73 bytes at index 22 05:788 00:037 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0000434574647353) at 9DD11000 of 7341 bytes at index 23 05:816 00:028 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0067756C50757043) at 9DD10000 of 693 bytes at index 24 05:853 00:036 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0066664F62756852) at 9DD0F000 of 325 bytes at index 25 05:880 00:026 OCA: Exposing RSDT table table FACP (50434146) (OEM 00002049204D2041) at 9DB8E000 of 276 bytes at index 0 05:909 00:029 OCA: Exposing RSDT table table MCFG (4746434D) (OEM 00002049204D2041) at 9DB92000 of 60 bytes at index 1 05:947 00:038 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0074647353757043) at 9DB8F000 of 8365 bytes at index 2 05:974 00:027 OCA: Exposing RSDT table table FIDT (54444946) (OEM 00000049204D2041) at 9DB54000 of 156 bytes at index 3 06:010 00:035 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0020746473536153) at 9DB50000 of 12762 bytes at index 4 06:039 00:029 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0074647353676550) at 9DB4D000 of 10094 bytes at index 5 06:067 00:028 OCA: Exposing RSDT table table HPET (54455048) (OEM 00002049204D2041) at 9DB94000 of 56 bytes at index 6 06:103 00:036 OCA: Exposing RSDT table table SSDT (54445353) (OEM 7076525F72656854) at 9DB4B000 of 5243 bytes at index 7 06:130 00:026 OCA: Exposing RSDT table table SSDT (54445353) (OEM 3464766D635F6878) at 9DB47000 of 13030 bytes at index 8 06:193 00:062 OCA: Exposing RSDT table table NHLT (544C484E) (OEM 00002049204D2041) at 9DB93000 of 45 bytes at index 9 06:222 00:028 OCA: Exposing RSDT table table LPIT (5449504C) (OEM 00002049204D2041) at 9DB46000 of 148 bytes at index 10 06:249 00:027 OCA: Exposing RSDT table table SSDT (54445353) (OEM 6376654464697450) at 9DB42000 of 10016 bytes at index 11 06:285 00:035 OCA: Exposing RSDT table table SSDT (54445353) (OEM 4365707954746254) at 9DB3F000 of 9650 bytes at index 12 06:314 00:029 OCA: Exposing RSDT table table DBGP (50474244) (OEM 00002049204D2041) at 9DB3E000 of 52 bytes at index 13 06:351 00:036 OCA: Exposing RSDT table table DBG2 (32474244) (OEM 00002049204D2041) at 9DB3D000 of 84 bytes at index 14 06:378 00:027 OCA: Exposing RSDT table table SSDT (54445353) (OEM 6C62615443627355) at 9DB3B000 of 7015 bytes at index 15 06:405 00:026 OCA: Exposing RSDT table table VFCT (54434656) (OEM 00002049204D2041) at 9DB2C000 of 59524 bytes at index 16 06:443 00:038 OCA: Exposing RSDT table table BGRT (54524742) (OEM 00002049204D2041) at 9DB2B000 of 56 bytes at index 17 06:472 00:028 OCA: Exposing RSDT table table WSMT (544D5357) (OEM 00002049204D2041) at 9DB45000 of 40 bytes at index 18 06:508 00:036 OCA: Exposing RSDT table table APIC (43495041) (OEM 00002049204D2041) at 9DB29000 of 244 bytes at index 19 06:535 00:027 OCA: Exposing RSDT table table FPDT (54445046) (OEM 00000000004C4D43) at 9DB28000 of 68 bytes at index 20 06:564 00:029 OCA: Exposing RSDT table table BGRT (54524742) (OEM 00002049204D2041) at 9DB2A000 of 56 bytes at index 21 06:601 00:037 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0000000043415741) at 9DD13000 of 73 bytes at index 22 06:653 00:051 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0000434574647353) at 9DD11000 of 7341 bytes at index 23 06:689 00:036 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0067756C50757043) at 9DD10000 of 693 bytes at index 24 06:718 00:029 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0066664F62756852) at 9DD0F000 of 325 bytes at index 25 06:746 00:028 OC: OcLoadPlatformSupport... 06:782 00:036 OCSMB: Found DMI Anchor 9E7B0000 v3.2 Table Address 9E7AD000 Length 1188 06:809 00:026 OCSMB: Found DMI Anchor 9E7AF000 v3.2 Table Address 9E7AD000 Length 1188 06:847 00:037 OCSMB: Current SMBIOS MS-7C82 (MAG B460M MORTAR (MS-7C82) made by Micro-Star International Co., Ltd.) 06:900 00:052 OC: PlatformInfo auto 1 OEM SN 0 OEM UUID 0 OEM MLB 0 OEM ROM 0 - Success 06:927 00:027 OC: New SMBIOS: Acidanthera model iMac20,1 06:963 00:035 OCSMB: Post-override BIOS vendor Acidanthera 0 06:992 00:029 OCSMB: Number of CPU cache entries is 3 07:028 00:036 OCSMB: Number of CPU cache entries is 3 07:056 00:027 OCSMB: Number of CPU cache entries is 3 07:082 00:026 OCSMB: CPU1 display frequency is 2900MHz 07:143 00:060 OCSMB: Applying 2195 (1) prev 9E7B0000 (4488/31), 9E7AF000 (4488/24) 07:173 00:030 OCSMB: Patched 9D6F6000 v3.2 Table Address 9D6F7000 Length 0893 1E ED 07:209 00:036 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:name (9) - Success 07:236 00:027 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:Model (18) - Success 07:266 00:029 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:SystemSerialNumber (26) - Success 07:303 00:037 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:system-id (16) - Success 07:331 00:027 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:board-id (21) - Success 07:366 00:035 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:board-rev (1) - Success 07:396 00:029 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:StartupPowerEvents (8) - Success 07:424 00:028 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:InitialTSC (8) - Success 07:461 00:036 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:FSBFrequency (8) - Success 07:488 00:027 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:ARTFrequency (8) - Success 07:526 00:037 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:DevicePathsSupported (4) - Success 07:555 00:028 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:RPlt (8) - Success 07:582 00:027 OC: Setting HW_BID Mac-CFF7D910A743CAAF - Success 07:643 00:061 OC: Setting HW_ROM 11:22:33:44:55:66 - Success 07:673 00:029 OC: Setting ROM 11:22:33:44:55:66 - Success 07:712 00:038 OC: Setting HW_MLB C02109306CDPHC1CB - Success 07:740 00:027 OC: Setting MLB C02109306CDPHC1CB - Success 07:776 00:036 OC: Setting HW_SSN C02FC030PN5T - Success 07:806 00:030 OC: Setting SSN C02FC030PN5T - Success 07:835 00:028 OC: Setting system-id 25647862-0147-AD48-B8B8-80F951AF216A - Success 07:872 00:036 OC: Setting FirmwareFeatures FFB3F066 - Success 07:899 00:027 OC: Setting ExtendedFirmwareFeatures 00000008FFB3F066 - Success 07:929 00:029 OC: Setting FirmwareFeaturesMask FFFFFFFF - Success 07:967 00:037 OC: Setting ExtendedFirmwareFeaturesMask 00000008FFFFFFFF - Success 07:994 00:027 OC: OcLoadDevPropsSupport... 08:030 00:035 OC: Setting devprop PciRoot(0x0)/Pci(0x1b,0x0):layout-id - Success 08:060 00:029 OC: Setting devprop PciRoot(0x0)/Pci(0x2,0x0):AAPL,ig-platform-id - Success 08:109 00:048 OC: Setting devprop PciRoot(0x0)/Pci(0x2,0x0):framebuffer-patch-enable - Success 08:146 00:037 OC: Setting devprop PciRoot(0x0)/Pci(0x2,0x0):framebuffer-stolenmem - Success 08:173 00:027 OC: OcMiscLateInit... 08:230 00:056 OC: Translated HibernateMode None to 0 08:258 00:028 OC: Hibernation activation - Invalid Parameter, hibernation wake - no 08:286 00:027 OC: Panic log does not exist 08:321 00:035 OC: OcLoadKernelSupport... 08:350 00:029 OC: All green, starting boot management... 08:387 00:037 OC: Ready for takeoff in 0 us 08:415 00:027 OCB: Adding fs 98223F98 (E:1|L:1|P:Success) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(1,GPT,3041589C-F165-4172-938C-88C3D76494F2,0x28,0x64000) 08:450 00:035 OCB: Adding fs 97D68B98 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x17,0x0)/Sata(0x2,0xFFFF,0x0)/HD(1,GPT,FCE7F3E8-185B-AA49-17D2-8AD7FE122A17,0x800,0x3A385800) 08:480 00:029 OCB: Adding fs 97D38518 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1B,0x0)/Pci(0x0,0x0)/NVMe(0x1,F2-70-04-91-86-38-25-00)/HD(1,GPT,C852F0C0-F1DE-427B-99FF-4D5741980614,0x800,0x32000) 08:508 00:028 OCB: Adding fs 97D21B18 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1B,0x0)/Pci(0x0,0x0)/NVMe(0x1,F2-70-04-91-86-38-25-00)/HD(3,GPT,CED5738C-C99C-4867-AF5B-4BCBB7343F4F,0x3A800,0x3B8667C6) 08:544 00:036 OCB: Adding fs 97D20F18 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1B,0x0)/Pci(0x0,0x0)/NVMe(0x1,F2-70-04-91-86-38-25-00)/HD(4,GPT,A85C2594-0BBD-4662-AFDE-E0A734915F90,0x3B8A1000,0x13F000) 08:591 00:046 OCB: Adding fs 98223718 (E:1|L:0|P:Success) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(2,GPT,7ECF3586-A55A-405D-9FDD-0CA2409A2E19,0x64028,0x1BFFD48) 08:629 00:038 OCB: Found 6 potentially bootable filesystems 08:658 00:029 OCB: Found 5 BootOrder entries with BootNext excluded 08:693 00:034 OCB: efi-boot-device-data = PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/SasEx(0x010000008CE38E03,0x00309D767074616C,0x0,NoTopology,0,0,0)/HD(2,GPT,BC02C18E-EB17-4575-AC97-62DB6530568E,0x64028,0x3A321FE0)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,01DD52A6E9E3884BAE86810714A50B8F)/\3B99DE99-4057-42B2-8FA1-1E6D1AF373A3\System\Library\CoreServices\boot.efi 08:722 00:028 OCB: efi-boot-next-data - Not Found 08:751 00:029 OCB: efi-backup-boot-device-data = PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/SasEx(0x010000008CE38E03,0x00309D767074616C,0x0,NoTopology,0,0,0)/HD(2,GPT,BC02C18E-EB17-4575-AC97-62DB6530568E,0x64028,0x3A321FE0)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,01DD52A6E9E3884BAE86810714A50B8F)/\3B99DE99-4057-42B2-8FA1-1E6D1AF373A3\System\Library\CoreServices\boot.efi 08:788 00:037 OCB: efi-apple-recovery-data - Not Found 08:815 00:027 OCB: Dumping BootOrder 08:842 00:027 OCB: 0 -> Boot0080 = PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/SasEx(0x010000008CE38E03,0x00309D767074616C,0x0,NoTopology,0,0,0)/HD(2,GPT,BC02C18E-EB17-4575-AC97-62DB6530568E,0x64028,0x3A321FE0)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,01DD52A6E9E3884BAE86810714A50B8F)/\3B99DE99-4057-42B2-8FA1-1E6D1AF373A3\System\Library\CoreServices\boot.efi 08:881 00:038 OCB: 1 -> Boot0000 = HD(1,GPT,C852F0C0-F1DE-427B-99FF-4D5741980614,0x800,0x32000)/\EFI\MICROSOFT\BOOT\BOOTMGFW.EFI 08:909 00:028 OCB: 2 -> Boot0001 = BBS(0x81,,0x0) 08:945 00:036 OCB: 3 -> Boot0002 = BBS(0x82,,0x0) 08:973 00:027 OCB: 4 -> Boot0003 = BBS(0x83,,0x0) 09:010 00:037 OCB: Parsing predefined list... 09:060 00:049 OCB: 0 -> Boot0080 = PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/SasEx(0x010000008CE38E03,0x00309D767074616C,0x0,NoTopology,0,0,0)/HD(2,GPT,BC02C18E-EB17-4575-AC97-62DB6530568E,0x64028,0x3A321FE0)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,01DD52A6E9E3884BAE86810714A50B8F)/\3B99DE99-4057-42B2-8FA1-1E6D1AF373A3\System\Library\CoreServices\boot.efi 09:091 00:030 OCB: Adding fs 2007C5F5 for 1 custom entries and BEP (aux hidden) 09:127 00:036 OCB: Building entry from Boot0080 09:156 00:029 OCB: Fixed DP - PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/NVMe(0x1,76-9D-30-00-03-8E-E3-8C)/HD(2,GPT,BC02C18E-EB17-4575-AC97-62DB6530568E,0x64028,0x3A321FE0)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,01DD52A6E9E3884BAE86810714A50B8F)/\3B99DE99-4057-42B2-8FA1-1E6D1AF373A3\System\Library\CoreServices\boot.efi 09:195 00:038 OCB: Assuming DP is full-form or lacks suffix 09:222 00:027 OCB: Short-form DP could not be expanded 09:258 00:036 OCB: Building entry from Boot0000 09:288 00:029 OCB: Assuming DP is short-form (prefix) 09:316 00:028 OCB: Expanded DP - PciRoot(0x0)/Pci(0x1B,0x0)/Pci(0x0,0x0)/NVMe(0x1,F2-70-04-91-86-38-25-00)/HD(1,GPT,C852F0C0-F1DE-427B-99FF-4D5741980614,0x800,0x32000)/\EFI\MICROSOFT\BOOT\BOOTMGFW.EFI 09:352 00:036 OCB: Expanded DP remainder - \EFI\MICROSOFT\BOOT\BOOTMGFW.EFI 09:380 00:027 OCB: Matched fs 97D38518 09:418 00:038 OCB: Adding entry type (T:32|F:0|G:0) - PciRoot(0x0)/Pci(0x1B,0x0)/Pci(0x0,0x0)/NVMe(0x1,F2-70-04-91-86-38-25-00)/HD(1,GPT,C852F0C0-F1DE-427B-99FF-4D5741980614,0x800,0x32000)/\EFI\MICROSOFT\BOOT\BOOTMGFW.EFI 09:448 00:029 OCB: Get visibility for boot entry <null string> - Not Found 09:476 00:027 OCB: Registering entry Windows [Windows] (T:32|F:0|G:0|E:0|B:0) - PciRoot(0x0)/Pci(0x1B,0x0)/Pci(0x0,0x0)/NVMe(0x1,F2-70-04-91-86-38-25-00)/HD(1,GPT,C852F0C0-F1DE-427B-99FF-4D5741980614,0x800,0x32000)/\EFI\MICROSOFT\BOOT\BOOTMGFW.EFI 09:530 00:054 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1B,0x0)/Pci(0x0,0x0)/NVMe(0x1,F2-70-04-91-86-38-25-00)/HD(1,GPT,C852F0C0-F1DE-427B-99FF-4D5741980614,0x800,0x32000) 09:587 00:056 OCBP: Blessed file is missing 09:615 00:028 OCBP: Blessed folder is missing 09:652 00:036 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found 09:679 00:026 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi was found 09:708 00:029 OCB: Adding entry type (T:32|F:0|G:0) - PciRoot(0x0)/Pci(0x1B,0x0)/Pci(0x0,0x0)/NVMe(0x1,F2-70-04-91-86-38-25-00)/HD(1,GPT,C852F0C0-F1DE-427B-99FF-4D5741980614,0x800,0x32000)/\EFI\Microsoft\Boot\bootmgfw.efi 09:746 00:037 OCB: Get visibility for boot entry <null string> - Not Found 09:773 00:027 OCB: Discarding already present DP 09:809 00:035 OCB: Building entry from Boot0001 09:838 00:029 OCB: Assuming DP is short-form (prefix) 09:866 00:028 OCB: Short-form DP could not be expanded 09:955 00:089 OCB: Building entry from Boot0002 09:982 00:026 OCB: Assuming DP is short-form (prefix) 10:021 00:038 OCB: Short-form DP could not be expanded 10:049 00:028 OCB: Building entry from Boot0003 10:104 00:055 OCB: Assuming DP is short-form (prefix) 10:133 00:028 OCB: Short-form DP could not be expanded 10:162 00:029 OCB: Processing blessed list 10:201 00:038 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(1,GPT,3041589C-F165-4172-938C-88C3D76494F2,0x28,0x64000) 10:228 00:027 OCBP: Blessed file is missing 10:263 00:035 OCBP: Blessed folder is missing 10:293 00:029 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found 10:321 00:028 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found 10:359 00:037 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI was found 10:386 00:027 OCB: Adding entry type (T:1|F:0|G:1) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(1,GPT,3041589C-F165-4172-938C-88C3D76494F2,0x28,0x64000)/\EFI\BOOT\BOOTX64.EFI 10:425 00:038 OCB: Get visibility for boot entry <null string> - Not Found 10:453 00:028 OCB: Trying to detect Microsoft BCD 10:480 00:027 OCB: Registering entry EFI [Auto] (T:1|F:0|G:1|E:1|B:0) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(1,GPT,3041589C-F165-4172-938C-88C3D76494F2,0x28,0x64000)/\EFI\BOOT\BOOTX64.EFI 10:524 00:043 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x17,0x0)/Sata(0x2,0xFFFF,0x0)/HD(1,GPT,FCE7F3E8-185B-AA49-17D2-8AD7FE122A17,0x800,0x3A385800) 10:574 00:050 OCBP: Blessed file is missing 10:612 00:037 OCBP: Blessed folder is missing 10:639 00:027 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found 10:674 00:034 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found 10:704 00:029 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found 10:739 00:035 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1B,0x0)/Pci(0x0,0x0)/NVMe(0x1,F2-70-04-91-86-38-25-00)/HD(3,GPT,CED5738C-C99C-4867-AF5B-4BCBB7343F4F,0x3A800,0x3B8667C6) 10:769 00:029 OCBP: Blessed file is missing 10:796 00:027 OCBP: Blessed folder is missing 10:835 00:039 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found 10:863 00:028 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found 10:900 00:036 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found 10:947 00:047 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1B,0x0)/Pci(0x0,0x0)/NVMe(0x1,F2-70-04-91-86-38-25-00)/HD(4,GPT,A85C2594-0BBD-4662-AFDE-E0A734915F90,0x3B8A1000,0x13F000) 10:981 00:033 OCBP: Blessed file is missing 11:018 00:036 OCBP: Blessed folder is missing 11:065 00:047 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found 11:101 00:035 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found 11:131 00:029 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found 11:179 00:048 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(2,GPT,7ECF3586-A55A-405D-9FDD-0CA2409A2E19,0x64028,0x1BFFD48) 11:216 00:037 OCBP: BlessedFileHEX (1/3 150) - 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 00 14 03 05 06 00 15 00 04 01 2A 00 02 00 00 00 28 40 06 00 00 00 00 00 48 FD BF 01 00 00 00 00 86 35 CF 7E 5A A5 5D 40 9F DD 0C A2 40 9A 2E 19 11:243 00:027 OCBP: BlessedFileHEX (2/3 150) - 02 02 04 04 50 00 5C 00 53 00 79 00 73 00 74 00 65 00 6D 00 5C 00 4C 00 69 00 62 00 72 00 61 00 72 00 79 00 5C 00 43 00 6F 00 72 00 65 00 53 00 65 00 72 00 76 00 69 00 63 00 65 00 73 00 5C 00 11:282 00:038 OCBP: BlessedFileHEX (3/3 150) - 62 00 6F 00 6F 00 74 00 2E 00 65 00 66 00 69 00 00 00 7F FF 04 00 11:310 00:028 OCBP: BlessedFileDP - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(2,GPT,7ECF3586-A55A-405D-9FDD-0CA2409A2E19,0x64028,0x1BFFD48)/\System\Library\CoreServices\boot.efi 11:347 00:036 OCBP: Blessed file is valid 11:373 00:026 OCB: Adding entry type (T:2|F:0|G:0) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(2,GPT,7ECF3586-A55A-405D-9FDD-0CA2409A2E19,0x64028,0x1BFFD48)/\System\Library\CoreServices\boot.efi 11:403 00:029 OCB: Get visibility for boot entry <null string> - Not Found 11:441 00:037 OCB: Registering entry Install macOS Ventura [Apple] (T:2|F:0|G:0|E:1|B:0) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(2,GPT,7ECF3586-A55A-405D-9FDD-0CA2409A2E19,0x64028,0x1BFFD48)/\System\Library\CoreServices\boot.efi 11:468 00:027 OCB: Not adding hidden auxiliary entry OpenShell.efi (tool|B:0) -> OpenShell.efi 11:502 00:034 OCB: Showing menu... 11:552 00:049 OCHK: InitHotKeys 11:582 00:030 OCKM: Allocated key repeat context 9741CF18 9741C198 9741CD18 11:619 00:036 OCAE: Set screen resolution to 2560x1440 - Success 11:646 00:026 OCTY: Registered handler 17:544 05:898 OCHK: FreeHotKeys 17:582 00:038 OCTY: Unregistered handler 17:610 00:027 OCKM: Freeing key repeat context 9741CF18 9741C198 9741CD18 17:646 00:035 OCB: Should boot from 3. Install macOS Ventura (T:2|F:0|G:0|E:1|DEF:0) 17:675 00:029 OCB: Saved mode 0/0/0 - Success 17:710 00:035 OCB: Perform boot Install macOS Ventura to dp PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(2,GPT,7ECF3586-A55A-405D-9FDD-0CA2409A2E19,0x64028,0x1BFFD48)/\System\Library\CoreServices\boot.efi (0/0) 17:739 00:029 OCABC: EfiBootRt candidate - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(2,GPT,7ECF3586-A55A-405D-9FDD-0CA2409A2E19,0x64028,0x1BFFD48)/\System\Library\CoreServices\boot.efi 17:766 00:026 OCABC: IsEfiBootRt 0 (BP 1, Apple 0) 17:818 00:052 OCI4: Manifest (2800) for 65666962 parse fail with code 1 17:849 00:030 OCI4: Verifying digest 48 (4CDB0B58) override 0 48 (00000000) 17:888 00:039 OCSB: Verified IMG4 without issues 17:937 00:048 OCB: Arch filtering 96FD2018(723512)->96FD2018(723512) caps 4 - Success 17:968 00:031 OCB: Matching <>/0[0] args on type 2 18:006 00:037 OCABC: Recovering trashed GetMemoryMap pointer 18:033 00:027 OCABC: VMware Mac installed on 9741C118 - Success 18:070 00:037 OCABC: Patching safe mode sur-2 at off 5FD9 18:100 00:030 OCABC: MMIO devirt start 18:129 00:028 OCABC: MMIO devirt 0xE0000000 (0x10000 pages, 0x800000000000100D) skip 1 18:187 00:058 OCABC: MMIO devirt 0xFE000000 (0x11 pages, 0x8000000000000001) skip 1 18:217 00:029 OCABC: MMIO devirt 0xFEC00000 (0x1 pages, 0x800000000000100D) skip 1 18:254 00:037 OCABC: MMIO devirt 0xFED00000 (0x4 pages, 0x800000000000100D) skip 1 18:283 00:028 OCABC: MMIO devirt 0xFEE00000 (0x1 pages, 0x8000000000000001) skip 1 18:311 00:027 OCABC: MMIO devirt 0xFF000000 (0x1000 pages, 0x800000000000100D) skip 1 18:346 00:035 OCABC: MMIO devirt end, saved 0 KB 18:376 00:029 OCABC: Only 128/256 slide values are usable! 18:424 00:048 OCABC: Valid slides - 128-255 18:460 00:036 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 18:487 00:026 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 18:526 00:038 AAPL: #[EB|H:IS] 0 18:554 00:028 AAPL: #[EB|LOG:INIT] 2023-10-07T14:08:58 18:581 00:027 AAPL: #[EB|VERSION] <"bootbase.efi 577.140.2~15 (Official), built 2023-06-23T21:54:27-0700"> 18:617 00:035 AAPL: #[EB|BUILD] <"BUILD-INFO[410]:{"DisplayName":"bootbase.efi","DisplayVersion":"577.140.2~15","RecordUuid":"EEBDCC86-79C4-402C-8B4A-0486E4BCED17","BuildTime":"2023-06-23T21:54:27-0700","ProjectName":"efiboot","ProductName":"bootbase.efi","SourceVersion":"577.140.2","BuildVersion":"15","BuildConfiguration":"Release","BuildType":"Official","Compiler":"clang-1403.0.22.11","SdkVersion":"13.5","SdkBuild":"22G62","TargetArchitectures":"x86_64"}"> 18:647 00:029 AAPL: #[EB.CFG.DEV|!] Err(0xE) <- RT.GV booter-strict-xmlparser 7C436110-AB2A-4BBB-A880-FE41995C9F82 18:683 00:036 AAPL: #[EB|CFG:DEV] r5 0x0 0x0 18:711 00:027 AAPL: #[EB|H:IS] 0 18:738 00:026 AAPL: #[EB|WL:MODE] 0 18:776 00:038 AAPL: #[EB|CFG:ARG] boot-save-log 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) default 18:805 00:028 AAPL: #[EB|CFG:ARG] wake-save-log 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) default 18:840 00:035 AAPL: #[EB|CFG:ARG] console 0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) default 18:888 00:048 AAPL: #[EB|CFG:ARG] serial 0x0000000000000001 (0x0000000000000001 < 0x0000000000000000) default 18:918 00:029 AAPL: #[EB|CFG:ARG] preoslog 0x0000000000000001 (0x0000000000000001 < 0xFFFFFFFFFFFFFFFF) default 18:955 00:036 AAPL: #[EB|CFG:ARG] timestamps 0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) default 18:982 00:027 AAPL: #[EB|CFG:ARG] log-level 0x0000000000000001 (0x0000000000000001 & 0x0000000000000021) default 19:018 00:035 AAPL: #[EB|CFG:ARG] breakpoint 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default 19:047 00:029 AAPL: #[EB|CFG:ARG] kc-read-size 0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) default 19:085 00:038 AAPL: #[EB|CFG:ARG] force-error 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default 19:113 00:027 AAPL: #[EB|H:IS] 0 19:140 00:027 AAPL: #[EB|WL] 0 0 0x01 0x01 0 0x00 19:179 00:039 AAPL: #[EB|BRD:NV] Mac-CFF7D910A743CAAF 19:207 00:028 OCOS: OS set: <null> macOS 11.0 19:244 00:036 OCOS: OS set: Apple Inc. macOS 11.0 19:271 00:027 AAPL: #[EB|B:VAw] 19:300 00:029 AAPL: #[EB|B:IAw] 19:358 00:057 AAPL: #[EB|WL] 0 0 0x01 0x01 2 0x00 19:386 00:028 AAPL: #[EB.BST.IDT|+] 19:425 00:039 AAPL: #[EB|BM] J185AP 19:457 00:031 AAPL: #[EB.BST.IDT|-] 19:494 00:036 AAPL: #[EB|WL] 0 0 0x01 0x01 3 0x00 19:542 00:048 AAPL: #[EB|WL] 0 0 0x01 0x01 4 0x00 19:569 00:027 AAPL: #[EB|BRD:NV] Mac-CFF7D910A743CAAF 19:607 00:038 AAPL: #[EB|WL] 0 0 0x01 0x01 5 0x00 19:636 00:028 AAPL: #[EB.H.CHK|BM] 0x0000000000000000 19:672 00:036 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 19:699 00:026 AAPL: #[EB|WL] 0 0 0x01 0x01 23 0x0E 19:737 00:037 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 19:765 00:028 AAPL: #[EB|WL] 0 0 0x01 0x01 24 0x0E 19:793 00:027 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82 19:847 00:054 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 19:879 00:031 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 19:908 00:028 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82 19:944 00:036 AAPL: #[EB|H:NOT] 19:971 00:027 AAPL: #[EB|SB:P] 0x1 20:010 00:038 AAPL: #[EB.B.MN|BM:+SB] 20:038 00:028 AAPL: #[EB|LIMG:DP] Acpi(PNP0A03,0)/Pci(14|0)/Usb(15, 0)/HD(Part2,Sig7ECF3586-A55A-405D-9FDD-0CA2409A2E19) 20:066 00:027 AAPL: #[EB|LIMG:FP] \System\Library\CoreServices\boot.efi 20:101 00:035 AAPL: #[EB|LIMG:OPT] 20:131 00:030 AAPL: #[EB|RPS] 0 0 0 20:169 00:037 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> 20:197 00:027 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> <"0"> 20:224 00:027 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> 20:263 00:039 AAPL: #[EB.OPT.LXF|LF!] Err(0xE) 20:292 00:028 AAPL: #[EB.OPT.LXF|F] <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> 20:348 00:056 AAPL: #[EB.LD.LF|IN] 0 1 <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> <"0"> 20:377 00:029 AAPL: #[EB|KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg"> 20:407 00:029 AAPL: #[EB|MBA:CL] <""> 20:445 00:038 AAPL: #[EB|MBA:NV] <"-v keepsyms=1 debug=0x100 alcid=1 slide=215"> 20:472 00:027 AAPL: #[EB|MBA:KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg"> 20:509 00:036 AAPL: #[EB|MBA:OUT] <"-v keepsyms=1 debug=0x100 alcid=1 slide=215 root-dmg=file:///BaseSystem/BaseSystem.dmg"> 20:539 00:029 AAPL: #[EB|LOG:VERBOSE] 2023-10-07T14:09:00 20:567 00:028 AAPL: #[EB.CSR.S|VAR] 0x00000040 20:603 00:036 AAPL: #[EB|OPT:BM] 0x200082 20:630 00:027 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\PlatformSupport.plist"> 20:668 00:037 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\PlatformSupport.plist"> <"0"> 20:697 00:029 AAPL: #[EB|P:CPR] N 20:725 00:027 AAPL: #[EB|P:MPI] N 20:761 00:036 AAPL: #[EB|P:BPI] N 20:811 00:050 AAPL: #[EB.OPT.RKS|!] Err(0xE) <- BS.LocP EDB4A040-6D8A-11EC-8FAD-3E22FB93ADCF 20:866 00:054 AAPL: #[EB|KMR] 503230464 20:894 00:027 AAPL: #[EB.CS.CSKSD|+] 20:921 00:027 AAPL: #[EB.CS.CSKSD|!] Err(0xE) <- RT.GV boot-info-payload 8D63D4FE-BD3C-4AAD-881D-86FD974BC1DF 20:959 00:037 AAPL: #[EB.G.CS|-?] Ok(0) 20:990 00:030 AAPL: #[EB.LD.LF|IN] 0 1 <"<null string>"> <"1"> 21:036 00:046 AAPL: #[EB.B.SBS|SZ] 723512 21:074 00:038 AAPL: #[EB|B:SHA] <36dee66960fb4346e7a2eb09e1b64e14161a81ed> 21:113 00:039 AAPL: #[EB.WL.PWLFNV|!] Err(0xE) <- RT.GV wake-failure 7C436110-AB2A-4BBB-A880-FE41995C9F82 21:154 00:040 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFNV 21:182 00:028 AAPL: #[EB.WL.PWLFRTC|NONE] 21:221 00:038 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFRTC 21:256 00:035 AAPL: #[EB.LD.LKC|D] <"System\Library\KernelCollections\BootKernelExtensions.kc.development"> 21:293 00:036 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.development"> <"0"> 21:360 00:067 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.development"> 21:396 00:036 AAPL: #[EB.LD.LKC|R.2] <"System\Library\KernelCollections\BootKernelExtensions.kc"> 21:439 00:042 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc"> <"0"> 21:550 00:111 OC: Kext reservation size info 569000 exe 2C1000 21:578 00:028 OC: Trying 64-bit XNU hook on System\Library\KernelCollections\BootKernelExtensions.kc 23:067 01:488 OC: Result of 64-bit XNU hook on System\Library\KernelCollections\BootKernelExtensions.kc (15238A16) is Success 23:109 00:041 OCAK: Read kernel version 22.6.0 (220600) 23:151 00:042 OCAK: Zeroing _xcpm_core_scope_msrs 0xE2 applicable CPUs (76) 23:178 00:027 OCAK: Zeroing _xcpm_core_scope_msrs 0xE2 applicable CPUs (406416) 23:215 00:036 OCAK: Zeroing _xcpm_core_scope_msrs 0xE2 applicable CPUs (540672) 23:246 00:030 OCAK: 64-bit XcpmCfgLockRel replace count - 2 23:283 00:036 OCAK: [OK] Success XcpmCfgLock patch 23:336 00:053 OCAK: 64-bit PanicKextDump replace count - 1 23:375 00:039 OCAK: [OK] Patch success kext dump 23:425 00:049 OCAK: 64-bit PowerStateTimeout replace count - 0 23:466 00:041 OCAK: No inline power state patch - Not Found, trying fallback 23:508 00:041 OCAK: 64-bit PowerStateTimeout replace count - 1 23:546 00:038 OCAK: [OK] Patch success power state 23:579 00:032 OCAK: [OK] Found jettisoning fileset 23:658 00:079 OCAK: Failed to pk find com.apple.driver.AppleTyMCEDriver - Not Found 23:695 00:036 OC: Prelinked blocker (Disable) result 0 for com.apple.driver.AppleTyMCEDriver (Patch engine) - Not Found 23:761 00:066 OCAK: Local relocs 689 on FFFFFF8004365000 23:805 00:043 OC: Prelinked injection Lilu.kext (V1.6.7 | Lilu.kext) - Success 23:833 00:028 OC: Prelinked injection Lilu.kext v1.6.7 23:871 00:038 OCAK: Patching invalid size 2000 with 1929000 for com.apple.iokit.IOACPIFamily 23:910 00:038 OCAK: Local relocs 515 on FFFFFF8004394000 23:976 00:065 OC: Prelinked injection VirtualSMC.kext (V1.3.2) - Success 24:004 00:028 OC: Prelinked injection VirtualSMC.kext v1.3.2 24:043 00:039 OCAK: Patching invalid size 32000 with 14B9000 for com.apple.iokit.IOPCIFamily 24:105 00:062 OCAK: Local relocs 1922 on FFFFFF80043AE000 24:155 00:049 OC: Prelinked injection WhateverGreen.kext (V1.6.6 | WhateverGreen.kext) - Success 24:184 00:028 OC: Prelinked injection WhateverGreen.kext v1.6.6 24:239 00:055 OCAK: Local relocs 5817 on FFFFFF8004431000 24:308 00:069 OC: Prelinked injection AppleALC.kext (V1.8.5 | AppleALC.kext) - Success 24:348 00:040 OC: Prelinked injection AppleALC.kext v1.8.5 24:379 00:030 OCAK: Patching invalid size 16FF4 with 171A000 for com.apple.iokit.IONetworkingFamily 24:432 00:052 OCAK: Local relocs 441 on FFFFFF80045E4000 24:465 00:032 OC: Prelinked injection LucyRTL8125Ethernet.kext (V1.1.0 | LucyRTL8125Ethernet.kext) - Success 24:503 00:038 OC: Prelinked injection LucyRTL8125Ethernet.kext v1.1.0 24:539 00:036 OCAK: Local relocs 625 on FFFFFF8004619000 24:578 00:038 OC: Prelinked injection NVMeFix.kext (V1.1.1 | NVMeFix.kext) - Success 24:605 00:026 OC: Prelinked injection NVMeFix.kext v1.1.1 24:643 00:038 OC: Prelink size 72507392 kext offset 69619712 reserved 2887680 24:692 00:048 OCAK: KC TEXT is 65536 bytes with 62328 Mach-O headers need 576 24:763 00:071 OCAK: Patching invalid size 75FF4 with 1113000 for com.apple.iokit.IOUSBHostFamily 24:795 00:031 OCAK: 64-bit RemoveUsbLimitIoP1 part 1 replace count - 1 24:854 00:058 OCAK: [OK] Patch success port com.apple.iokit.IOUSBHostFamily part 1 24:883 00:029 OCAK: 64-bit RemoveUsbLimitIoP1 part 2 replace count - 1 24:910 00:027 OCAK: [OK] Patch success port com.apple.iokit.IOUSBHostFamily part 2 24:949 00:038 OCAK: Patching invalid size 3CFF8 with FEC000 for com.apple.driver.usb.AppleUSBXHCI 24:978 00:029 OCAK: 64-bit RemoveUsbLimitV2 replace count - 1 25:016 00:037 OCAK: [OK] Patch success com.apple.driver.usb.AppleUSBXHCI 25:045 00:029 OCAK: Patching invalid size 24FF5 with FA5000 for com.apple.driver.usb.AppleUSBXHCIPCI 25:082 00:036 OCAK: [OK] Skipping legacy port patch AppleUSBXHCIPCI on 220600 25:111 00:029 OCAK: 64-bit AppleIoMapper replace count - 1 25:149 00:037 OCAK: [OK] Patch success com.apple.iokit.IOPCIFamily AppleIoMapper 25:314 00:165 OC: Prelinked status - Success 25:561 00:247 AAPL: #[EB|SB:P] 0x1 25:597 00:035 AAPL: #[EB|SB:SBGMFNS] j185ap.im4m 25:639 00:042 AAPL: #[EB|SB:MF] System\\Library\\KernelCollections\\BootKernelExtensions.kc.j185ap.im4m 25:674 00:034 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.j185ap.im4m"> <"0"> 25:716 00:042 OCI4: Verifying digest 48 (15238A16) override 1 48 (15238A16) 25:924 00:207 OCI4: Matching override 99EED4BB with 99EED4BB - success 25:957 00:033 AAPL: #[EB|SB:MKRN] 26:004 00:046 AAPL: #[EB.LD.LKFS|-?] Ok(0) 26:037 00:032 AAPL: #[EB.LD.LKC|-?] Ok(0) 26:095 00:058 AAPL: #[EB|BST:REV1] 26:125 00:030 AAPL: #[EB|CSR:OUT] 0x00000040 26:164 00:038 AAPL: #[EB.BST.FBS|+] 26:192 00:028 AAPL: #[EB.BST.FBS|ADSZ] 0 26:231 00:039 AAPL: #[EB.BST.FBS|KSSZ] 0 26:282 00:050 AAPL: #[EB|SB:SBGMFNS] j185ap.im4m 26:313 00:030 AAPL: #[EB|RH:PF] usr\standalone\OS.dmg.root_hash 26:353 00:039 AAPL: #[EB|RH:MF] <"usr\\standalone\\OS.dmg.root_hash.j185ap.im4m"> 26:386 00:033 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash"> <"0"> 26:428 00:041 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"usr\\standalone\\OS.dmg.root_hash"> 26:457 00:029 AAPL: #[EB.RH.LRH|P!] Err(0xE) <- EB.LD.LF 26:496 00:038 AAPL: #[EB.BST.FBS|!] Err(0xE) <- EB.RH.LRH 26:525 00:029 OCSMC: SmcReadValue Key 4D535463 Size 1 26:563 00:037 OCSMC: SmcReadValue Key 4D534163 Size 2 26:592 00:029 AAPL: #[EB|LOG:DT] 2023-10-07T14:09:06 26:631 00:038 AAPL: #[EB|LOG:EXITBS:START] 2023-10-07T14:09:06 The attachment is my EFI boot. I appreciate any help. Thank in advance. EFI.zip Quote Link to comment https://www.insanelymac.com/forum/topic/357790-got-stuck-at-eblogexistbsstart-when-try-to-install-macos-ventura/ Share on other sites More sharing options...
droples Posted October 7, 2023 Share Posted October 7, 2023 47 minutes ago, koobit said: Hi everyone, Here is my desktop specs: Motherboard MSI B460 Tomahawk CPU Intel 10400 GPU AMD RX480 Crucial 2*8GB DDR4 500GB SSD disk drive (Kioxia) I had also config my motherboard bios disable Fastboot, disable Secure boot, disable CFG-Lock... as Dortania Opencore's guides. Then I try to install MacOS 13 Ventura with Opencore 0.9.5 but still got stuck at "[EB|LOG:EXITBS:START]". I tried the #Kernel Issues on Dortania guides: * enable / disable DevirtualiseMmio * try to MmioWhitelist with disable DevirtualiseMmio ... But it won't work after all, stick stuck at [EB|LOG:EXITBS:START]. Here is my log: 00:000 00:000 BS: Starting OpenCore application... 00:000 00:000 BS: Booter path - \EFI\BOOT\BOOTX64.EFI 00:000 00:000 OCFS: Trying to locate filesystem on 98223F98 9A83BB18 00:000 00:000 OCFS: Filesystem DP - \EFI\BOOT\BOOTX64.EFI 00:000 00:000 BS: Trying to load OpenCore image... 00:000 00:000 BS: Relative path - EFI 00:000 00:000 BS: Startup path - EFI\OpenCore.efi (0) 00:000 00:000 BS: Fallback to absolute path - EFI\OC\OpenCore.efi 00:000 00:000 BS: Read OpenCore image of 835584 bytes 00:000 00:000 OCM: Loaded image at 98A54E98 handle 00:000 00:000 OCM: Loaded image has DeviceHandle 98223F98 FilePath 98AAA598 ours DevicePath 98AAA798 00:000 00:000 OCCPU: TSC Adjust 0 00:000 00:000 OCCPU: Core Crystal Clock Frequency from TSC 24000055Hz = 2904006716Hz * 2 / 242 00:000 00:000 OCCPU: CPUFrequencyFromART 2900000000Hz 2900MHz = 24000055 * 242 / 2 00:000 00:000 OC: Starting OpenCore... 00:000 00:000 OC: Booter path - EFI\OC\OpenCore.efi 00:000 00:000 OCFS: Trying to locate filesystem on 98223F98 98AAA598 00:000 00:000 OCFS: Filesystem DP - EFI\OC\OpenCore.efi 00:000 00:000 OC: Absolute booter path - EFI\OC\OpenCore.efi 00:000 00:000 OC: Storage root EFI\OC\OpenCore.efi 00:000 00:000 OCST: Missing vault data, ignoring... 00:000 00:000 OC: OcMiscEarlyInit... 00:000 00:000 OC: Loaded configuration of 32487 bytes 00:000 00:000 OCS: Missing key DisableIoMapperMapping, context <Quirks>! 00:000 00:000 OCS: Missing key InstanceIdentifier, context <Boot>! 00:000 00:000 OCS: Missing key ConsoleFont, context <Output>! 00:000 00:000 OCS: Missing key GopBurstMode, context <Output>! 00:000 00:000 OCS: Missing key InitialMode, context <Output>! 00:000 00:000 OCS: Missing key PciIo, context <ProtocolOverrides>! 00:000 00:000 OCS: Missing key ResizeUsePciRbIo, context <Quirks>! 00:000 00:000 OCS: Missing key ShimRetainProtocol, context <Quirks>! 00:000 00:000 OC: Got 2 drivers 00:000 00:000 OC: Watchdog status is 0 00:063 00:063 OC: OpenCore DBG-095-2023-09-11 is loading in Optional mode (0/0)... 00:091 00:028 OC: Boot timestamp - 2023.10.07 14:08:40 00:126 00:035 OCCPU: MP services threads 12 (enabled 12) - Success 00:154 00:027 OCCPU: MP services Pkg 1 Cores 6 Threads 2 - Success 00:183 00:029 OCCPU: Found Intel(R) Core(TM) i5-10400 CPU @ 2.90GHz 00:220 00:037 OCCPU: Signature A0655 Stepping 5 Model A5 Family 6 Type 0 ExtModel A ExtFamily 0 uCode E2 CPUID MAX (16/80000008) 00:247 00:027 OCCPU: EIST CFG Lock 0 00:274 00:026 OCCPU: TSC Adjust 0 00:413 00:139 OCCPU: Core Crystal Clock Frequency from TSC 24000028Hz = 2904003406Hz * 2 / 242 00:445 00:032 OCCPU: CPUFrequencyFromART 2900000000Hz 2900MHz = 24000028 * 242 / 2 00:480 00:034 OCCPU: Timer address is 1808 from PMC ACPI 00:540 00:059 OCCPU: Failed to get FSBFrequency data using Apple Platform Info - Not Found 00:671 00:131 OCCPU: Intel TSC: 2900000000Hz, 2900MHz; FSB: 100000000Hz, 100MHz; MaxBusRatio: 29 00:712 00:040 OCCPU: Detected Apple Processor Type: 06 -> 0609 00:739 00:027 OCCPU: CPUFrequencyFromTSC 2903998150Hz 2903MHz 00:775 00:035 OCCPU: CPUFrequency 2900000000Hz 2900MHz 00:806 00:031 OCCPU: FSBFrequency 100000000Hz 100MHz 00:834 00:027 OCCPU: Pkg 1 Cores 6 Threads 12 00:870 00:036 OC: OcLoadNvramSupport... 00:897 00:026 OCVAR: Locate emulated NVRAM protocol - Not Found 00:927 00:029 OC: Deleting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Not Found 00:964 00:037 OC: Not deleting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:rtc-blacklist, matches add 00:991 00:027 OC: Not deleting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args, matches add 01:026 00:035 OC: Not deleting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:ForceDisplayRotationInEFI, matches add 01:058 00:032 OCVAR: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Success 01:087 00:028 OCVAR: Setting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:rtc-blacklist - Not Found 01:149 00:061 OCVAR: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:ForceDisplayRotationInEFI - ignored, exists 01:176 00:027 OCVAR: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:SystemAudioVolume - ignored, exists 01:205 00:029 OCVAR: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args - ignored, exists 01:242 00:037 OCVAR: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:csr-active-config - ignored, exists 01:269 00:027 OCVAR: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:prev-lang:kbd - ignored, exists 01:328 00:058 OCVAR: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:run-efi-updater - ignored, exists 01:359 00:030 OC: Current version is DBG-095-2023-09-11 01:387 00:028 OC: OcMiscMiddleInit... 01:423 00:035 OC: StorageHandle 98223F98 with Disabled LauncherOption pointing to Default 01:451 00:027 OC: OcLoadUefiSupport... 01:480 00:029 OCAU: OcAudioInstallProtocols (0, 0) 01:517 00:037 OCAU: 4B228577-6274-4A48-82AE-0713A1171987 protocol - Not Found 01:544 00:027 OCAU: C32332DF-FC56-4FE1-9358-BA0D529B24CD protocol - Not Found 01:571 00:026 OCAU: F4CB0B78-243B-11E7-A524-B8E8562CBAFA protocol - Not Found 01:635 00:063 OCAU: 3224B169-EC34-46D2-B779-E1B1687F525F protocol - Not Found 01:663 00:028 OCAE: Builtin installed 01:699 00:035 OCRTC: Wake log is 0x00 0x00 0 0x00 01:726 00:027 OCEG: Discovered rotate NVRAM override to 0 01:756 00:029 OC: Automatic SB model j185 from model iMac20,1 01:793 00:037 OC: Loading Apple Secure Boot with j185 (level 1) 01:825 00:032 OCII: AIFTimerBoostInit Current timer is 10000 01:852 00:026 OC: Installing KeySupport... 01:890 00:038 OCII: gST->ConIn 9CE00350 vs found 9CE00350 01:918 00:027 AIK: Using 5 (50ms) 01:953 00:035 OCABC: ALRBL 0 RTDFRG 1 DEVMMIO 1 NOSU 1 NOVRWR 0 NOSB 0 FBSIG 0 NOHBMAP 0 SMSLIDE 1 WRUNPROT 0 01:981 00:027 OCABC: FEXITBS 0 PRMRG 0 CSLIDE 1 MSLIDE 0 PRSRV 1 RBMAP 1 VMAP 0 APPLOS 0 RTPERMS 1 ARBAR -1 RBIO 0 02:010 00:029 OCABC: Firmware has 4154426 free pages (619578 in lower 4 GB) 02:047 00:036 OCABC: Awaiting rendezvous with OpenRuntime r12 02:101 00:054 OC: RequestBootVarRouting 1 02:140 00:038 OCDM: Found 0x20046/0x20046 UEFI version (376 bytes, 0 rebuilding to 376) gST 9E994018 gBS 99980EF0 gBS->CreateEventEx 9997403C &gBS 9718C1D0 02:169 00:029 OC: AVX enabled - 1 02:206 00:037 OC: Got 2 drivers 02:234 00:027 OC: Driver OpenRuntime.efi at 0 (OpenRuntime.efi) is being loaded... 02:262 00:028 OCABC: EfiBootRt candidate - <nil> 02:300 00:038 OCABC: IsEfiBootRt 0 (BP 1, Apple 0) 02:328 00:028 OCB: Arch filtering 0(36864)->9741C018(36864) caps 4 - Success 02:364 00:036 OCABC: Recovering trashed GetMemoryMap pointer 02:392 00:027 OCABC: Got rendezvous with OpenRuntime r12 02:421 00:029 OCABC: MAT support is 1 02:459 00:037 OC: Driver OpenRuntime.efi at 0 is successfully loaded! 02:486 00:027 OC: Driver HfsPlus.efi at 1 (HfsPlus.efi) is being loaded... 02:515 00:028 OCABC: EfiBootRt candidate - <nil> 02:575 00:060 OCABC: IsEfiBootRt 0 (BP 1, Apple 0) 02:606 00:030 OCB: Arch filtering 0(37892)->9741C018(37892) caps 4 - Success 02:643 00:036 OCABC: Recovering trashed GetMemoryMap pointer 02:695 00:051 OC: Driver HfsPlus.efi at 1 is successfully loaded! 02:733 00:037 OC: Driver HfsPlus.efi at 1 needs connection. 02:761 00:027 OC: Connecting drivers... 02:959 00:197 OC: Connecting drivers done... 02:990 00:030 OC: Found 2 pointer devices - Success 03:028 00:037 OCJS: PartitionInfo is Success 03:056 00:028 OCC: Installing GOP (Unsupported) on ConsoleOutHandle... 03:083 00:027 OC: Requested resolution is 0x0@0 (max: 1, force: 0) from Max 03:119 00:035 OCC: Requesting 0x0@0 (max: 1) resolution, curr 0, total 8 03:148 00:029 OCC: Current FB at 0x4000000000 (0xE10000), format 1, res 2560x1440 scan 2560 03:185 00:037 OCC: Mode 0 - 2560x1440:1 03:213 00:027 OCC: Mode 1 - 640x480:1 03:264 00:051 OCC: Mode 2 - 800x600:1 03:304 00:039 OCC: Mode 3 - 1024x768:1 03:332 00:028 OCC: Mode 4 - 1280x1024:1 03:368 00:036 OCC: Mode 5 - 1400x1050:1 03:396 00:027 OCC: Mode 6 - 1600x1200:1 03:425 00:029 OCC: Mode 7 - 1280x960:1 03:462 00:037 OCC: Current mode matches desired mode 0 03:489 00:027 OC: Changed resolution to 0x0@0 (max: 1, force: 0) from Max - Already started 03:525 00:035 OC: Selected UIScale 1 based on 2560x1440 resolution 03:555 00:029 OC: Setting UIScale to 1 - Invalid Parameter 03:583 00:028 OCC: Using builtin text renderer with 1 scale 03:620 00:036 OCC: Install console control (97179F18/9996B000/0), current - Success 03:655 00:035 OCC: Setup ASCII Output - Success 03:697 00:042 OC: Requested console mode is 0x0 (max: 0) from 03:749 00:052 OC: Requested not to use audio 03:776 00:027 OC: OcMiscLoadSystemReport... 03:813 00:036 OC: OcLoadAcpiSupport... 03:842 00:029 OCA: Found 22 ACPI tables 03:879 00:036 OCA: Detected table FACP (50434146) (OEM 00002049204D2041) at 9DB8E000 of 276 bytes at index 0 03:907 00:027 OCA: Detected DSDT at 9DB55000 of 232438 bytes at index 0 03:933 00:026 OCA: Detected table MCFG (4746434D) (OEM 00002049204D2041) at 9DB92000 of 60 bytes at index 1 03:971 00:037 OCA: Detected table SSDT (54445353) (OEM 0074647353757043) at 9DB8F000 of 8365 bytes at index 2 04:000 00:028 OCA: Detected table FIDT (54444946) (OEM 00000049204D2041) at 9DB54000 of 156 bytes at index 3 04:036 00:035 OCA: Detected table SSDT (54445353) (OEM 0020746473536153) at 9DB50000 of 12762 bytes at index 4 04:063 00:027 OCA: Detected table SSDT (54445353) (OEM 0074647353676550) at 9DB4D000 of 10094 bytes at index 5 04:093 00:029 OCA: Detected table HPET (54455048) (OEM 00002049204D2041) at 9DB94000 of 56 bytes at index 6 04:133 00:039 OCA: Detected table SSDT (54445353) (OEM 7076525F72656854) at 9DB4B000 of 5243 bytes at index 7 04:185 00:051 OCA: Detected table SSDT (54445353) (OEM 3464766D635F6878) at 9DB47000 of 13030 bytes at index 8 04:243 00:058 OCA: Detected table NHLT (544C484E) (OEM 00002049204D2041) at 9DB93000 of 45 bytes at index 9 04:272 00:029 OCA: Detected table LPIT (5449504C) (OEM 00002049204D2041) at 9DB46000 of 148 bytes at index 10 04:300 00:027 OCA: Detected table SSDT (54445353) (OEM 6376654464697450) at 9DB42000 of 10016 bytes at index 11 04:337 00:036 OCA: Detected table SSDT (54445353) (OEM 4365707954746254) at 9DB3F000 of 9650 bytes at index 12 04:364 00:026 OCA: Detected table DBGP (50474244) (OEM 00002049204D2041) at 9DB3E000 of 52 bytes at index 13 04:403 00:038 OCA: Detected table DBG2 (32474244) (OEM 00002049204D2041) at 9DB3D000 of 84 bytes at index 14 04:431 00:028 OCA: Detected table SSDT (54445353) (OEM 6C62615443627355) at 9DB3B000 of 7015 bytes at index 15 04:458 00:027 OCA: Detected table VFCT (54434656) (OEM 00002049204D2041) at 9DB2C000 of 59524 bytes at index 16 04:494 00:035 OCA: Detected table BGRT (54524742) (OEM 00002049204D2041) at 9DB2B000 of 56 bytes at index 17 04:523 00:029 OCA: Detected table WSMT (544D5357) (OEM 00002049204D2041) at 9DB45000 of 40 bytes at index 18 04:559 00:036 OCA: Detected table APIC (43495041) (OEM 00002049204D2041) at 9DB29000 of 244 bytes at index 19 04:587 00:027 OCA: Detected table FPDT (54445046) (OEM 00000000004C4D43) at 9DB28000 of 68 bytes at index 20 04:614 00:026 OCA: Detected table BGRT (54524742) (OEM 00002049204D2041) at 9DB2A000 of 56 bytes at index 21 04:652 00:038 OCA: FACS signature is 0 (0) 04:705 00:052 OCA: Allocated new table SSDT at 9DD13000 04:741 00:036 OCA: Inserted table SSDT (54445353) (OEM 0000000043415741) of 73 bytes into ACPI at index 22 04:769 00:027 OCA: Allocated new table SSDT at 9DD11000 04:798 00:029 OCA: Inserted table SSDT (54445353) (OEM 0000434574647353) of 7341 bytes into ACPI at index 23 04:835 00:036 OCA: Allocated new table SSDT at 9DD10000 04:862 00:027 OCA: Inserted table SSDT (54445353) (OEM 0067756C50757043) of 693 bytes into ACPI at index 24 04:897 00:035 OCA: Allocated new table SSDT at 9DD0F000 04:927 00:029 OCA: Inserted table SSDT (54445353) (OEM 0066664F62756852) of 325 bytes into ACPI at index 25 04:955 00:028 OCA: Exposing XSDT table table FACP (50434146) (OEM 00002049204D2041) at 9DB8E000 of 276 bytes at index 0 04:991 00:036 OCA: Exposing XSDT table table MCFG (4746434D) (OEM 00002049204D2041) at 9DB92000 of 60 bytes at index 1 05:018 00:026 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0074647353757043) at 9DB8F000 of 8365 bytes at index 2 05:056 00:037 OCA: Exposing XSDT table table FIDT (54444946) (OEM 00000049204D2041) at 9DB54000 of 156 bytes at index 3 05:085 00:028 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0020746473536153) at 9DB50000 of 12762 bytes at index 4 05:112 00:027 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0074647353676550) at 9DB4D000 of 10094 bytes at index 5 05:170 00:058 OCA: Exposing XSDT table table HPET (54455048) (OEM 00002049204D2041) at 9DB94000 of 56 bytes at index 6 05:202 00:031 OCA: Exposing XSDT table table SSDT (54445353) (OEM 7076525F72656854) at 9DB4B000 of 5243 bytes at index 7 05:230 00:028 OCA: Exposing XSDT table table SSDT (54445353) (OEM 3464766D635F6878) at 9DB47000 of 13030 bytes at index 8 05:266 00:036 OCA: Exposing XSDT table table NHLT (544C484E) (OEM 00002049204D2041) at 9DB93000 of 45 bytes at index 9 05:318 00:051 OCA: Exposing XSDT table table LPIT (5449504C) (OEM 00002049204D2041) at 9DB46000 of 148 bytes at index 10 05:356 00:037 OCA: Exposing XSDT table table SSDT (54445353) (OEM 6376654464697450) at 9DB42000 of 10016 bytes at index 11 05:384 00:028 OCA: Exposing XSDT table table SSDT (54445353) (OEM 4365707954746254) at 9DB3F000 of 9650 bytes at index 12 05:420 00:035 OCA: Exposing XSDT table table DBGP (50474244) (OEM 00002049204D2041) at 9DB3E000 of 52 bytes at index 13 05:447 00:027 OCA: Exposing XSDT table table DBG2 (32474244) (OEM 00002049204D2041) at 9DB3D000 of 84 bytes at index 14 05:476 00:029 OCA: Exposing XSDT table table SSDT (54445353) (OEM 6C62615443627355) at 9DB3B000 of 7015 bytes at index 15 05:539 00:063 OCA: Exposing XSDT table table VFCT (54434656) (OEM 00002049204D2041) at 9DB2C000 of 59524 bytes at index 16 05:569 00:029 OCA: Exposing XSDT table table BGRT (54524742) (OEM 00002049204D2041) at 9DB2B000 of 56 bytes at index 17 05:605 00:036 OCA: Exposing XSDT table table WSMT (544D5357) (OEM 00002049204D2041) at 9DB45000 of 40 bytes at index 18 05:634 00:028 OCA: Exposing XSDT table table APIC (43495041) (OEM 00002049204D2041) at 9DB29000 of 244 bytes at index 19 05:671 00:036 OCA: Exposing XSDT table table FPDT (54445046) (OEM 00000000004C4D43) at 9DB28000 of 68 bytes at index 20 05:723 00:052 OCA: Exposing XSDT table table BGRT (54524742) (OEM 00002049204D2041) at 9DB2A000 of 56 bytes at index 21 05:750 00:026 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0000000043415741) at 9DD13000 of 73 bytes at index 22 05:788 00:037 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0000434574647353) at 9DD11000 of 7341 bytes at index 23 05:816 00:028 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0067756C50757043) at 9DD10000 of 693 bytes at index 24 05:853 00:036 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0066664F62756852) at 9DD0F000 of 325 bytes at index 25 05:880 00:026 OCA: Exposing RSDT table table FACP (50434146) (OEM 00002049204D2041) at 9DB8E000 of 276 bytes at index 0 05:909 00:029 OCA: Exposing RSDT table table MCFG (4746434D) (OEM 00002049204D2041) at 9DB92000 of 60 bytes at index 1 05:947 00:038 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0074647353757043) at 9DB8F000 of 8365 bytes at index 2 05:974 00:027 OCA: Exposing RSDT table table FIDT (54444946) (OEM 00000049204D2041) at 9DB54000 of 156 bytes at index 3 06:010 00:035 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0020746473536153) at 9DB50000 of 12762 bytes at index 4 06:039 00:029 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0074647353676550) at 9DB4D000 of 10094 bytes at index 5 06:067 00:028 OCA: Exposing RSDT table table HPET (54455048) (OEM 00002049204D2041) at 9DB94000 of 56 bytes at index 6 06:103 00:036 OCA: Exposing RSDT table table SSDT (54445353) (OEM 7076525F72656854) at 9DB4B000 of 5243 bytes at index 7 06:130 00:026 OCA: Exposing RSDT table table SSDT (54445353) (OEM 3464766D635F6878) at 9DB47000 of 13030 bytes at index 8 06:193 00:062 OCA: Exposing RSDT table table NHLT (544C484E) (OEM 00002049204D2041) at 9DB93000 of 45 bytes at index 9 06:222 00:028 OCA: Exposing RSDT table table LPIT (5449504C) (OEM 00002049204D2041) at 9DB46000 of 148 bytes at index 10 06:249 00:027 OCA: Exposing RSDT table table SSDT (54445353) (OEM 6376654464697450) at 9DB42000 of 10016 bytes at index 11 06:285 00:035 OCA: Exposing RSDT table table SSDT (54445353) (OEM 4365707954746254) at 9DB3F000 of 9650 bytes at index 12 06:314 00:029 OCA: Exposing RSDT table table DBGP (50474244) (OEM 00002049204D2041) at 9DB3E000 of 52 bytes at index 13 06:351 00:036 OCA: Exposing RSDT table table DBG2 (32474244) (OEM 00002049204D2041) at 9DB3D000 of 84 bytes at index 14 06:378 00:027 OCA: Exposing RSDT table table SSDT (54445353) (OEM 6C62615443627355) at 9DB3B000 of 7015 bytes at index 15 06:405 00:026 OCA: Exposing RSDT table table VFCT (54434656) (OEM 00002049204D2041) at 9DB2C000 of 59524 bytes at index 16 06:443 00:038 OCA: Exposing RSDT table table BGRT (54524742) (OEM 00002049204D2041) at 9DB2B000 of 56 bytes at index 17 06:472 00:028 OCA: Exposing RSDT table table WSMT (544D5357) (OEM 00002049204D2041) at 9DB45000 of 40 bytes at index 18 06:508 00:036 OCA: Exposing RSDT table table APIC (43495041) (OEM 00002049204D2041) at 9DB29000 of 244 bytes at index 19 06:535 00:027 OCA: Exposing RSDT table table FPDT (54445046) (OEM 00000000004C4D43) at 9DB28000 of 68 bytes at index 20 06:564 00:029 OCA: Exposing RSDT table table BGRT (54524742) (OEM 00002049204D2041) at 9DB2A000 of 56 bytes at index 21 06:601 00:037 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0000000043415741) at 9DD13000 of 73 bytes at index 22 06:653 00:051 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0000434574647353) at 9DD11000 of 7341 bytes at index 23 06:689 00:036 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0067756C50757043) at 9DD10000 of 693 bytes at index 24 06:718 00:029 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0066664F62756852) at 9DD0F000 of 325 bytes at index 25 06:746 00:028 OC: OcLoadPlatformSupport... 06:782 00:036 OCSMB: Found DMI Anchor 9E7B0000 v3.2 Table Address 9E7AD000 Length 1188 06:809 00:026 OCSMB: Found DMI Anchor 9E7AF000 v3.2 Table Address 9E7AD000 Length 1188 06:847 00:037 OCSMB: Current SMBIOS MS-7C82 (MAG B460M MORTAR (MS-7C82) made by Micro-Star International Co., Ltd.) 06:900 00:052 OC: PlatformInfo auto 1 OEM SN 0 OEM UUID 0 OEM MLB 0 OEM ROM 0 - Success 06:927 00:027 OC: New SMBIOS: Acidanthera model iMac20,1 06:963 00:035 OCSMB: Post-override BIOS vendor Acidanthera 0 06:992 00:029 OCSMB: Number of CPU cache entries is 3 07:028 00:036 OCSMB: Number of CPU cache entries is 3 07:056 00:027 OCSMB: Number of CPU cache entries is 3 07:082 00:026 OCSMB: CPU1 display frequency is 2900MHz 07:143 00:060 OCSMB: Applying 2195 (1) prev 9E7B0000 (4488/31), 9E7AF000 (4488/24) 07:173 00:030 OCSMB: Patched 9D6F6000 v3.2 Table Address 9D6F7000 Length 0893 1E ED 07:209 00:036 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:name (9) - Success 07:236 00:027 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:Model (18) - Success 07:266 00:029 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:SystemSerialNumber (26) - Success 07:303 00:037 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:system-id (16) - Success 07:331 00:027 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:board-id (21) - Success 07:366 00:035 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:board-rev (1) - Success 07:396 00:029 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:StartupPowerEvents (8) - Success 07:424 00:028 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:InitialTSC (8) - Success 07:461 00:036 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:FSBFrequency (8) - Success 07:488 00:027 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:ARTFrequency (8) - Success 07:526 00:037 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:DevicePathsSupported (4) - Success 07:555 00:028 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:RPlt (8) - Success 07:582 00:027 OC: Setting HW_BID Mac-CFF7D910A743CAAF - Success 07:643 00:061 OC: Setting HW_ROM 11:22:33:44:55:66 - Success 07:673 00:029 OC: Setting ROM 11:22:33:44:55:66 - Success 07:712 00:038 OC: Setting HW_MLB C02109306CDPHC1CB - Success 07:740 00:027 OC: Setting MLB C02109306CDPHC1CB - Success 07:776 00:036 OC: Setting HW_SSN C02FC030PN5T - Success 07:806 00:030 OC: Setting SSN C02FC030PN5T - Success 07:835 00:028 OC: Setting system-id 25647862-0147-AD48-B8B8-80F951AF216A - Success 07:872 00:036 OC: Setting FirmwareFeatures FFB3F066 - Success 07:899 00:027 OC: Setting ExtendedFirmwareFeatures 00000008FFB3F066 - Success 07:929 00:029 OC: Setting FirmwareFeaturesMask FFFFFFFF - Success 07:967 00:037 OC: Setting ExtendedFirmwareFeaturesMask 00000008FFFFFFFF - Success 07:994 00:027 OC: OcLoadDevPropsSupport... 08:030 00:035 OC: Setting devprop PciRoot(0x0)/Pci(0x1b,0x0):layout-id - Success 08:060 00:029 OC: Setting devprop PciRoot(0x0)/Pci(0x2,0x0):AAPL,ig-platform-id - Success 08:109 00:048 OC: Setting devprop PciRoot(0x0)/Pci(0x2,0x0):framebuffer-patch-enable - Success 08:146 00:037 OC: Setting devprop PciRoot(0x0)/Pci(0x2,0x0):framebuffer-stolenmem - Success 08:173 00:027 OC: OcMiscLateInit... 08:230 00:056 OC: Translated HibernateMode None to 0 08:258 00:028 OC: Hibernation activation - Invalid Parameter, hibernation wake - no 08:286 00:027 OC: Panic log does not exist 08:321 00:035 OC: OcLoadKernelSupport... 08:350 00:029 OC: All green, starting boot management... 08:387 00:037 OC: Ready for takeoff in 0 us 08:415 00:027 OCB: Adding fs 98223F98 (E:1|L:1|P:Success) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(1,GPT,3041589C-F165-4172-938C-88C3D76494F2,0x28,0x64000) 08:450 00:035 OCB: Adding fs 97D68B98 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x17,0x0)/Sata(0x2,0xFFFF,0x0)/HD(1,GPT,FCE7F3E8-185B-AA49-17D2-8AD7FE122A17,0x800,0x3A385800) 08:480 00:029 OCB: Adding fs 97D38518 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1B,0x0)/Pci(0x0,0x0)/NVMe(0x1,F2-70-04-91-86-38-25-00)/HD(1,GPT,C852F0C0-F1DE-427B-99FF-4D5741980614,0x800,0x32000) 08:508 00:028 OCB: Adding fs 97D21B18 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1B,0x0)/Pci(0x0,0x0)/NVMe(0x1,F2-70-04-91-86-38-25-00)/HD(3,GPT,CED5738C-C99C-4867-AF5B-4BCBB7343F4F,0x3A800,0x3B8667C6) 08:544 00:036 OCB: Adding fs 97D20F18 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1B,0x0)/Pci(0x0,0x0)/NVMe(0x1,F2-70-04-91-86-38-25-00)/HD(4,GPT,A85C2594-0BBD-4662-AFDE-E0A734915F90,0x3B8A1000,0x13F000) 08:591 00:046 OCB: Adding fs 98223718 (E:1|L:0|P:Success) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(2,GPT,7ECF3586-A55A-405D-9FDD-0CA2409A2E19,0x64028,0x1BFFD48) 08:629 00:038 OCB: Found 6 potentially bootable filesystems 08:658 00:029 OCB: Found 5 BootOrder entries with BootNext excluded 08:693 00:034 OCB: efi-boot-device-data = PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/SasEx(0x010000008CE38E03,0x00309D767074616C,0x0,NoTopology,0,0,0)/HD(2,GPT,BC02C18E-EB17-4575-AC97-62DB6530568E,0x64028,0x3A321FE0)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,01DD52A6E9E3884BAE86810714A50B8F)/\3B99DE99-4057-42B2-8FA1-1E6D1AF373A3\System\Library\CoreServices\boot.efi 08:722 00:028 OCB: efi-boot-next-data - Not Found 08:751 00:029 OCB: efi-backup-boot-device-data = PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/SasEx(0x010000008CE38E03,0x00309D767074616C,0x0,NoTopology,0,0,0)/HD(2,GPT,BC02C18E-EB17-4575-AC97-62DB6530568E,0x64028,0x3A321FE0)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,01DD52A6E9E3884BAE86810714A50B8F)/\3B99DE99-4057-42B2-8FA1-1E6D1AF373A3\System\Library\CoreServices\boot.efi 08:788 00:037 OCB: efi-apple-recovery-data - Not Found 08:815 00:027 OCB: Dumping BootOrder 08:842 00:027 OCB: 0 -> Boot0080 = PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/SasEx(0x010000008CE38E03,0x00309D767074616C,0x0,NoTopology,0,0,0)/HD(2,GPT,BC02C18E-EB17-4575-AC97-62DB6530568E,0x64028,0x3A321FE0)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,01DD52A6E9E3884BAE86810714A50B8F)/\3B99DE99-4057-42B2-8FA1-1E6D1AF373A3\System\Library\CoreServices\boot.efi 08:881 00:038 OCB: 1 -> Boot0000 = HD(1,GPT,C852F0C0-F1DE-427B-99FF-4D5741980614,0x800,0x32000)/\EFI\MICROSOFT\BOOT\BOOTMGFW.EFI 08:909 00:028 OCB: 2 -> Boot0001 = BBS(0x81,,0x0) 08:945 00:036 OCB: 3 -> Boot0002 = BBS(0x82,,0x0) 08:973 00:027 OCB: 4 -> Boot0003 = BBS(0x83,,0x0) 09:010 00:037 OCB: Parsing predefined list... 09:060 00:049 OCB: 0 -> Boot0080 = PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/SasEx(0x010000008CE38E03,0x00309D767074616C,0x0,NoTopology,0,0,0)/HD(2,GPT,BC02C18E-EB17-4575-AC97-62DB6530568E,0x64028,0x3A321FE0)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,01DD52A6E9E3884BAE86810714A50B8F)/\3B99DE99-4057-42B2-8FA1-1E6D1AF373A3\System\Library\CoreServices\boot.efi 09:091 00:030 OCB: Adding fs 2007C5F5 for 1 custom entries and BEP (aux hidden) 09:127 00:036 OCB: Building entry from Boot0080 09:156 00:029 OCB: Fixed DP - PciRoot(0x0)/Pci(0x1D,0x0)/Pci(0x0,0x0)/NVMe(0x1,76-9D-30-00-03-8E-E3-8C)/HD(2,GPT,BC02C18E-EB17-4575-AC97-62DB6530568E,0x64028,0x3A321FE0)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,01DD52A6E9E3884BAE86810714A50B8F)/\3B99DE99-4057-42B2-8FA1-1E6D1AF373A3\System\Library\CoreServices\boot.efi 09:195 00:038 OCB: Assuming DP is full-form or lacks suffix 09:222 00:027 OCB: Short-form DP could not be expanded 09:258 00:036 OCB: Building entry from Boot0000 09:288 00:029 OCB: Assuming DP is short-form (prefix) 09:316 00:028 OCB: Expanded DP - PciRoot(0x0)/Pci(0x1B,0x0)/Pci(0x0,0x0)/NVMe(0x1,F2-70-04-91-86-38-25-00)/HD(1,GPT,C852F0C0-F1DE-427B-99FF-4D5741980614,0x800,0x32000)/\EFI\MICROSOFT\BOOT\BOOTMGFW.EFI 09:352 00:036 OCB: Expanded DP remainder - \EFI\MICROSOFT\BOOT\BOOTMGFW.EFI 09:380 00:027 OCB: Matched fs 97D38518 09:418 00:038 OCB: Adding entry type (T:32|F:0|G:0) - PciRoot(0x0)/Pci(0x1B,0x0)/Pci(0x0,0x0)/NVMe(0x1,F2-70-04-91-86-38-25-00)/HD(1,GPT,C852F0C0-F1DE-427B-99FF-4D5741980614,0x800,0x32000)/\EFI\MICROSOFT\BOOT\BOOTMGFW.EFI 09:448 00:029 OCB: Get visibility for boot entry <null string> - Not Found 09:476 00:027 OCB: Registering entry Windows [Windows] (T:32|F:0|G:0|E:0|B:0) - PciRoot(0x0)/Pci(0x1B,0x0)/Pci(0x0,0x0)/NVMe(0x1,F2-70-04-91-86-38-25-00)/HD(1,GPT,C852F0C0-F1DE-427B-99FF-4D5741980614,0x800,0x32000)/\EFI\MICROSOFT\BOOT\BOOTMGFW.EFI 09:530 00:054 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1B,0x0)/Pci(0x0,0x0)/NVMe(0x1,F2-70-04-91-86-38-25-00)/HD(1,GPT,C852F0C0-F1DE-427B-99FF-4D5741980614,0x800,0x32000) 09:587 00:056 OCBP: Blessed file is missing 09:615 00:028 OCBP: Blessed folder is missing 09:652 00:036 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found 09:679 00:026 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi was found 09:708 00:029 OCB: Adding entry type (T:32|F:0|G:0) - PciRoot(0x0)/Pci(0x1B,0x0)/Pci(0x0,0x0)/NVMe(0x1,F2-70-04-91-86-38-25-00)/HD(1,GPT,C852F0C0-F1DE-427B-99FF-4D5741980614,0x800,0x32000)/\EFI\Microsoft\Boot\bootmgfw.efi 09:746 00:037 OCB: Get visibility for boot entry <null string> - Not Found 09:773 00:027 OCB: Discarding already present DP 09:809 00:035 OCB: Building entry from Boot0001 09:838 00:029 OCB: Assuming DP is short-form (prefix) 09:866 00:028 OCB: Short-form DP could not be expanded 09:955 00:089 OCB: Building entry from Boot0002 09:982 00:026 OCB: Assuming DP is short-form (prefix) 10:021 00:038 OCB: Short-form DP could not be expanded 10:049 00:028 OCB: Building entry from Boot0003 10:104 00:055 OCB: Assuming DP is short-form (prefix) 10:133 00:028 OCB: Short-form DP could not be expanded 10:162 00:029 OCB: Processing blessed list 10:201 00:038 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(1,GPT,3041589C-F165-4172-938C-88C3D76494F2,0x28,0x64000) 10:228 00:027 OCBP: Blessed file is missing 10:263 00:035 OCBP: Blessed folder is missing 10:293 00:029 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found 10:321 00:028 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found 10:359 00:037 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI was found 10:386 00:027 OCB: Adding entry type (T:1|F:0|G:1) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(1,GPT,3041589C-F165-4172-938C-88C3D76494F2,0x28,0x64000)/\EFI\BOOT\BOOTX64.EFI 10:425 00:038 OCB: Get visibility for boot entry <null string> - Not Found 10:453 00:028 OCB: Trying to detect Microsoft BCD 10:480 00:027 OCB: Registering entry EFI [Auto] (T:1|F:0|G:1|E:1|B:0) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(1,GPT,3041589C-F165-4172-938C-88C3D76494F2,0x28,0x64000)/\EFI\BOOT\BOOTX64.EFI 10:524 00:043 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x17,0x0)/Sata(0x2,0xFFFF,0x0)/HD(1,GPT,FCE7F3E8-185B-AA49-17D2-8AD7FE122A17,0x800,0x3A385800) 10:574 00:050 OCBP: Blessed file is missing 10:612 00:037 OCBP: Blessed folder is missing 10:639 00:027 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found 10:674 00:034 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found 10:704 00:029 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found 10:739 00:035 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1B,0x0)/Pci(0x0,0x0)/NVMe(0x1,F2-70-04-91-86-38-25-00)/HD(3,GPT,CED5738C-C99C-4867-AF5B-4BCBB7343F4F,0x3A800,0x3B8667C6) 10:769 00:029 OCBP: Blessed file is missing 10:796 00:027 OCBP: Blessed folder is missing 10:835 00:039 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found 10:863 00:028 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found 10:900 00:036 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found 10:947 00:047 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1B,0x0)/Pci(0x0,0x0)/NVMe(0x1,F2-70-04-91-86-38-25-00)/HD(4,GPT,A85C2594-0BBD-4662-AFDE-E0A734915F90,0x3B8A1000,0x13F000) 10:981 00:033 OCBP: Blessed file is missing 11:018 00:036 OCBP: Blessed folder is missing 11:065 00:047 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found 11:101 00:035 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found 11:131 00:029 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found 11:179 00:048 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(2,GPT,7ECF3586-A55A-405D-9FDD-0CA2409A2E19,0x64028,0x1BFFD48) 11:216 00:037 OCBP: BlessedFileHEX (1/3 150) - 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 00 14 03 05 06 00 15 00 04 01 2A 00 02 00 00 00 28 40 06 00 00 00 00 00 48 FD BF 01 00 00 00 00 86 35 CF 7E 5A A5 5D 40 9F DD 0C A2 40 9A 2E 19 11:243 00:027 OCBP: BlessedFileHEX (2/3 150) - 02 02 04 04 50 00 5C 00 53 00 79 00 73 00 74 00 65 00 6D 00 5C 00 4C 00 69 00 62 00 72 00 61 00 72 00 79 00 5C 00 43 00 6F 00 72 00 65 00 53 00 65 00 72 00 76 00 69 00 63 00 65 00 73 00 5C 00 11:282 00:038 OCBP: BlessedFileHEX (3/3 150) - 62 00 6F 00 6F 00 74 00 2E 00 65 00 66 00 69 00 00 00 7F FF 04 00 11:310 00:028 OCBP: BlessedFileDP - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(2,GPT,7ECF3586-A55A-405D-9FDD-0CA2409A2E19,0x64028,0x1BFFD48)/\System\Library\CoreServices\boot.efi 11:347 00:036 OCBP: Blessed file is valid 11:373 00:026 OCB: Adding entry type (T:2|F:0|G:0) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(2,GPT,7ECF3586-A55A-405D-9FDD-0CA2409A2E19,0x64028,0x1BFFD48)/\System\Library\CoreServices\boot.efi 11:403 00:029 OCB: Get visibility for boot entry <null string> - Not Found 11:441 00:037 OCB: Registering entry Install macOS Ventura [Apple] (T:2|F:0|G:0|E:1|B:0) - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(2,GPT,7ECF3586-A55A-405D-9FDD-0CA2409A2E19,0x64028,0x1BFFD48)/\System\Library\CoreServices\boot.efi 11:468 00:027 OCB: Not adding hidden auxiliary entry OpenShell.efi (tool|B:0) -> OpenShell.efi 11:502 00:034 OCB: Showing menu... 11:552 00:049 OCHK: InitHotKeys 11:582 00:030 OCKM: Allocated key repeat context 9741CF18 9741C198 9741CD18 11:619 00:036 OCAE: Set screen resolution to 2560x1440 - Success 11:646 00:026 OCTY: Registered handler 17:544 05:898 OCHK: FreeHotKeys 17:582 00:038 OCTY: Unregistered handler 17:610 00:027 OCKM: Freeing key repeat context 9741CF18 9741C198 9741CD18 17:646 00:035 OCB: Should boot from 3. Install macOS Ventura (T:2|F:0|G:0|E:1|DEF:0) 17:675 00:029 OCB: Saved mode 0/0/0 - Success 17:710 00:035 OCB: Perform boot Install macOS Ventura to dp PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(2,GPT,7ECF3586-A55A-405D-9FDD-0CA2409A2E19,0x64028,0x1BFFD48)/\System\Library\CoreServices\boot.efi (0/0) 17:739 00:029 OCABC: EfiBootRt candidate - PciRoot(0x0)/Pci(0x14,0x0)/USB(0x15,0x0)/HD(2,GPT,7ECF3586-A55A-405D-9FDD-0CA2409A2E19,0x64028,0x1BFFD48)/\System\Library\CoreServices\boot.efi 17:766 00:026 OCABC: IsEfiBootRt 0 (BP 1, Apple 0) 17:818 00:052 OCI4: Manifest (2800) for 65666962 parse fail with code 1 17:849 00:030 OCI4: Verifying digest 48 (4CDB0B58) override 0 48 (00000000) 17:888 00:039 OCSB: Verified IMG4 without issues 17:937 00:048 OCB: Arch filtering 96FD2018(723512)->96FD2018(723512) caps 4 - Success 17:968 00:031 OCB: Matching <>/0[0] args on type 2 18:006 00:037 OCABC: Recovering trashed GetMemoryMap pointer 18:033 00:027 OCABC: VMware Mac installed on 9741C118 - Success 18:070 00:037 OCABC: Patching safe mode sur-2 at off 5FD9 18:100 00:030 OCABC: MMIO devirt start 18:129 00:028 OCABC: MMIO devirt 0xE0000000 (0x10000 pages, 0x800000000000100D) skip 1 18:187 00:058 OCABC: MMIO devirt 0xFE000000 (0x11 pages, 0x8000000000000001) skip 1 18:217 00:029 OCABC: MMIO devirt 0xFEC00000 (0x1 pages, 0x800000000000100D) skip 1 18:254 00:037 OCABC: MMIO devirt 0xFED00000 (0x4 pages, 0x800000000000100D) skip 1 18:283 00:028 OCABC: MMIO devirt 0xFEE00000 (0x1 pages, 0x8000000000000001) skip 1 18:311 00:027 OCABC: MMIO devirt 0xFF000000 (0x1000 pages, 0x800000000000100D) skip 1 18:346 00:035 OCABC: MMIO devirt end, saved 0 KB 18:376 00:029 OCABC: Only 128/256 slide values are usable! 18:424 00:048 OCABC: Valid slides - 128-255 18:460 00:036 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 18:487 00:026 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 18:526 00:038 AAPL: #[EB|H:IS] 0 18:554 00:028 AAPL: #[EB|LOG:INIT] 2023-10-07T14:08:58 18:581 00:027 AAPL: #[EB|VERSION] <"bootbase.efi 577.140.2~15 (Official), built 2023-06-23T21:54:27-0700"> 18:617 00:035 AAPL: #[EB|BUILD] <"BUILD-INFO[410]:{"DisplayName":"bootbase.efi","DisplayVersion":"577.140.2~15","RecordUuid":"EEBDCC86-79C4-402C-8B4A-0486E4BCED17","BuildTime":"2023-06-23T21:54:27-0700","ProjectName":"efiboot","ProductName":"bootbase.efi","SourceVersion":"577.140.2","BuildVersion":"15","BuildConfiguration":"Release","BuildType":"Official","Compiler":"clang-1403.0.22.11","SdkVersion":"13.5","SdkBuild":"22G62","TargetArchitectures":"x86_64"}"> 18:647 00:029 AAPL: #[EB.CFG.DEV|!] Err(0xE) <- RT.GV booter-strict-xmlparser 7C436110-AB2A-4BBB-A880-FE41995C9F82 18:683 00:036 AAPL: #[EB|CFG:DEV] r5 0x0 0x0 18:711 00:027 AAPL: #[EB|H:IS] 0 18:738 00:026 AAPL: #[EB|WL:MODE] 0 18:776 00:038 AAPL: #[EB|CFG:ARG] boot-save-log 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) default 18:805 00:028 AAPL: #[EB|CFG:ARG] wake-save-log 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) default 18:840 00:035 AAPL: #[EB|CFG:ARG] console 0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) default 18:888 00:048 AAPL: #[EB|CFG:ARG] serial 0x0000000000000001 (0x0000000000000001 < 0x0000000000000000) default 18:918 00:029 AAPL: #[EB|CFG:ARG] preoslog 0x0000000000000001 (0x0000000000000001 < 0xFFFFFFFFFFFFFFFF) default 18:955 00:036 AAPL: #[EB|CFG:ARG] timestamps 0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) default 18:982 00:027 AAPL: #[EB|CFG:ARG] log-level 0x0000000000000001 (0x0000000000000001 & 0x0000000000000021) default 19:018 00:035 AAPL: #[EB|CFG:ARG] breakpoint 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default 19:047 00:029 AAPL: #[EB|CFG:ARG] kc-read-size 0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) default 19:085 00:038 AAPL: #[EB|CFG:ARG] force-error 0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default 19:113 00:027 AAPL: #[EB|H:IS] 0 19:140 00:027 AAPL: #[EB|WL] 0 0 0x01 0x01 0 0x00 19:179 00:039 AAPL: #[EB|BRD:NV] Mac-CFF7D910A743CAAF 19:207 00:028 OCOS: OS set: <null> macOS 11.0 19:244 00:036 OCOS: OS set: Apple Inc. macOS 11.0 19:271 00:027 AAPL: #[EB|B:VAw] 19:300 00:029 AAPL: #[EB|B:IAw] 19:358 00:057 AAPL: #[EB|WL] 0 0 0x01 0x01 2 0x00 19:386 00:028 AAPL: #[EB.BST.IDT|+] 19:425 00:039 AAPL: #[EB|BM] J185AP 19:457 00:031 AAPL: #[EB.BST.IDT|-] 19:494 00:036 AAPL: #[EB|WL] 0 0 0x01 0x01 3 0x00 19:542 00:048 AAPL: #[EB|WL] 0 0 0x01 0x01 4 0x00 19:569 00:027 AAPL: #[EB|BRD:NV] Mac-CFF7D910A743CAAF 19:607 00:038 AAPL: #[EB|WL] 0 0 0x01 0x01 5 0x00 19:636 00:028 AAPL: #[EB.H.CHK|BM] 0x0000000000000000 19:672 00:036 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 19:699 00:026 AAPL: #[EB|WL] 0 0 0x01 0x01 23 0x0E 19:737 00:037 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 19:765 00:028 AAPL: #[EB|WL] 0 0 0x01 0x01 24 0x0E 19:793 00:027 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82 19:847 00:054 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82 19:879 00:031 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82 19:908 00:028 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82 19:944 00:036 AAPL: #[EB|H:NOT] 19:971 00:027 AAPL: #[EB|SB:P] 0x1 20:010 00:038 AAPL: #[EB.B.MN|BM:+SB] 20:038 00:028 AAPL: #[EB|LIMG:DP] Acpi(PNP0A03,0)/Pci(14|0)/Usb(15, 0)/HD(Part2,Sig7ECF3586-A55A-405D-9FDD-0CA2409A2E19) 20:066 00:027 AAPL: #[EB|LIMG:FP] \System\Library\CoreServices\boot.efi 20:101 00:035 AAPL: #[EB|LIMG:OPT] 20:131 00:030 AAPL: #[EB|RPS] 0 0 0 20:169 00:037 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> 20:197 00:027 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> <"0"> 20:224 00:027 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"\\System\\Library\\CoreServices\\com.apple.Boot.plist"> 20:263 00:039 AAPL: #[EB.OPT.LXF|LF!] Err(0xE) 20:292 00:028 AAPL: #[EB.OPT.LXF|F] <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> 20:348 00:056 AAPL: #[EB.LD.LF|IN] 0 1 <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> <"0"> 20:377 00:029 AAPL: #[EB|KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg"> 20:407 00:029 AAPL: #[EB|MBA:CL] <""> 20:445 00:038 AAPL: #[EB|MBA:NV] <"-v keepsyms=1 debug=0x100 alcid=1 slide=215"> 20:472 00:027 AAPL: #[EB|MBA:KF] <"root-dmg=file:///BaseSystem/BaseSystem.dmg"> 20:509 00:036 AAPL: #[EB|MBA:OUT] <"-v keepsyms=1 debug=0x100 alcid=1 slide=215 root-dmg=file:///BaseSystem/BaseSystem.dmg"> 20:539 00:029 AAPL: #[EB|LOG:VERBOSE] 2023-10-07T14:09:00 20:567 00:028 AAPL: #[EB.CSR.S|VAR] 0x00000040 20:603 00:036 AAPL: #[EB|OPT:BM] 0x200082 20:630 00:027 AAPL: #[EB.OPT.LXF|F] <"\\System\\Library\\CoreServices\\PlatformSupport.plist"> 20:668 00:037 AAPL: #[EB.LD.LF|IN] 0 1 <"\\System\\Library\\CoreServices\\PlatformSupport.plist"> <"0"> 20:697 00:029 AAPL: #[EB|P:CPR] N 20:725 00:027 AAPL: #[EB|P:MPI] N 20:761 00:036 AAPL: #[EB|P:BPI] N 20:811 00:050 AAPL: #[EB.OPT.RKS|!] Err(0xE) <- BS.LocP EDB4A040-6D8A-11EC-8FAD-3E22FB93ADCF 20:866 00:054 AAPL: #[EB|KMR] 503230464 20:894 00:027 AAPL: #[EB.CS.CSKSD|+] 20:921 00:027 AAPL: #[EB.CS.CSKSD|!] Err(0xE) <- RT.GV boot-info-payload 8D63D4FE-BD3C-4AAD-881D-86FD974BC1DF 20:959 00:037 AAPL: #[EB.G.CS|-?] Ok(0) 20:990 00:030 AAPL: #[EB.LD.LF|IN] 0 1 <"<null string>"> <"1"> 21:036 00:046 AAPL: #[EB.B.SBS|SZ] 723512 21:074 00:038 AAPL: #[EB|B:SHA] <36dee66960fb4346e7a2eb09e1b64e14161a81ed> 21:113 00:039 AAPL: #[EB.WL.PWLFNV|!] Err(0xE) <- RT.GV wake-failure 7C436110-AB2A-4BBB-A880-FE41995C9F82 21:154 00:040 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFNV 21:182 00:028 AAPL: #[EB.WL.PWLFRTC|NONE] 21:221 00:038 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFRTC 21:256 00:035 AAPL: #[EB.LD.LKC|D] <"System\Library\KernelCollections\BootKernelExtensions.kc.development"> 21:293 00:036 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.development"> <"0"> 21:360 00:067 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.development"> 21:396 00:036 AAPL: #[EB.LD.LKC|R.2] <"System\Library\KernelCollections\BootKernelExtensions.kc"> 21:439 00:042 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc"> <"0"> 21:550 00:111 OC: Kext reservation size info 569000 exe 2C1000 21:578 00:028 OC: Trying 64-bit XNU hook on System\Library\KernelCollections\BootKernelExtensions.kc 23:067 01:488 OC: Result of 64-bit XNU hook on System\Library\KernelCollections\BootKernelExtensions.kc (15238A16) is Success 23:109 00:041 OCAK: Read kernel version 22.6.0 (220600) 23:151 00:042 OCAK: Zeroing _xcpm_core_scope_msrs 0xE2 applicable CPUs (76) 23:178 00:027 OCAK: Zeroing _xcpm_core_scope_msrs 0xE2 applicable CPUs (406416) 23:215 00:036 OCAK: Zeroing _xcpm_core_scope_msrs 0xE2 applicable CPUs (540672) 23:246 00:030 OCAK: 64-bit XcpmCfgLockRel replace count - 2 23:283 00:036 OCAK: [OK] Success XcpmCfgLock patch 23:336 00:053 OCAK: 64-bit PanicKextDump replace count - 1 23:375 00:039 OCAK: [OK] Patch success kext dump 23:425 00:049 OCAK: 64-bit PowerStateTimeout replace count - 0 23:466 00:041 OCAK: No inline power state patch - Not Found, trying fallback 23:508 00:041 OCAK: 64-bit PowerStateTimeout replace count - 1 23:546 00:038 OCAK: [OK] Patch success power state 23:579 00:032 OCAK: [OK] Found jettisoning fileset 23:658 00:079 OCAK: Failed to pk find com.apple.driver.AppleTyMCEDriver - Not Found 23:695 00:036 OC: Prelinked blocker (Disable) result 0 for com.apple.driver.AppleTyMCEDriver (Patch engine) - Not Found 23:761 00:066 OCAK: Local relocs 689 on FFFFFF8004365000 23:805 00:043 OC: Prelinked injection Lilu.kext (V1.6.7 | Lilu.kext) - Success 23:833 00:028 OC: Prelinked injection Lilu.kext v1.6.7 23:871 00:038 OCAK: Patching invalid size 2000 with 1929000 for com.apple.iokit.IOACPIFamily 23:910 00:038 OCAK: Local relocs 515 on FFFFFF8004394000 23:976 00:065 OC: Prelinked injection VirtualSMC.kext (V1.3.2) - Success 24:004 00:028 OC: Prelinked injection VirtualSMC.kext v1.3.2 24:043 00:039 OCAK: Patching invalid size 32000 with 14B9000 for com.apple.iokit.IOPCIFamily 24:105 00:062 OCAK: Local relocs 1922 on FFFFFF80043AE000 24:155 00:049 OC: Prelinked injection WhateverGreen.kext (V1.6.6 | WhateverGreen.kext) - Success 24:184 00:028 OC: Prelinked injection WhateverGreen.kext v1.6.6 24:239 00:055 OCAK: Local relocs 5817 on FFFFFF8004431000 24:308 00:069 OC: Prelinked injection AppleALC.kext (V1.8.5 | AppleALC.kext) - Success 24:348 00:040 OC: Prelinked injection AppleALC.kext v1.8.5 24:379 00:030 OCAK: Patching invalid size 16FF4 with 171A000 for com.apple.iokit.IONetworkingFamily 24:432 00:052 OCAK: Local relocs 441 on FFFFFF80045E4000 24:465 00:032 OC: Prelinked injection LucyRTL8125Ethernet.kext (V1.1.0 | LucyRTL8125Ethernet.kext) - Success 24:503 00:038 OC: Prelinked injection LucyRTL8125Ethernet.kext v1.1.0 24:539 00:036 OCAK: Local relocs 625 on FFFFFF8004619000 24:578 00:038 OC: Prelinked injection NVMeFix.kext (V1.1.1 | NVMeFix.kext) - Success 24:605 00:026 OC: Prelinked injection NVMeFix.kext v1.1.1 24:643 00:038 OC: Prelink size 72507392 kext offset 69619712 reserved 2887680 24:692 00:048 OCAK: KC TEXT is 65536 bytes with 62328 Mach-O headers need 576 24:763 00:071 OCAK: Patching invalid size 75FF4 with 1113000 for com.apple.iokit.IOUSBHostFamily 24:795 00:031 OCAK: 64-bit RemoveUsbLimitIoP1 part 1 replace count - 1 24:854 00:058 OCAK: [OK] Patch success port com.apple.iokit.IOUSBHostFamily part 1 24:883 00:029 OCAK: 64-bit RemoveUsbLimitIoP1 part 2 replace count - 1 24:910 00:027 OCAK: [OK] Patch success port com.apple.iokit.IOUSBHostFamily part 2 24:949 00:038 OCAK: Patching invalid size 3CFF8 with FEC000 for com.apple.driver.usb.AppleUSBXHCI 24:978 00:029 OCAK: 64-bit RemoveUsbLimitV2 replace count - 1 25:016 00:037 OCAK: [OK] Patch success com.apple.driver.usb.AppleUSBXHCI 25:045 00:029 OCAK: Patching invalid size 24FF5 with FA5000 for com.apple.driver.usb.AppleUSBXHCIPCI 25:082 00:036 OCAK: [OK] Skipping legacy port patch AppleUSBXHCIPCI on 220600 25:111 00:029 OCAK: 64-bit AppleIoMapper replace count - 1 25:149 00:037 OCAK: [OK] Patch success com.apple.iokit.IOPCIFamily AppleIoMapper 25:314 00:165 OC: Prelinked status - Success 25:561 00:247 AAPL: #[EB|SB:P] 0x1 25:597 00:035 AAPL: #[EB|SB:SBGMFNS] j185ap.im4m 25:639 00:042 AAPL: #[EB|SB:MF] System\\Library\\KernelCollections\\BootKernelExtensions.kc.j185ap.im4m 25:674 00:034 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\KernelCollections\\BootKernelExtensions.kc.j185ap.im4m"> <"0"> 25:716 00:042 OCI4: Verifying digest 48 (15238A16) override 1 48 (15238A16) 25:924 00:207 OCI4: Matching override 99EED4BB with 99EED4BB - success 25:957 00:033 AAPL: #[EB|SB:MKRN] 26:004 00:046 AAPL: #[EB.LD.LKFS|-?] Ok(0) 26:037 00:032 AAPL: #[EB.LD.LKC|-?] Ok(0) 26:095 00:058 AAPL: #[EB|BST:REV1] 26:125 00:030 AAPL: #[EB|CSR:OUT] 0x00000040 26:164 00:038 AAPL: #[EB.BST.FBS|+] 26:192 00:028 AAPL: #[EB.BST.FBS|ADSZ] 0 26:231 00:039 AAPL: #[EB.BST.FBS|KSSZ] 0 26:282 00:050 AAPL: #[EB|SB:SBGMFNS] j185ap.im4m 26:313 00:030 AAPL: #[EB|RH:PF] usr\standalone\OS.dmg.root_hash 26:353 00:039 AAPL: #[EB|RH:MF] <"usr\\standalone\\OS.dmg.root_hash.j185ap.im4m"> 26:386 00:033 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash"> <"0"> 26:428 00:041 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"usr\\standalone\\OS.dmg.root_hash"> 26:457 00:029 AAPL: #[EB.RH.LRH|P!] Err(0xE) <- EB.LD.LF 26:496 00:038 AAPL: #[EB.BST.FBS|!] Err(0xE) <- EB.RH.LRH 26:525 00:029 OCSMC: SmcReadValue Key 4D535463 Size 1 26:563 00:037 OCSMC: SmcReadValue Key 4D534163 Size 2 26:592 00:029 AAPL: #[EB|LOG:DT] 2023-10-07T14:09:06 26:631 00:038 AAPL: #[EB|LOG:EXITBS:START] 2023-10-07T14:09:06 The attachment is my EFI boot. I appreciate any help. Thank in advance. EFI.zip 4.05 MB · 3 downloads Correct your config. To check the config, use validate for your version of opencore. 1 Quote Link to comment https://www.insanelymac.com/forum/topic/357790-got-stuck-at-eblogexistbsstart-when-try-to-install-macos-ventura/#findComment-2812170 Share on other sites More sharing options...

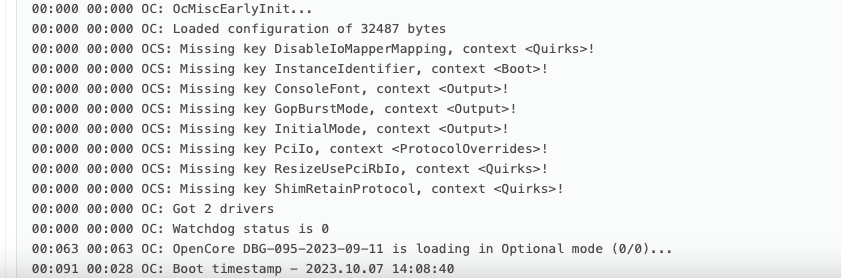

koobit Posted October 10, 2023 Author Share Posted October 10, 2023 Thank @droples for your reply, I used OCAT to validate the config.plist, which removed these fields from opencore 0.9.5. After using the file from 0.9.5 version then validate by myself, not by OCAT (which the version is 0.8.8), it works now. Quote Link to comment https://www.insanelymac.com/forum/topic/357790-got-stuck-at-eblogexistbsstart-when-try-to-install-macos-ventura/#findComment-2812253 Share on other sites More sharing options...
