sphinx84 Posted May 4, 2023 Share Posted May 4, 2023 Hi there. I got BCM940360CS2 module with pci-e adaptor but after the few updates of the Ventura beta he don't work (I can't move the slider). Wi-Fi connection is fine. What I can try to do? Link to comment https://www.insanelymac.com/forum/topic/356602-bluetooth-dont-work-on-latest-ventura-beta/ Share on other sites More sharing options...
miliuco Posted May 4, 2023 Share Posted May 4, 2023 @sphinx84 I don't know if this can help you but read it: https://forums.macrumors.com/threads/macos-13-ventura-on-unsupported-macs-thread.2346881/post-31858759 1 Link to comment https://www.insanelymac.com/forum/topic/356602-bluetooth-dont-work-on-latest-ventura-beta/#findComment-2804292 Share on other sites More sharing options...
sphinx84 Posted May 4, 2023 Author Share Posted May 4, 2023 1 hour ago, miliuco said: @sphinx84 I don't know if this can help you but read it: https://forums.macrumors.com/threads/macos-13-ventura-on-unsupported-macs-thread.2346881/post-31858759 It doesn't work. 1 Link to comment https://www.insanelymac.com/forum/topic/356602-bluetooth-dont-work-on-latest-ventura-beta/#findComment-2804296 Share on other sites More sharing options...
aben Posted May 6, 2023 Share Posted May 6, 2023 Have an Apple BCM94360CS2 AirPort card myself (adapted to M.2/NGFF slot) - Continuity features incl. other macOS' BT functions continue to perform phenomenally with no issues in Ventura (tested on a SKL machine running Ventura 13.4 beta 4 - 22F5059b) If you've just installed/replaced the wifi module, then you will most likely need to re-map USB ports (Note: macOS expects BT devices to be connected over USB on an internal header (type 255)). More info on USB mapping here: https://dortania.github.io/OpenCore-Post-Install/usb/manual/manual.html#finding-your-usb-ports 1 Link to comment https://www.insanelymac.com/forum/topic/356602-bluetooth-dont-work-on-latest-ventura-beta/#findComment-2804366 Share on other sites More sharing options...

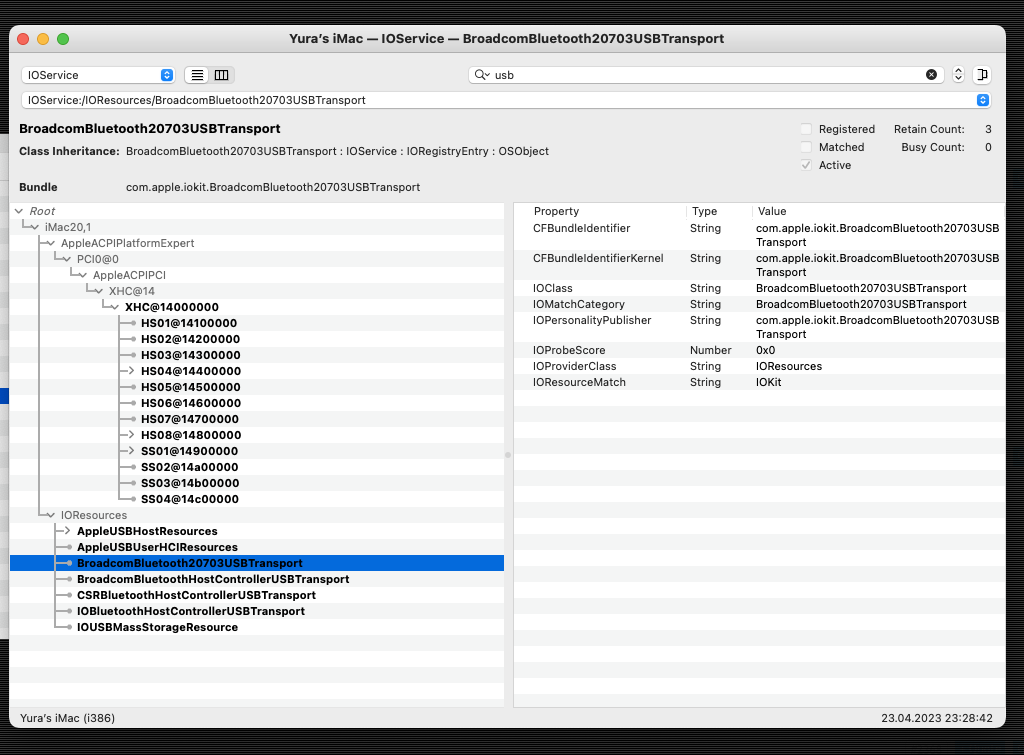

sphinx84 Posted May 6, 2023 Author Share Posted May 6, 2023 14 hours ago, aben said: Have an Apple BCM94360CS2 AirPort card myself (adapted to M.2/NGFF slot) - Continuity features incl. other macOS' BT functions continue to perform phenomenally with no issues in Ventura (tested on a SKL machine running Ventura 13.4 beta 4 - 22F5059b) If you've just installed/replaced the wifi module, then you will most likely need to re-map USB ports (Note: macOS expects BT devices to be connected over USB on an internal header (type 255)). More info on USB mapping here: https://dortania.github.io/OpenCore-Post-Install/usb/manual/manual.html#finding-your-usb-ports I haven't the BT in XHC (ioreg). How to prescribe it? Do you have an example? Link to comment https://www.insanelymac.com/forum/topic/356602-bluetooth-dont-work-on-latest-ventura-beta/#findComment-2804402 Share on other sites More sharing options...

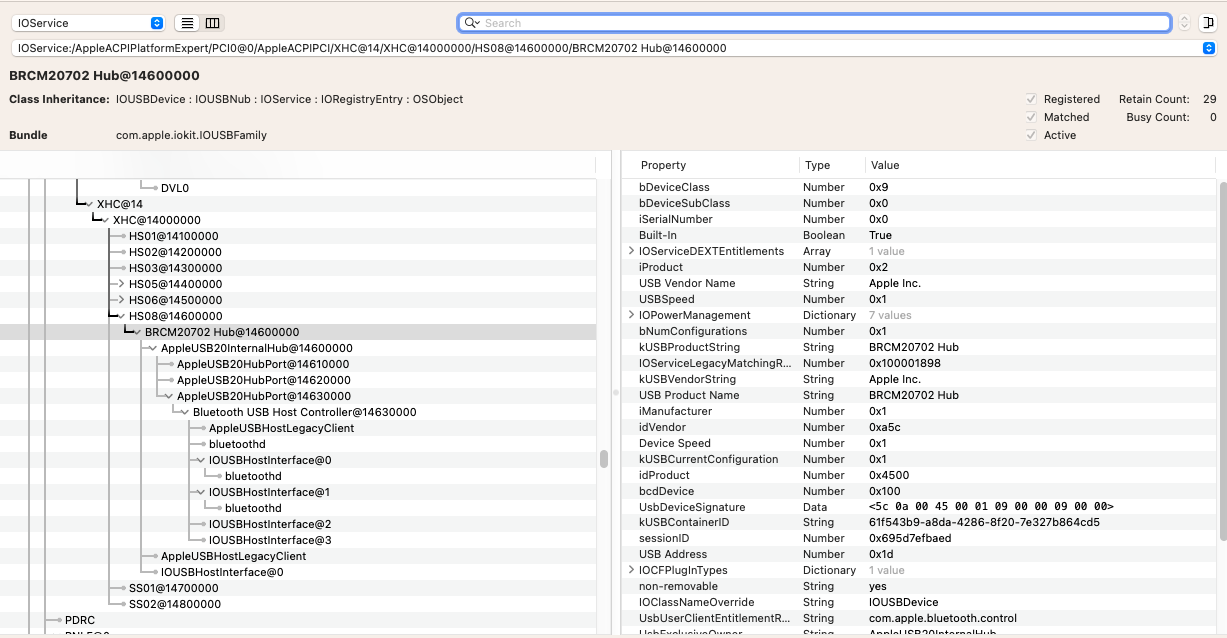

aben Posted May 7, 2023 Share Posted May 7, 2023 6 hours ago, sphinx84 said: I haven't the BT in XHC (ioreg). How to prescribe it? Do you have an example? Native Apple BT in ioreg should look like below (here BT device is seen attaching to port 08). Your screenshot shows no devices populating under USB controller, which explains why BT will remain non-functional until you fix/map BT port: There are two approaches for mapping USB: 1. Kext (tools exists for mapping from Windows as well) 2. ACPI (OS-agnostic) Suggest you follow this guide for fixing/mapping USB: https://github.com/5T33Z0/OC-Little-Translated/tree/main/03_USB_Fixes 1 Link to comment https://www.insanelymac.com/forum/topic/356602-bluetooth-dont-work-on-latest-ventura-beta/#findComment-2804410 Share on other sites More sharing options...
sphinx84 Posted May 8, 2023 Author Share Posted May 8, 2023 On 5/7/2023 at 7:41 AM, aben said: Suggest you follow this guide for fixing/mapping USB: https://github.com/5T33Z0/OC-Little-Translated/tree/main/03_USB_Fixes Yes. I was used Usb toolbox for mapping. I also already fixed my bluetooth - just add new HS10 to USBmap kext. And bluetooth is work now! Thanks for help! 2 Link to comment https://www.insanelymac.com/forum/topic/356602-bluetooth-dont-work-on-latest-ventura-beta/#findComment-2804457 Share on other sites More sharing options...
