Toshiba Portage X30-D-10M with Kingston NV2 NVME stops at 12 min resttime of the installer

[kult-ex]

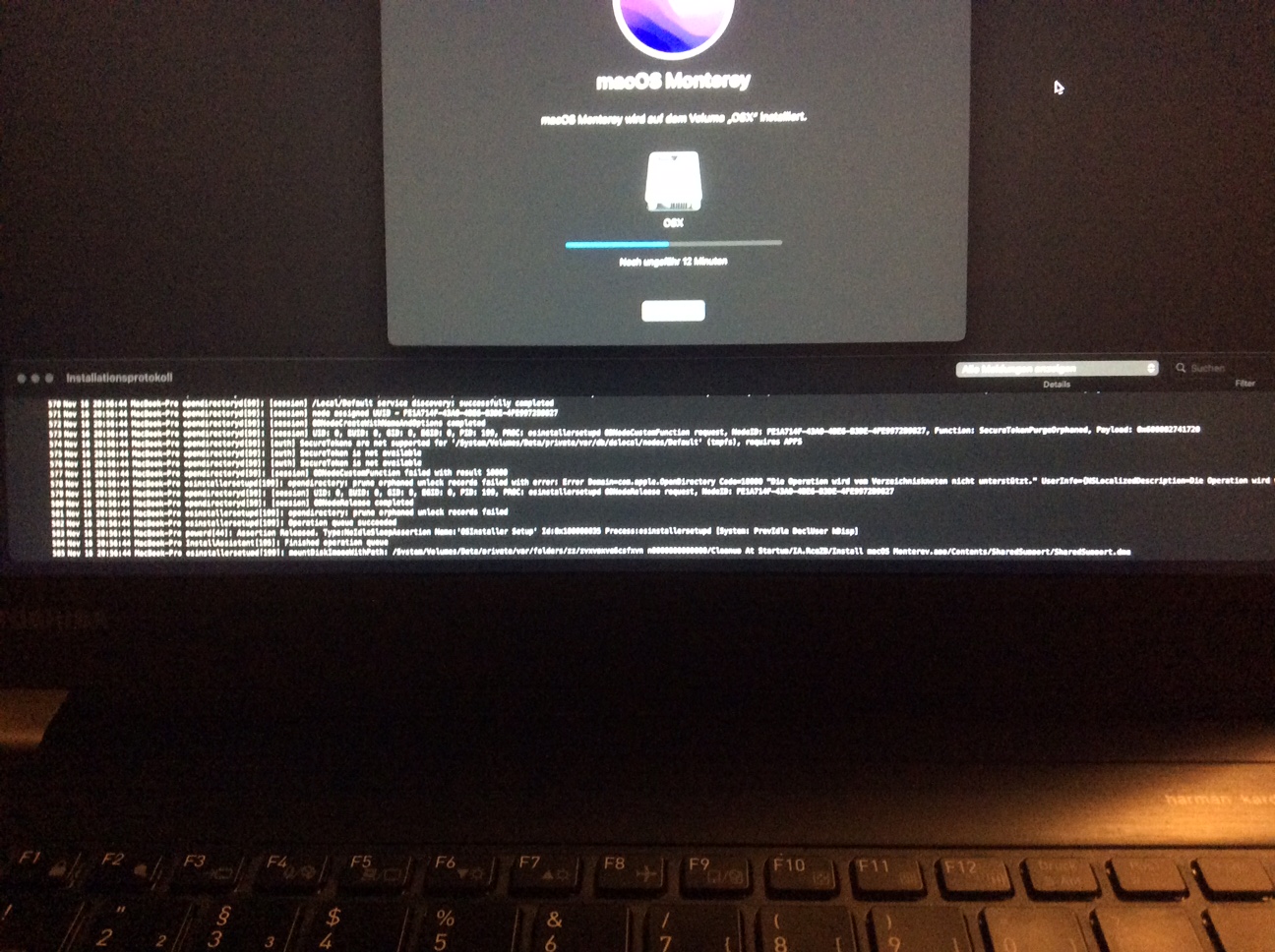

I made with the help of the German Hackintosh Forum a OC 7.8 install stick, which boots nice, I can start the installer, but it stops always on the same point - 12 min to finish - see picture - here the text from the picture as fare I can read it....

osinstallersetupd: opendirectory: prune orphaned unlock records failed
Installassistant: Finished operation queue
osinstallersetupd: mountDiskImageWithPath: /Sytem/Volumes/Data/private//var/folders/zz/zvxyvs????csfxvn n000000000/Cleanup At Sturtup/IA???? macOS Montery.as?/Contents/SharedSupport/SharedSupport.dmg

We thought, that this is a problem of the built in NVME Samsung PM961 MZVLW256HEHP - so I changed it to a Kingston NV2 NVME, which has a Phison E21T controller, Phison controllers are recommended by Dortania. But it stops at the same point.

The funny thing - the installer recognizes both disks, I can format both, it copies the files to the disk (I can read them), but very short time, bevor the first reboot, it stops.



Maybe you have an idea what is the reason? The Kingston NV2 is known to work in a small desktop Hackintosh.



here is the output of lspci and inxi

Machine:  Type: Laptop System: TOSHIBA product: PORTEGE X30-D v: PT272E-05V00SGR
CPU:  Topology: Dual Core model: Intel Core i5-7200U bits: 64 type: MT MCP   arch: Amber Lake
Graphics:  Device-1: Intel HD Graphics 620
Audio:  Device-1: Intel Sunrise Point-LP HD Audio
Network:  Device-1: MEDIATEK
Local Storage: total: 295.78 GiB used: 87.55 GiB (29.6%)   ID-1: /dev/nvme0n1 vendor: Samsung model: MZVLW256HEHP-00000   size: 238.47 GiB
tom@Ubunt-studio:~$ lspci -nn
00:00.0 Host bridge [0600]: Intel Corporation Xeon E3-1200 v6/7th Gen Core Processor Host Bridge/DRAM Registers [8086:5904] (rev 02)
00:02.0 VGA compatible controller [0300]: Intel Corporation HD Graphics 620 [8086:5916] (rev 02)
00:14.0 USB controller [0c03]: Intel Corporation Sunrise Point-LP USB 3.0 xHCI Controller [8086:9d2f] (rev 21)
00:14.2 Signal processing controller [1180]: Intel Corporation Sunrise Point-LP Thermal subsystem [8086:9d31] (rev 21)
00:16.0 Communication controller [0780]: Intel Corporation Sunrise Point-LP CSME HECI #1 [8086:9d3a] (rev 21)
00:1c.0 PCI bridge [0604]: Intel Corporation Sunrise Point-LP PCI Express Root Port #2 [8086:9d11] (rev f1)
00:1c.2 PCI bridge [0604]: Intel Corporation Sunrise Point-LP PCI Express Root Port #3 [8086:9d12] (rev f1)
00:1c.4 PCI bridge [0604]: Intel Corporation Sunrise Point-LP PCI Express Root Port #5 [8086:9d14] (rev f1)
00:1d.0 PCI bridge [0604]: Intel Corporation Sunrise Point-LP PCI Express Root Port #9 [8086:9d18] (rev f1)
00:1f.0 ISA bridge [0601]: Intel Corporation Sunrise Point LPC Controller/eSPI Controller [8086:9d4e] (rev 21)
00:1f.2 Memory controller [0580]: Intel Corporation Sunrise Point-LP PMC [8086:9d21] (rev 21)
00:1f.3 Audio device [0403]: Intel Corporation Sunrise Point-LP HD Audio [8086:9d71] (rev 21)
00:1f.4 SMBus [0c05]: Intel Corporation Sunrise Point-LP SMBus [8086:9d23] (rev 21)
01:00.0 Unassigned class [ff00]: Realtek Semiconductor Co., Ltd. RTS5227 PCI Express Card Reader [10ec:5227] (rev 01)
02:00.0 Network controller [0280]: MEDIATEK Corp. Device [14c3:0608]
03:00.0 Non-Volatile memory controller [0108]: Samsung Electronics Co Ltd NVMe SSD Controller SM961/PM961 [144d:a804]
tom@Ubunt-studio:~$ lsusb
Bus 002 Device 003: ID 1199:907f Sierra Wireless, Inc. EM7455
Bus 002 Device 002: ID 0781:5583 SanDisk Corp. Ultra Fit
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 004: ID 0e8d:0608 MediaTek Inc. Wireless_Device
Bus 001 Device 003: ID 06cb:008a Synaptics, Inc. Bus 001 Device 002: ID 04f2:b5e8 Chicony Electronics Co., Ltd TOSHIBA Web Camera - HD
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
tom@Ubunt-studio:~$
guest@porteus:~$ dmesg | grep synaptic
[    1.106150] psmouse serio1: synaptics: queried max coordinates: x [..5682], y [..4760]
[    1.133594] psmouse serio1: synaptics: queried min coordinates: x [1262..], y [1092..]
[    1.133609] psmouse serio1: synaptics: The touchpad can support a better bus than the too old PS/2 protocol. Make sure MOUSE_PS2_SYNAPTICS_SMBUS and RMI4_SMB are enabled to get a better touchpad experience.
[    1.186876] psmouse serio1: synaptics: Touchpad model: 1, fw: 8.2, id: 0x1e2a1, caps: 0xf00123/0x840300/0x12e800/0x200000, board id: 3322, fw id: 2553520



PS: I cannot upload the whole EFI, because 10MB is not enough

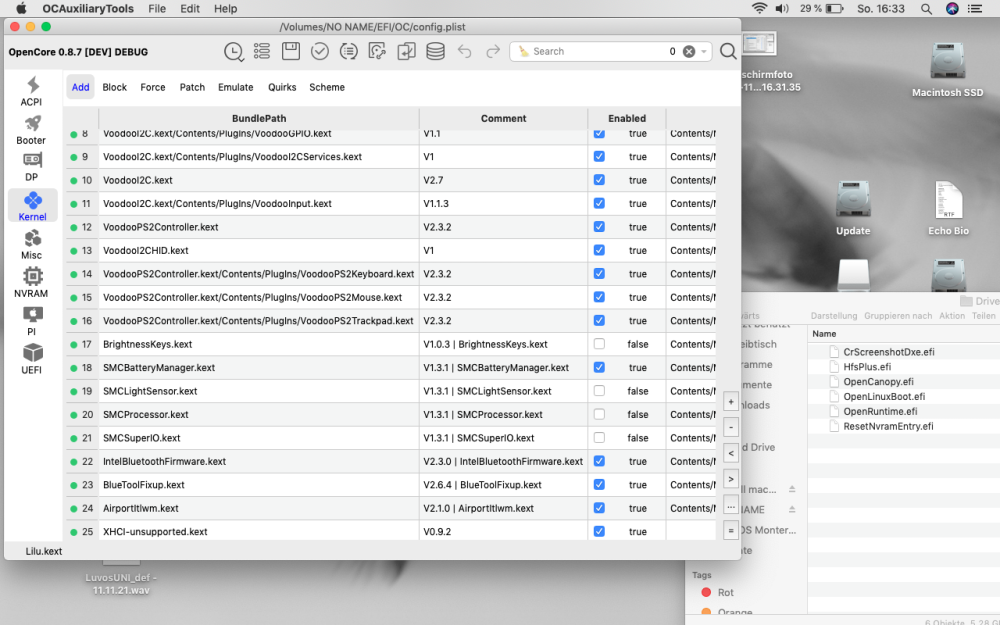

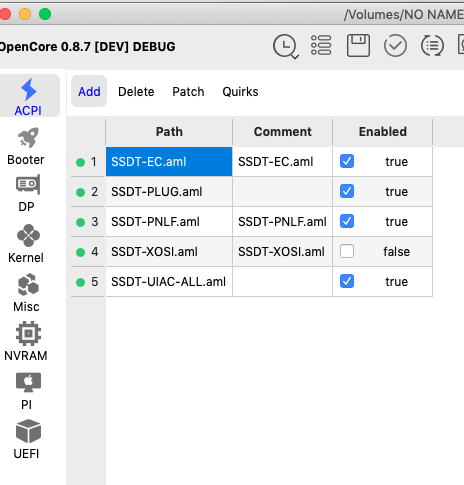

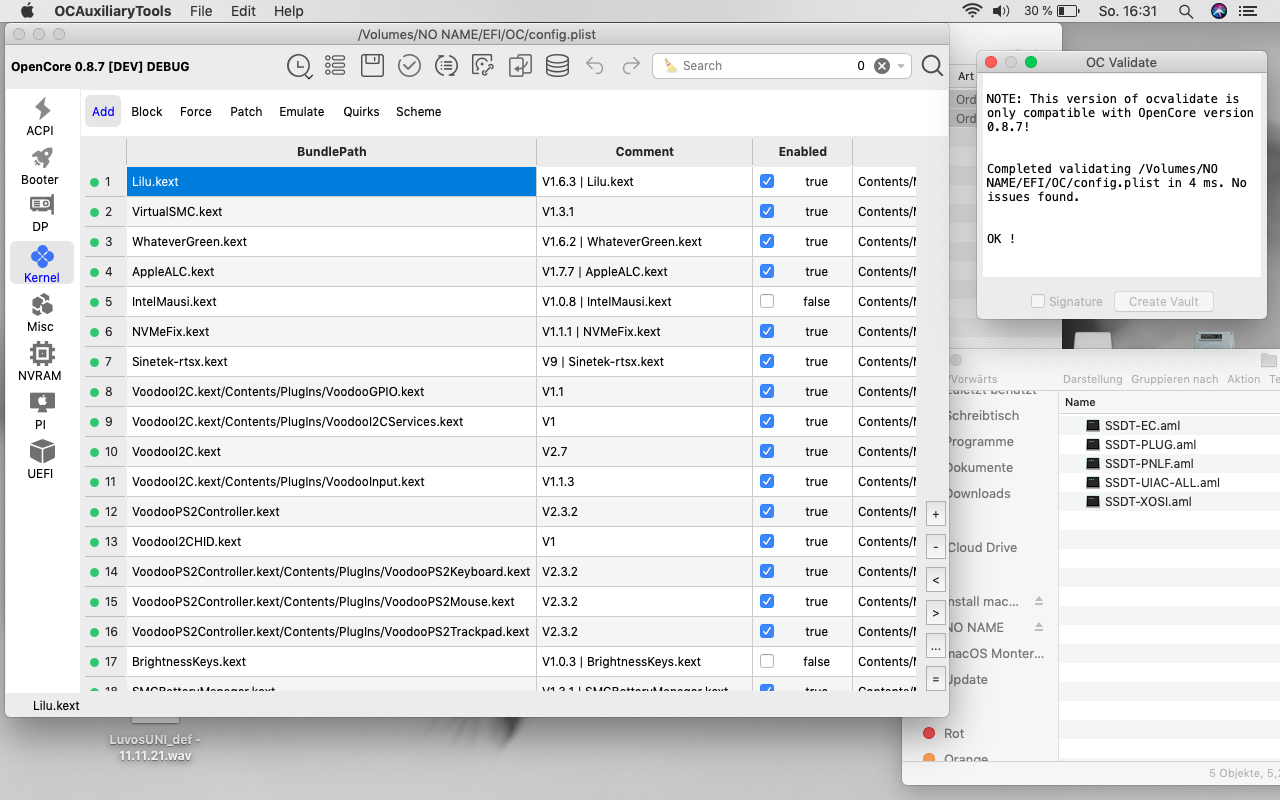

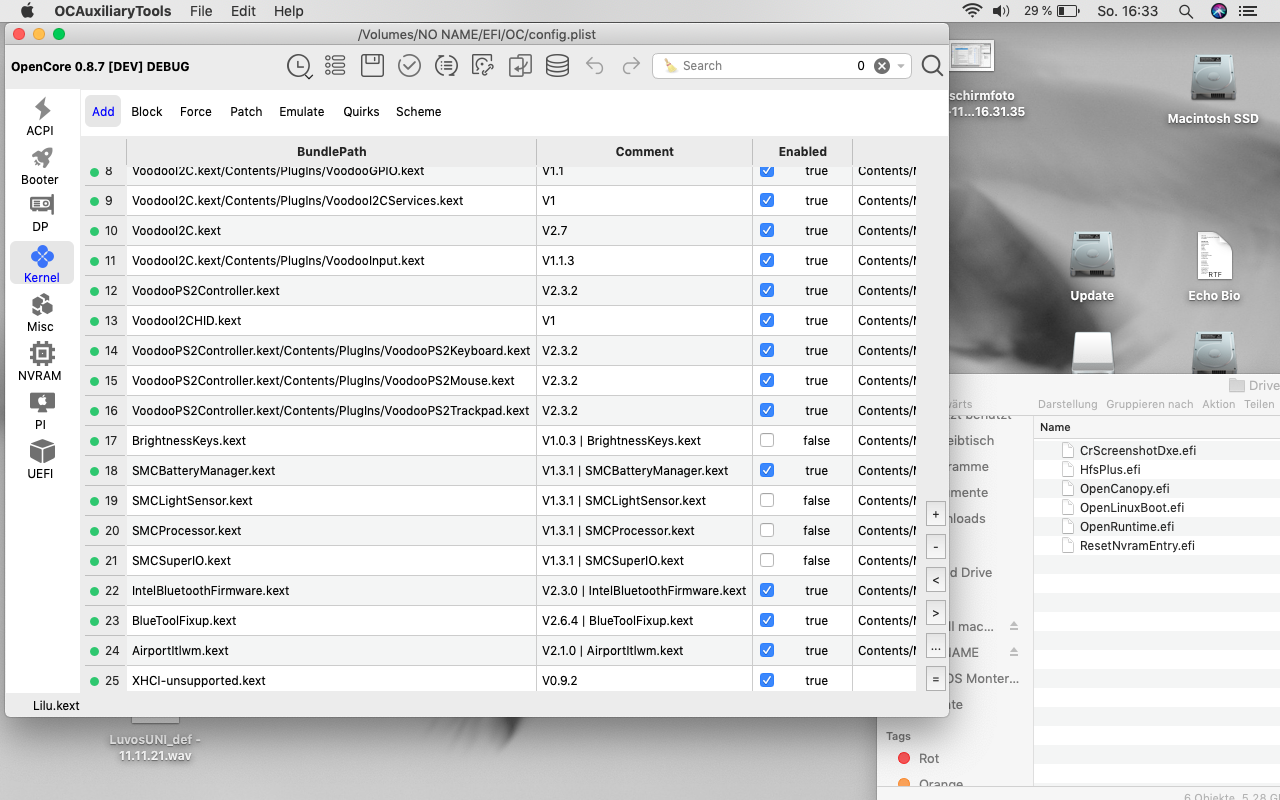

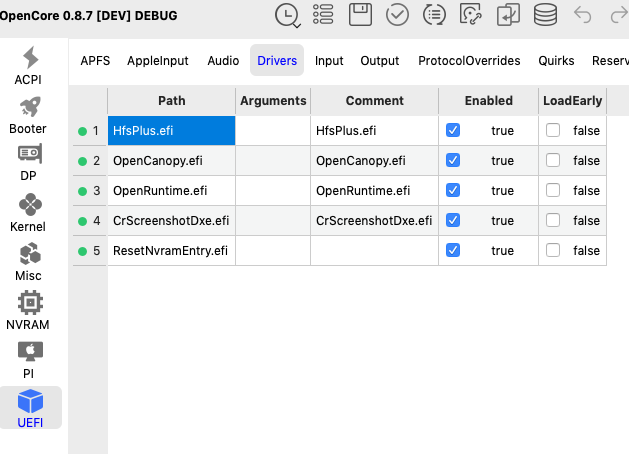

config.plist

Edited November 20, 2022 by kult-ex
