OpenCore Z590 Stuck on Stuck on [EB|#LOG:EXITBS:START]

[Foxy Gekkerson]

CPU: Intel Core i7-10700k

Mobo: ASRock Z590 Extreme

macOS: Monterey (unknown exact version, assuming latest)



I recently upgraded my computer's motherboard and CPU to the above-listed hardware, and after rebuilding the OpenCore boot loader from scratch, I can't get past

[EB|#LOG:EXITBS:START]



Not only have I followed Dortania's OpenCore setup guide, I also followed their troubleshooting page on booter, kernel patching, and UEFI issues associated with [EB|#LOG:EXITBS:START]. Still, no dice.
https://dortania.github.io/OpenCore-Install-Guide/troubleshooting/extended/kernel-issues.html#stuck-on-eb-log-exitbs-start


OpenCore sanity checkers say everything about the config.plist was above-board, so I don't believe the problem lies there; I could pretty easily be wrong, though.
I've posted my EFI here, with unique identifiers scrubbed, of course.



Thanks for any assistance.



Foxy Gekkerson EFI 6-20-22.zip

[Guest 5T33Z0]

@Foxy Gekkerson There were servere formal errors in this config. Please use OpenCore Auxiliary tools for editing the config and updating kexts, drivers and OpenCore next time.



EFI.zip

Edited June 20, 2022 by 5T33Z0

[MaLd0n]

Don't lose time

follow here

https://www.olarila.com/topic/20908-guide-easy-fast-and-perfect-hackintosh-vanilla-step-by-step-clover-and-opencore-bootloader/

[Foxy Gekkerson]

On 6/20/2022 at 3:14 AM, 5T33Z0 said:

@Foxy Gekkerson There were servere formal errors in this config. Please use OpenCore Auxiliary tools for editing the config and updating kexts, drivers and OpenCore next time.



EFI.zip 4.5 MB · 1 download



I rebuilt OpenCore from scratch using OCAT instead of ProperTree.

The boot process now gets past [EB|#LOG:EXITBS:START], but I'm still not able to get into my primary Mac drive.

I can get into a rescue copy of macOS installed on an HDD, but there's no response from the keyboard or mouse, so I can't log in.

The rescue HDD isn't my primary macOS partition anyway.

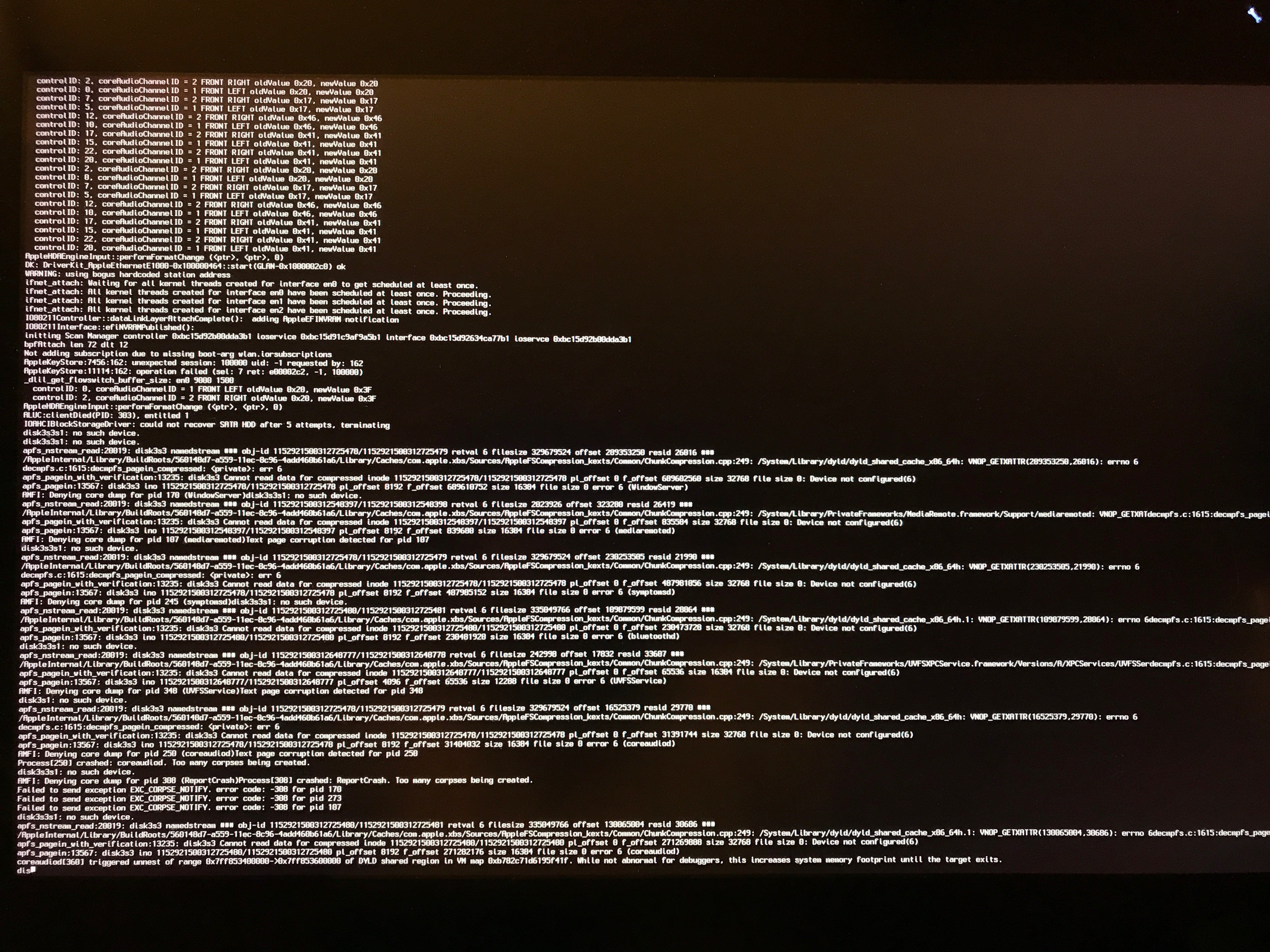

The attached screenshot shows where the boot process now gets stuck when I try booting into my macOS SSD.




In case my storage configuration is relevant, my motherboard is again the ASRock Z590 Extreme.

My Winows SSD is on a Samsung MZVPV256HDGL m.2 stick in the m2_2 slot directly in the motherboard.
My macOS SSD is on a Kingston Predator 240 GB m.2 stick in its included m.2-to-PCIE adapter in the PCIE_3 slot.
I also have five HDDs connected to all the motherboard's SATA ports except SATA3_1.



The motherboard's manual says on Page 5 that if there's an m.2 drive in slot m2_2, SATA3_1 will be disabled; I have nothing connected to it.

It also says that if m2_3 is occupied, SATA3_4 and SATA3_5 will also be disabled.

Foxy Gekkerson EFI 6-28-22.zip

[Guest 5T33Z0]

@Foxy Gekkerson



Add boot-arg amfi_get_out_of_my_way=1

Keyboard issues could be related to USB. Add this updated version of USBInject all and enable it: https://github.com/daliansky/OS-X-USB-Inject-All/releases

If this doesn't help, add OpenUsbKbDxe.efi to drivers (it's included in the OpenCore pkg)

Edited June 29, 2022 by 5T33Z0

[MaLd0n]

Use this EFI folder with some observations: EFI Foxy Gekkerson.zip

-Use USB2 port for easy installation with no remap USB
-Users with IGPU can use -igfxvesa bootarg for easy installation
-Delete old EFI folder and paste new. Don't use merge files
-Don't use Drag and Drop into EFI partition. Use Copy/Paste instead
-Reset NVRAM one time - with OpenCore use entry "Reset Nvram"



You need check about m.2 compatibility. Kingston and Samsung have some problematics m.2.

Enjoy
