Hi, i been working during the holy week on a 2006 case. i have almost everything finished, except the audio.




i have found the pinout for the connector here on this forum

Quote

MACPRO FRONTPANEL AUDIO

1 Sense



2 GND



3 Left Channel



4 Right Channel



5 (Cable Shielding) GND.


But im having a hard time to figure where are those suppose to go to on the motherboard.

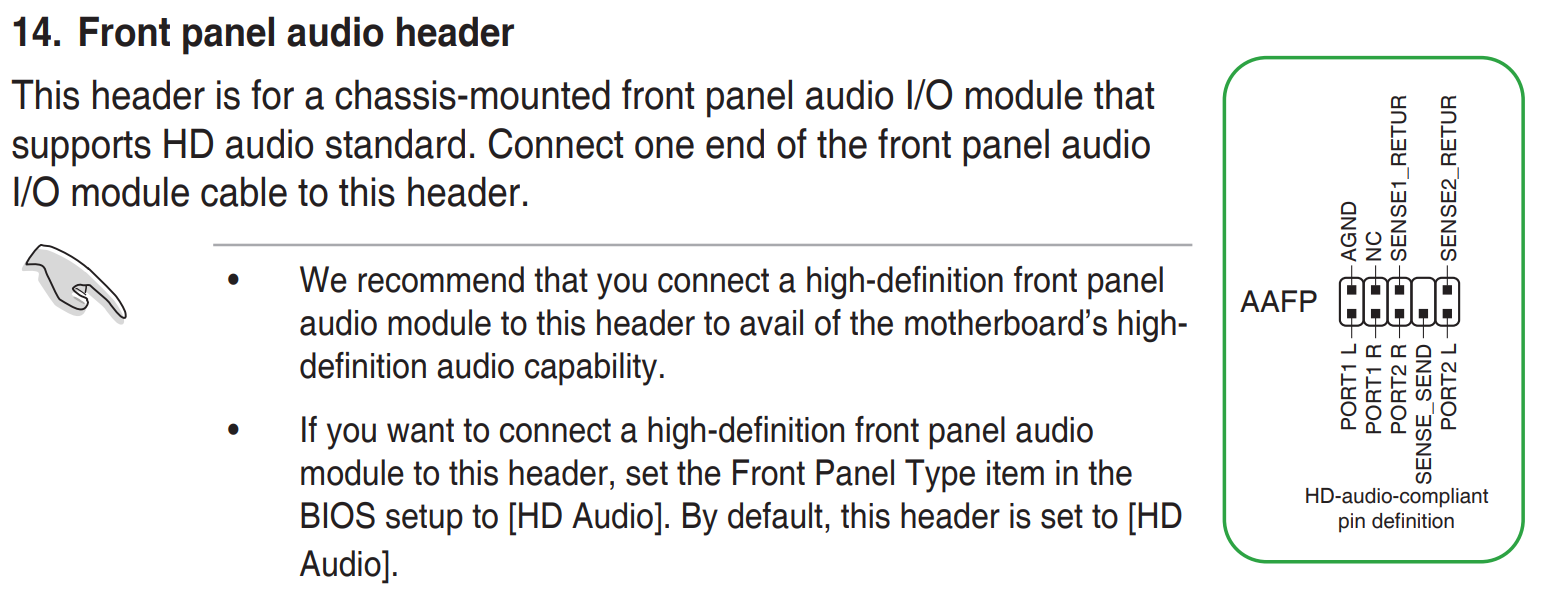

this is what the motherboard has.



So i have no idea where the pins are suppose to go to this header.
i tried this and it didnt worked at all.

1 SENSE to SENSE1_RETURN
2 GROUND to AGND

3 Left Channel to PORT1 L
4 Right Channel to PORT1 R

5 Cable Shield i left unconnected



Any ideas?
