oronfel2911 Posted March 3, 2022 Share Posted March 3, 2022 Hello, I'm New to hackintosh, i have Lenovo yoga c740-15iml 81td and want to install Catalina on it, I Created fresh USB but i can't see "Install Catalina on opencore boot menu. Lenovo yoga c740-15iml Intel Core i5-10210U Intel Graphics UHD 630 12Gb Ram Micron 2200s NVME 512GB SSD Wifi BCM94352Z No Ethernet attached my EFI and openCore txt. Please help opencore-2022-03-03-111723.txt EFI.zip Quote Link to comment https://www.insanelymac.com/forum/topic/350957-lenovo-yoga-c740-15iml-81td-wont-boot-to-catalina/ Share on other sites More sharing options...
MaLd0n Posted March 3, 2022 Share Posted March 3, 2022 use this efi folder EFI 01.zip -Delete old EFI folder and paste new. Don't use merge files -Don't use Drag and Drop into EFI partition. Use Copy/Paste instead -Reset NVRAM one time - with OpenCore use entry "Reset Nvram" / with Clover use F11 key on boot screen Quote Link to comment https://www.insanelymac.com/forum/topic/350957-lenovo-yoga-c740-15iml-81td-wont-boot-to-catalina/#findComment-2777616 Share on other sites More sharing options...
oronfel2911 Posted March 3, 2022 Author Share Posted March 3, 2022 Thank you Sir for helping, after a lot of text comes on the screen it reboots to lenovo logo to windows, does it goes to Catalina Install. Please check the video below IMG_7277.mp4.zip Quote Link to comment https://www.insanelymac.com/forum/topic/350957-lenovo-yoga-c740-15iml-81td-wont-boot-to-catalina/#findComment-2777618 Share on other sites More sharing options...
MaLd0n Posted March 3, 2022 Share Posted March 3, 2022 u need change ur nvme Quote Link to comment https://www.insanelymac.com/forum/topic/350957-lenovo-yoga-c740-15iml-81td-wont-boot-to-catalina/#findComment-2777626 Share on other sites More sharing options...

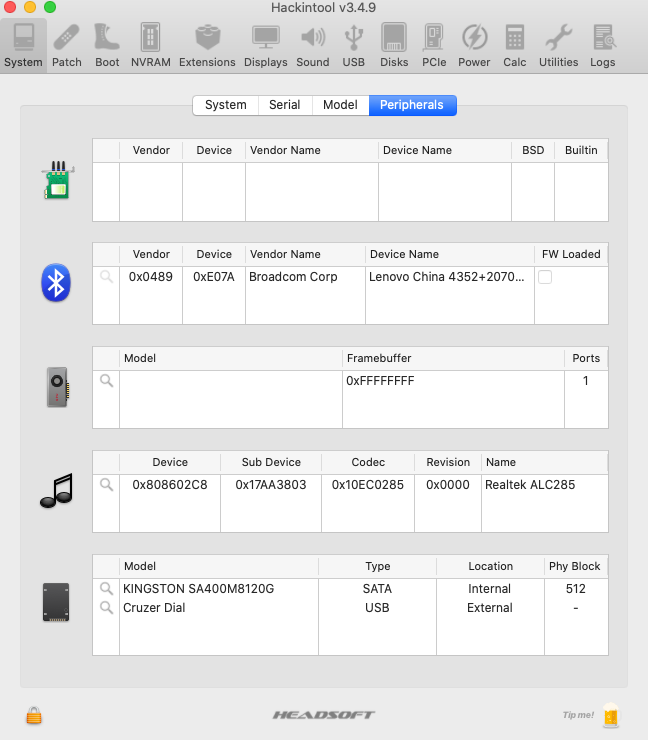

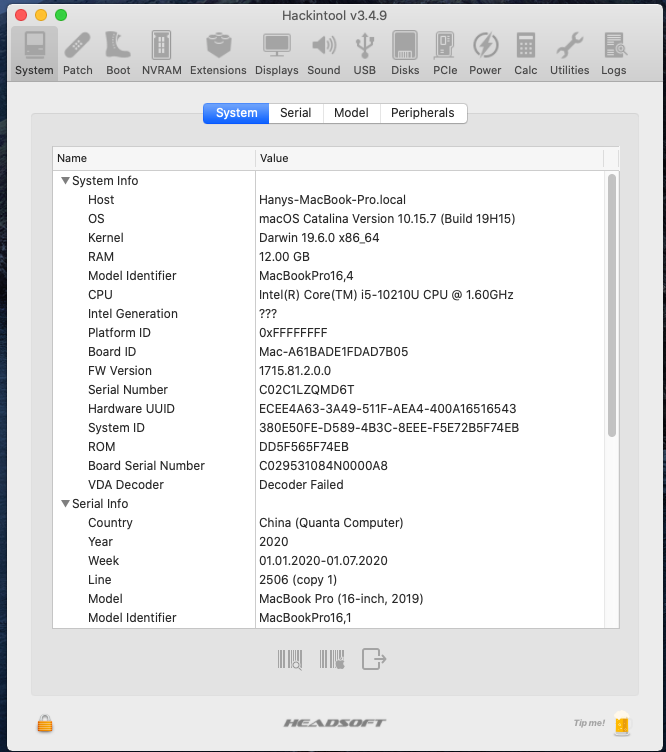

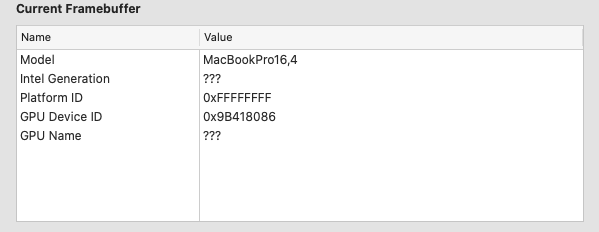

oronfel2911 Posted March 4, 2022 Author Share Posted March 4, 2022 Thank you so much, You are the saver. Finally, I got it to boot and I installed the Catalina! The problem was the SSD. NOW it boots, but the WIfi not working, the Sound is not Working, The Graphic Display 7Mb I have a wifi Card BCM94352Z The Touch Screen was working but when I Copied the EFI from USB to Colatina EFI Folde the touch screen stopped working. Please need help EFI.zip Quote Link to comment https://www.insanelymac.com/forum/topic/350957-lenovo-yoga-c740-15iml-81td-wont-boot-to-catalina/#findComment-2777653 Share on other sites More sharing options...
MaLd0n Posted March 4, 2022 Share Posted March 4, 2022 wifi use this patch in correct device Quote <dict> <key>compatible</key> <string>pci14e4,43a0</string> <key>pci-aspm-default</key> <integer>0</integer> </dict> video use this patch and remove -igfxvesa Quote <key>PciRoot(0x0)/Pci(0x2,0x0)</key> <dict> <key>AAPL,ig-platform-id</key> <data>AACSPg==</data> <key>device-id</key> <data>kj4AAA==</data> <key>enable-lspcon-support</key> <data>AQAAAA==</data> <key>framebuffer-con2-busid</key> <data>AgAAAA==</data> <key>framebuffer-con2-enable</key> <data>AQAAAA==</data> <key>framebuffer-con2-has-lspcon</key> <data>AQAAAA==</data> <key>framebuffer-con2-pipe</key> <data>EgAAAA==</data> <key>framebuffer-con2-type</key> <data>AAgAAA==</data> <key>framebuffer-patch-enable</key> <data>AQAAAA==</data> </dict> audio check link bellow https://www.olarila.com/topic/6074-guide-easy-audio-solution-with-applealc-clover-and-opencore/ Quote Link to comment https://www.insanelymac.com/forum/topic/350957-lenovo-yoga-c740-15iml-81td-wont-boot-to-catalina/#findComment-2777656 Share on other sites More sharing options...
oronfel2911 Posted March 4, 2022 Author Share Posted March 4, 2022 (edited) Thank you Sir, I Fixed the wifi and sound, now i want figure out how to add your Video Patch, using propertree, in proper tree the numbers are different, how can i match them Edited March 5, 2022 by oronfel2911 Quote Link to comment https://www.insanelymac.com/forum/topic/350957-lenovo-yoga-c740-15iml-81td-wont-boot-to-catalina/#findComment-2777665 Share on other sites More sharing options...
oronfel2911 Posted March 5, 2022 Author Share Posted March 5, 2022 I'm sorry for bothering but I tired to do it using properTree plisteditpro and doesn't work, please I need you help to fix the graphic and Bluetooth. the wifi and sound are working now. can you edit the EfI for me please EFI.zip Quote Link to comment https://www.insanelymac.com/forum/topic/350957-lenovo-yoga-c740-15iml-81td-wont-boot-to-catalina/#findComment-2777674 Share on other sites More sharing options...
oronfel2911 Posted March 5, 2022 Author Share Posted March 5, 2022 any help today? Quote Link to comment https://www.insanelymac.com/forum/topic/350957-lenovo-yoga-c740-15iml-81td-wont-boot-to-catalina/#findComment-2777696 Share on other sites More sharing options...
oronfel2911 Posted March 7, 2022 Author Share Posted March 7, 2022 Any update? Quote Link to comment https://www.insanelymac.com/forum/topic/350957-lenovo-yoga-c740-15iml-81td-wont-boot-to-catalina/#findComment-2777782 Share on other sites More sharing options...
oronfel2911 Posted March 8, 2022 Author Share Posted March 8, 2022 Can anyone help. I need to get my graphic card to work, Quote Link to comment https://www.insanelymac.com/forum/topic/350957-lenovo-yoga-c740-15iml-81td-wont-boot-to-catalina/#findComment-2777806 Share on other sites More sharing options...

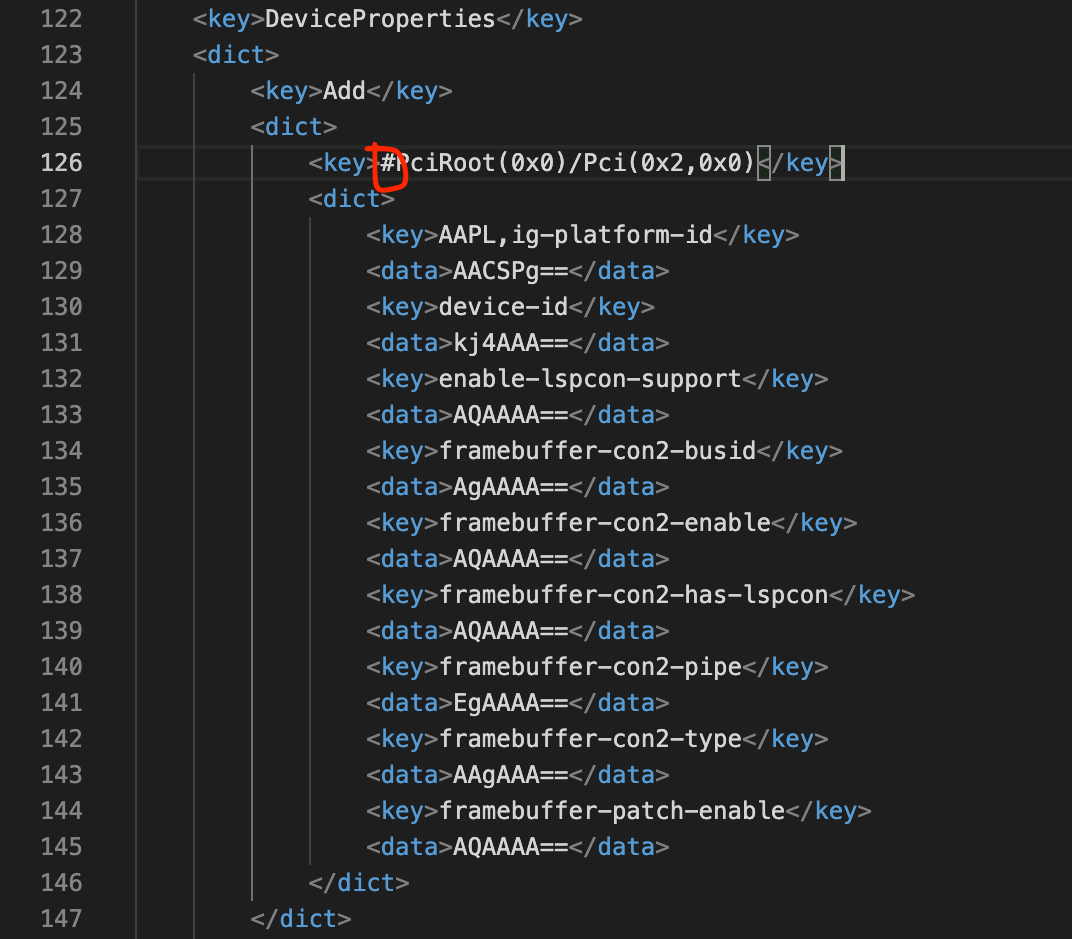

Guest Posted March 8, 2022 Share Posted March 8, 2022 (edited) EFI is incorrect. I deleted "#" that prevents graphics patches. EFI.zip Edited March 8, 2022 by vivzer0 Quote Link to comment https://www.insanelymac.com/forum/topic/350957-lenovo-yoga-c740-15iml-81td-wont-boot-to-catalina/#findComment-2777829 Share on other sites More sharing options...
