Marvell 88SE9120 and DVD drive


9 posts in this topic

Recommended Posts

Can I use the IO CREST SI-PEX40059 card (Marvell chipset 88SE9120) to connect an internal DVD drive to its SATA port on my hack?  An ASM1061 chipset controller card did not work as apparently this card does not recognize ATAPI commands. Any advice ?

1 hour ago, mboy said:

Can I use the IO CREST SI-PEX40059 card (Marvell chipset 88SE9120) to connect an internal DVD drive to its SATA port on my hack?  An ASM1061 chipset controller card did not work as apparently this card does not recognize ATAPI commands. Any advice ?

If your DVD is connect to the SATA port on the ASM1061 with that card its work We have also the  4 Channel 6-Port SATA 6Gb/S PCIe RAID Host Card Works great Monterey and Big Sur

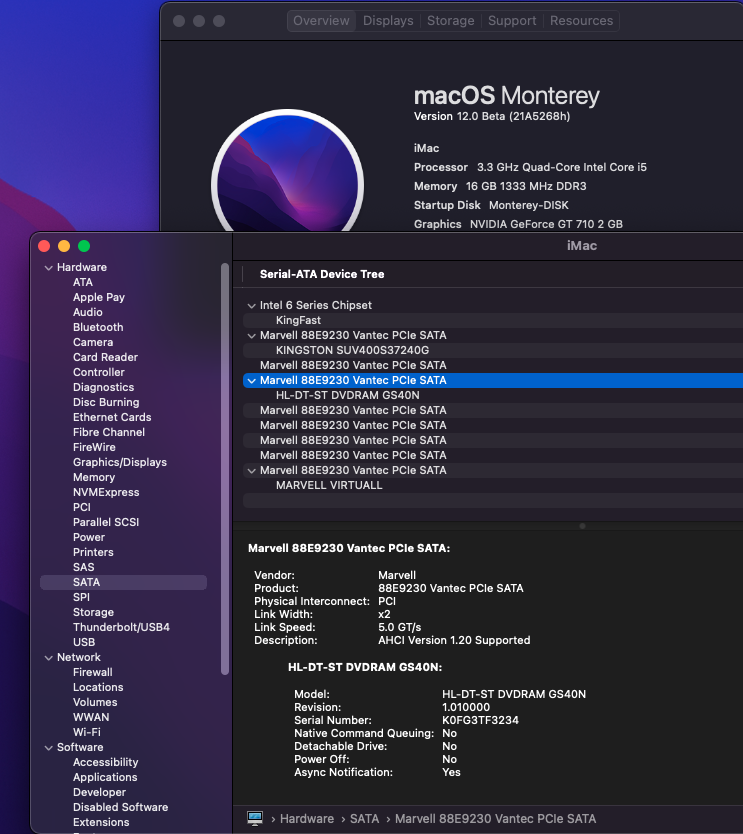

See DVDRAM GS40N connect to the SATA on the Vantec card




2131011745_ScreenShot2021-07-18at10_50_30AM.thumb.png.b1d86700002291b5e2fd1b23a890800f.png

Edited by chris1111
  • Like 1

I am using the SY-PEX40039 card you mentioned.  The eject button does not work.  Roxio Toast Titanium crashes on start-up.  Burn application causes the system to freeze after a DVD is inserted in the drive.  I believe this

is a know problem with this storage controller card.  I was wondering if anyone has success with a Marvell chipset card.

23 minutes ago, mboy said:

I am using the SY-PEX40039 card you mentioned.  The eject button does not work.  Roxio Toast Titanium crashes on start-up.  Burn application causes the system to freeze after a DVD is inserted in the drive.  I believe this

is a know problem with this storage controller card.  I was wondering if anyone has success with a Marvell chipset card.

I dont have any issue with that card on my DVD the eject Button works good

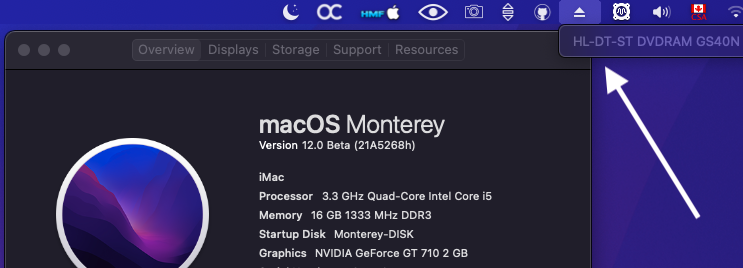

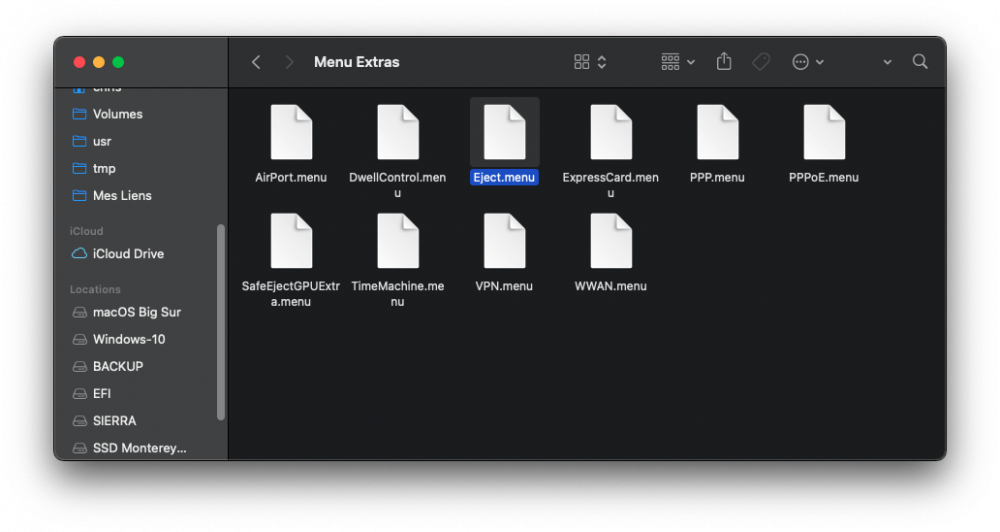

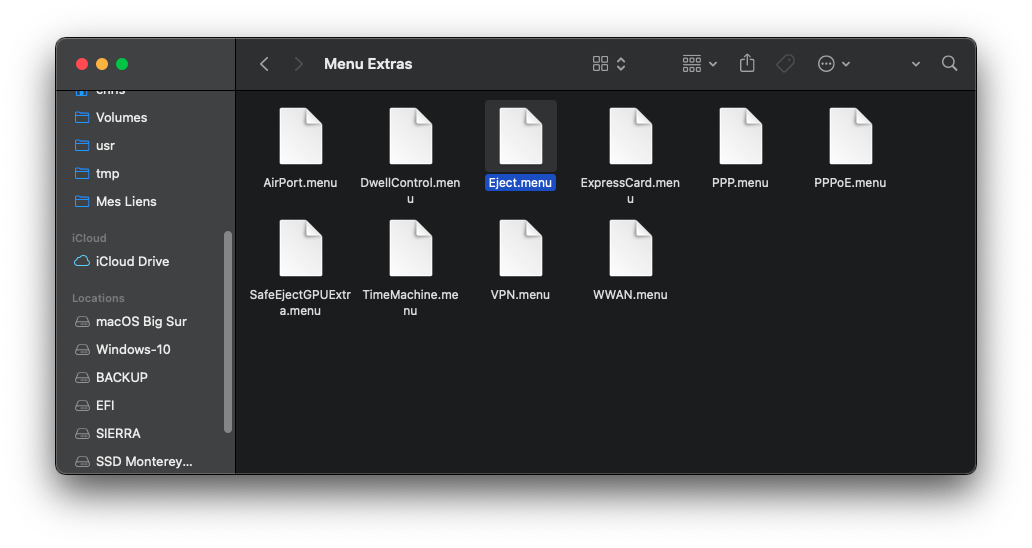

you have to copy on desktop /Sytem/Library/CoreServices/Menu Extras/ Eject.menue

And double clic to see the Eject.menue on the bar



What is the DVD Writer?



1976155130_ScreenShot2021-07-18at11_41_09AM.thumb.png.db67d3aaa835fa4600f49eda62d8a613.png

Edited by chris1111
  • Like 1

the DVD writer is an  LG HL-DT-ST DVD-RAM GU90N drive.  The eject button appears in the menu bar but doesn't open the drive.  The DVD drive works in Windows 10 on this computer.

1 minute ago, mboy said:

the DVD writer is an  LG HL-DT-ST DVD-RAM GU90N drive.  The eject button appears in the menu bar but doesn't open the drive.  The DVD drive works in Windows 10 on this computer.

LG HL-DT-ST DVD-RAM GU90N is a Slim DVD  you need A dvd inside the DVD Writer to eject the DVD :lol:

  • Like 1

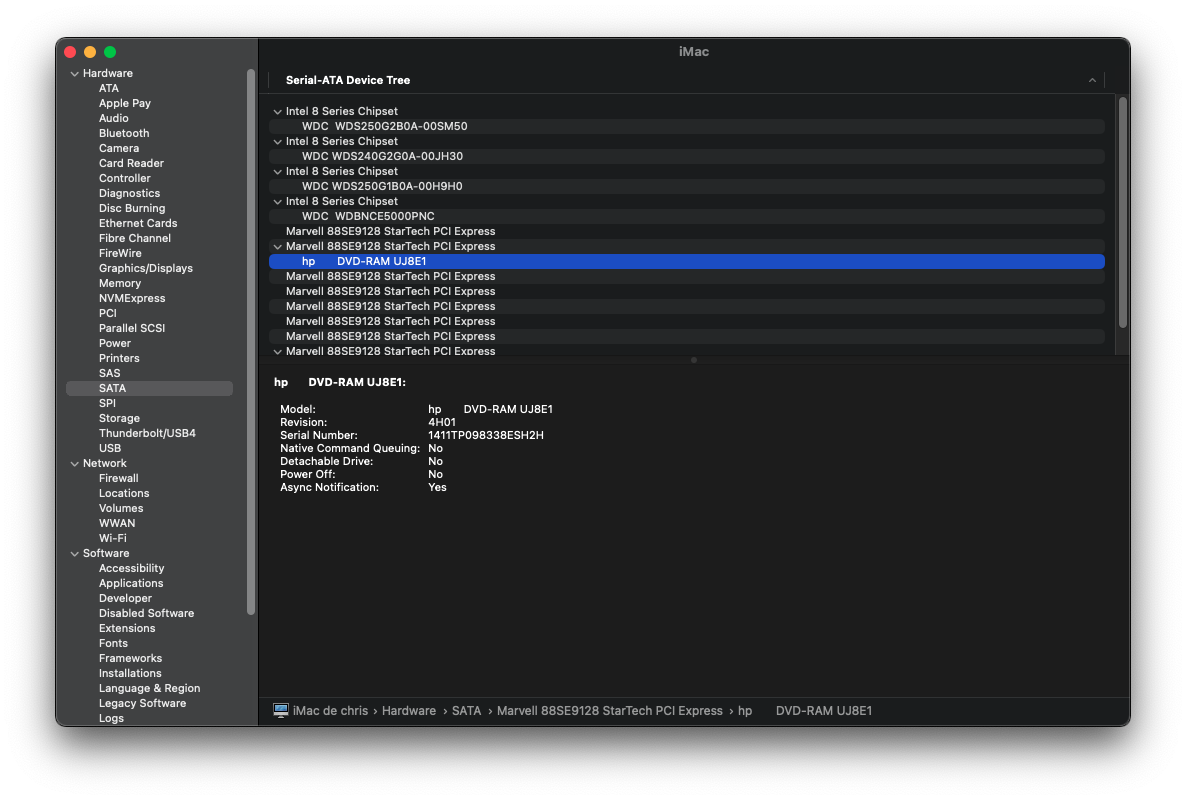

The best choice is   4 Channel 6-Port SATA 6Gb/S PCIe RAID Host Card also I use that one  StarTech.com PEXSAT32 on Monterey on my Main System works also on Big Sur and lower macOS



551652440_ScreenShot2021-07-18at12_52_36PM.thumb.png.44a89166f2ddcfdbe990e680232c4c28.png



I no longer have SY-PEX40039 it to test it, I had it a long time ago and I think it worked well in Yosemite unless I got the wrong card, I had so many and currently I have three working well

Edited by chris1111
I no longer have SY-PEX40039
  • Like 1
On 7/20/2021 at 11:54 AM, mboy said:

Would the IO CREST SI-PEX40059  card with a Marvell 88SE9120 work ? https://www.amazon.com/IO-Crest-SI-PEX40059-6Gbps-ATA133/dp/B00BI4Z4H6    I am hoping the Marvell chipset can recognize the ATAPI commands from my internal DVD drive.

Dont know never see that card ?

×
×
