New Asus Z590 Prime-Plus -- UHD 630 -- no iGPU output

[rockhard301]

Hello everyone



I had the bad idea to build a new system with the new z590 mobo + i5 10400 and I can't make the iGPU UHD 630 to work, I tried every device id and method know in my 8 years of hackintosh, the best I was able to do it was able to boot with display output and showing 14mb vram. The same CPU paired with an Z490 worked fine showing hardware acceleration.

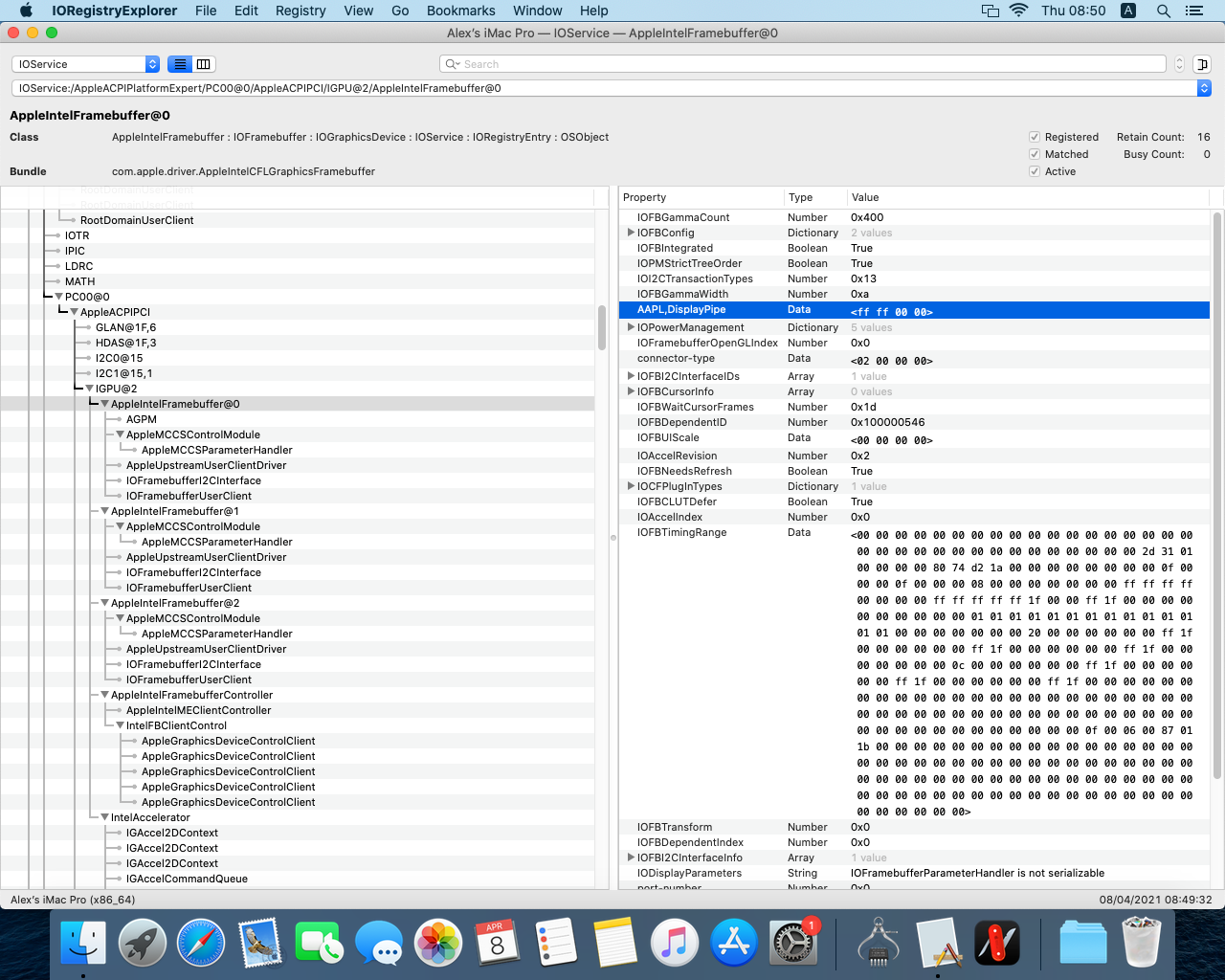

If I boot with the correct iGPU device injection 07009B3E and device id 9B3E0000 the system boot with a black screen and when I connect remotely I can see in the IORegistry that the iGPU didnt recognized the display and the display pipe is show zero.



My build: Asus Z490M Prime-Plus, i5 10400, 8 GB DDR3 3200Mhz, it has 3 video output : DP,HDMI and DVI and I am using Open Core.



I attached my IOReg and ACPI dump.



Maybe someone have an idea how to patch this new mobo and make the iGPU output to work.



ACPI.zip

Edited April 7, 2021 by rockhard301
Typo

[miliuco]

39 minutes ago, rockhard301 said:

Hello everyone



I had the bad idea to build a new system with the new z590 mobo + i5 10400 and I can't make the iGPU UHD 630 to work, I tried every device id and method know in my 8 years of hackintosh, the best I was able to do it was able to boot with display output and showing 14mb vram. The same CPU paired with an Z490 worked fine showing hardware acceleration.

If I boot with the correct iGPU device injection 07003E9B and device id 9B3E0000 the system boot with a black screen and when I connect remotely I can see in the IORegistry that the iGPU didnt recognized the display and the display pipe is show zero.



My build: Asus Z490M Prime-Plus, i5 10400, 8 GB DDR3 3200Mhz, it has 3 video output : DP,HDMI and DVI and I am using Open Core...

Please complete your signature (user profile) with the data of your machine.

You say "iGPU device injection 07003E9B" but it isn't 07009B3E instead of 07003E9B as AAPL,ig-platform-id?

I think device-id is not necessary, I'm not sure.

Do you have you framebuffer-patch-enable Data 01000000 and framebuffer-stolenmem Data 00003001 in config.plist?



Edited April 7, 2021 by miliuco

[rockhard301]

2 hours ago, miliuco said:

Please complete your signature (user profile) with the data of your machine.

You say "iGPU device injection 07003E9B" but it isn't 07009B3E instead of 07003E9B as AAPL,ig-platform-id?

I think device-id is not necessary, I'm not sure.

Do you have you framebuffer-patch-enable Data 01000000 and framebuffer-stolenmem Data 00003001 in config.plist?





Thank you very much for the reply.



It was a typo... and Yes I tried different patches from whatevergreen documentation and also using headless injection.

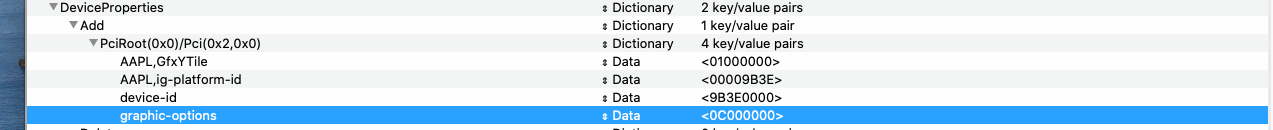

AAPL,ig-platform-id tried: 07009B3E, 00009B3E, 0000923E,0000A53E.

The same ones works on my old Z490 but not on the new Z590.



I think there's work to be done mapping the connectors. There's an app called Hackintool that does it easily but no luck.



I can remotely connect to the mac because the video output is not working. If I remove the device properties injection it boots with video output but without hardware acceleration and 14 mb vram.







Edited April 7, 2021 by rockhard301
Typo

[miliuco]

@rockhard301

Please read this, I don’t know if it can help.

[rockhard301]

I updated the motherboard with a new bios and OpenCore to 0.6.8 and the same situation.

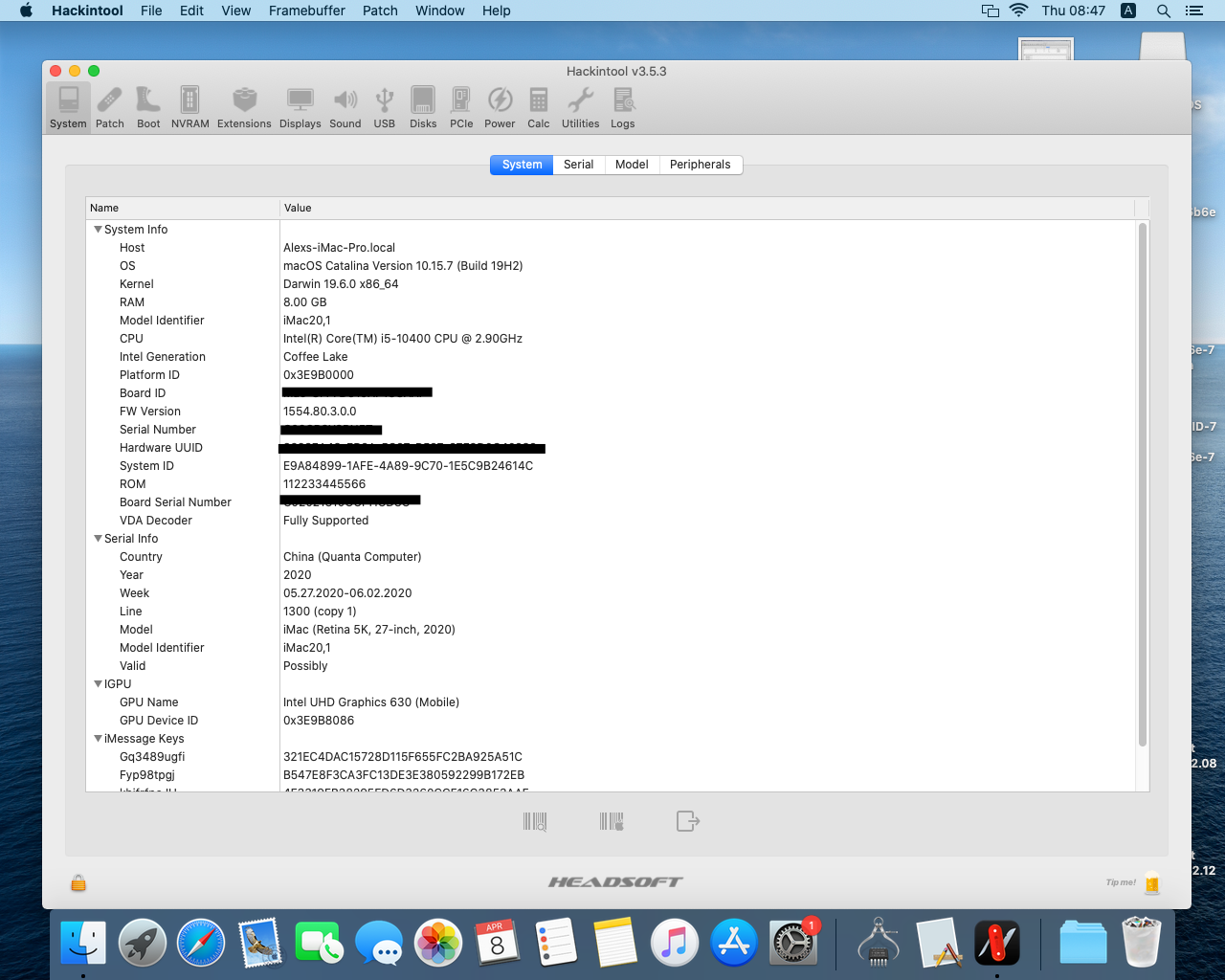

Using screen sharing I can see that the video decoder is fully supported.



No luck with other ids from that link.





.

Edited April 8, 2021 by rockhard301
typo

[rockhard301]

I was reading the Linux forums and everyone using a new Z590 mobo is experiencing a black screen with IGPU on Ubuntu.

[LuisImpreza]

On 4/7/2021 at 5:32 PM, miliuco said:

@rockhard301

Please read this, I don’t know if it can help.



I will soon have an Asus Z590-P too, to see if things are coming out because I see that Hackintosh is lagging a bit behind at the component level ... Thanks for your web partner

Edited May 12, 2021 by Allan
English please!

[miliuco]

8 hours ago, LuisImpreza said:



I will soon have an Asus Z590-P too, to see if things are coming out because I see that Hackintosh is lagging a bit behind at the component level ... Thanks for your web partner



But the iGPU of the Z500 motherboard series doesn't work in macOS and probably it will not do it. A dGPU is required.

[LuisImpreza]

5 hours ago, miliuco said:



But the iGPU of the Z500 motherboard series doesn't work in macOS and probably it will not do it. A dGPU is required.



Not need internal GPU, I have My RX580

[miliuco]

18 hours ago, LuisImpreza said:



Not need internal GPU, I have My RX580



Me too

[sash11]

On 4/9/2021 at 8:50 AM, rockhard301 said:

I was reading the Linux forums and everyone using a new Z590 mobo is experiencing a black screen with IGPU on Ubuntu.

Try boot argument igfxonln=1 as per https://dortania.github.io/GPU-Buyers-Guide/misc/bootflag.html#intel-boot-arguments

[Arielle52]

On 4/7/2021 at 11:01 PM, rockhard301 said:



Thank you very much for the reply.



It was a typo... and Yes I tried different patches from whatevergreen documentation and also using headless injection.

AAPL,ig-platform-id tried: 07009B3E, 00009B3E, 0000923E,0000A53E.

The same ones works on my old Z490 but not on the new Z590.



I think there's work to be done mapping the connectors mutuelles senior. There's an app called Hackintool that does it easily but no luck.



I can remotely connect to the mac because the video output is not working. If I remove the device properties injection it boots with video output but without hardware acceleration and 14 mb vram.







But we can also consider updating this automatically, can't we?

[王艺霖]

Hi, I have the same issue.

Just wondering if you have solved it?



[Manvendra Singh]

On 5/12/2021 at 6:36 AM, LuisImpreza said:



I will soon have an Asus Z590-P too, to see if things are coming out because I see that Hackintosh is lagging a bit behind at the component level ... Thanks for your web partner

Hi were you able to setup on Asus Prime Z590-P,  I also have same motherboard and using 10700k, but no Graphics Card. I am getting broken letters on screen right after 2 mins during installation of BigSur.

[kaoskinkae]

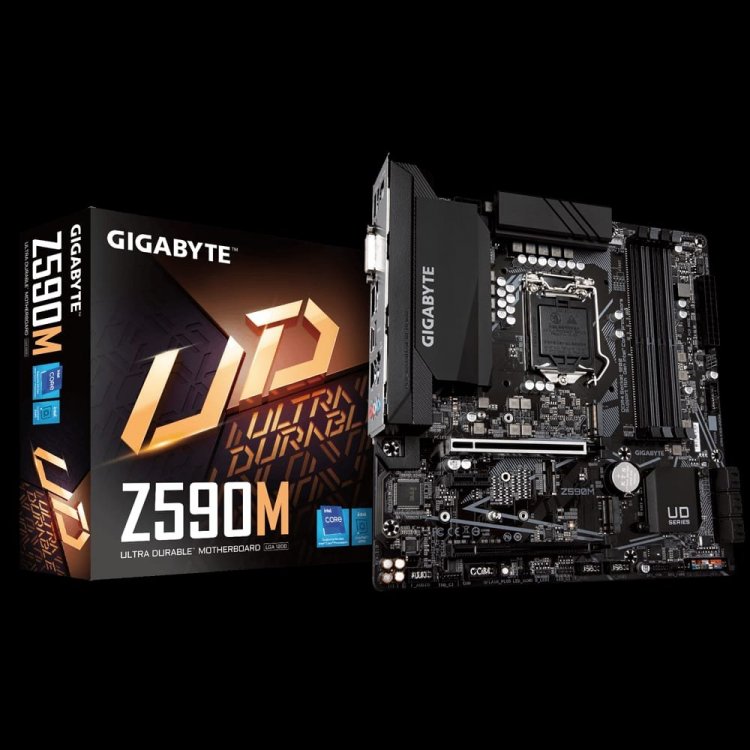

Gigabyte 590M Very rare what happens with this motherboard a Gigabyte Z590M that there is no documentation on it from Hack and an i9 10850K processor After profiling the EFI and also testing several EFIs the installation process was impossible but it was used the installation method on other equipment. The problem is the two phases of starting the system, the second part, the HDMI monitor runs out of video signal, tested the processor's own PCI with the same result.
