CPU: skylake Intel Core i7-6700HQ 2.6-3.5 GHz
Model: Gigabyte P15FV5
Memory 16 GB (2 x 8 GB) DDR3-1600 Memory
Video Card: Intel HD530 + NVIDIA GTX 950M
Dual boot Microsoft Windows 10 Pro



Working

  • Battery
  • Sleep
  • QE/CI
  • Keyboard
  • Display Internal, and work with HDMI and VGA monitor external
  • USB 2.0/3.0
  • Speakers and internal mic (ALC296 Layout id 6)
  • WebCam
  • HDMI
  • Ethernet
  • Bluetooth
  • iMessage, FaceTime, etc..

Not Working

  • Wifi (Realtek RTL8723BE) replace with Boardcom - BCM4532
  • SD Card Reader
  • sometime awake doesn't work

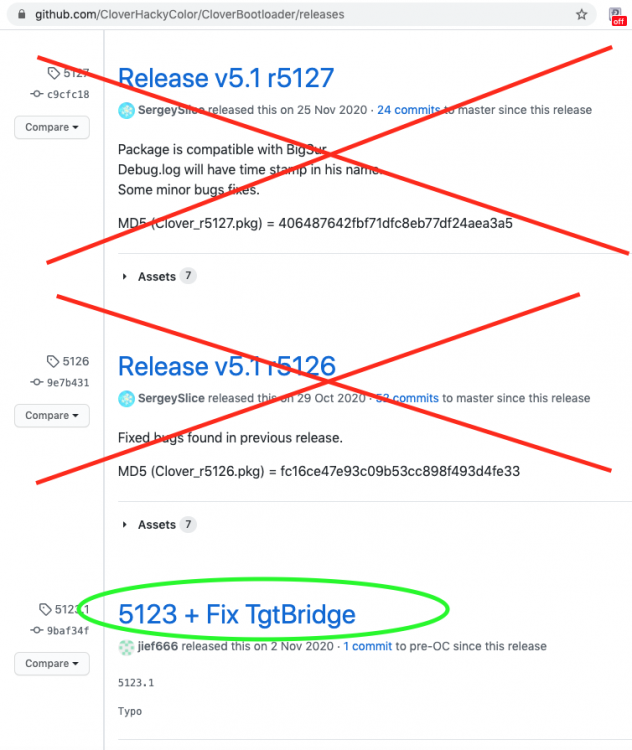

Create USB with CloverBootloader  version < 5123. It doesnt work with Opencore or CloverBootloader version >= 5124 ('cos CloverBootloader integrated OpenCore)



https://github.com/CloverHackyColor/CloverBootloader/releases



322878694_Screenshot2021-01-30at19_49_52.thumb.png.0d704f210a2ed614c911f02da0074069.png



Press F4 When boot clover to get ACPI / origin.

https://www.tonymacx86.com/threads/guide-patching-laptop-dsdt-ssdts.152573/

convert to dsl  and keep this file

  • DSDT.dsl
  • SSDT-2-GBTUACPI.dsl
  • SSDT-5-GBTUACPI.dsl
  • SSDT-0-GBTUACPI.dsl
  • SSDT-1-GBTUACPI.dsl
  • SSDT-3-GBTUACPI.dsl
  • SSDT-4-GBTUACPI.dsl
  • SSDT-UIAC.dsl

another files you can remove.



Open  MaciASL to Patch and apply the following patches

  • [syn] Rename _DSM methods to XDSM
  • [sys] Fix _WAK Arg0 v2
  • [sys] Fix _WAK IAOE
  • [sys] Fix Mutex with non-zero SyncLevel
  • [sys] Fix PNOT/PPNT
  • [sys] IRQ Fix
  • [sys] OS Check Fix (Windows 8)
  • [sys] SMBUS Fix
  • [sys] Skylake LPC
  • [usb] USB3_PRW 0x0D Skylake (instant wake)


Click Compile and if you have any errors (warnings don’t matter) clear them by using the patching guide above. Save the file as: DSDT.aml and file format: ACPI Machine Language Binary.


Use Clover Configurator to download kext to /EFI/CLOVER/kexts/Other

  • FakePCIID_Intel_HDMI_Audio.kext
  • AppleALC.kext
  • FakeSMC.kext
  • ApplePS2SmartTouchPad.kext
  • Lilu.kext
  • RealtekRTL8111.kext
  • USBInjectAll.kext
  • WhateverGreen.kext

If you use BCM4532 so you can add kext

  • AirportBrcmFixup.kext
  • BrcmBluetoothInjector.kext
  • FakePCIID_Broadcom_WiFi.kext
  • BrcmFirmwareData.kext
  • FakePCIID.kext



download kext to /EFI/CLOVER/kexts/10.15

  • BrcmPatchRAM3.kext

remark: don't download VirtualSMC.kext it doesn't work I don't know why

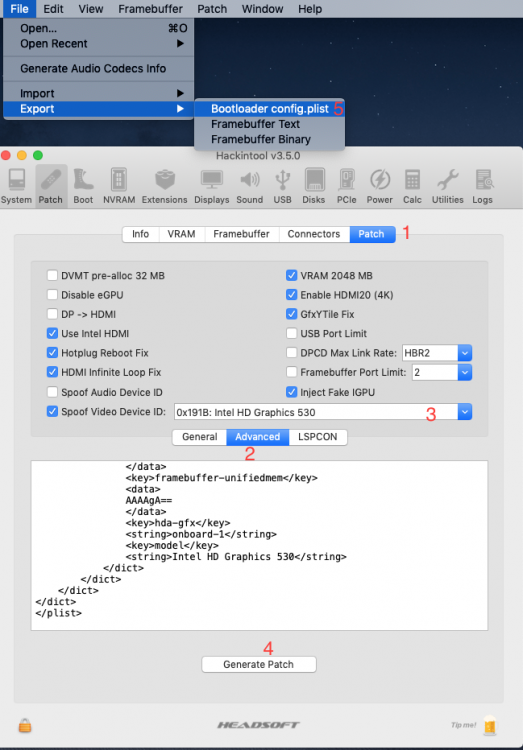

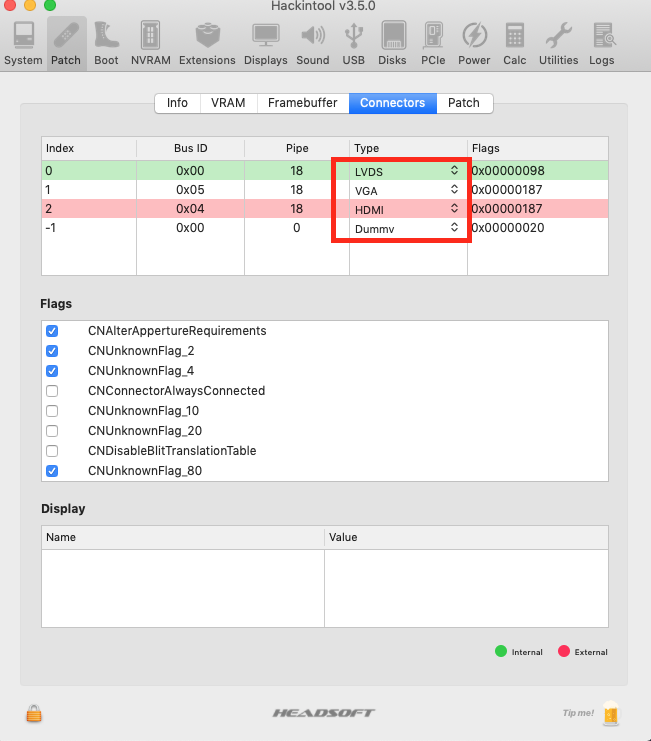

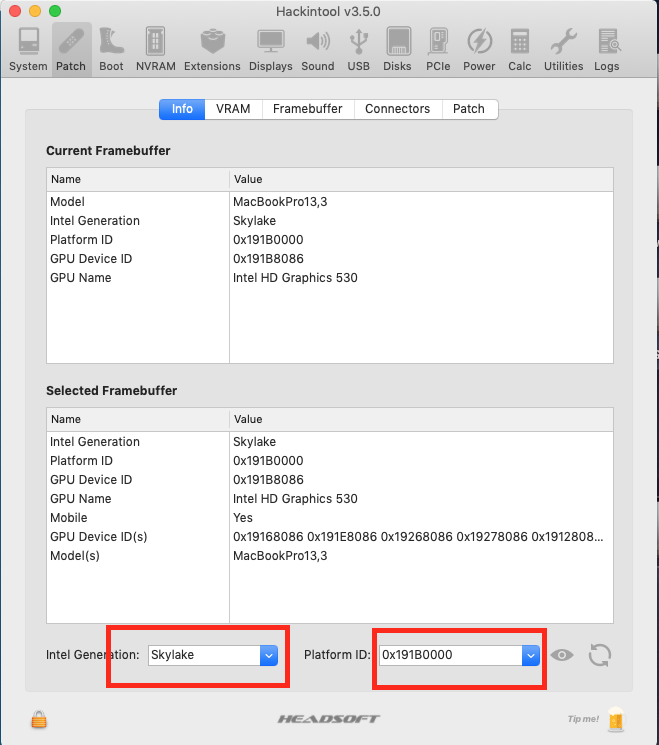

Use Hackintool version 3.5.0 to generate patch to config.plist (I have no idea why newer version 3.5.1 - 3.5.3 doesn't work when we want generate patch )









1080782990_Screenshot2021-01-30at20_20_11.thumb.png.808035a9632242cc622127cd4daaee99.png

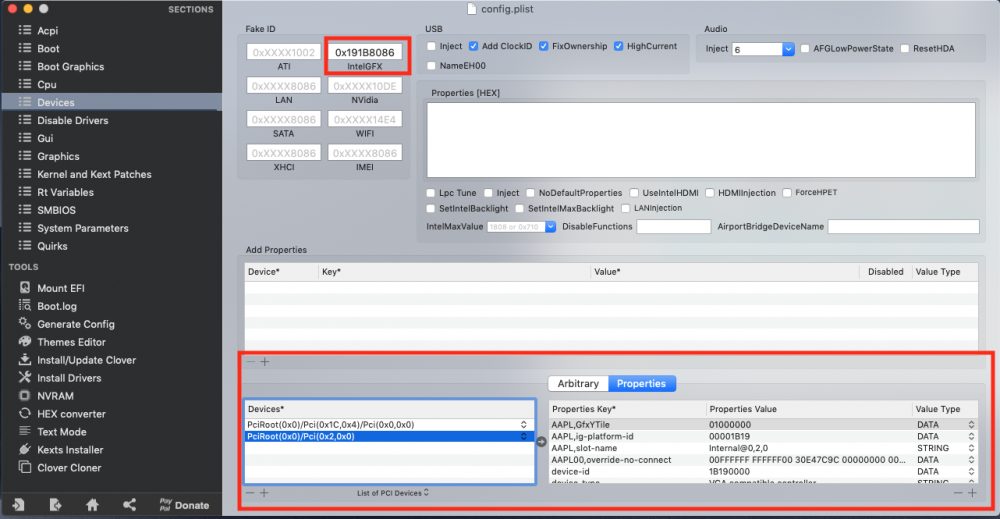

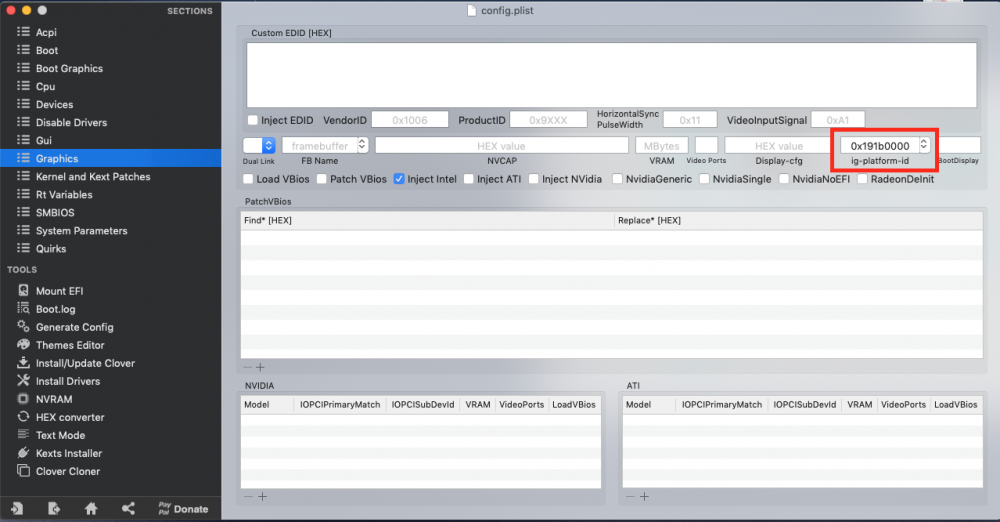

check config.plist with clover configurator. You can just keep PciRoot(0x0)/Pci(0x2,0x0) In Devices* another lines we can remove

144881708_Screenshot2021-01-30at20_38_52.thumb.png.02e95c008e134fa7036fb0605deabb1f.png

1953199804_Screenshot2021-01-30at20_44_04.thumb.png.fb63ccc7cf8267caf496b4eaffb2f259.png

SMBIOS get profile of MacBookPro13,3



You can download My EFI (I removed folder theme)



EFI Gigabyte P15fv5.zip

Edited by lazzy

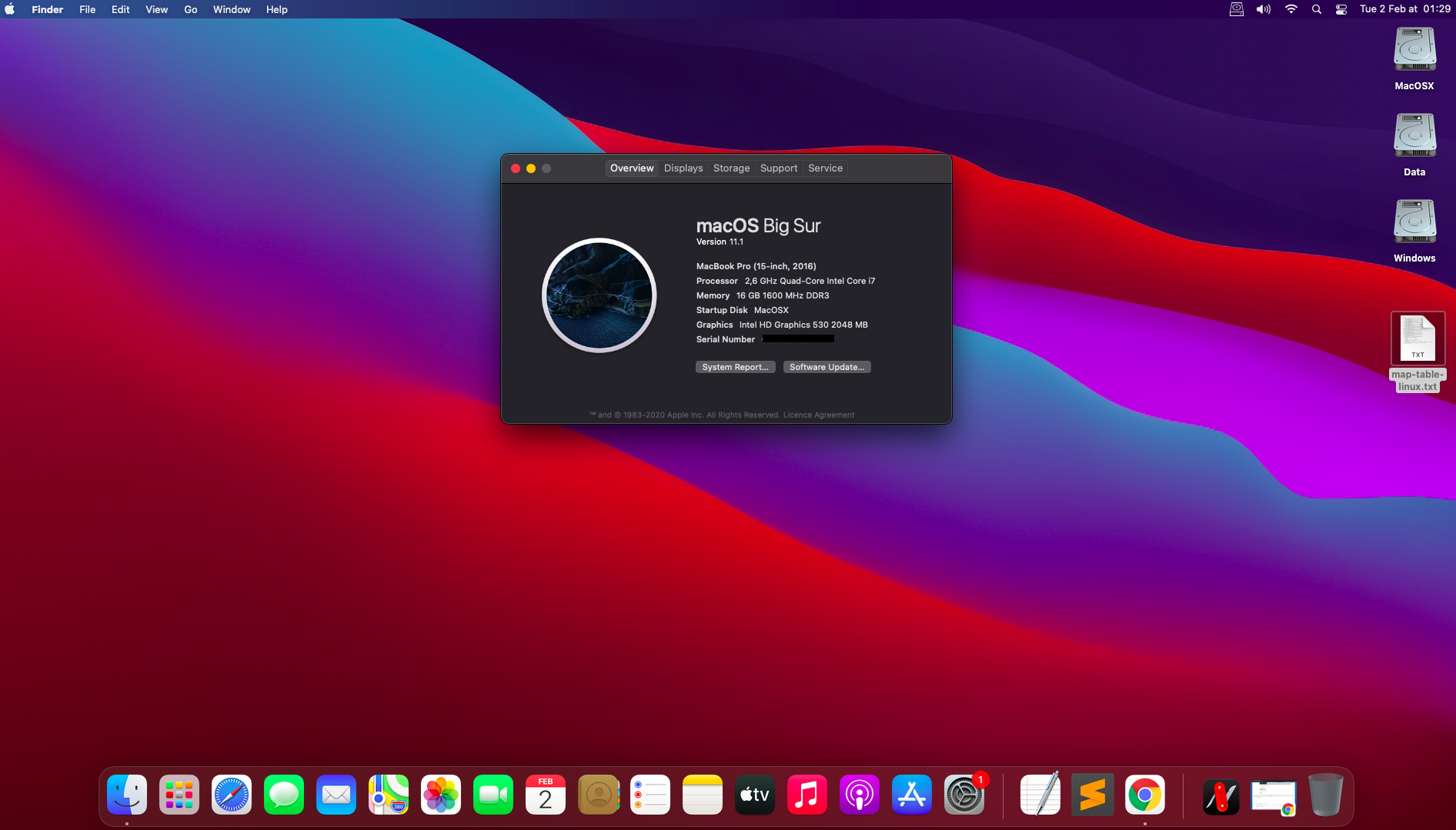

Big sur + Opencore

72920306_Screenshot2021-02-02at01_29_24.thumb.png.e9b40046e6d93fc7c7dc98f833bfb200.png



I find this combo more stable than the catalina + cloverbootloader

elan mouse is not working in boot loader



hotkey Fn +F8, Fn+F9 for control brightness doesn't work

tested 2days it works stable i'm so happy



Here is my efi opencore 0.6.6 (you must copy Ressources into EFI>OC>. I removed 'cos it's so heavy for upload here)









EFI Opencore Gigabyte P15FV5.zip

Edited by lazzy
update opencore 0.6.6
×
×
