Sony Vaio NVIDIA GT540M OpenCore Inject Nvidia Black Screen Error

2 posts in this topic

Recommended Posts

Hello to everyone with clover bootloader installed on macos sierra. When I try to run it with opencore bootloader the image turns black after the verbose screen. I tried it from the hdmi port in the same way. but I can connect to vnc. 1 minute after connecting with vnc the computer hangs. I will be glad if you help.

i am using legacy bios. i don't have uefi on my computer.

ioservice export clover boot loader.


Specs Page:



Sony Vaio VPCF22S1E

Intel® Core™ i7-2630QM

Sony Geforce GT 540M 1GB

8GB DDR3 1333 Memory




IOServiceSonyClover.zip opencore.zip

On 1/11/2021 at 3:13 AM, Cerbereus said:

My device is not optimus. single gpu.

I solved the nvidia problem by looking at the reg file I received from clover, adding to the opencore device property. there is currently no problem with the image. It works including the hdmi port.


but now there is a problem like the device does not see smbios and memory. I tried many smbios but didn't get any results.


How should I go about it?


Thank you.

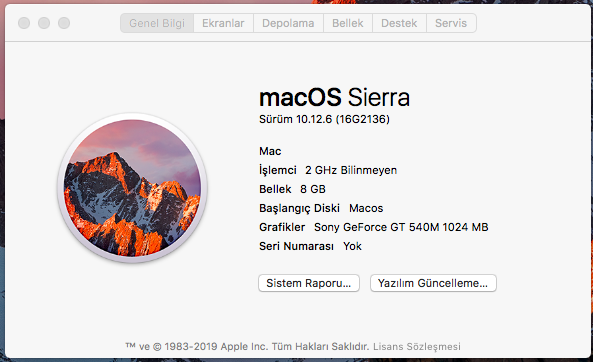

Ekran Resmi 2021-01-10 23.10.30.png

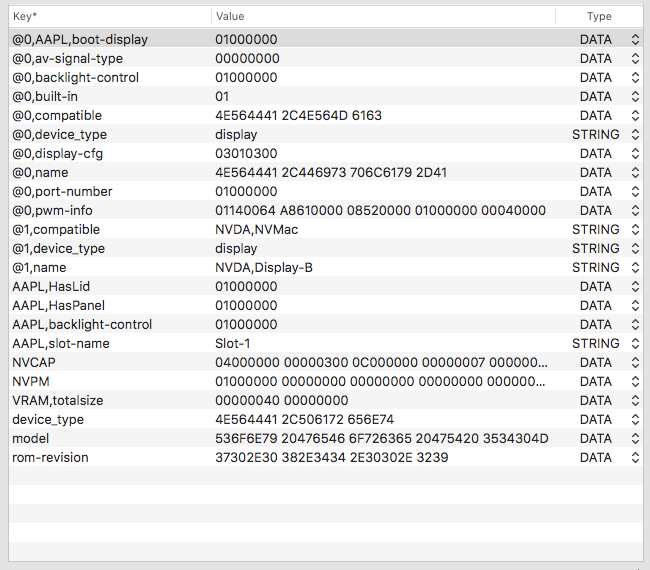

Ekran Resmi 2021-01-10 23.11.08.png

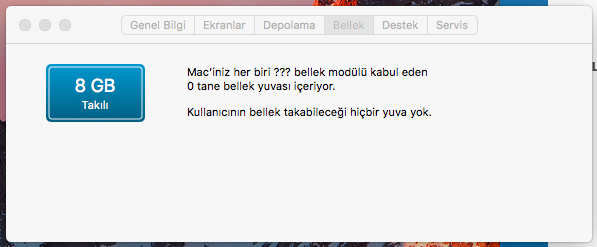

Ekran Resmi 2021-01-10 23.11.27.png

config.plist 31.79 kB · 2 downloads

Where did you get the value of GT 540M in device properties?
